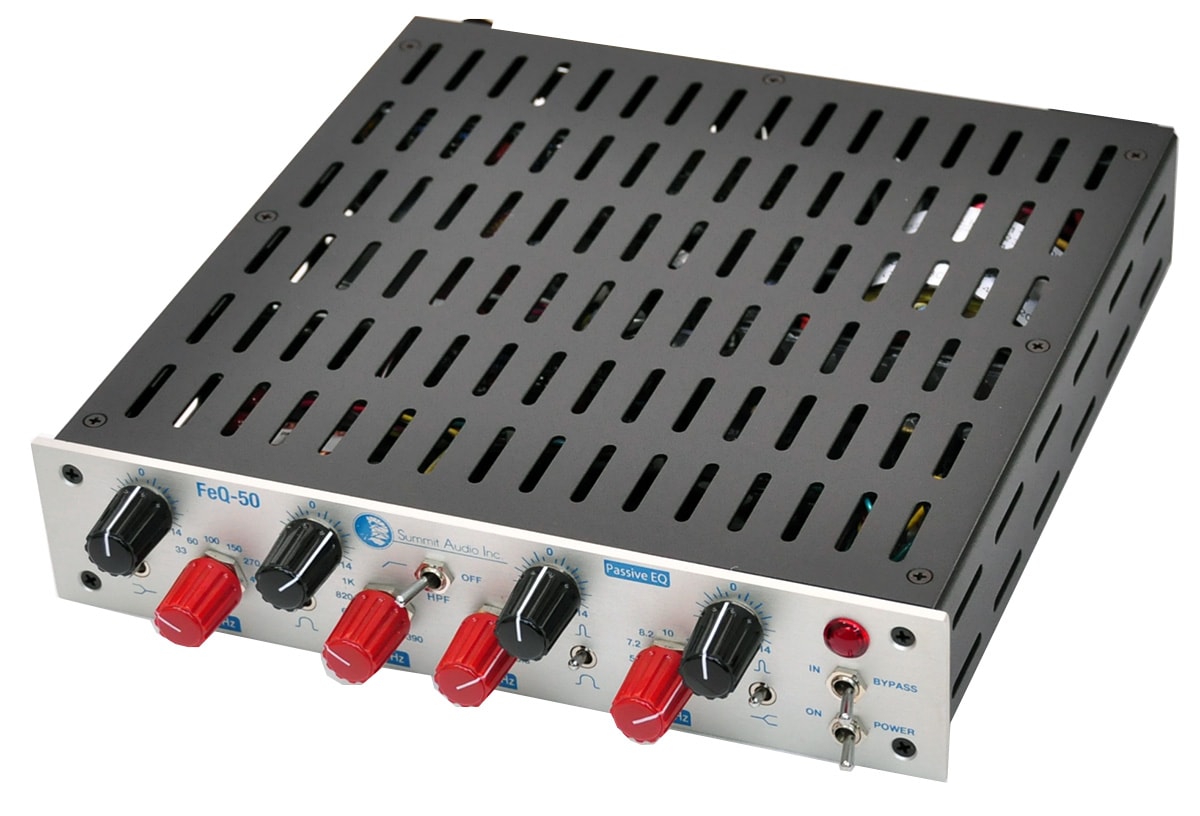

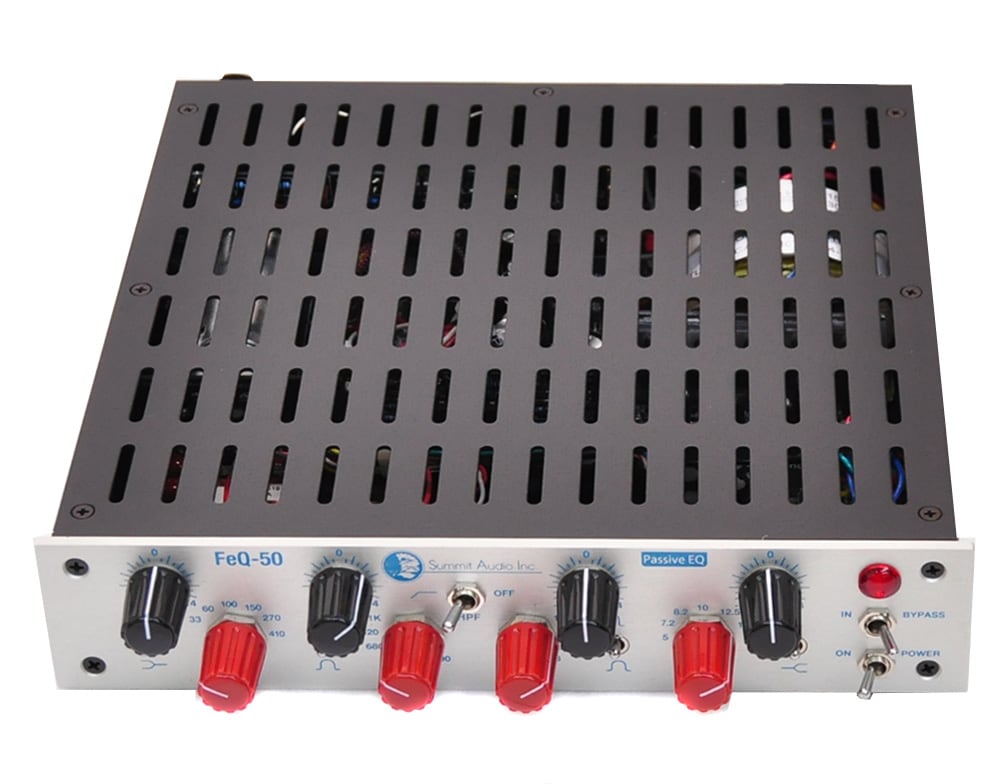

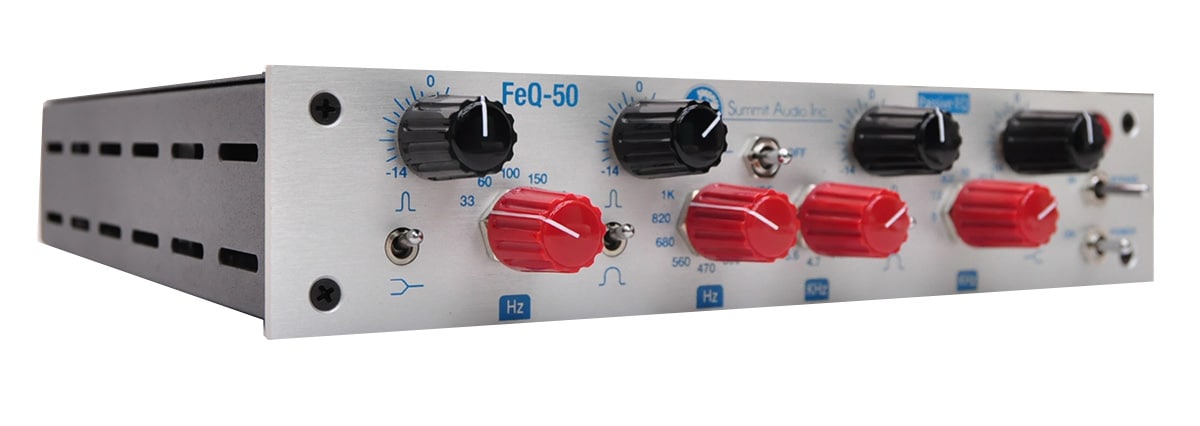

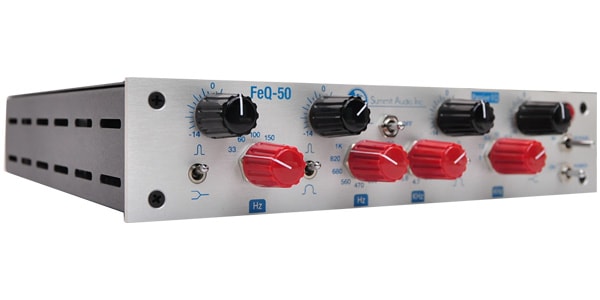

SUMMIT AUDIO / FEQ-50

By SUMMIT AUDIO, famous for its vacuum tube processors, a simple and high-quality 4-band parametric equalizer has been introduced. Each band can be selected from 6 frequencies and 2 types of Bandwidth. The output can be solid and tube at the same time, and corresponds to various situations. The half-rack series is also handmade in the USA's own studio using the highest quality parts.

■ 4-band parametric passive equalizer
■ Single channel
■ Equipped with one 12AX7A / ECC83 vacuum tube
■ 6 frequency ranges selectable for each band, gain that can be boosted / cut at ± 14 dB
■ Two MIDs, Bandwidth can be selected from Wide and Narrow
■ LOW and HIGH can be selected from Peak or Shelf
■ High pass filter, 30dB / Oct, bypass possible

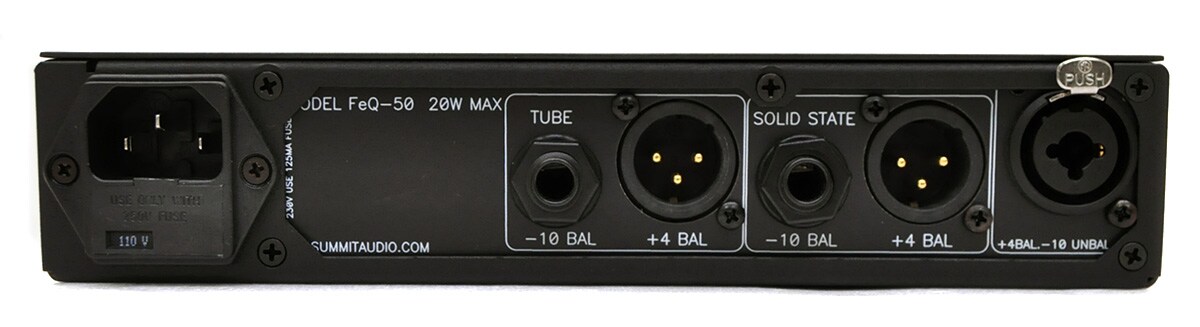

■ XLR-balanced, phone-unbalanced input combo jack
■ + 4dB XLR-balance, -10dB TRS phone-balance output

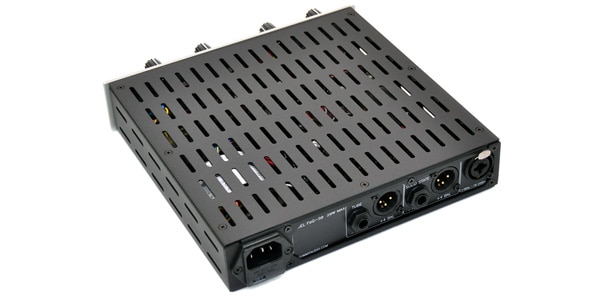

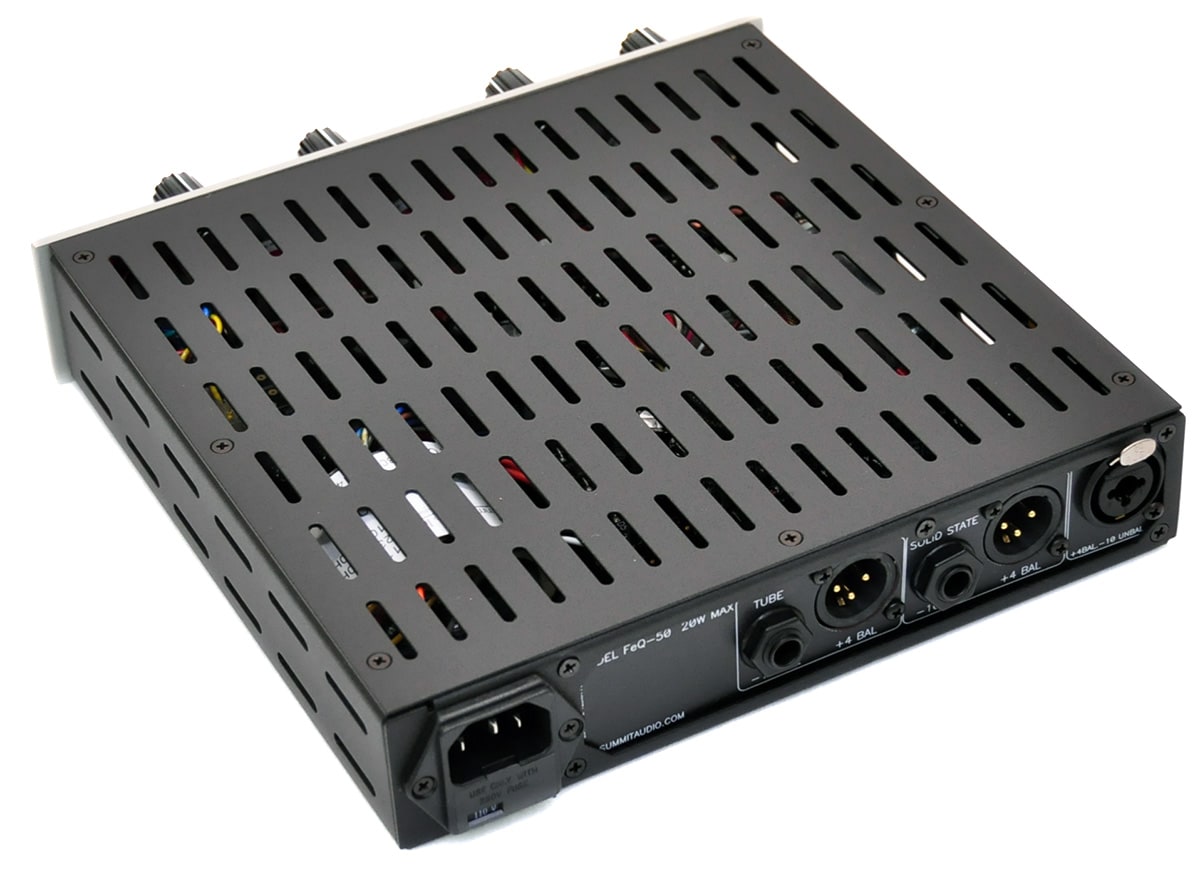

■ Two types of tube and solid state outputs, up to four simultaneous parallel outputs possible
■ Master bypass function
■ Internal high voltage power supply
■ Made in USA
■ No.2 hot

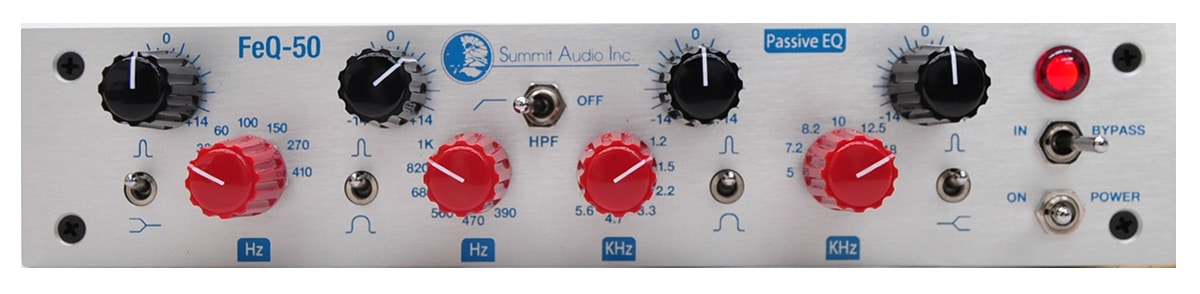

[Frequency of each band]
Low: 33/60/400/150/270 / 410Hz
Low Mid: 390/470/560/680 / 820Hz / 1kHz
High Mid: 1.2 / 1.5 / 2.2 / 3.3 / 4.7 / 5.6kHz
High: 5 / 7.2 / 8.2 / 10 / 12.5 / 18kHz

【setup】
① Turn GAIN to select the band you want to adjust.
② Set Bandwidth to Narrow.
③ Set the frequency band to the center and set GAIN to 0.
④ Select the frequency band you want to adjust and boost or cut GAIN.
⑤ If you want a more natural sound, select Wide for Bandwidth.
⑥ Adjust other bands in the same way.
■ Robust design: Summit Audio products are always assembled while considering the overall design. The attention to detail and the many improvements have made it durable enough to withstand even the toughest tours. That's why Summit Audio products are used by top artists around the world.
■ Made In USA: All Summit Audio products are handmade using the highest quality parts. The quality of the parts and the know-how of the technicians are the factors that determine the sound quality and the durability of the product.
