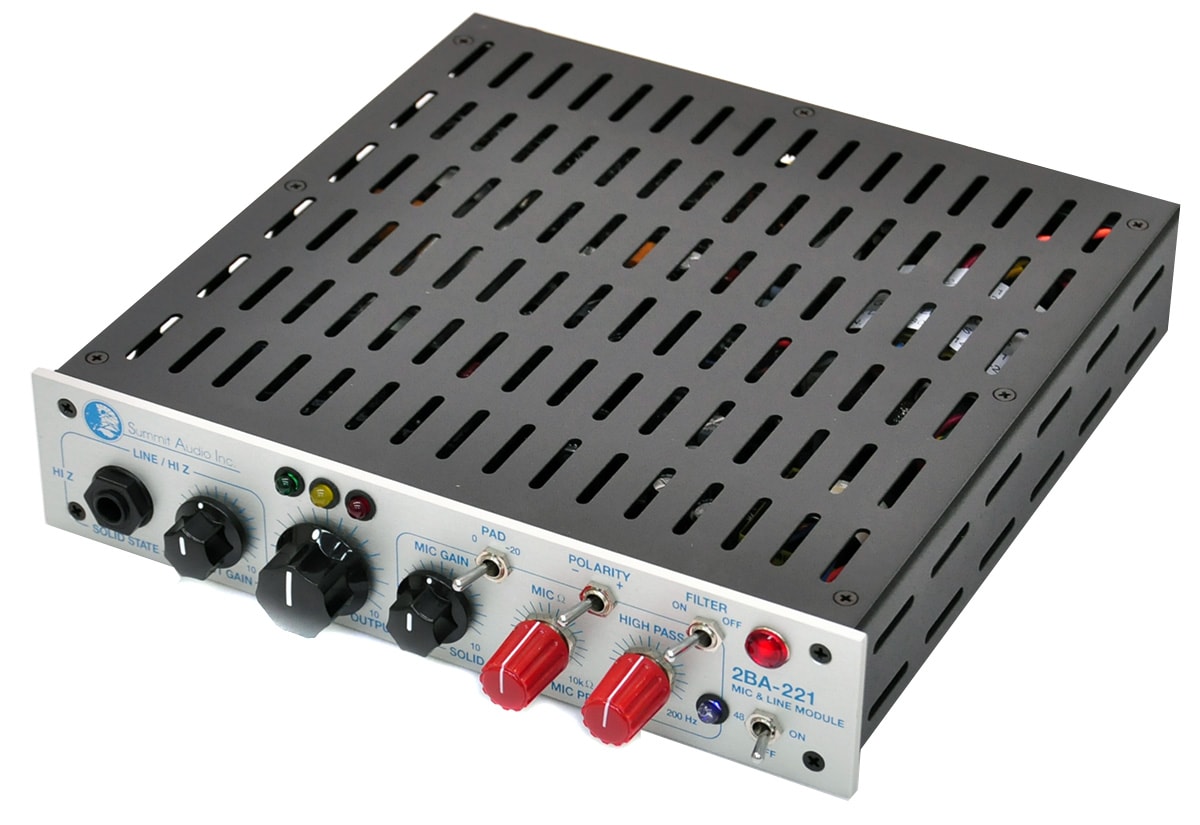

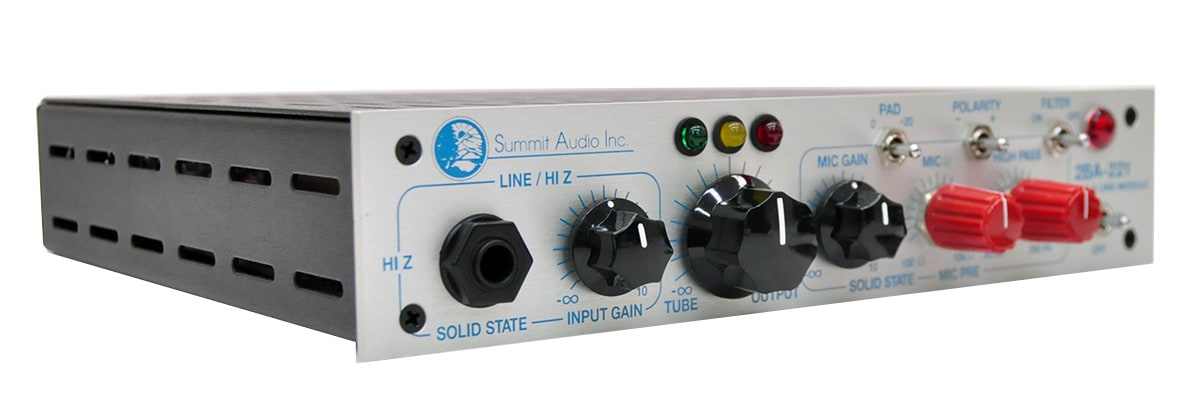

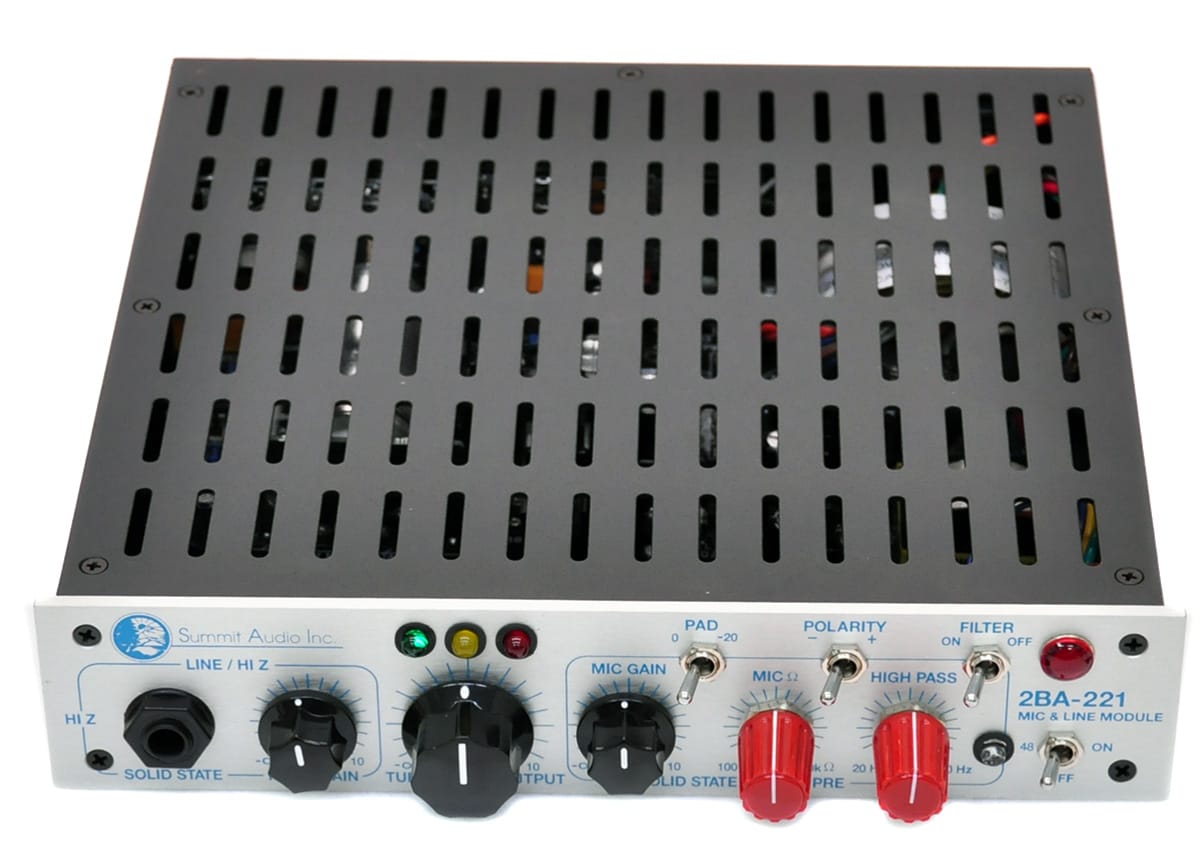

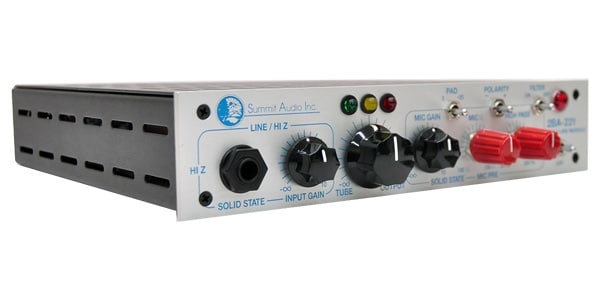

SUMMIT AUDIO / 2BA-221

SUMMIT AUDIO's renowned microphone preamps, boasting exceptional tone, are condensed into a half-rack size. Supports microphone, line, and guitar inputs. Line and microphone inputs can be mixed and output. Experience dynamic, high-quality tube sound for yourself!

■ Tube Preamplifier

■ Variable Microphone Input Impedance: 100Ω to 10kΩ

■ Variable High-Pass Filter

■ Hi-Z Instrument Input, Line/Microphone Level Input

■ Hi-Z Input and Microphone Input Can Be Simultaneously Controlled with Separate Gain Control

■ Insert Connector

■ Multiple Units Can Be Stacked

■ Half-Rack Size

■ Polarity Reversal Switch and 20dB Pad

■ Uses 1 x 12AX7A/ECC83

■ Built-in High-Voltage Power Supply

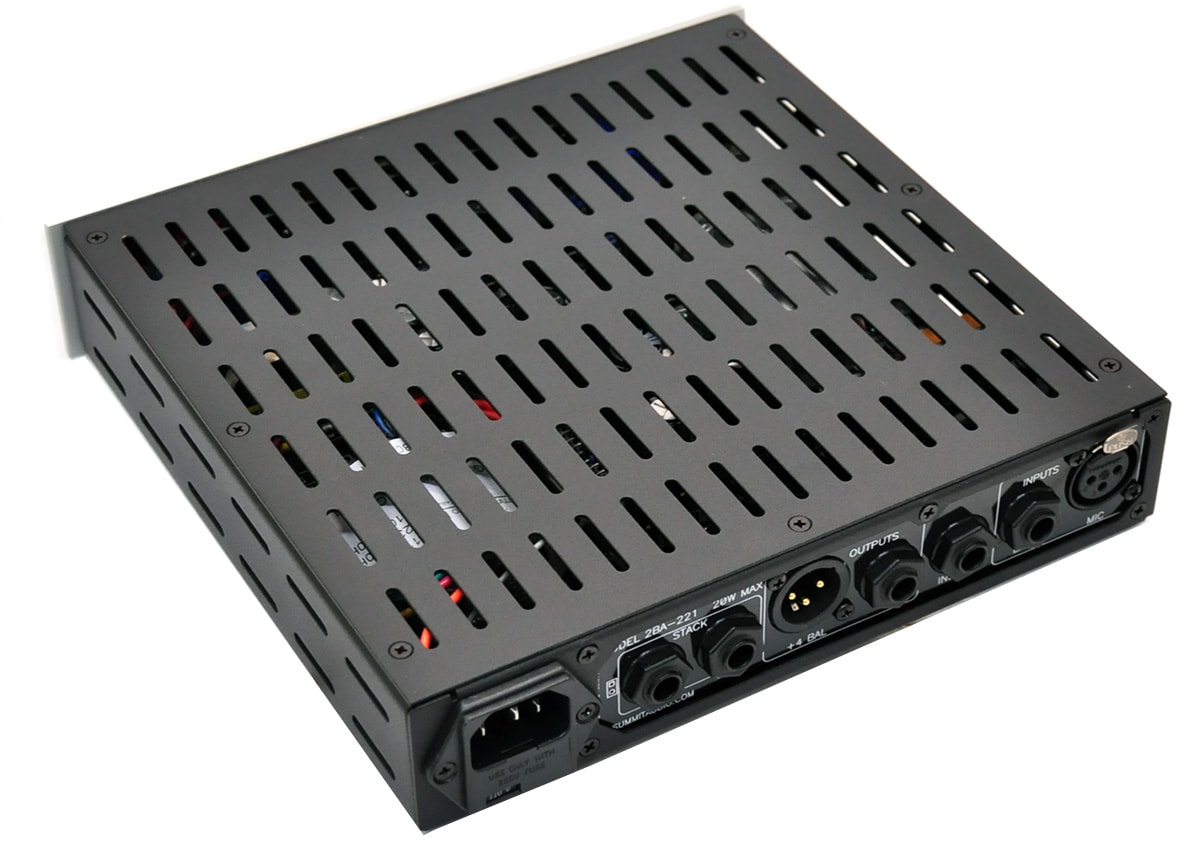

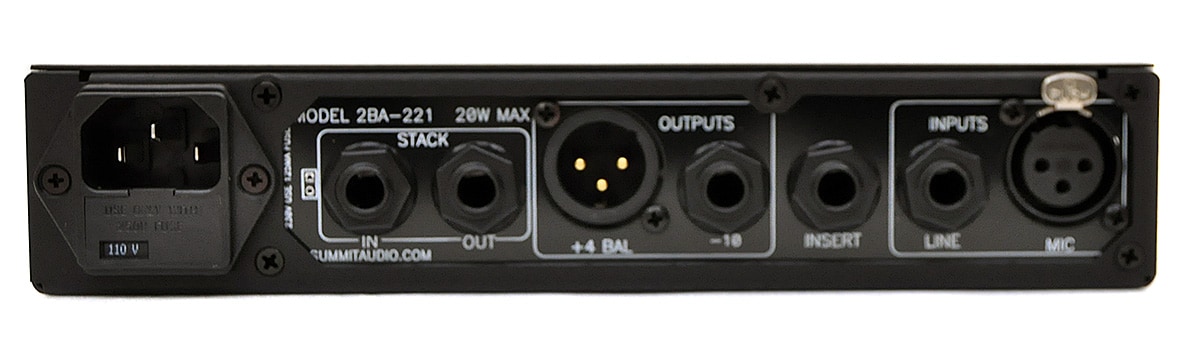

■ XLR/Phone Input/Output Connectors

■ Three Independent Variable Gain Stages

■ Pin 2 Hot

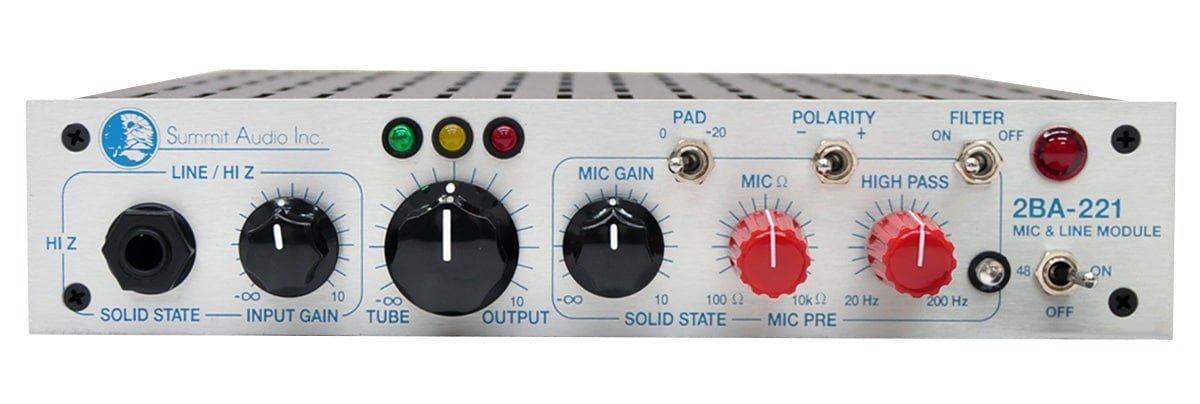

■ Signal LED

Green: Input from INPUT

Orange: Input Signal at Appropriate Level

Red: Clipping

*Adjust so that Green and Orange are always lit, and Red is only occasionally lit.

【Stacking】

Stacking OUT outputs the signal before passing through the tube stage.


By connecting it to the Stacking INPUT of another 2BA-221, it can be used as a 2BA-221 with four inputs (microphone/line, or Hi-Z).

[Simultaneous Use of Microphone and Line Inputs]

* As an acoustic guitar preamp:

Mixes the signal picked up by the microphone with the signal from the pickup and outputs it.

* As a direct box for instruments and a microphone preamp:

Connect the signal from the instrument to the line input, and the signal from the microphone to the microphone input.

[Insert]

The signal before passing through the high-pass filter and tube stage can be output to an external processor and inserted.

[As a 1-in/3-out Preamp]

The signal input to the HI-Z INPUT is output not only from the main +4dB XLR and main -10dB TRS phone, but also from the stack output. (Example: XLR for recording equipment, TRS phone for bass amp, stack output for headphone amp, etc.)

■Robust Design: Summit Audio products are always assembled with the overall design in mind. Through meticulous attention to detail and numerous improvements, Summit Audio products achieve durability capable of withstanding even the most demanding tours. This is why Summit Audio products are used by top artists worldwide.

■Made in USA: All Summit Audio products are handmade using the highest quality parts. The quality of the parts and the expertise of the technicians are the key factors determining the sound quality and product durability.

■Weight: Approx. 2.03kg

■Power Supply Voltage: AC100V

*Regarding the 48V LED

Even when the power switch is set to the ""ON"" position, the 48V LED indicator may remain lit for a few minutes after power-on. This is a product specification; as long as the switch is set to the ""ON"" position, it is safe to use microphones other than condenser microphones even when the LED is lit.
