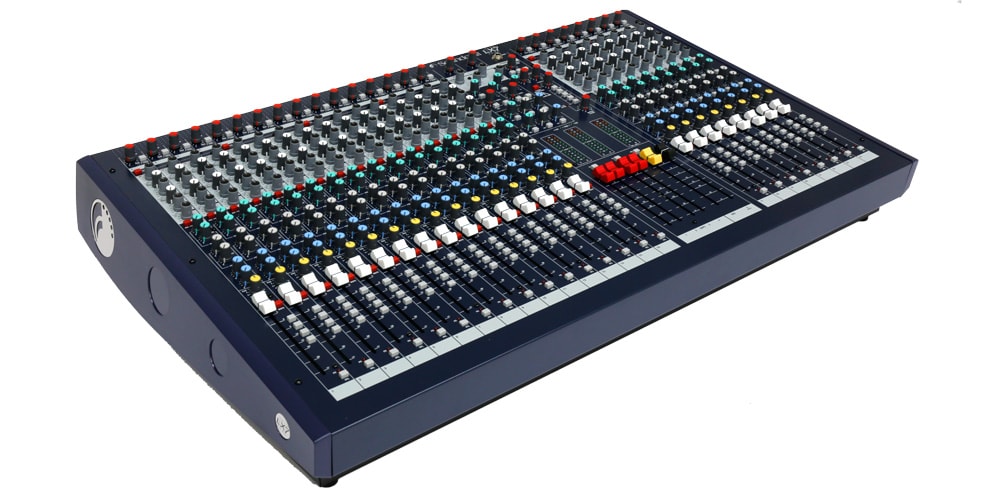

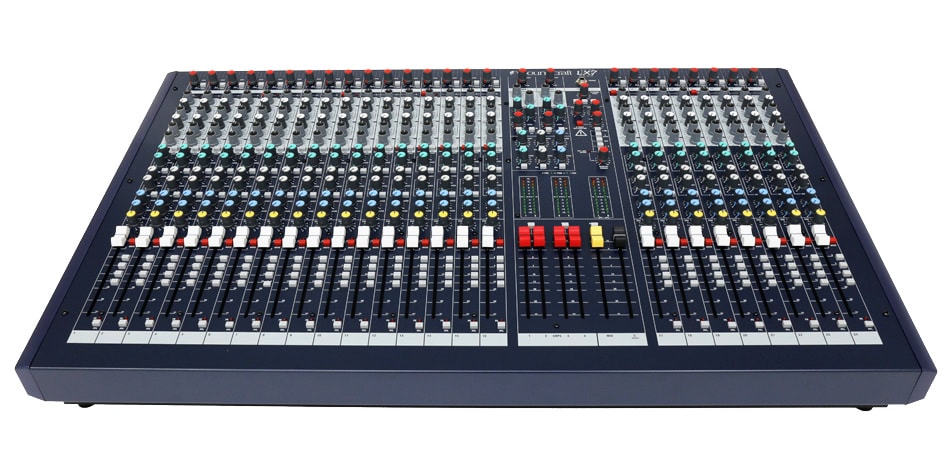

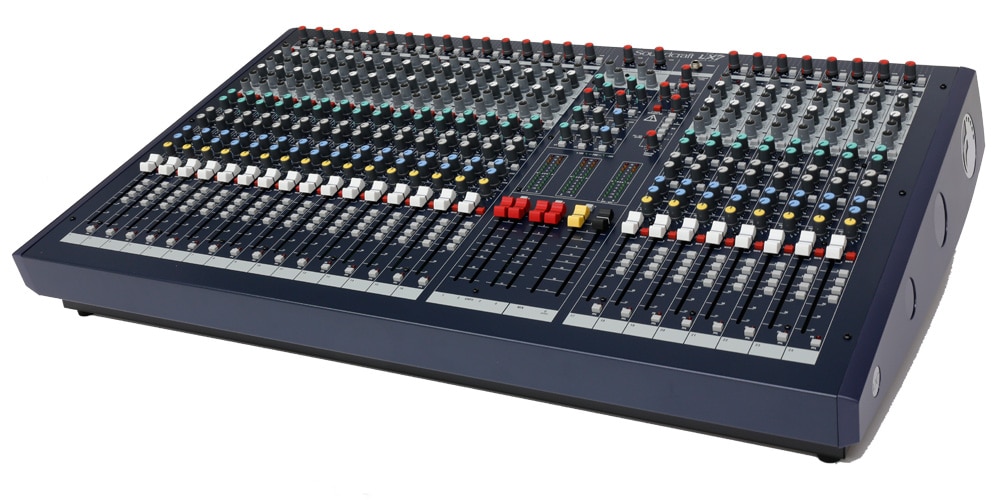

Soundcraft / LX7 II 24ch

A well-balanced 24ch analog mixer that has both robustness and high sound quality. An uncompromising mixing console with accurate 4-band EQ, 100mm faders and 6 auxes.

■ Analog mixer
■ Number of monaural channels: 24
■ Number of stereo channels: 2
■ EQ: 4
■ AUX: 6
■ Group (bus): 4
■ Digital effects: None
■ Dimensions and weight: 85.6W x 17.4H x 50Dcm (excluding knobs and faders), 21.8kg
■ Achieved high input impedance and low noise, equipped with a high-quality head amp that reproduces the original sound extremely faithfully.
■ The parametric equalizer mounted on each input channel allows extremely accurate control, achieving a wide variety of sounds from fine sound quality adjustment to bold sound makeup. Equipped with ON / OFF switch to compare sound quality before and after equalizing.

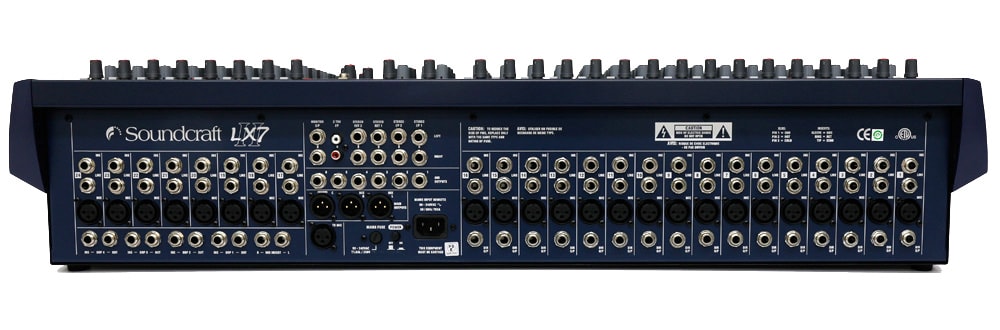

■ Equipped with a rich output system of MIX L / R, C (MONO), 4 groups, 6 AUX. AUX1 to 4 can be switched between pre / post fader every two lines.
City J Each frame size can be selected from two models of 16ch / 24ch, equipped with two stereo inputs and two stereo returns. AUX5-6 are fixed post-fader.
■ The direct out (16ch model: 1 to 8ch, 24ch model: 1 to 16ch) provided on the monaural input channel can be switched between pre / post fader according to application.
■ Equipped with 12-segment LED meters that display 4 group outputs and MIX L / R output signal levels.
■ Adopt 100mm long fader for all channels, allowing fine adjustment of mix balance and output level.
■ Equipped with talkback microphone input for smooth exchange with the stage.
■ The frame uses a steel chassis that can withstand severe use.
■ Built-in power supply unit that constantly supplies stable power.
