PANASONIC(RAMSA) / WX-4600　ワイヤレス用ラベリアマイク

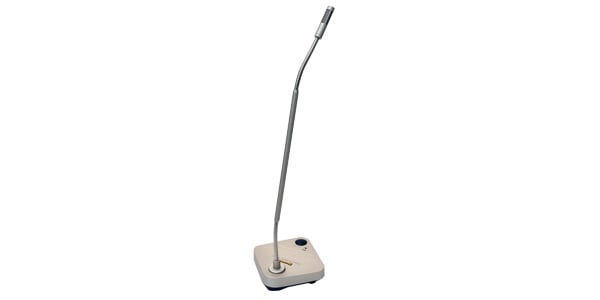

PANASONIC製の卓上型ワイヤレスマイク。会議や講演に最適です。マイクには単一指向性エレクトレットコンデンサーマイクロホンを採用しています。使いやすいトークスイッチ付き。

● Desktop wireless microphone. Ideal for conferences and lectures.
● It can be used continuously for about 10 hours with one AA manganese battery and about 20 hours with one AA alkaline battery.
● The remaining battery level can be checked with the LED display on the receiver.

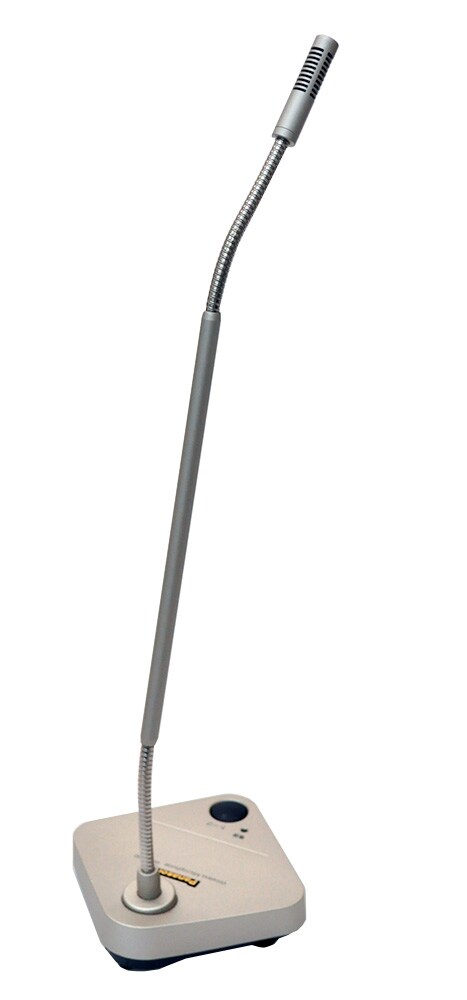

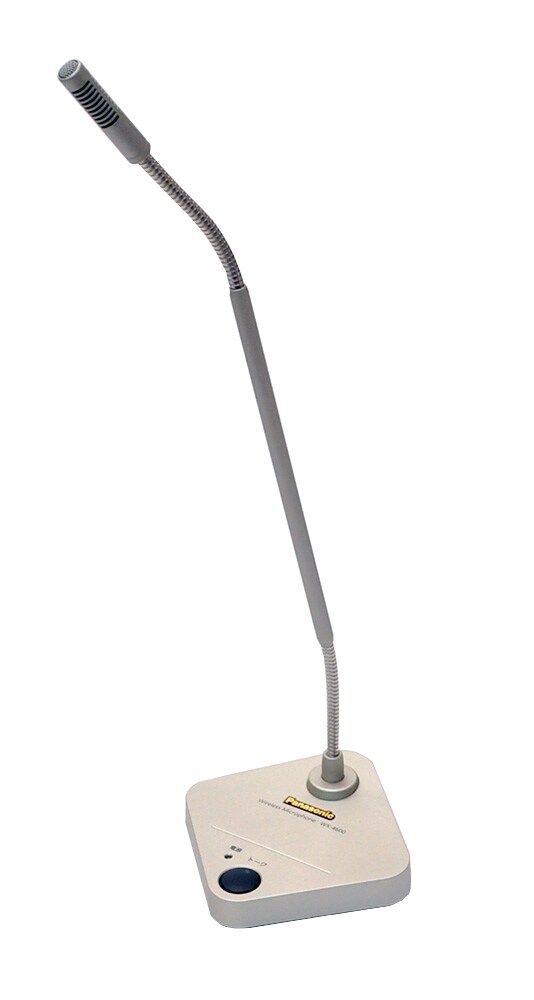

● The base and neck of the support are bent, and the microphone head can be pointed at the mouth.

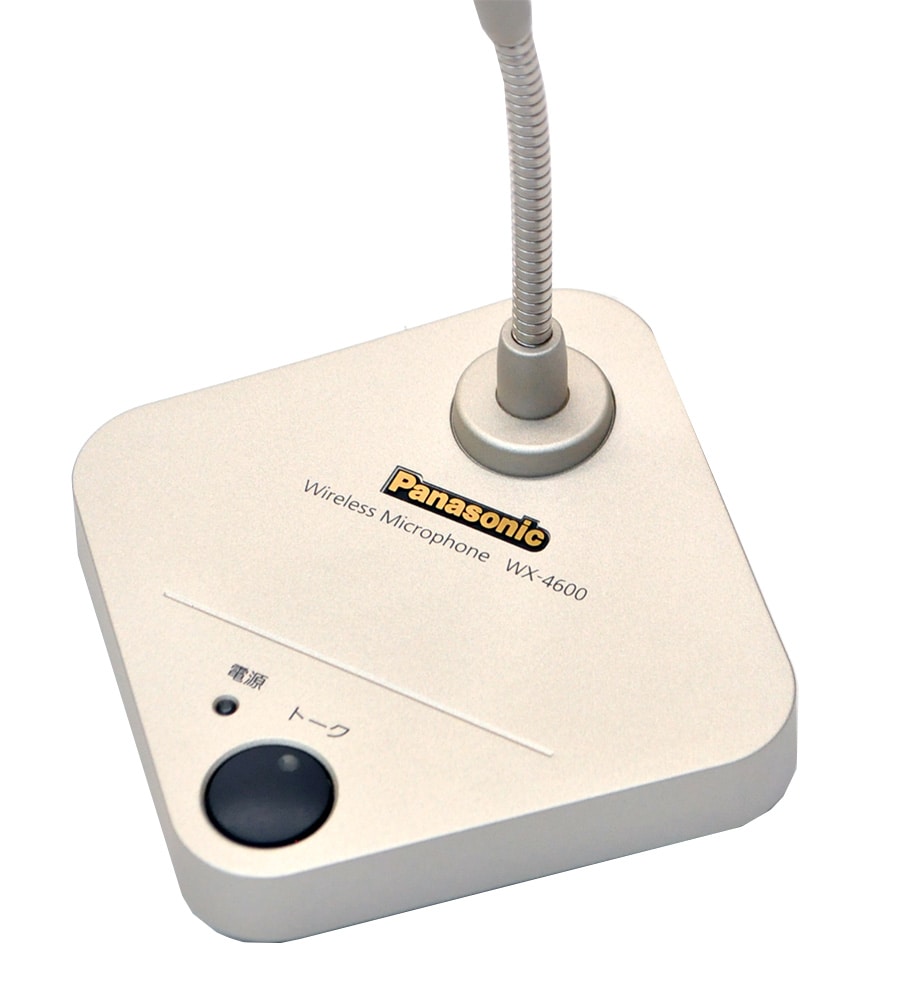

● Easy-to-use talk switch that you can press and talk.
● Compact pedestal that can effectively use desk space.



● Transmission frequency: 806.125 MHz-809.750 MHz
● Tone signal: 32.768 kHz
● Radio wave format: F3E, F9W
Oscillation method: Crystal controlled PLL synthesizer method
● Modulation method: Reactance modulation method
Antenna power: 2 mW
● Range: approx. 45 m (outdoors) with diversity receiver WX-4020B system (Note)
● Modulation sensitivity: ± 5 kHz FM (at 86 dB SPL1 kHz)

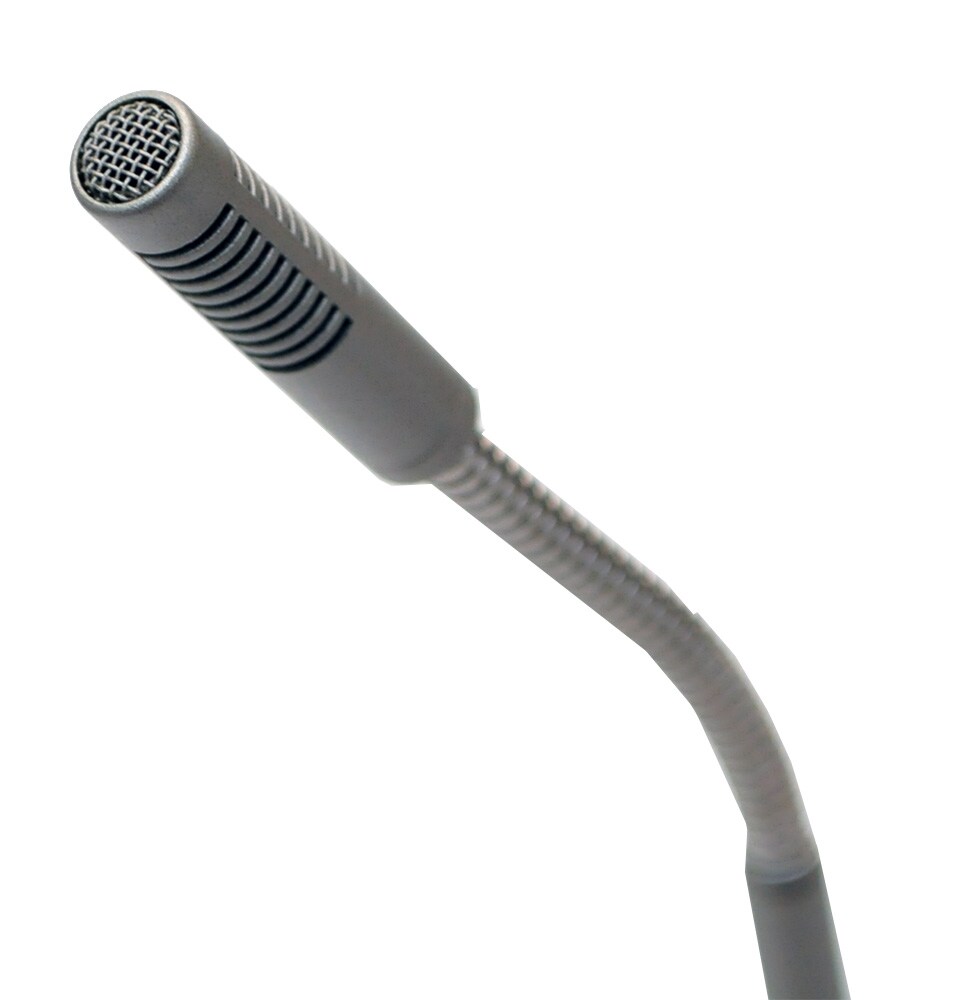

● Microphone: Unidirectional electret condenser microphone
● Frequency characteristics: 200 Hz to 10 kHz (50 μs emphasis based on 1 kHz)
● Maximum input sound pressure: 120 dB SPL
● Input equivalent noise: 40 dB SPL or less (A curve)
● Control method: ASK by tone signal
● Control signal: For battery level: 3 types
● Battery used: AA manganese dry cell R6P (NB) x 1
● Power consumption: approx. 60 mA (at 1.5 V)
● Battery life: Approx. 10 hours (when using Panasonic AA-size manganese batteries R6P (NB)) [Approx. 25 hours (when using Panasonic AA-size alkaline batteries LR6 (PG))]
● Operating temperature range: 0 ℃ ~ +40 ℃
● Dimensions: width 99 ㎜ × height 25 ㎜ × depth 99 ㎜ microphone length: 395 ㎜
● Weight: Approx. 310 g (including dry cell R6P)
● Finishing: Nickel matte color matte paint
