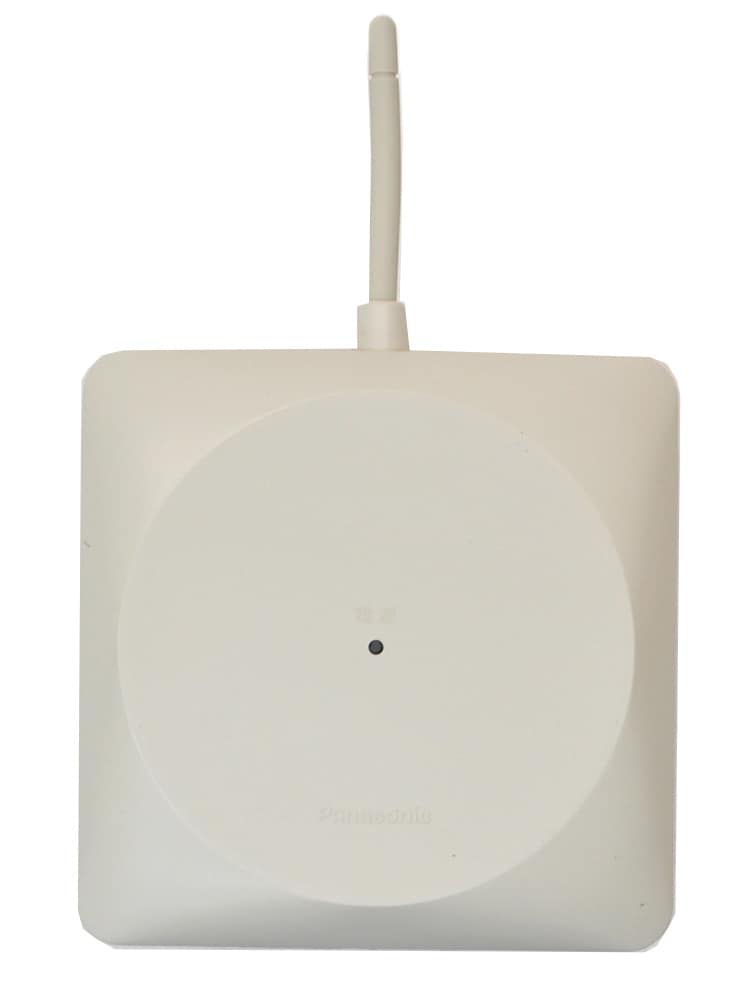

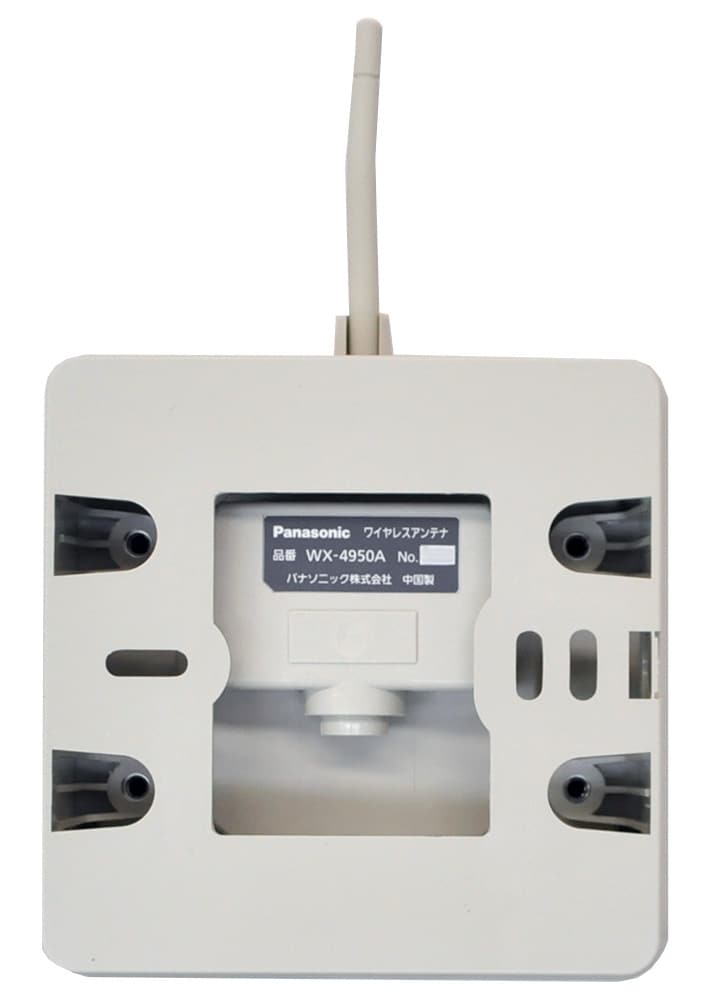

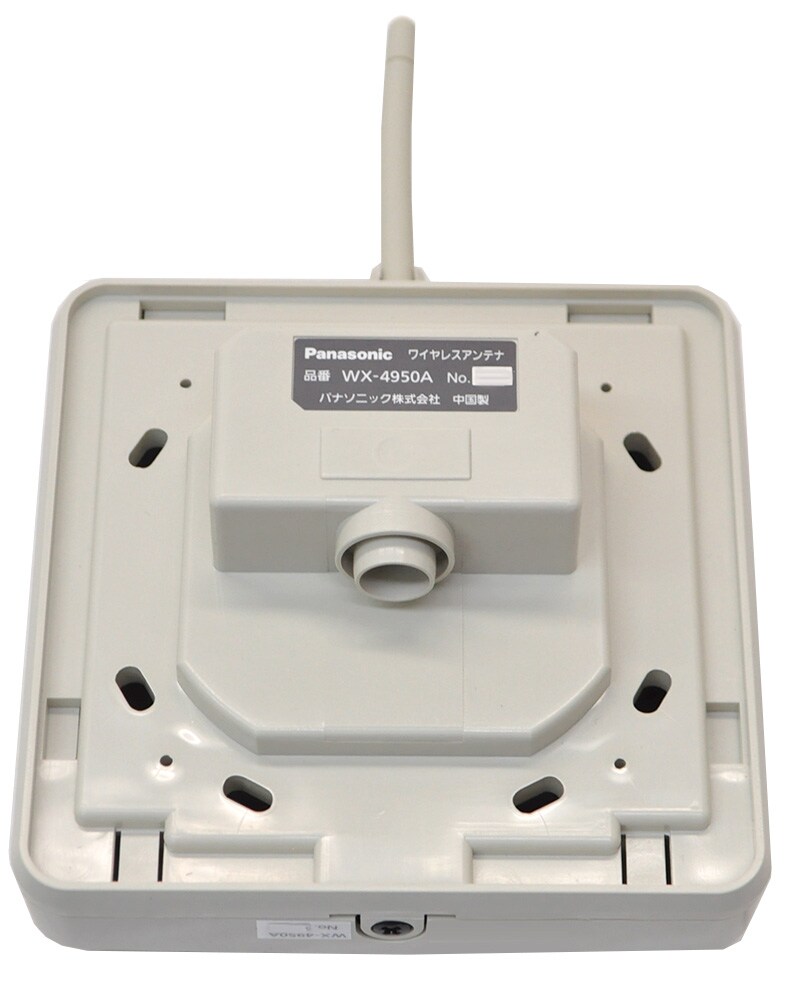

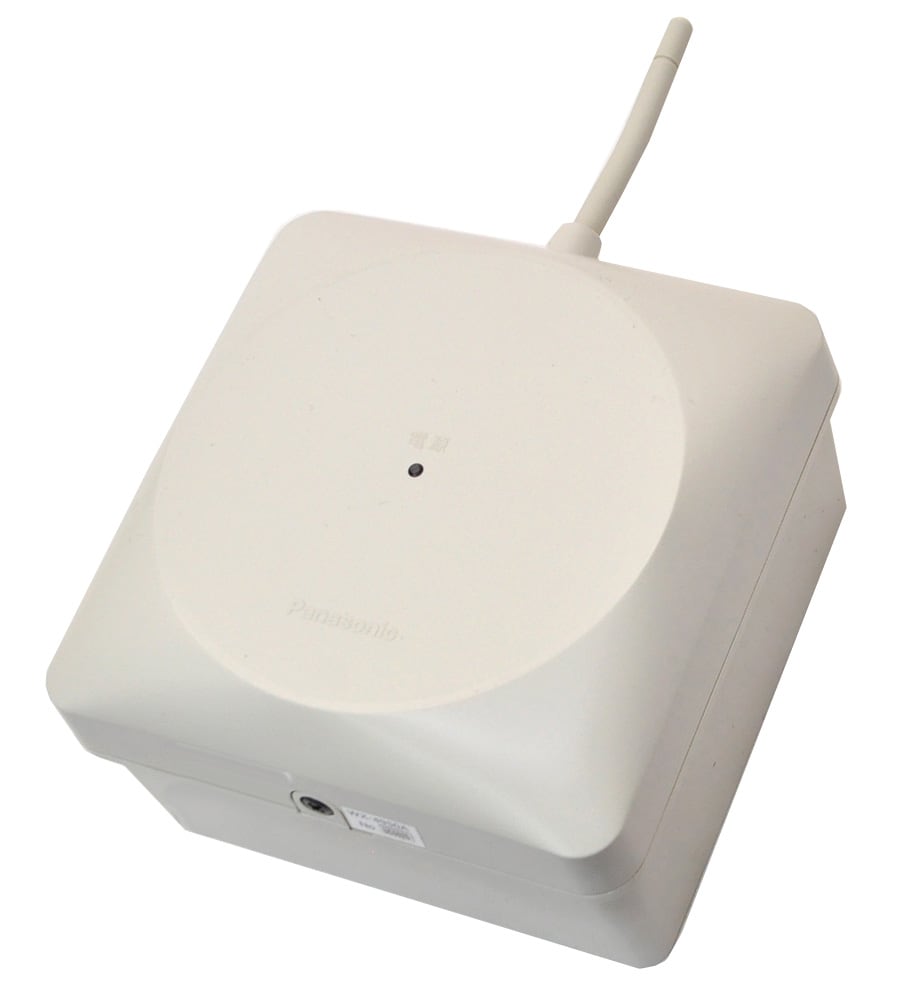

PANASONIC / WX-4950A

The WX-4950A is a downconverter type antenna. It can be mounted on a wall or installed outdoors, making it suitable for a wide range of uses.

●Downconverter type antenna.

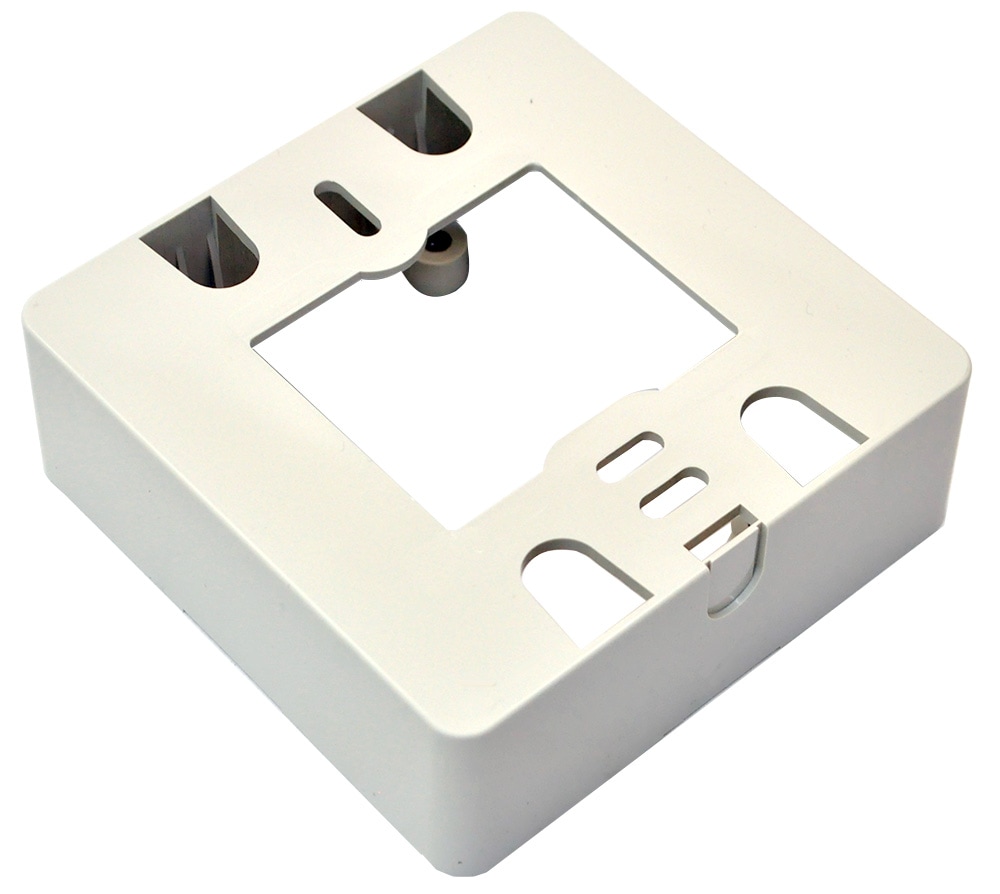

●Can be mounted directly on a wall or recessed into a wall using a dual-gang box.
●Can also be installed outdoors. (JIS Protection Class 4, splash-proof type)
●Can use existing cables such as 5C-2V.
*A minimum of two antennas is required.

Input Frequency: 806 MHz to 810 MHz
Output Frequency: 260 MHz
Output Impedance: 75 Ω
Power Supply: 12 V DC (superimposed on input coaxial cable)
Current Consumption: Approximately 60 mA
Operating Temperature Range: -10°C to +50°C
Dimensions (W x H x D (mm): 120 x 190 x 62 mm
Weight: Approximately 250 g (excluding spacers)
Finish: ABS resin, OA ivory (approximate Munsell 6.5Y7.8/0.9)
