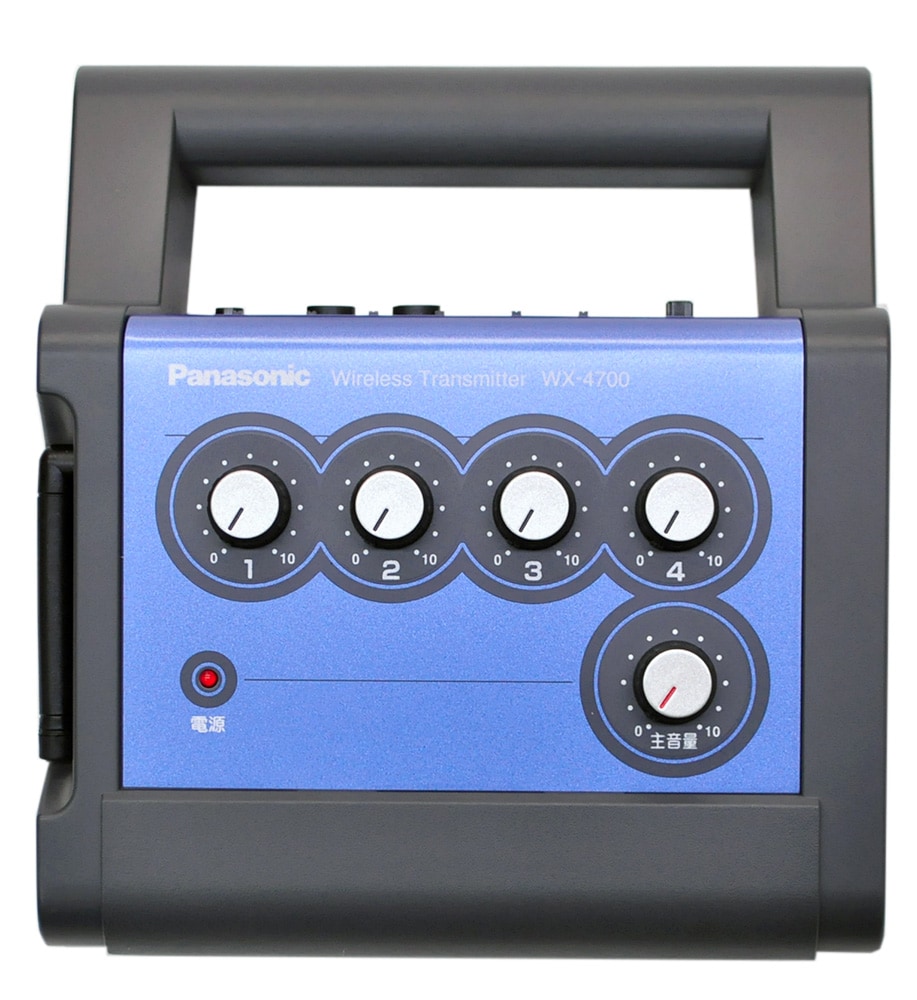

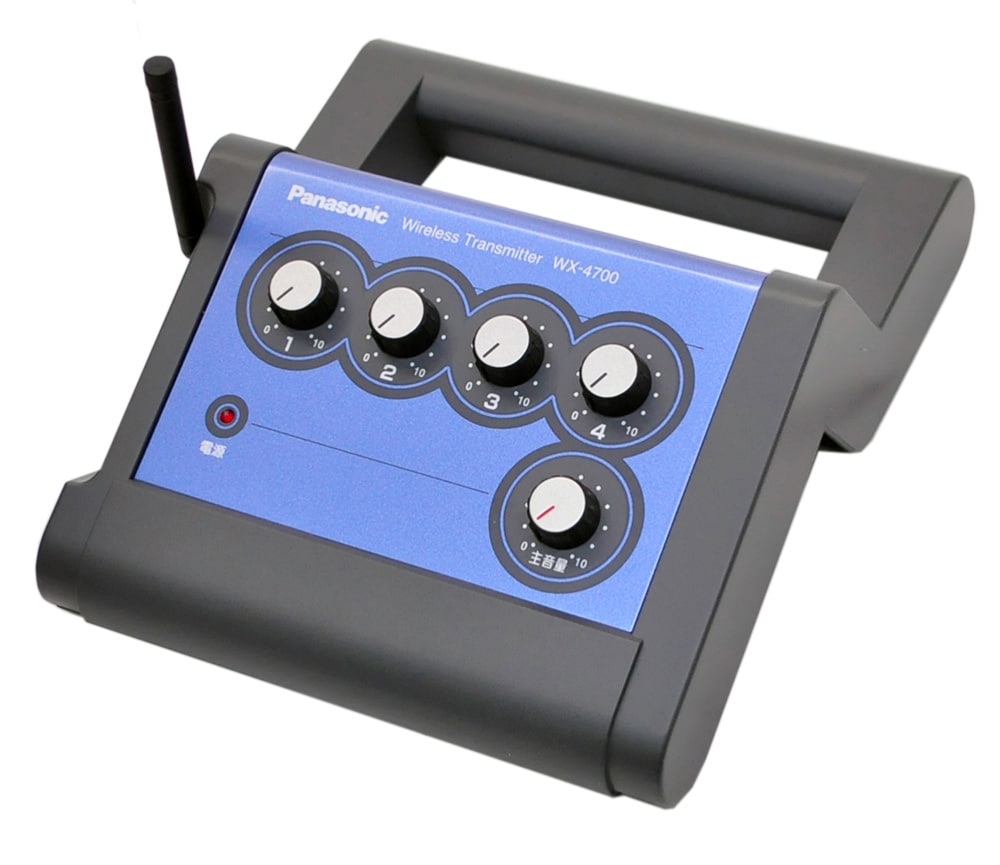

PANASONIC / WX-4700

Variations

In addition to two wired microphones, you can connect two inputs, such as a boombox or CD player, for a total of four inputs. These sources can be transmitted to an 800MHz wireless receiver. Amplification is possible using existing wireless equipment, minimizing cable runs. It also has a built-in ""auto-mute function"" that detects audio input to Mac Input 1 and automatically lowers the volume of other inputs. This wireless transmitter is small and lightweight, making it easy to set up and take down.

■Transmit Frequency: 806.125 MHz to 809.750 MHz (30 frequencies at 0.125 MHz intervals)
■Tone Signal: 32.768 kHz
■Radio Wave Format: F3E, F9W
■Oscillation Method: Crystal-Controlled PLL Synthesizer
■Modulation Method: Reactance Modulation
■Antenna Power: 2 mW
■Range: Approximately 100 m (outdoors) line of sight with the WX-4020B diversity receiver system*1
■Modulation Sensitivity (Sensitivity Switching): -60 dBV: ±5 kHz FM (74 dB SPL at 1 kHz) -20 dBV: ±5 kHz FM (118 dB SPL at 1 kHz)

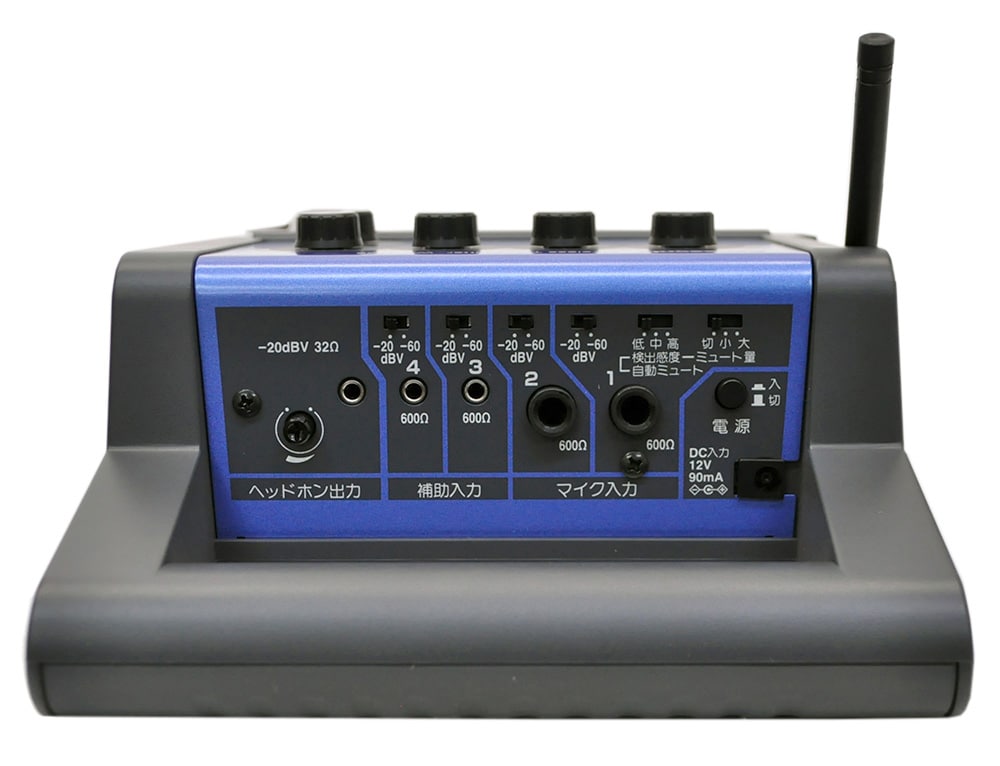

■Microphone Input 1
: Balanced Input: Large duplex jack, 600 Ω, input sensitivity -60 dBV/-20 dBV switchable, auto-mute
■ Microphone Input 2
: Balanced Input: Large duplex jack, 600 Ω, input sensitivity -60 dBV/-20 dBV switchable
■ Auxiliary Input 3.4
: Unbalanced Input: φ3.5 mini duplex jack, 600 Ω, input sensitivity -60 dBV/-20 dBV switchable
■ Headphone Output: Unbalanced Output: φ3.5 mini duplex jack (L+R mono), -20 dBV, 32 Ω, with output adjustment knob (rear)
■ Master Volume: Adjustable volume after mixing inputs 1-4
■ Frequency Response: 100 Hz to 10 kHz (1 kHz reference, 50 μs emphasis)
■ Maximum Input Sound Pressure: 110 dB SPL
■ Input Equivalent Noise Ratio: 40 dB SPL or less (A-curve)
■Auto Mute: Mute Level: Off/Low/High, Input Sensitivity: Low/Medium/High
■Control Method: ASK using tone signal
■Control Signal: Battery level indicator
■Power Supply: AC adapter (included) or four AA batteries (sold separately)
■Current Consumption: Approximately 90 mA (when using AC adapter), approximately 80 mA (when using batteries)
■Battery Life: Approximately 15 hours (when using Panasonic AA alkaline batteries LR6 (PG)) (at room temperature of 25°C, continuous use) [approximately 7 hours (when using Panasonic AA manganese batteries R6P (NB)]]
■Operating Temperature Range: 0°C to +40°C
■Dimensions: Width 178 mm, Height 65 mm, Depth 200 mm mm
■Weight: Approx. 590 g (main unit only), Approx. 760 g (including included AC adapter)
■Finish: Panel cover: Sky blue metallic paint, Case: Dark gray ABS resin
