MANLEY / REFGOLD

Variations

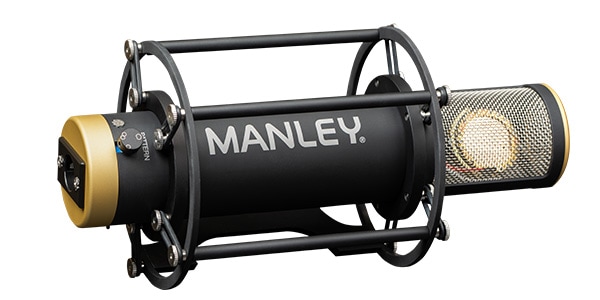

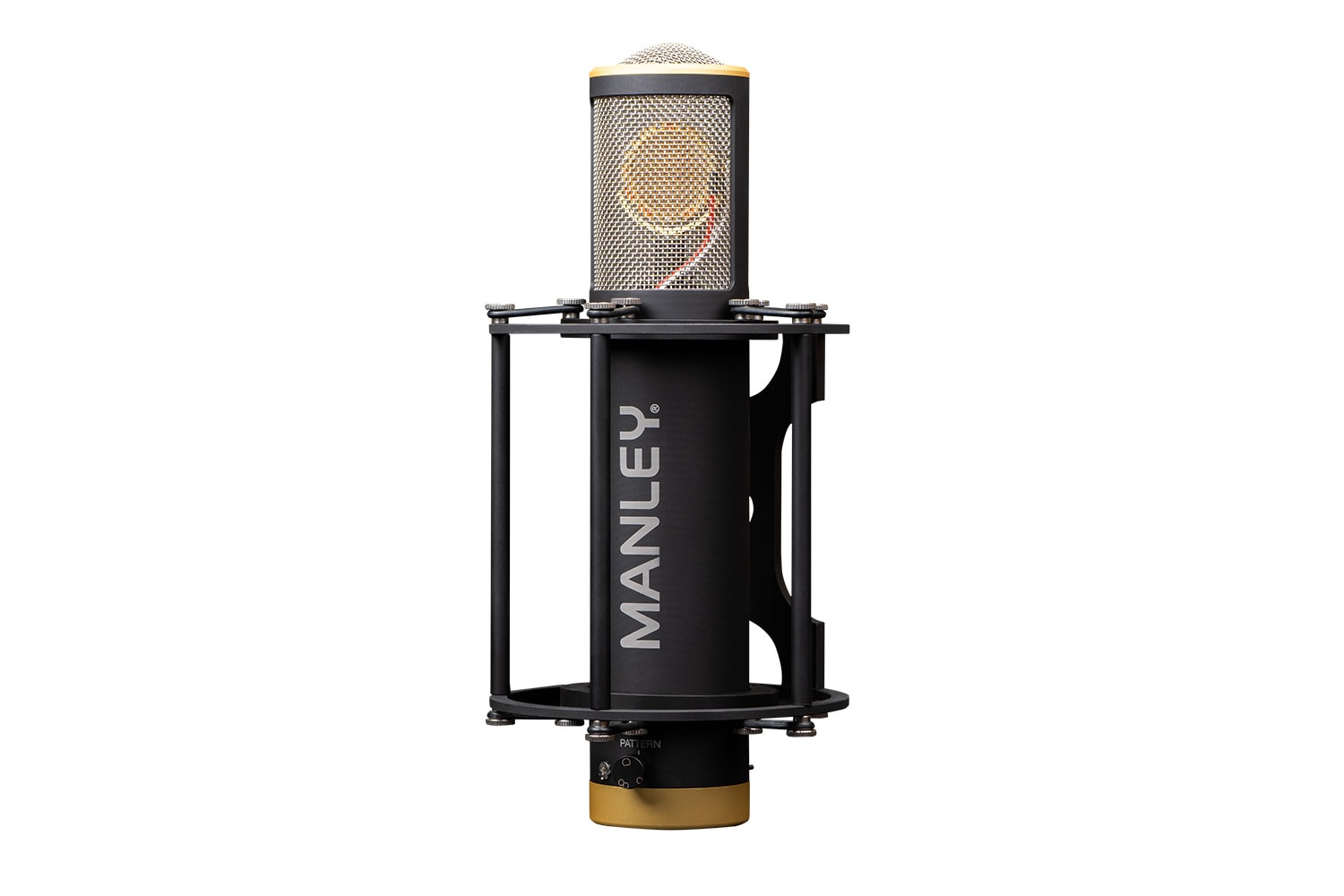

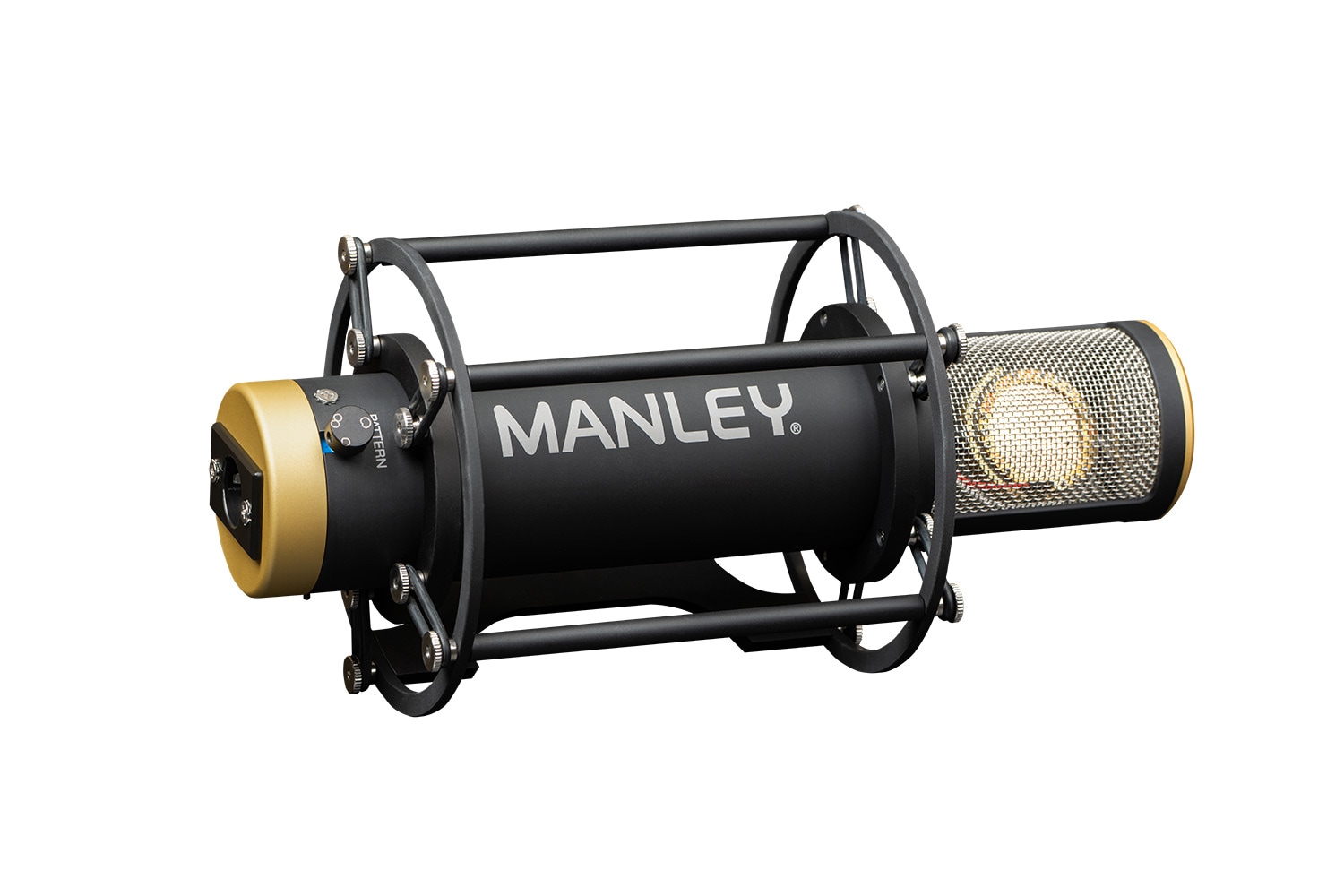

This vacuum tube condenser microphone delivers speed, airiness, and excellent ultra-high frequency response. The output stage utilizes a Manley Labs transformer for exceptional sound quality. The nickel-laminated mu-metal case eliminates hum and external interference. The polar pattern is switchable, allowing for continuous adjustments between omnidirectional, cardioid, and figure-8.

■Vacuum Tube Condenser Microphone
■Vacuum Tube: 12AT7
■Frequency Response: 10 Hz - 30 kHz
■Sensitivity: 17 mV/Pa
■Noise: -120dB EIN
■Maximum SPL: 150 dB
■Output Impedance: 200 Ω
■Power Consumption: 8.4 W (70 mA @ 120 V)
■Operating Voltage: 100 V, 120 V, 220 - 240 V @ 50/60 Hz (Power option setting based on shipping region*)
■Fuse Specifications
250 mA @ 100 - 120 VAC
125 mA @ 220 - 240 VAC
Dimensions
■Microphone: 4.5"" x 4.5"" x 9.7"" (approx. 114.3 mm x 114.3 mm) Dimensions: 114.3 mm x 246.4 mm

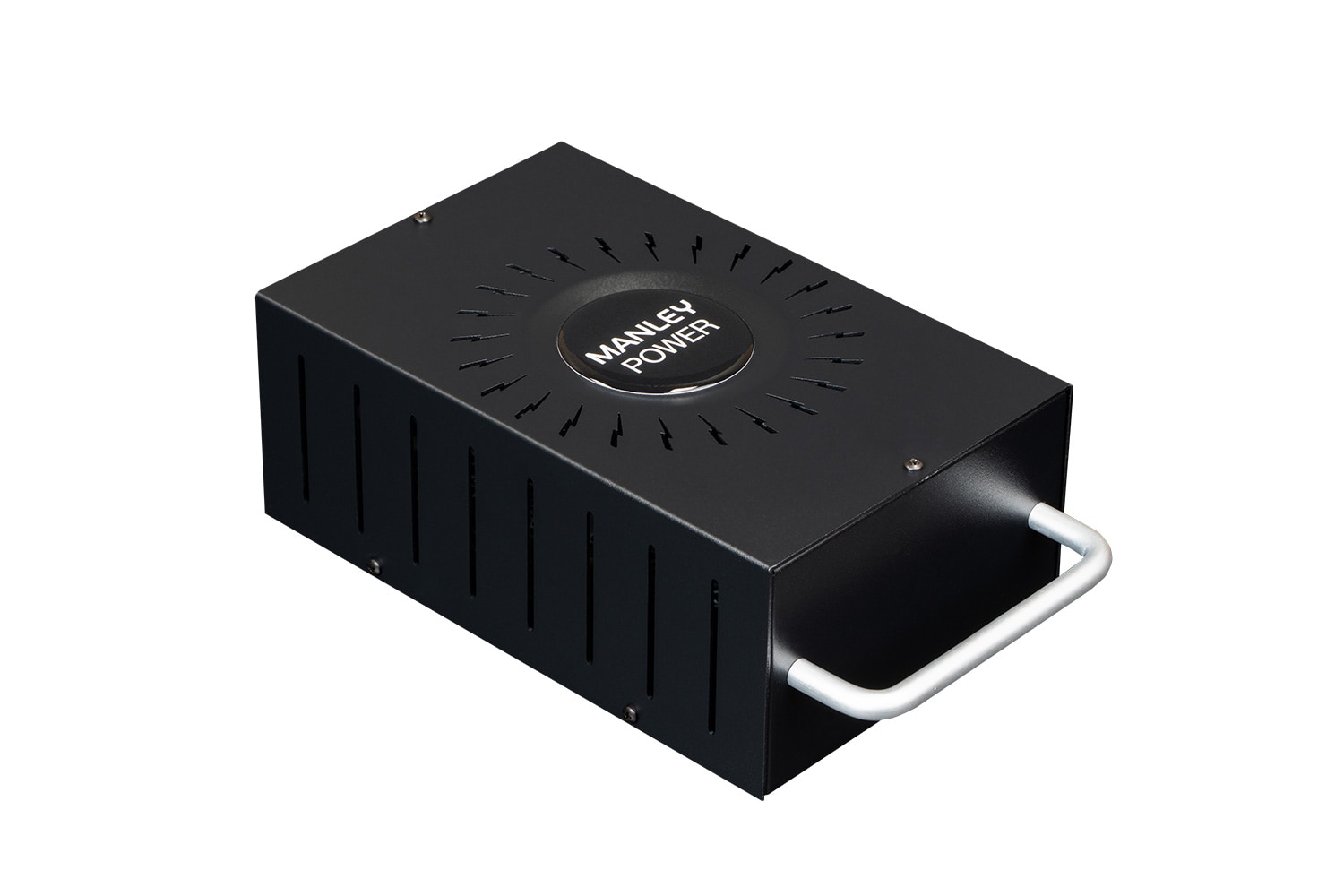

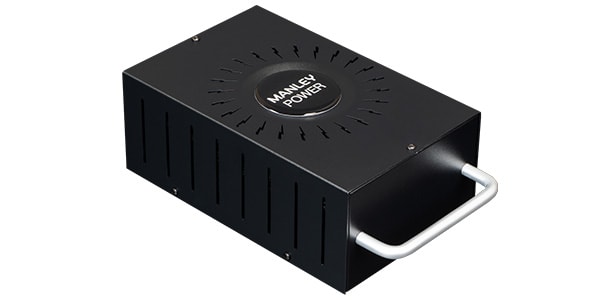

■Power supply unit: 5"" x 3.4"" x 8.2"" (approx. 127 mm x 86.36 mm x 208.3 mm)
Weight
■Microphone: 2.25 lbs (approx. 1.02 kg)
■Power supply unit: 2.5 lbs (approx. 1.13 kg)
■Shipping: 15 lbs (approx. 6.8 kg)
