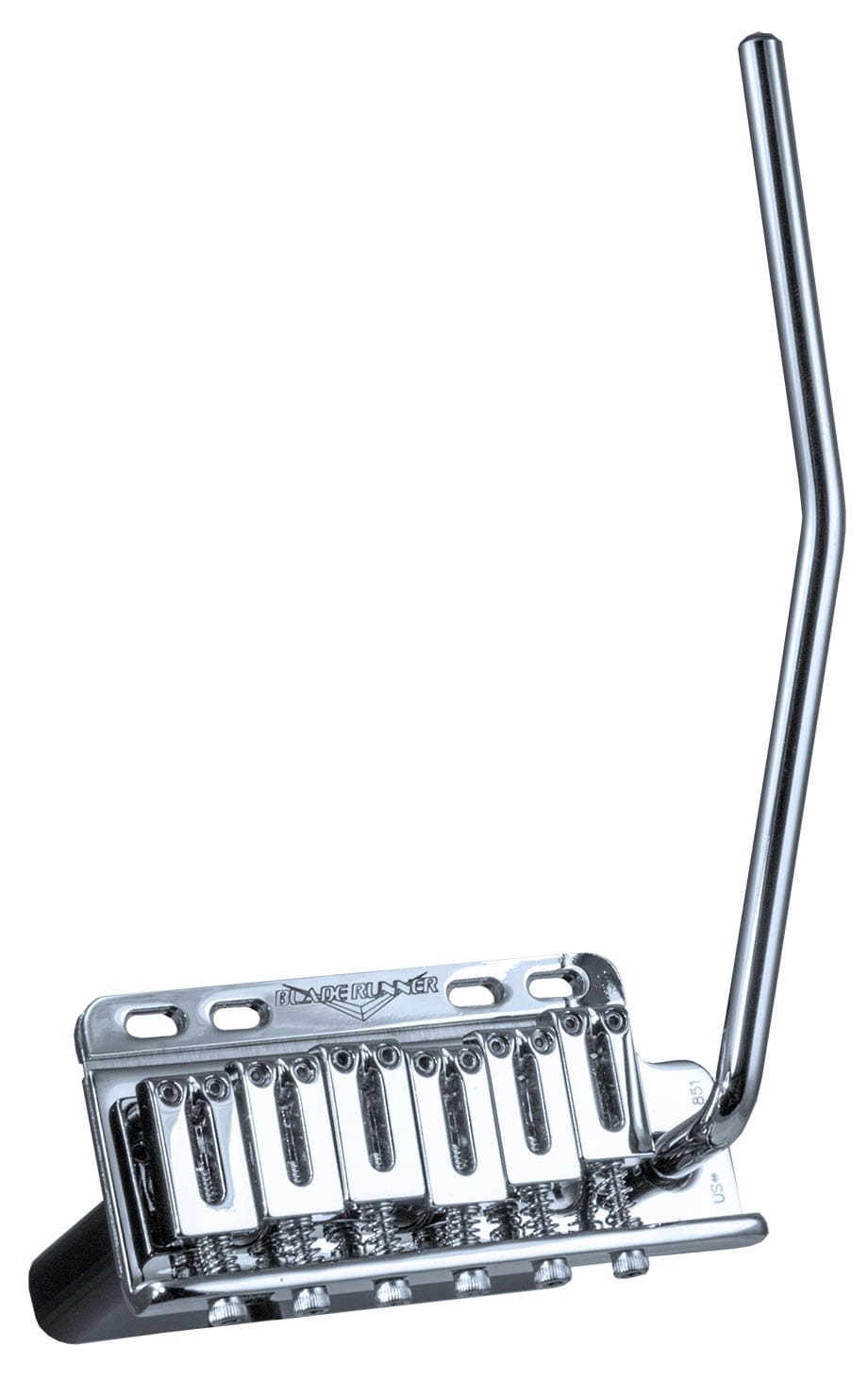

SUPER VEE / BladeRunner 6 Screw CH

The Super-Vee BladeRunner 6 tremolo unit, featuring patented Blade technology for smooth tremolo action, is available in chrome. Designed as a replacement for traditional 6-point tremolos, it features a 2.1-inch (53.34mm @ 10.7mm) string spacing. It offers smooth tremolo action and is ideal for guitarists who prefer a narrower string spacing.

"■Guitar Tremolo Unit
■6-Point Mounting
■Features
・Features the unique ""Blade Technology"" structure, patented in the United States.
・Provides frictionless tremolo action. This allows for an unprecedentedly smooth and fluid tremolo action, unlike conventional tremolos, resulting in a smooth and fluid tremolo effect that expands your playing possibilities.
・Achieves significant improvements in sound clarity, tuning stability, and sustain.

*Replacing and installing on a guitar is as simple as removing the six screws of the synchronized tremolo, replacing it with the ""BladeRunner 6-Screw"" tremolo, and securing it with four wood screws (*).
■String spacing: 2.1 inches (approx. 53.34 mm / @ approx. 10.7 mm)
■Distance between mounting screw holes: Maximum 2.94 inches (approx. 58.2 mm)
■Tremolo block height: 1.69 inches (approx. 42.9 mm)
■Chrome

~What is ""Blade Technology"" structure? (From the distributor's page)~
*A unique structure with a US patent that is fundamentally different from conventional 6-screw synchronized tremolos, 2-point support tremolos, and locking tremolos.
*Conventional tremolos have a structure where the tremolo body moves using screws or studs as pivot points. Because the contact points are separated, a very slight shift in the contact points occurs when using the tremolo arm, which is a drawback as it makes tuning easily affected. Furthermore, during tremolo use, friction at the contact points results in a non-seamless, awkward movement.

* The ""Blade Technology"" structure uses a movement where the body and the movable part are integrated, rather than relying on separate pivot points. This means there are no contact points in the movable part, eliminating any instability or friction during tremolo use.

*Image is for illustrative purposes only.

*Depending on the condition of your guitar, modifications may be necessary. Please check the dimension diagram and understand that modifications are required when replacing parts."
