ROLAND / V31

Variations

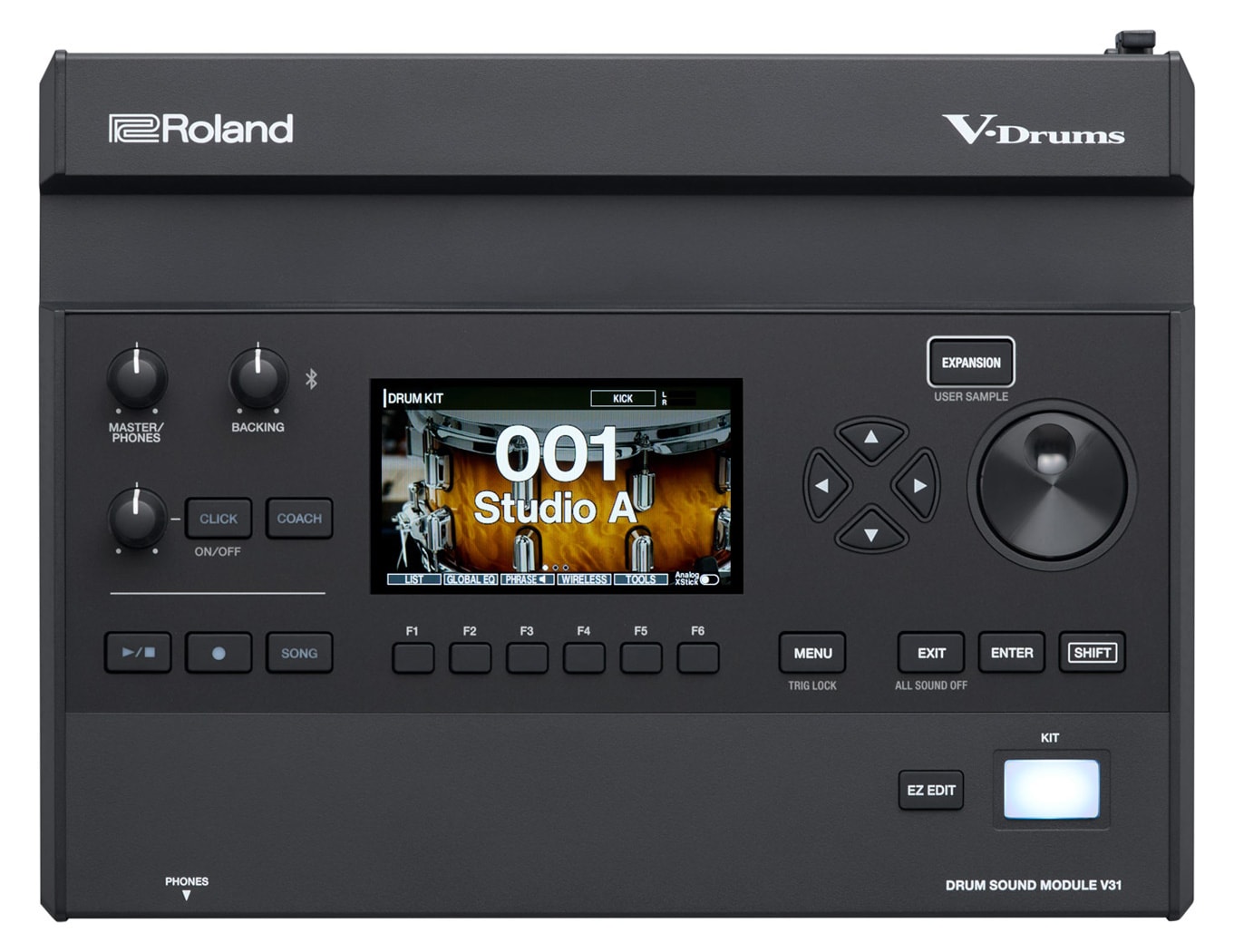

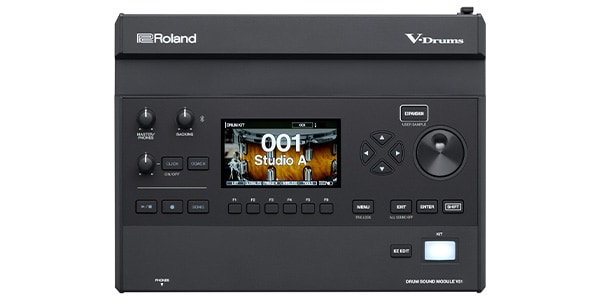

<> The V31 is the core sound module of the V-Drums 3 series. Inheriting the sound engine of the flagship V71, it delivers next-generation response and multi-layer sounds with simple operation. It also supports Coach Mode, Bluetooth audio, Wi-Fi connectivity, and sound source expansion via Roland Cloud, creating a comfortable playing environment.

■Electronic Drum Sound Module

■V-Drums

■Number of Drum Kits: 200 (Presets: 70+)

■Number of Tones: 1,000+

■Effects:

Layer Transient: Per Layer

Layer Equalizer: Per Layer

Pad Equalizer: Per Pad (Head, Rim Separate)

Pad Compressor: Per Pad (Head, Rim Common)

Overhead Microphone Simulator

Room/Reverb/Kit Resonance

Bass Effects: 4 Systems (2 usable simultaneously per system/Side-chain function), 94 types of Bus Reverb

Master Compressor

Master Equalizer

■User Samples:

Number of User Samples: Up to 500 (including user samples at product shipment)

Total Sound Length: Mono 24 minutes, Stereo 12 minutes

Importable file formats: WAV (44.1kHz, 16/24-bit)

■ Song Player (SD card): Audio files: WAV (44.1kHz, 16/24-bit), MP3

■ Recorder: Recording method: Real-time

Maximum number of memorized sounds: Approximately 40,000 sounds

Export file format: WAV (44.1kHz, 16-bit), SMF or Recording method = Real-time, Maximum recording time = 60 minutes (Temporary recording: 1 minute) (*1)

File format = WAV (44.1kHz, 16-bit)

■ Display: Graphic color LCD 4.3 inch

■ External memory: SD card (SDHC compatible)

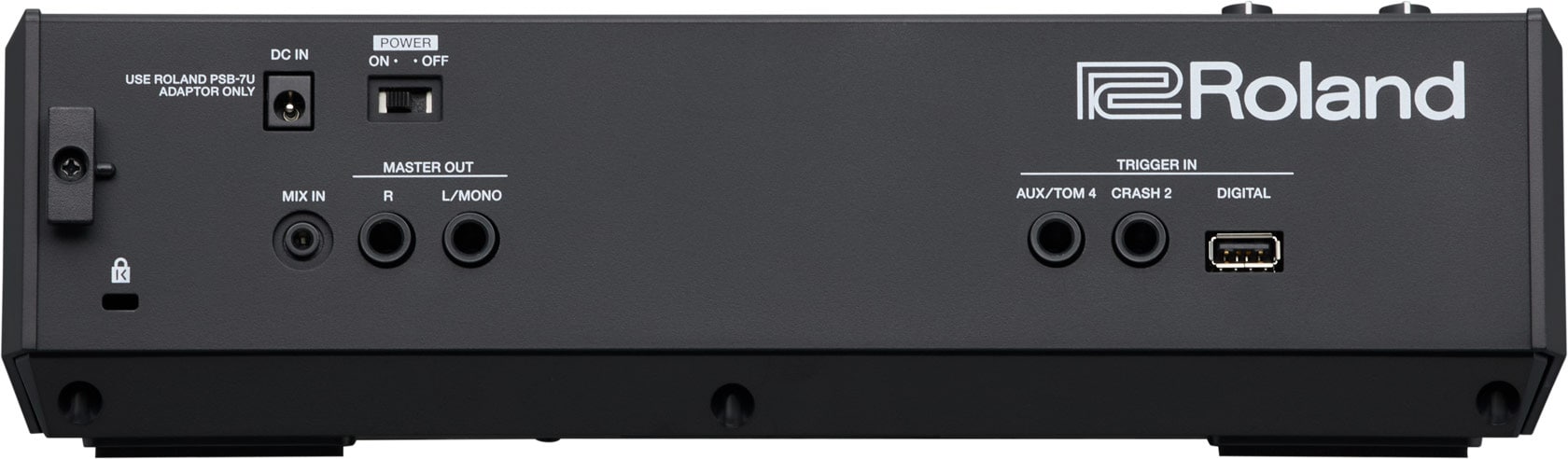

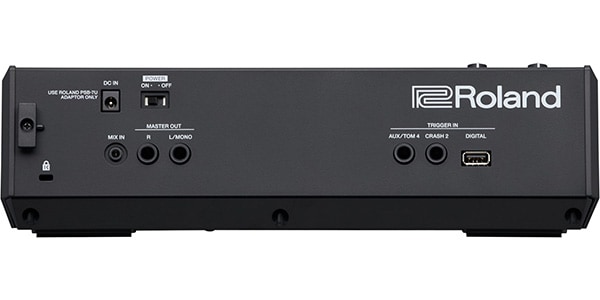

■ Connection terminal: TRIGGER INPUT terminal x 1 (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-hat, Crash 1, Ride, Ride Bell, Hi-hat control) (25-pin D-sub type) (Exclusive use with digital connection compatible pads)

TRIGGER IN terminals x 2 (CRASH 2, AUX/TOM 4): TRS standard type
DIGITAL TRIGGER IN terminal x 1: USB A
MASTER OUT terminals (L/MONO, R): TRS standard type (unbalanced)
PHONES terminal x 1: Stereo mini type
MIX IN terminal x 1: Stereo mini type
MIDI OUT terminal
USB COMPUTER terminal: USB Type-C (R) (Class-compliant audio and MIDI communication / Roland driver audio and MIDI communication)
DC IN terminal
■USB audio recording and playback channel count:
Vendor mode
Sampling frequency (original): 44.1kHz Sampling frequency (using sampling rate converter): 96kHz, 48kHz Recording: 30 channels Playback: 32 channels
Generic mode
Sampling frequency (original): 44.1kHz
Recording: 2 channels
Playback: 2 channels
■Power supply: AC adapter
■Current consumption: 1,100mA
■Power Consumption in Off Mode (Automatically Powered Off): 0.24W

■Accessories

Quick Start Guide (including warranty)

Roland Cloud Connect Setup Guide

AC Adapter (PSB-7U)

Dedicated Connection Cable

Sound Module Mounting Plate Set

""Safety Precautions"" Leaflet

■Dimensions

Width: 316 mm

Depth: 246 mm

Height: 97 mm

Weight: 2.2 kg
