KORG / SV-2 73 Stage Vintage Piano

The Stage Vintage Piano SV-1, beloved for years with its distinctive sound and charming rounded form, returns with enhanced power. Faithfully reproduced classic keyboard sounds, beautiful piano tones, and effects that add warmth and depth allow for limitless expression. Its intuitive, easy-to-use panel shines on stage.

◎Sounds reproduced with advanced sampling technology
◎Intuitive control panel
◎Unique vacuum tube circuitry for warmth and distortion
◎RH3 keyboard for nuanced expression

■Keyboard
73 keys (E to E) Velocity-sensitive RH3 (Real Weighted Hammer Action 3) keyboard
Touch control: 8 touch curves
Tuning: Transpose, Fine tuning, Tuning curve

■Sound
Sound engine: EDS-X (Enhanced Definition Synthesis - eXpanded)
Max polyphony: 128 notes
Multi-Sound: Layer, Split
Factory Sounds: 72 (6 Basic Sounds x 2 Sets x 6 Variations)
EP1 (Vintage): MK I Suitcase, MK I Stage, MK II Suitcase, MK II Stage, MK V Stage, The MK V Stage, Dyno EP, Dyno EP Bright, Wurly, Wurly Classic, Wurly Dark, Wurly Bright
EP2 (Various): FM Piano 1, FM Piano 2, FM Piano 3, FM Piano & Pad, Pianet T, Pianet N, Hybrid Piano, Hybrid Tine, Wurly & Strings, FM & Strings, MK II & Pad, FM & Pad
Piano 1 (Acoustic): German Grand, German Classic, Italian Grand, Italian Bright, Japanese Grand, Japanese Bright, Austrian Grand, Austrian Classic, Japan Upright, Upright Bright, German Upright, Rock Piano
Piano 2 (Various): Electric Grand, German Mono, KORG M1 Piano, KORG SG-1D, Digital Piano, Electra Piano, Tack Piano, Honky-Tonk, Piano & Strings, Piano & Pad, Piano & Synth, Piano & Brass
Clavier: Clav AC, Clav AD, Clav BC, Clav BD, Harpsichord, Harpsichord Oct, Perc. Organ, Rock Organ, Jazz Organ, Vox Organ, Church Organ, Pipe Organ
Other: Full Strings, Classic Strings, Tape Strings, Strings & Voices, Warm Pad, Bright Pad, Orchestra, Pizzicato & Glock, Brass, Synth Brass, Pad/Mini Lead, Pad/SynthLead
Favorite Sounds: 64 (8 banks x 8 variations) for custom save

■Effects
Configuration: 6 independent systems (5 effects + 1 total effect)
Equalizer: Bass, Mid, Treble
Pre-Effects: Red Comp, Treble Boost, U-Vibe, Vibrato, Tremolo, VOX Wah (Pedal Control)
Amp Models: Clean, Twin, Tweed, AC30, Boutique, Organ Amp, Valve Reactor Circuit/Cabinet Models including 12AX7 (ECC83) Tube
Modulation: Classic Chorus, Black Chorus, Orange Faeser, Small Faeser, Flanger, Rotary (Slow/Fast Control)
Ambient: Room, Plate, Hall, Spring, Tape Echo, Stereo Delay (Tap Tempo)
Total Effects*: Stereo Mastering Limiter, Stereo Limiter
*Effects can only be edited in the SV-2 Editor.

■Control Panel
Sound Selection: 2 knobs (Type, Variation (combined with knob switch for bank switching))
Favorite Sound Selection: 8 switches (combined with sound type knob for bank switching)
Effect Control: Equalizer 1 switch (On/Off), 3 knobs (Bass, Mid, Treble)
Pre-Effect: 2 switches (On/Off, Auto/Pedal), 3 knobs (Type, Speed, Intensity)
Amp Model: 1 switch (On/Off), 2 knobs (Type, Drive)
Modulation Effect: 2 switches (On/Off, Rotary Speaker Speed “Fast/Slow” switch), 3 knobs (Type, Speed, Intensity)
Ambient: 2 switches (On/Off, TAP for stereo delay), 2 knobs (Type, Depth)
Volume: 1 master volume knob
Switches: 4 switches (Transpose, Local Off, Touch, Function)
Demo Songs: 72 songs (1 song per preset sound)

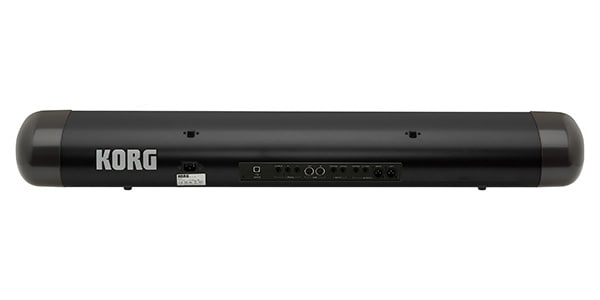

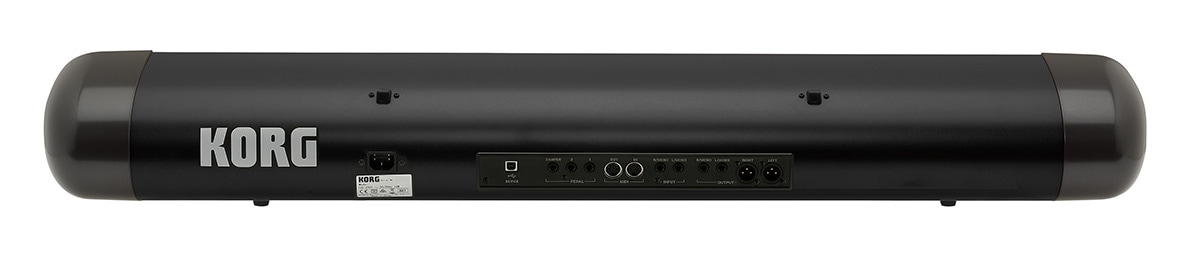

■Connectors
Audio Output: L, R (XLR ×2, balanced) + L/MONO, R/MONO (1/4" jack, unbalanced)
Audio Input: L/MONO, R/MONO
MIDI: IN / OUT
USB: Type B (shared with MIDI interface, USB 2.0 compatible)
Damper Pedal: (Damper Pedal DS-2H included, DS-1H sold separately)
Pedal 1: Foot Switch (PS-1, PS-3 sold separately)
Pedal 2: Volume/Expression (XVP-20, EXP-2 sold separately) or Foot Switch (PS-1, PS-3 sold separately)
Headphones: Headphone Output (1/4" jack stereo, front panel)

■Main Specifications
Power Supply: Built-in switch-mode adapter, AC 100–240V, 50/60Hz
Power Consumption: 25W
Dimensions (excluding music stand): SV-2S (73-key) 1,143 (W) x 347 (D) x 157 (H) mm
Weight (excluding music stand): SV-2S (73-key) 18.3kg　

■Other
Accessories: Music stand, power cord, damper pedal (DS-2H)
Optional Accessories: Dedicated keyboard stand ST-SV1, dedicated carrying bag CB-SV1 73 (for 73-key model only), damper pedal DS-1, HEXP/VOL pedal XVP-20, foot controller XP-2, pedal switch PS-3, PS-1
