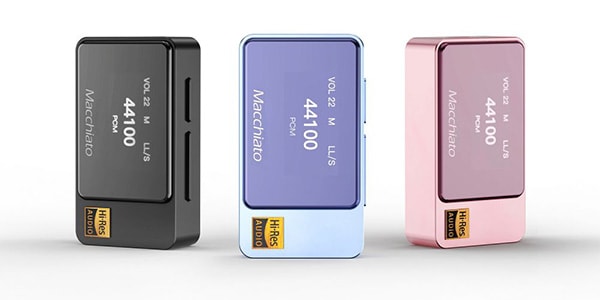

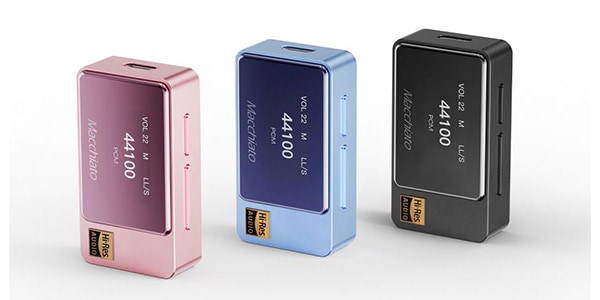

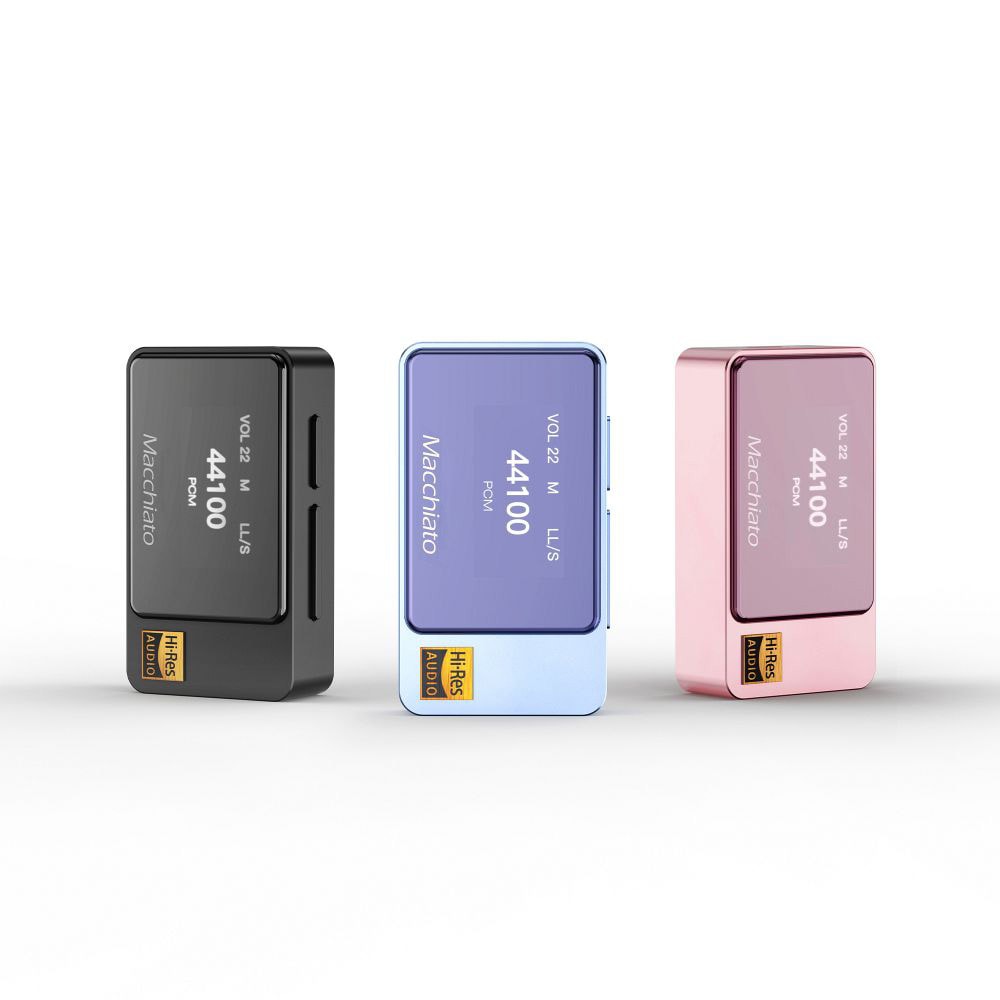

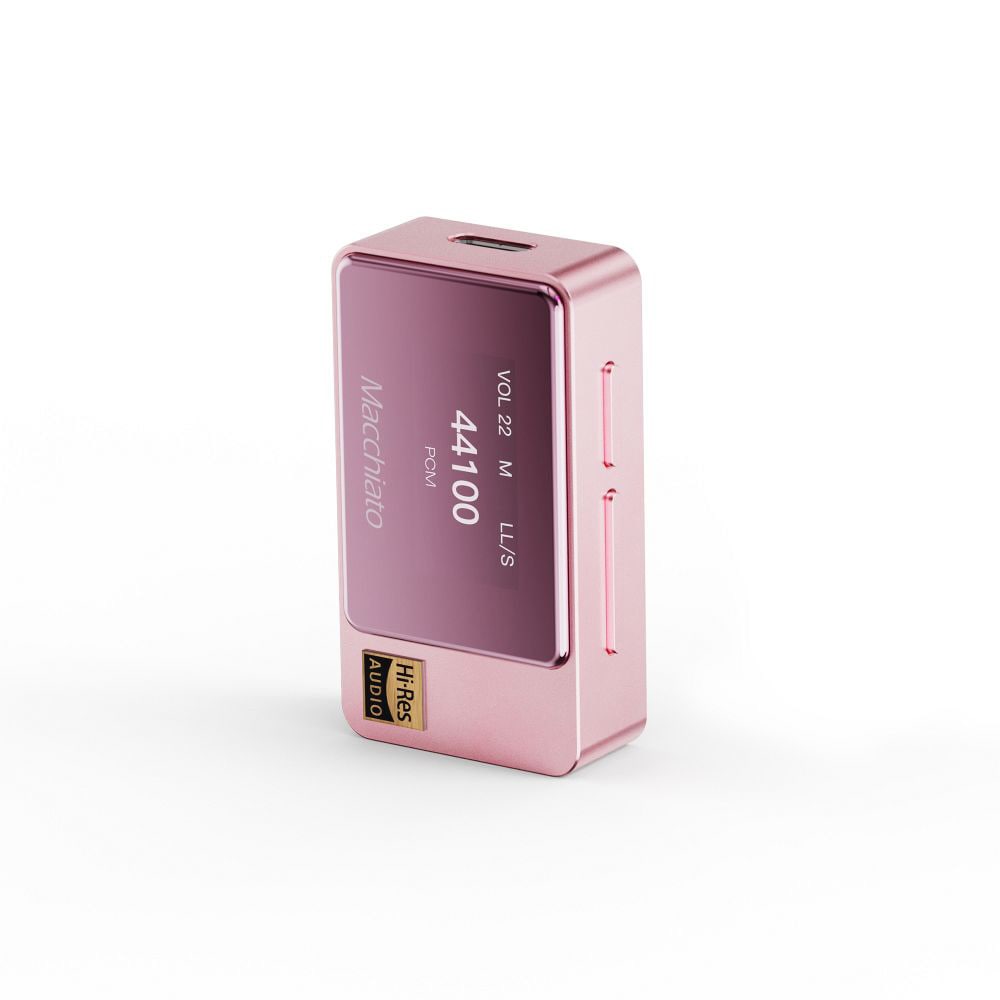

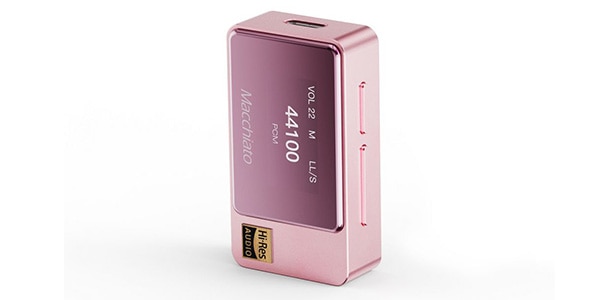

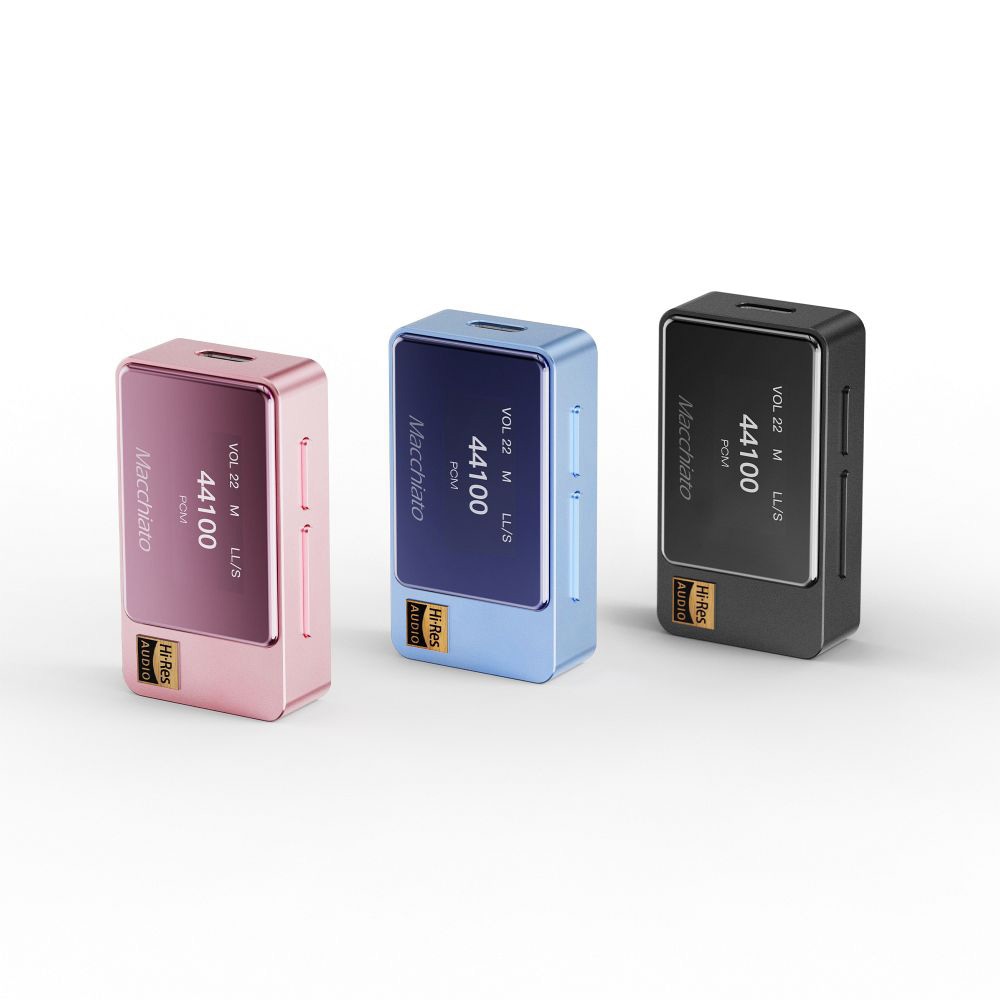

iBasso Audio / iBasso Jr. Macchiato Pink

＜＜december 2025 New Product！＞＞The iBasso Jr. Macchiato is a compact Hi-Fi DAC/AMP device that transforms the sound of your smartphone simply by connecting it to your smartphone via Type-C.

■ Supports 3.5mm 4-pole microphone input. A perfect partner for party games and team play.
・Macchiato is not just a Hi-Fi DAC/AMP; it also functions as a gaming DAC that will update the smartphone gaming scene. The 3.5mm jack also supports microphone input using 4-pole microphone-equipped earphones. With high-quality sound and stress-free voice chat, you can enjoy lag-free communication during team play, enabling smooth tactical discussions and IGL performance.

■ Compatible with various platforms, including smartphones, PCs, and game consoles
・Macchiato is truly a multi-functional expert device. It freely switches between UAC2.0 and UAC1.0 protocols, supporting a wide range of devices and platforms. The 3.5mm interface also supports SPDIF output. With a single device, Macchiato can be used for everything from smartphone music to gaming and as a digital source for your audio system, providing a multifunctional experience.

UAC 2.0 Mode
Connects to smartphones and tablets running iOS and Android.
Also supports PCs running Windows, Mac OS, and Linux.

UAC 1.0 Mode
UAC 1.0 compatibility transforms the device into an external sound card for use with consumer game consoles.
Enhances clearer, more beautiful game sound for a more immersive gaming experience.

SPDIF (Coaxial) Mode
Transmits 32-bit/384kHz digital signals.
Enables 3.5mm coaxial output by setting [Coax: ON] in the device settings or the UAC app for your smartphone.

■Luxurious iBasso Jr. Design: Cute, rounded, and beautiful design
- Inheriting the luxurious design of the iBasso Jr. series and boasting excellent sound performance, the Macchiato combines a cute design that appeals to younger generations with refined, high-quality sound. The housing features a machined aluminum alloy CNC frame with a dazzling sandblasted finish for a luxurious feel and a smooth texture. The rounded edges and plated glass panel create a diamond-like sheen and a subtle metallic finish. This creates a crystal-clear shine and a seamless integration with the housing, creating a sense of unity even when the screen is off. This not only delivers superior sound, but also a luxurious accessory-like feel.

■ Hybrid design combining an OLED screen and physical buttons for superior visibility and operability
・The 0.96-inch OLED screen and three physical buttons on the side for volume control and function keys allow for a variety of settings, including volume, filter switching, gain adjustment, and channel balance adjustment, all from the unit itself.

■ Sophisticated interface and simple operation: Equipped with a newly developed 8-band PEQ
・Macchiato is compatible with the iBasso UAC Android app, supporting various settings and user customization. The high-end DSP chip and built-in EQ presets cater to diverse listening preferences, while the iBasso UAC software allows for flexible sound tuning with an 8-band PEQ. Three customizable EQ settings can be saved, allowing you to optimize your sound for your preferred sound style or device, or even create a sound specifically for gaming. *The iBasso UAC App is not compatible with iOS devices.

■Dual CS43131 DAC + Femtoclock Crystal Oscillator: A combination of superior construction and expert tuning
- Equipped with dual CS43131 flagship DACs, the tuning technology has reached a level of mastery through years of design and development. From the delicate vocals of pop music to the grandeur of classical music, it accurately reproduces every detail, delivering a realistic, lively sound experience that makes you feel as if you're there. Furthermore, the use of a Femtoclock crystal oscillator significantly reduces jitter and distortion by reconstructing the digital clock.

■High Output, Low Noise, and Low Power Consumption
- Equipped with a 4-channel, fully balanced, independent headphone amplifier, it delivers a powerful 580mW + 580mW @ 32Ω driving force despite its compact body. Its output performance, beyond what you'd expect from such a compact device, maximizes the potential of your earphones and headphones. Noise levels are suppressed to the nanometer, delivering crystal-clear sound details that seem to emerge from the silence. Furthermore, its excellent power management design achieves low power consumption, allowing for comfortable listening over long periods of time.

■4.4mm + 3.5mm Dual Interface Interchangeable USB-C Cable
- The 4.4mm balanced connector maximizes the earphones' potential with excellent drive performance and separation, while the 3.5mm single-ended connector delivers rich musical nuances and a holistic pop music listening experience. The interchangeable cable design and high-quality silver-plated single crystal copper OTG cable included as standard reduce signal transmission loss for superior sound quality.

Specifications
■Color: Pink
■Size: 49.6 x 27.6 x 12.9 mm
■Weight: 21.6 g
■DAC Chip: CS43131 x 2
■Supported Sampling Rates: PCM: 32-bit/384 kHz, Native DSD256

[4.4 mm Balanced]
■S/N Ratio: 131 dB
■Dynamic Range: 132 dB
■THD+N: -118 dBA (300 Ω load), -105 dBA (32 Ω load)
■Output Level: 5 Vrms
■Output Power: 580 mW + 580 mW @ 32 Ω
■Output Impedance: <0.05 Ω
■Crosstalk: 145 dB
■Frequency Response: 5 Hz - 80 kHz (-0.5dB)

[3.5mm Single-Ended]
■S/N Ratio: 127dB
■Dynamic Range: 128dB
■THD+N: -115dBA (300Ω Load)
■Output Level: 2.5Vrms
■Output Power: 195mW + 195mW @ 32Ω
■Output Impedance: <0.05Ω
■Crosstalk: 136dB
■Frequency Response: 5Hz - 80kHz (-0.5dB)

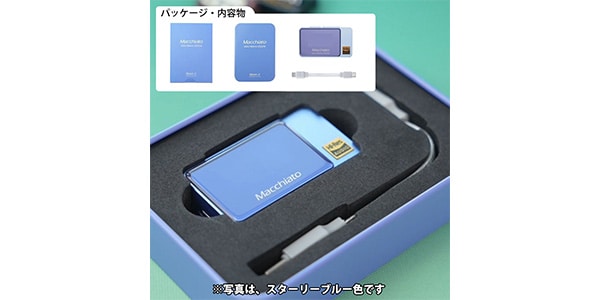

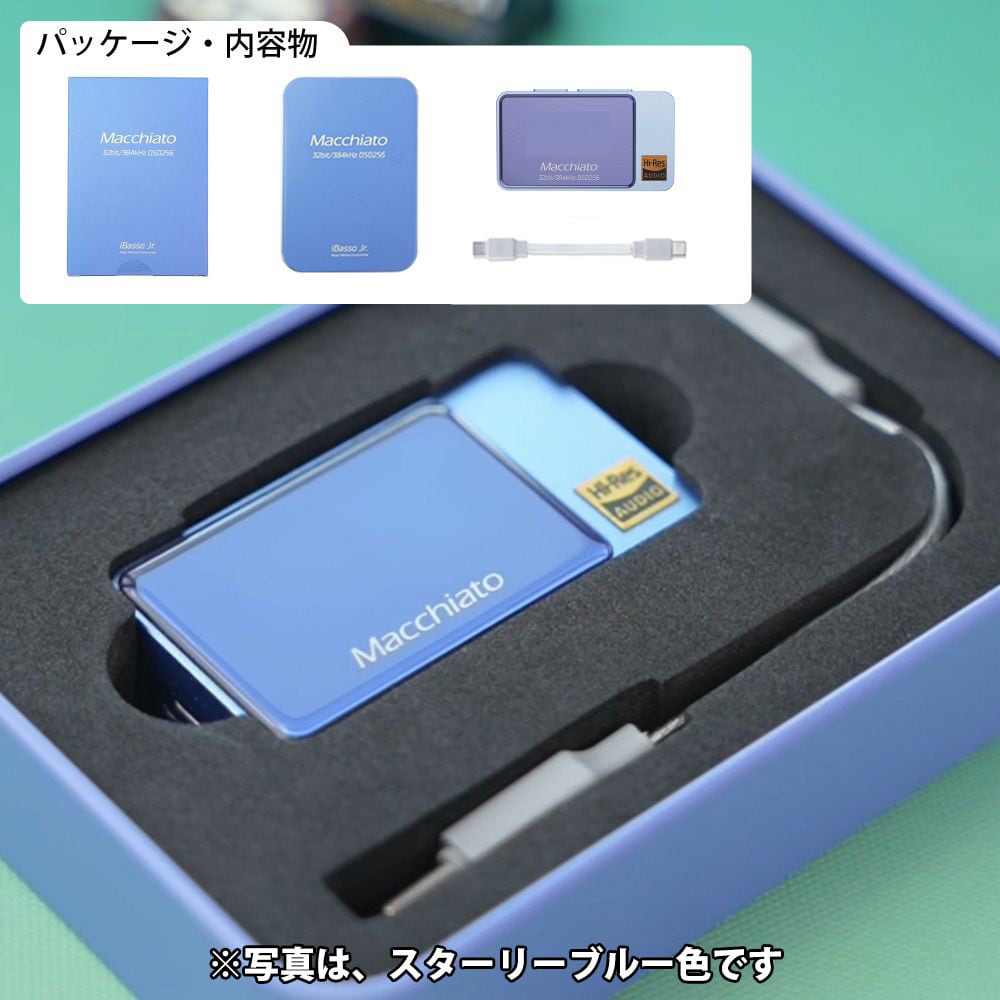

USB-C to USB-C OTG Cable
Product Warranty Card, Quick Start Guide
