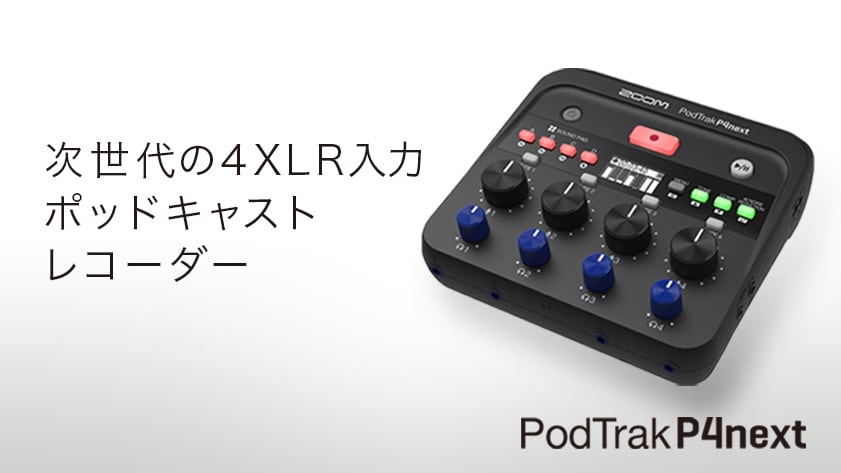

ZOOM / PodTrak P4next Podcast Recorder

<> This podcast recorder features four XLR microphone inputs and four headphone outputs, allowing for multi-track recording and live streaming of audio from up to four people.

■USB Microphone Podcast Recorder

■Key Features
・Podcast/live streaming recorder capable of recording the audio of four people plus a call-in guest
・Four microphone preamps with high gain up to +70dB and low noise (-125dBu EIN) (+48V phantom power can be supplied)
・Four stereo mini headphone outputs with independent volume controls
・Can record the audio of up to two call-in guests via smartphone connection via USB, TRRS (4-pole mini), or Bluetooth (*1)
・USB audio interface function (*2) for audio input when recording video podcasts
・AI Noise The Reduction function dramatically reduces background noise.

- COMP maintains consistent voice volume even when the distance between the microphone and mouth changes.

- TONE enhances vocal definition while suppressing sibilants.

- MUTE key instantly mutes unwanted sounds like throat clearing.

- Four sound pads allow for quick start of background music, jingles, and more.

- Powered by two AA batteries or USB power (mobile battery, AC adapter, or bus power).

- Approximately 3.5 hours of continuous operation with two AA alkaline batteries.

- Easy-to-use input volume and clear level meters.

- Choose between stereo recording for immediate streaming or multi-track recording with individual recording of each channel.

- Records to microSD card in 24-bit/48kHz WAV format.

- Automatically saves recording data every 30 seconds to minimize data loss in the event of a power outage.

*1 Requires the separately sold Bluetooth adapter ""BTA-2.""
*2 Compatible with Windows, Mac, iOS, and Android. Supports USB transfer and backup recording to the P4next.

[Specifications]
■ Input/Output Channels
Input: 4 (Mono/Stereo compatible)
Output: 4 Phones (Stereo)

■ Input
Connector: 4 XLR Jacks (Position 2 Hot)
Gain: -∞ to +70 dB
Impedance: 3 kΩ or greater
Maximum Input: 0 dBu
Phantom Power: +48 V
■ Smartphone Connection
Connector: 4-pole TRRS mini jack
Impedance: 2.7 kΩ or greater
Maximum Input: +3 dBu

■ Output
Connector: 4 Stereo Mini Jacks
Maximum Output: 6 mW + 6 mW (32 Ω load)
Output Impedance: 10 Ω or less

■ Effects
TONE
COMP
AI NOISE REDUCTION

■Recorder
Maximum Number of Recording Tracks: 11
Maximum Number of Playback Tracks: 2
Recording Format: WAV (48 kHz/24-bit)
Recording Media: microSDHC/microSDXC

■USB Connection
Connector: USB Type-C
Audio Interface: USB 2.0 High Speed ​​(12-in/2-out)
Sampling Frequency: 48 kHz
Bit Depth: 24-bit
File Transfer: USB 2.0 High Speed ​​

■Audio Characteristics
EIN: -125 dBu or less (IHF-A) @ +70 dB, 150 Ω Input

■Display
OLED Display (128 x 64 pixels)

■Power Source
2 x AA batteries (Alkaline, NiMH, or Lithium compatible)
USB Power Supply (DC 5V, 2.4A or higher, USB bus power compatible)
■Battery Life (When using four dynamic microphones)
Alkaline: Approximately 3.5 hours
Nickel: Approximately 4 hours
Lithium: Approximately 8.5 hours

■Maximum Power Consumption: 5 W
■Dimensions: 125.9 mm (W) x 120 mm (D) x 40 mm (H)
■Weight (including batteries): 300 g
