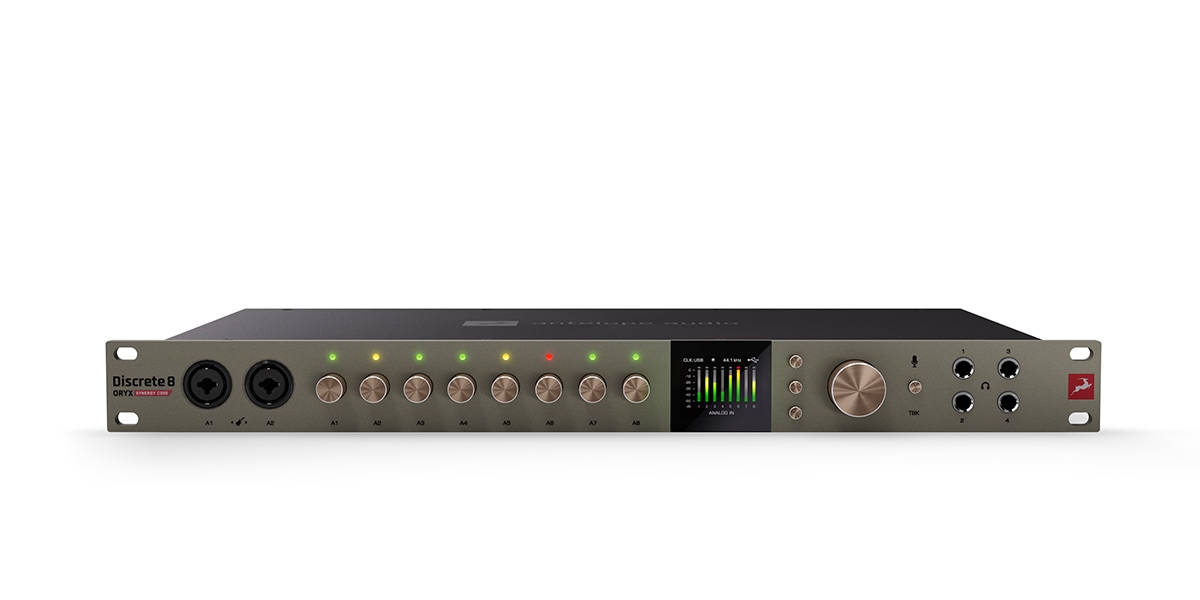

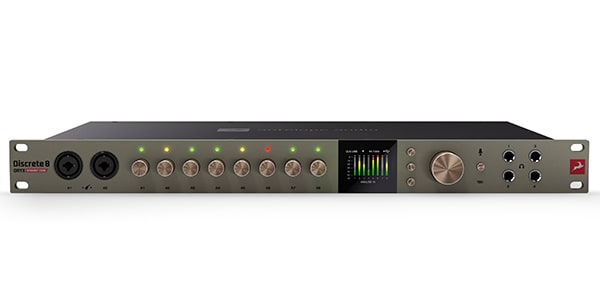

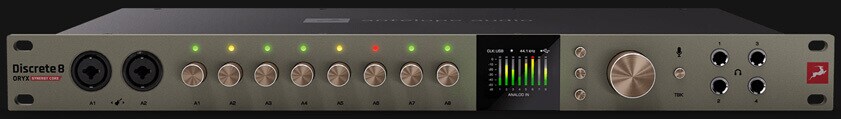

ANTELOPE AUDIO / Discrete 8 Oryx Synergy Core

<> Boasting industry-leading sound quality and flexibility, the Discrete 8 Oryx is a next-generation studio hub that packs Antelope Audio's innovative technology into a 1U footprint. High-precision clocking, pristine conversion, and console-class preamps create a professional-level recording environment. Real-time FX processing and a multi-function headphone output make it suitable for a wide range of applications, from band recording to mixing.

■Audio Interface
■USB Connection (Type-C)
■26-in / 38-out

Next-generation model combining studio-grade sound quality and expandability
The Discrete 8 Oryx brings together Antelope Audio's innovative technologies, featuring the latest AD/DA converters with a dynamic range of up to 130dB and fourth-generation 64-bit AFC clocking. It delivers pure, three-dimensional sound and a stunning stereo image, providing pro-studio quality for any production environment.

Industry-leading sound quality
- Low-noise preamp with 75dB gain, featuring a discrete 6-transistor design
- Latest-generation A/D converter with enhanced dynamic range
- Proprietary 64-bit AFC clocking for exceptional clarity
- Mastering-grade monitor output with 130dB dynamic range

Features to enhance your production workflow

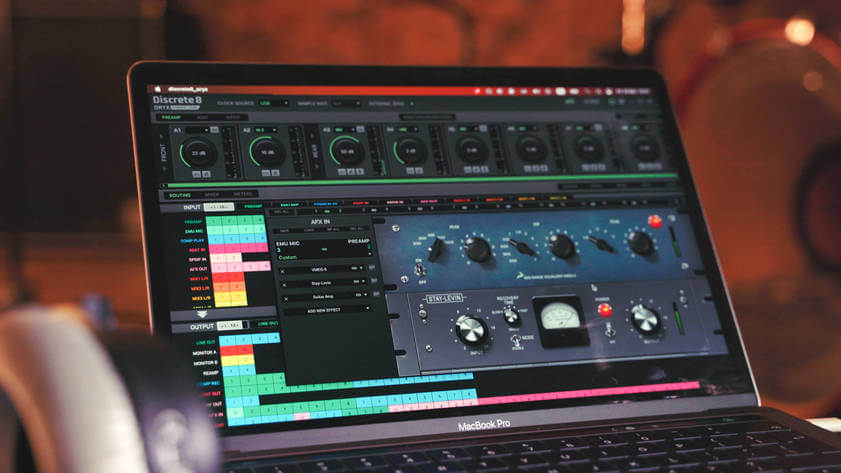

- Antelope Audio's renowned virtual patchbay for flexible routing

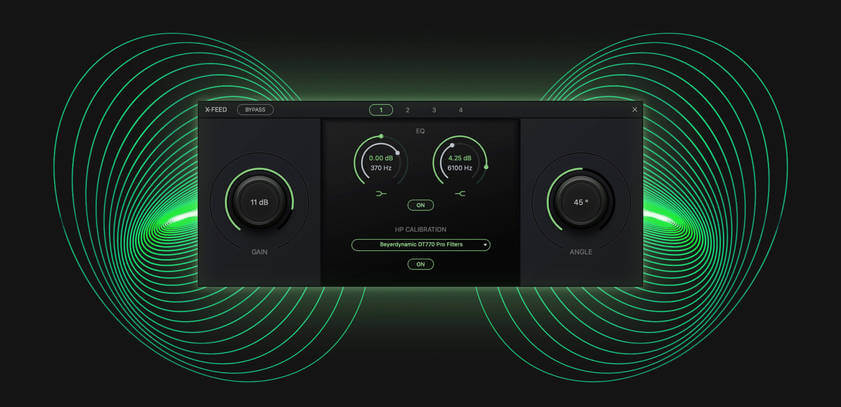

- X-Feed (crossfeed) mode for headphones to recreate a speaker listening environment
- Customizable real-time monitoring and session presets
- Talkback function via the front-panel microphone
- Independent physical gain knobs for each preamp
- macOS / Low-latency USB-C connection compatible with both Windows and Mac OS.
Class-compliant for instant connection without drivers.

High-quality preamps with vintage warmth.
Eight discrete 6-transistor preamps (up to 75dB gain) are designed to resemble classic consoles. From ribbon microphones to drum recordings, they handle everything accurately and musically, delivering crystal-clear recordings with minimal noise.

Near-Zero Latency Synergy Core Real-Time FX Processing
- Equipped with a Synergy Core engine powered by two DSPs and one FPGA
- Real-time processing of 37 compressors, EQs, amps, mic preamps, and more
- Supports near-zero latency direct monitoring and playback
- Over 60 additional FX available for purchase from the Software Store
- Simultaneous recording and mixing without CPU load

Comfortable Monitoring and Flexible Routing
- Four independently controllable headphone outputs (with X-Feed and calibration)
- Individual mix and real-time FX application on each output

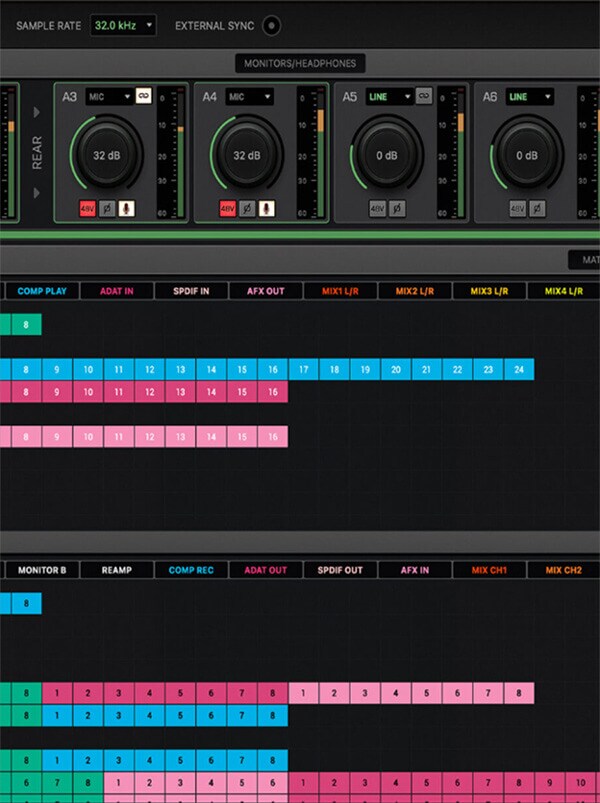

- Virtual patch bay allows free routing of over 60 channels
- Session presets allow for one-touch reproduction of complex setups

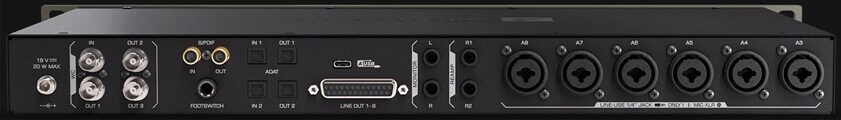

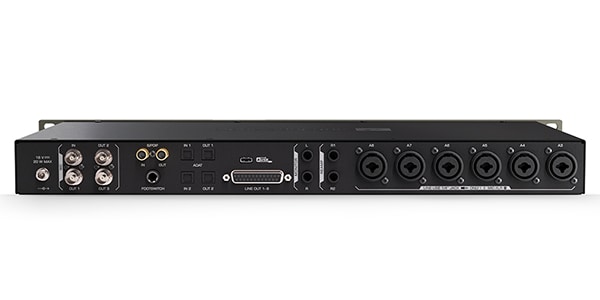

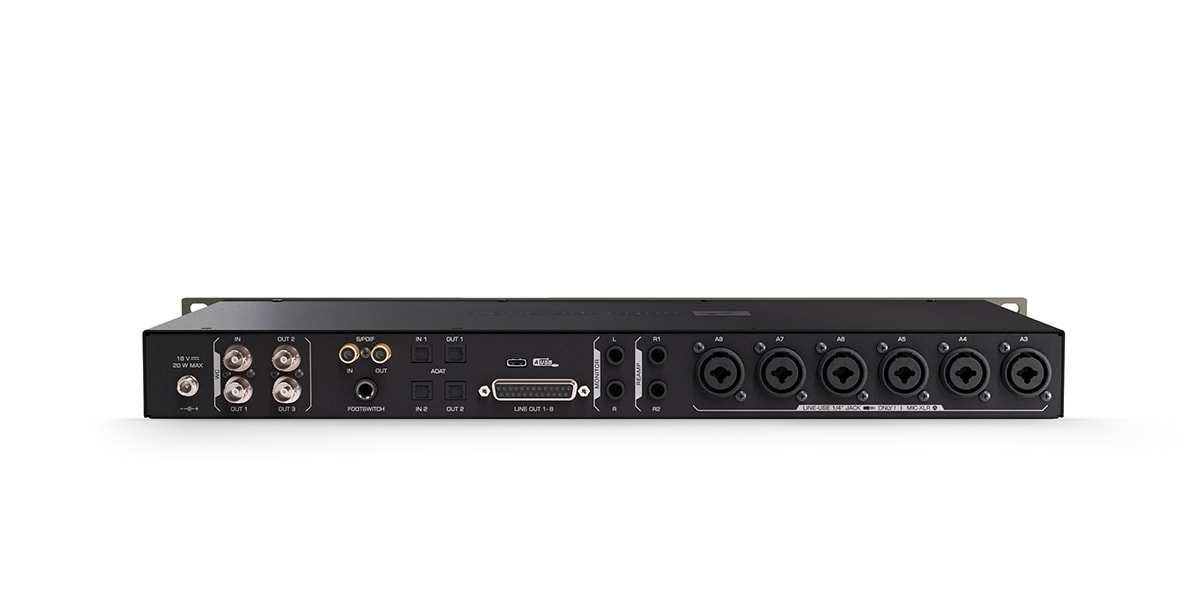

26IN × 38 Outputs for Rich Connectivity
- Eight discrete mic/line preamps, each with independent 48V phantom power, two with Hi-Z input
- Eight DC-coupled line outputs (D-Sub 25)
- Switchable stereo monitor output and two Reamp outputs (TRS)
- Four independent headphone outputs
- Digital expansion of up to 18 channels via ADAT and S/PDIF
- Three word clock outputs with Antelope's proprietary 64-bit AFC clocking

Real-Life Examples
■ Full-band recording in the studio
Simultaneously record drums, vocals, bass (DI), and guitar amps.
Maximum expansion with eight internal mic preamps plus external mic preamps via ADAT.
Each musician can monitor with their own dedicated headphones.
Real-time Synergy Core FX enable near-perfect monitoring.

■ Guitar-centric production/hybrid re-amping
Send a pre-recorded DI guitar signal from the re-amp output to an amp and re-record it with multiple microphones.
By applying real-time FX, you can achieve a variety of tones in a single take.
A clean signal path that maintains phase consistency is achieved without the need for a re-amp box.

■ Hybrid electronic music production
Connect multiple analog synths and drum machines to the line input.
Route stems from the DAW to outboard gear via the line output.
Seamlessly integrate analog equipment and your DAW to streamline hybrid production.

Included Items
- Discrete 8 Oryx unit
- USB 2.0 Type-C cable
- USB Type-C to Type-A adapter
- Power supply unit
- Quick start guide
- 37 Synergy Core real-time FX (compressor, EQ, amp, reverb, etc.)

Other
- Operating temperature: 0-50°C
- Weight: Approximately 3.0 kg
- Dimensions (approximate)
- Width: 483 mm / Height: 44 mm / Depth: 220 mm
- Power consumption: 25 W

For the latest operating environment information, please refer to the manufacturer's page.

Technical specifications
ANALOG
Analog Inputs
6 x Mic/Line Inputs
2 x Mic/Line/Hi-Z Inputs
DC-Coupled
Analog Outputs
Monitor Out on TRS 1/4 Jacks, +20 dBu max
ReAmp Out on TRS 1/4 Jacks
Line Out (8 channels) on DB25, +20 dBu max
4 x Stereo Headphone Outputs
Mic Preamp
EIN: -128 dBu (A-weighted)
Dynamic Range: -121 dB (A-weighted)
THD: -106dB
Max input: +20 dBu
Max Gain: 75dB
D/A Monitor Converter
Dynamic Range: 130dB
THD+N: -115dB
A/D converter
Dynamic Range: 121dB
THD+N: -112dB
D/A Converters (Line Out)
Dynamic Range: 121dB
THD+N: -100dB
DC-Coupled
DIGITAL
Digital Inputs
2 x ADAT (up to 16CH)
1 x S/PDIF
Digital Outputs
2 x ADAT (up to 16CH)
1 x S/PDIF
USB 2.0 I/O
USB 2.0 Type-C connector
CLOCKING
Word Clock Input
1 x Input @ 75 Ohms 3Vpp on BNC 32?192kHz
Word Clock Outputs
3 x Outputs @ 75 Ohms 3Vpp on BNC 32?192kHz
Clocking System
4th Generation Acoustically Focused Clocking
64-bit DDS
Sample Rates (kHz)
32, 44.1, 48, 88.2, 96, 176.4, 192
