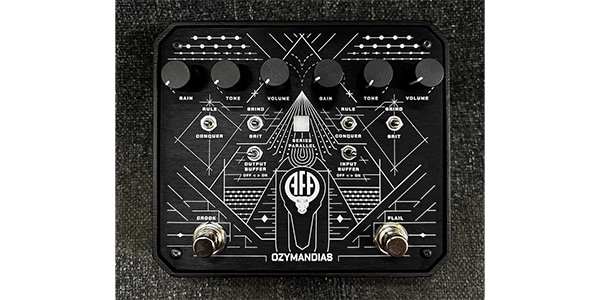

Animal Factory Amplification / Ozymandias

Ozymandias is a highly versatile and flexible dual overdrive/distortion pedal. At first glance, Ozymandias appears to be a simple stack overdrive with two independent overdrive circuits, each with its own distinct sound character. It can produce a wide range of distortion, from clean boost to intense crunch sounds, to meet any need.

Thanks to its internal voltage doubling, Ozymandias offers significantly more headroom than most overdrive pedals powered by a standard 9V pedal supply. Even with the gain turned down, this pedal is incredibly responsive to your playing dynamics, allowing you to deliver the nuanced tone you desire.

■SPECS
Status
CROOK Channel (Left)
Status LED: Blue
Fat, full-range voicing.

FLAIL Channel (Right)
Status LED: Red
Voices with enhanced upper mids.

Status LED: Purple
When both the CROOK and FLAIL channels are on.

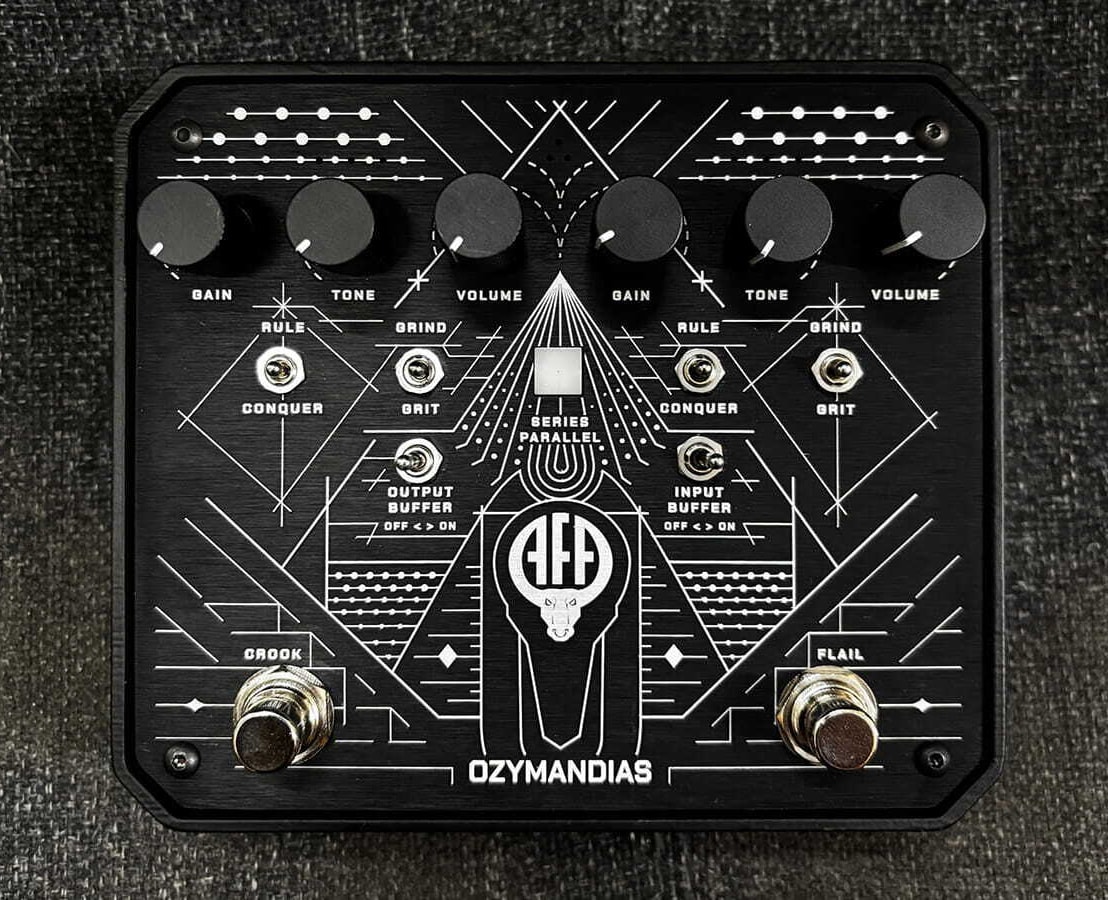

Controls
GAIN: Gain control. Turning it clockwise increases distortion and creates a harsher sound.
TONE: Cuts high frequencies. The CROOK channel becomes darker.
VOLUME: Sets the output level of the channel.

・Switches
Footswitch: Turns each channel's drive circuit on/off.
SERIES / PARALLEL: Switches between series and parallel connection.
INPUT BUFFER: Buffers the input signal at the FLAIL input. When set to ON, the pedal is no longer true bypass.
OUTPUT BUFFER: Buffers the output signal at the CROOK output. Suitable for connecting to low-impedance inputs such as power amps, mixers, and interfaces.
GRIND / GRIT: Choose from three clipping settings.
-GRIT: Soft clipping. Produces blurred, asymmetrical clipping. High frequencies are clearly clipped.
-OFF: Produces the pedal's natural clipping.
-GRIND: Hard clipping. Produces asymmetrical LED limiting.
RULE / CONQUER: RULE boosts the bass, while CONQUER boosts it even more.

・Other Specifications

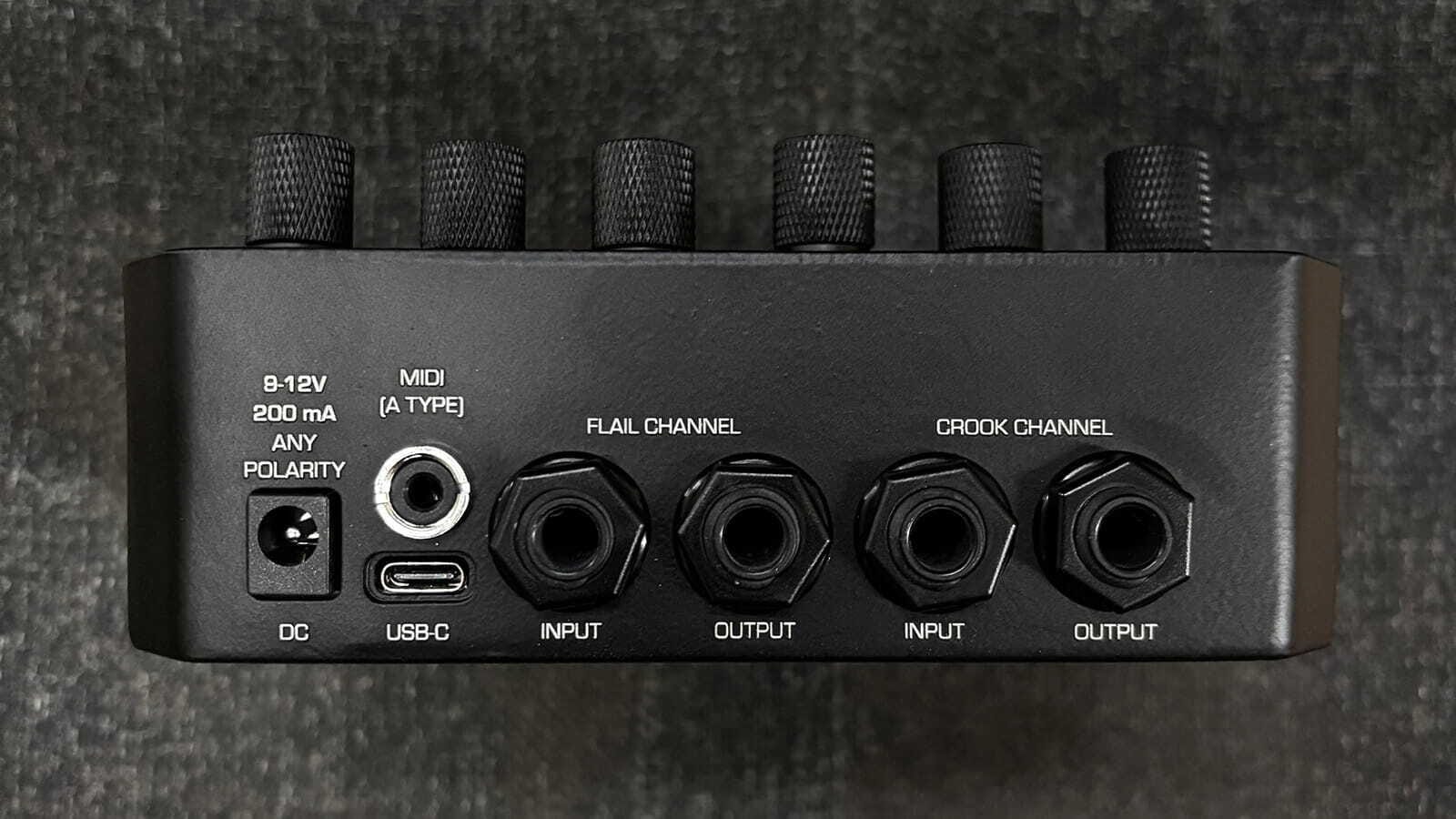

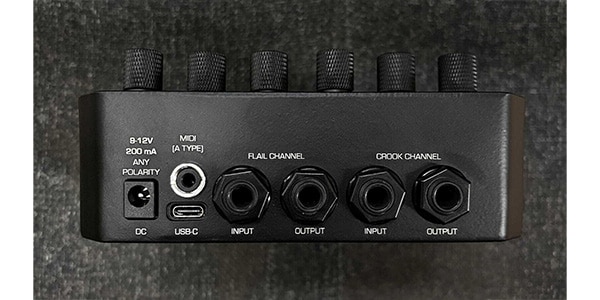

USB-C: Used for updates.
Input Jack: 1/4"" TS Jack.
Input Impedance
-SERIES Mode: 1MΩ
-Parallel Mode: 470kΩ
-All Modes, Input Buffer ON: 1MΩ
Output Jack: 1/4"" TS Jack.
Output Impedance
-Both Outputs, Output Buffer OFF: <10kΩ (Full Volume)
-Both Outputs (Both Channels Bypassed), Input Buffer ON: 100Ω
-CROOK Output, Output Buffer ON: 100Ω
MIDI: Connects to a 1/8"" Type A MIDI connector.

-Power Supply Specifications
Voltage: 9-12V DC
Polarity: Center Negative/Center Positive
Current Draw: 250 mA

-Dimensions

140.5(W) x 120.5(D) x 35-45(H) mm
*Dimensions of the housing only, excluding protrusions

-Weight

500g
