no name guitars / 59 nostalgia bridge cream 4conductor

While faithfully reproducing the original P.A.F. sound, component costs have been kept to a minimum, resulting in outstanding cost performance. The coil material and magnet, which are the core of the sound, use the same 42AWG plain enamel coil and alnico magnet as the original P.A.F.

■String Spacing: 10mm (50mm)
■Bobbin: ABS (Plastic)
■Coil: 42AWG Plain Enamel
■Magnet: Alnico 5
■Position: Bridge
■Resistance: Approx. 7.7Ω
■Lead Wire: 4-Core
■Color: Cream

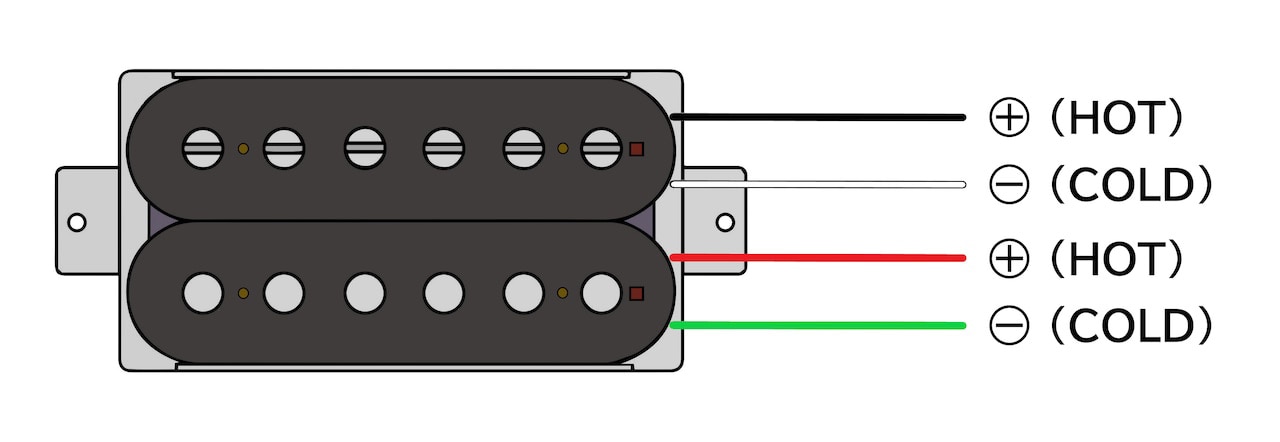

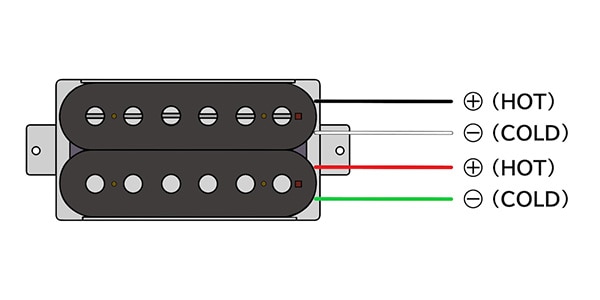

■4-Core Wiring
Screw Side HOT: Black
Screw Side COLD: White
Slug Side HOT: Red
Slug Side COLD: Green

In the front position, where string vibration is greater, the number of coil turns is reduced, and the magnet is an Alnico 2, which has a mellow, sweet tone.
In the rear position, the number of turns is standard, and the magnet is an Alnico 5, which has excellent picking nuances and a wild tone.

*The product image shows a 2-core wire.
