no name guitars / 59 nostalgia neck black 4conductor

While faithfully reproducing the original P.A.F. sound, component costs have been kept to a minimum, resulting in outstanding cost performance. The coil material and magnet, which are the core of the sound, use the same 42AWG plain enamel coil and alnico magnet as the original P.A.F.

■String Spacing: 10mm (50mm)
■Bobbin: ABS (Plastic)
■Coil: 42AWG Plain Enamel
■Magnet: Alnico2
■Position: Neck
■Resistance: Approx. 7.2Ω
■Lead Wire: 4-Core
■Color: Black

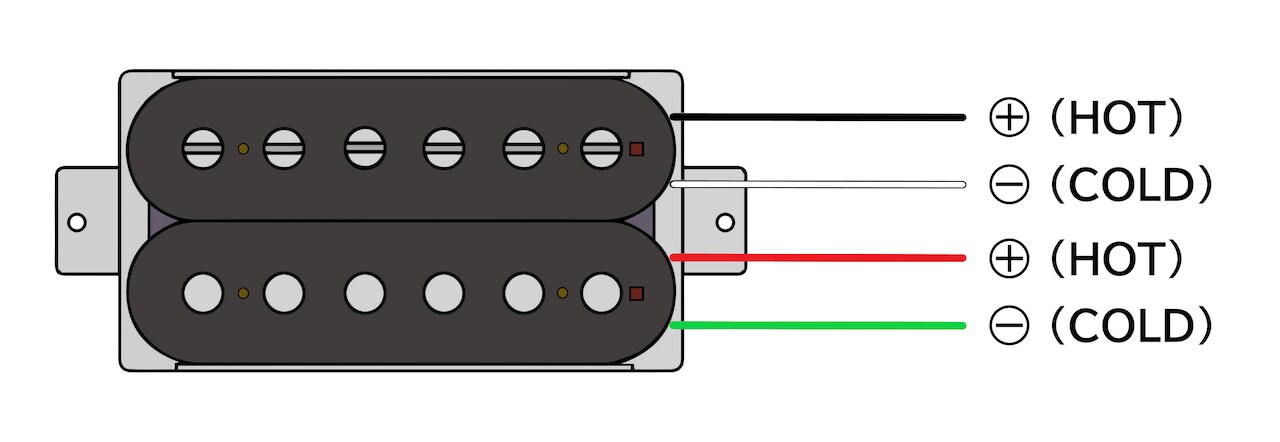

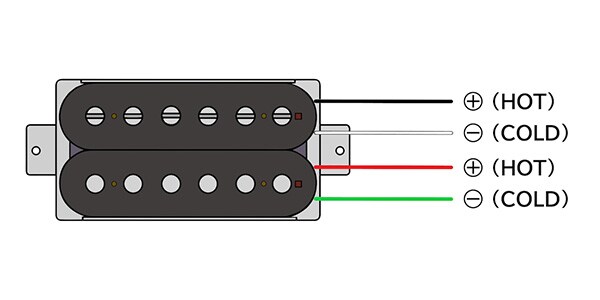

■4-Core Wiring
Screw Side HOT: Black
Screw Side COLD: White
Slug Side HOT: Red
Slug Side COLD: Green

For the front position, where string vibration is greater, the coil turns are reduced, and the magnet is an Alnico2, which offers a mellow, sweet tone.
For the rear position, the coil turns are standard, and the magnet is an Alnico5, which offers excellent picking nuance and a wild tone.

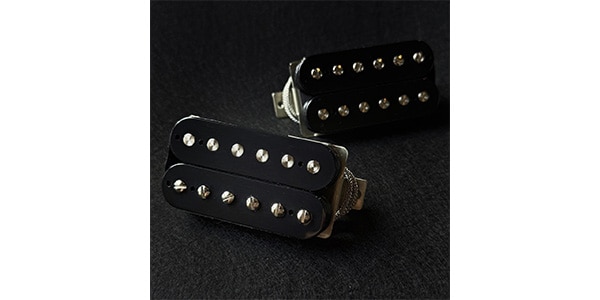

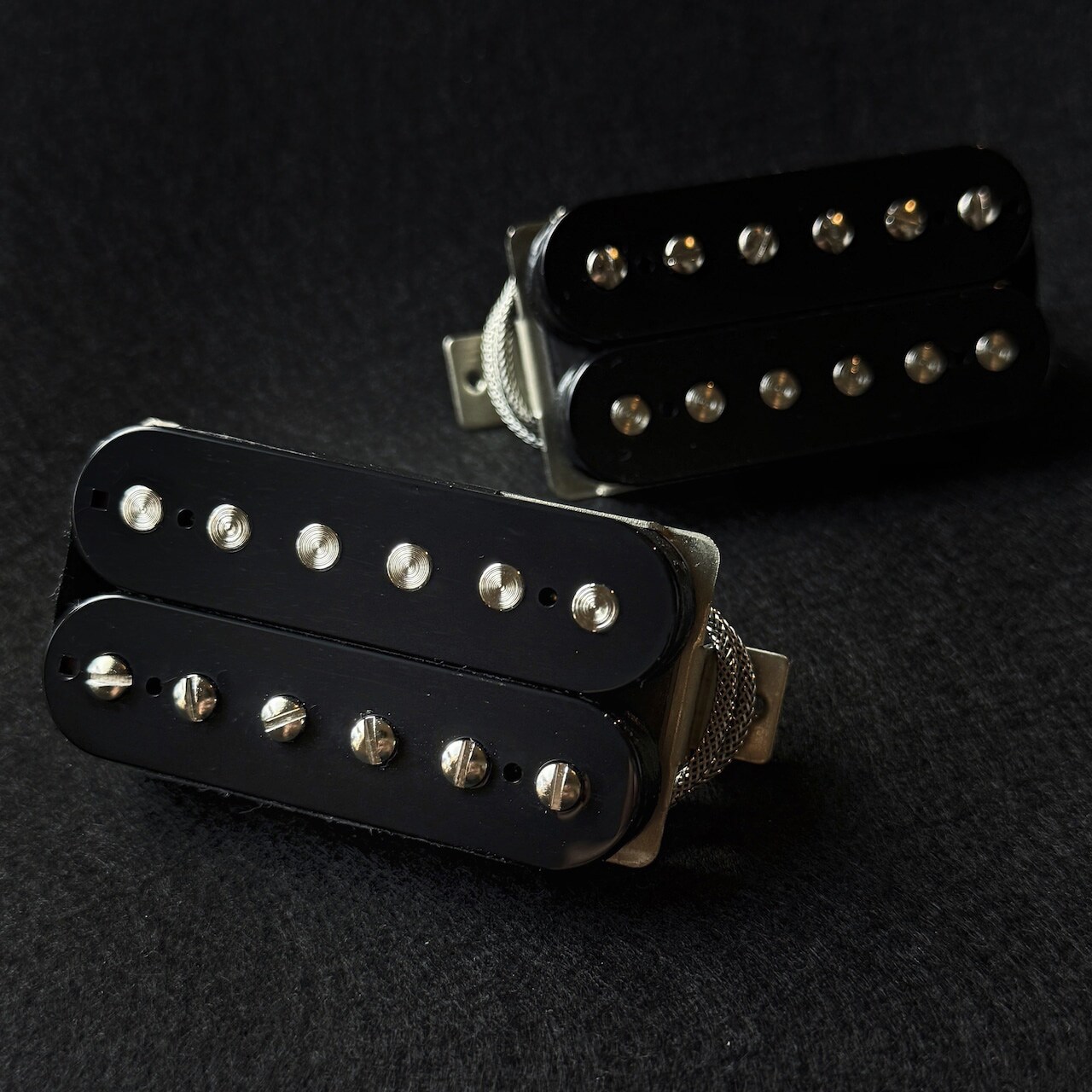

*Product images show a 2-core wire.
