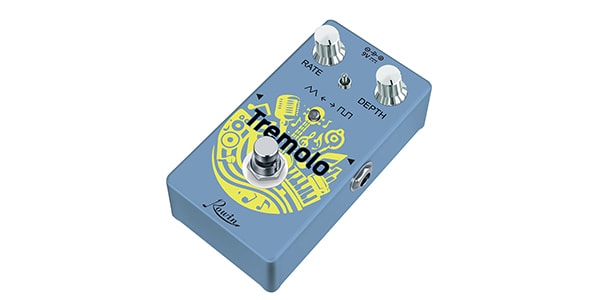

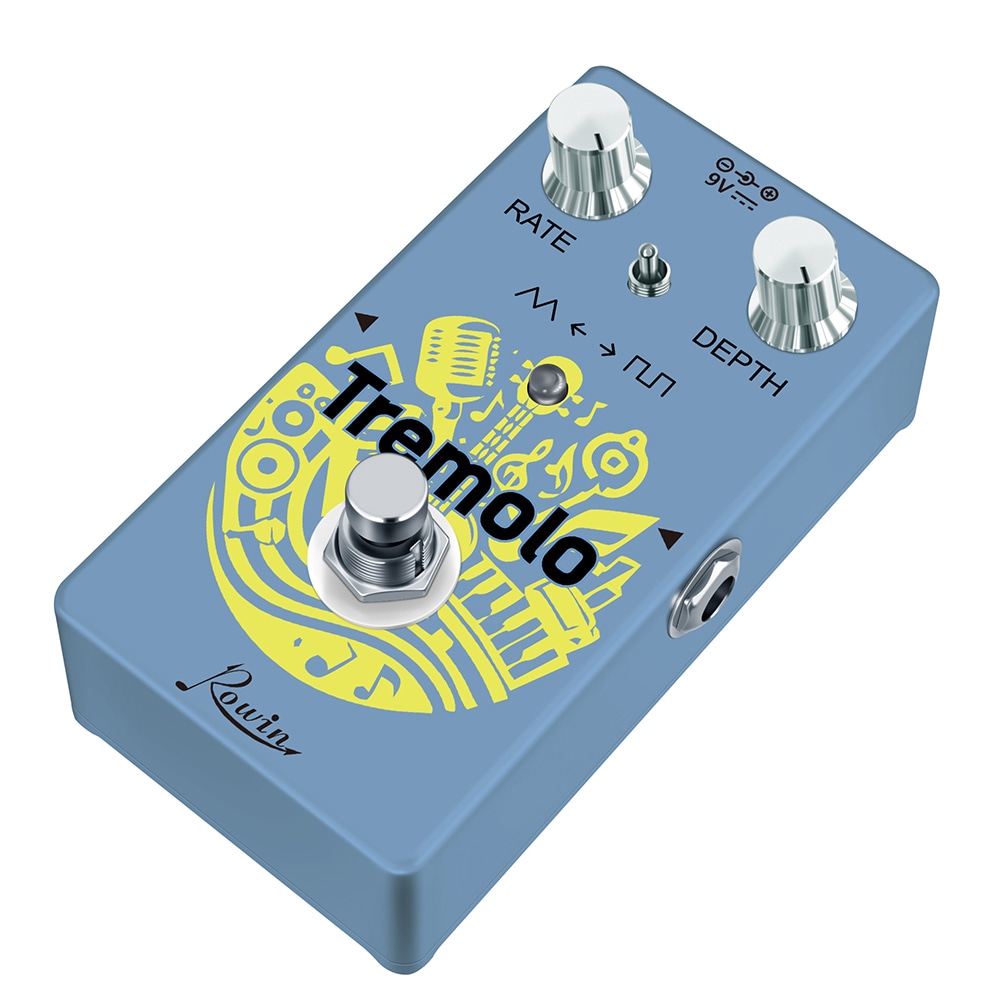

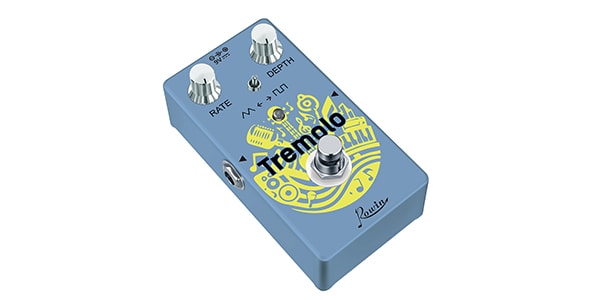

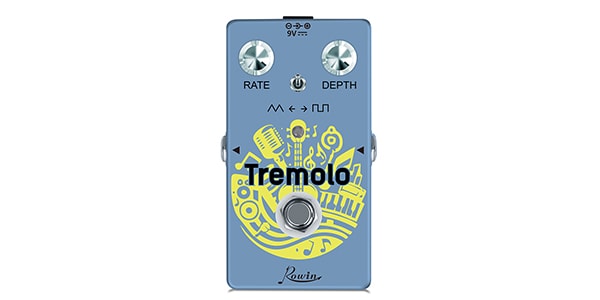

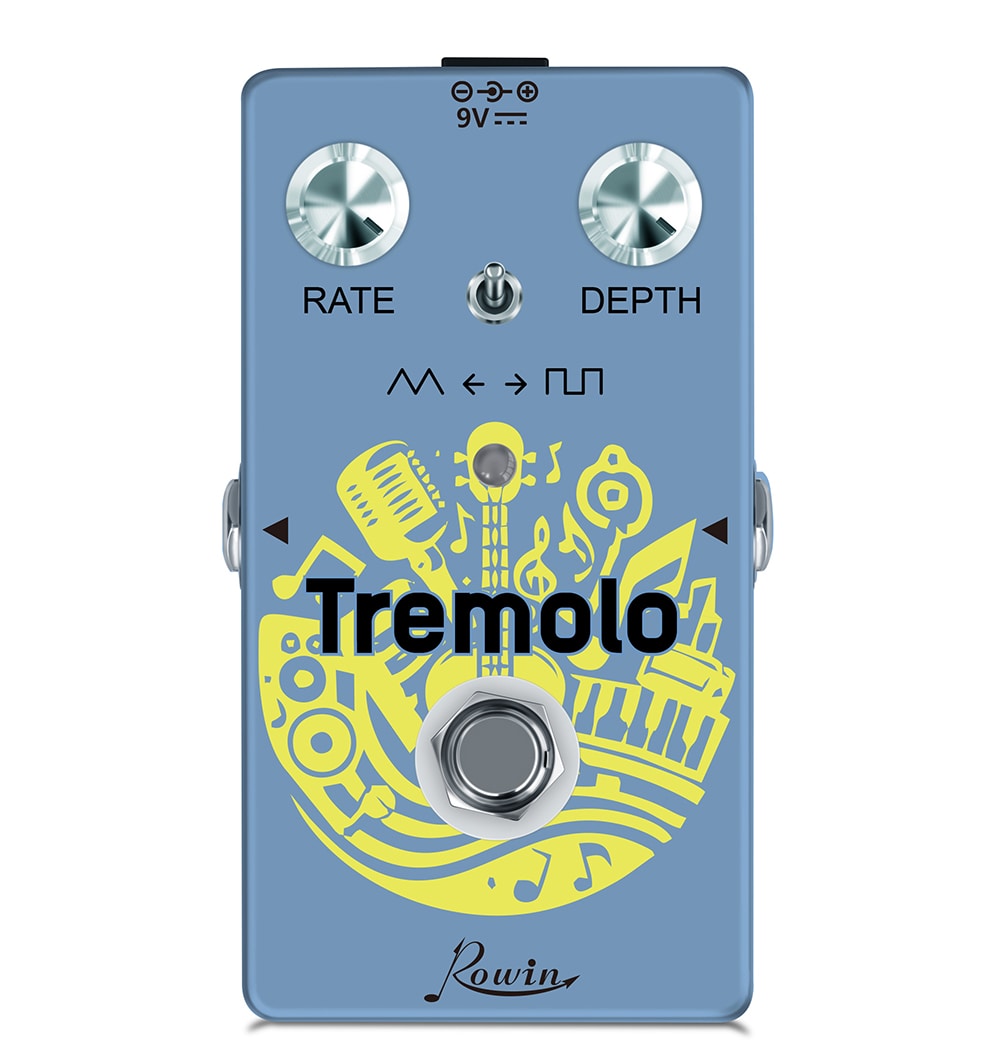

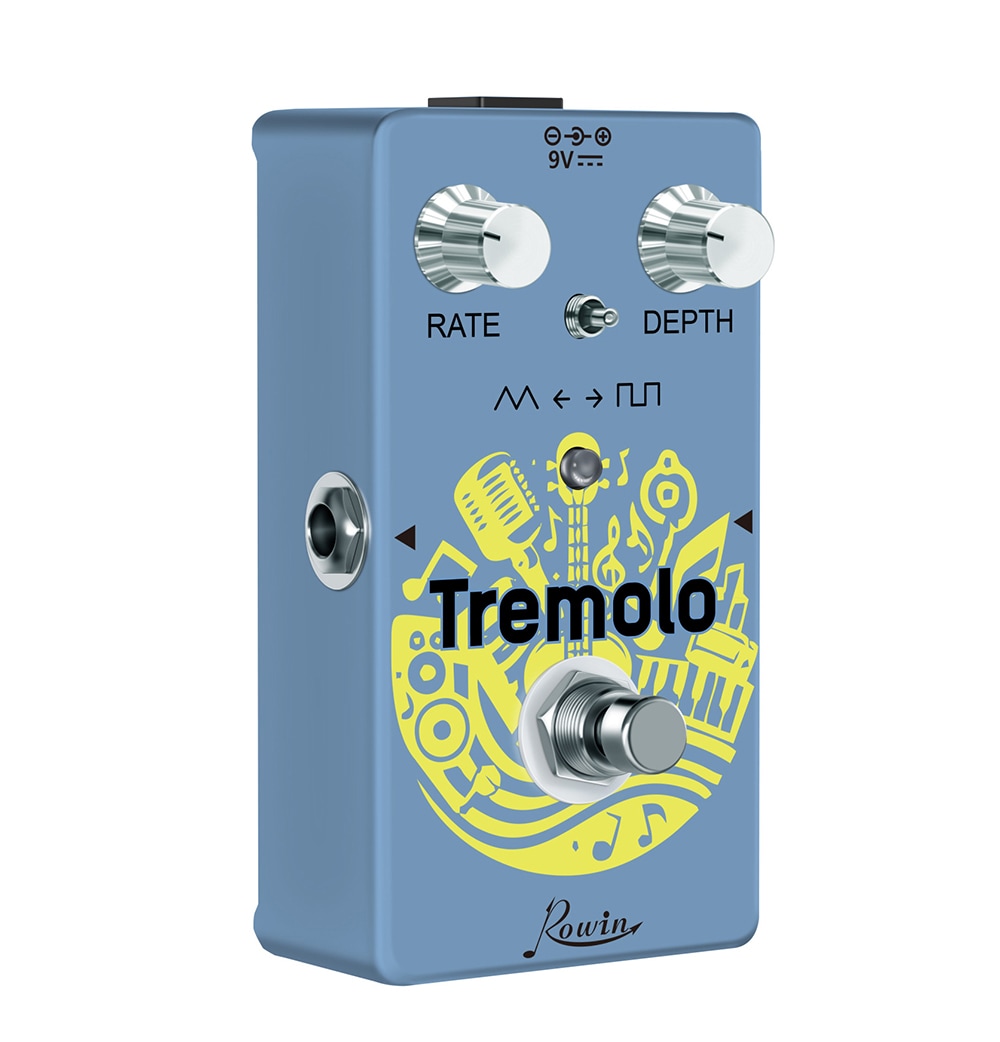

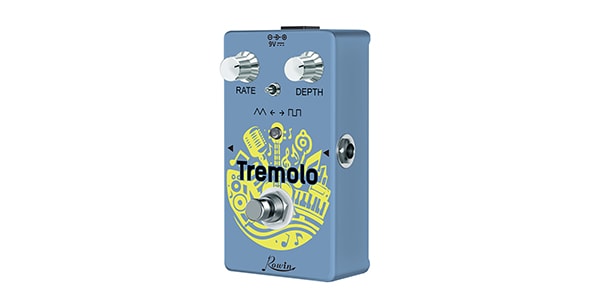

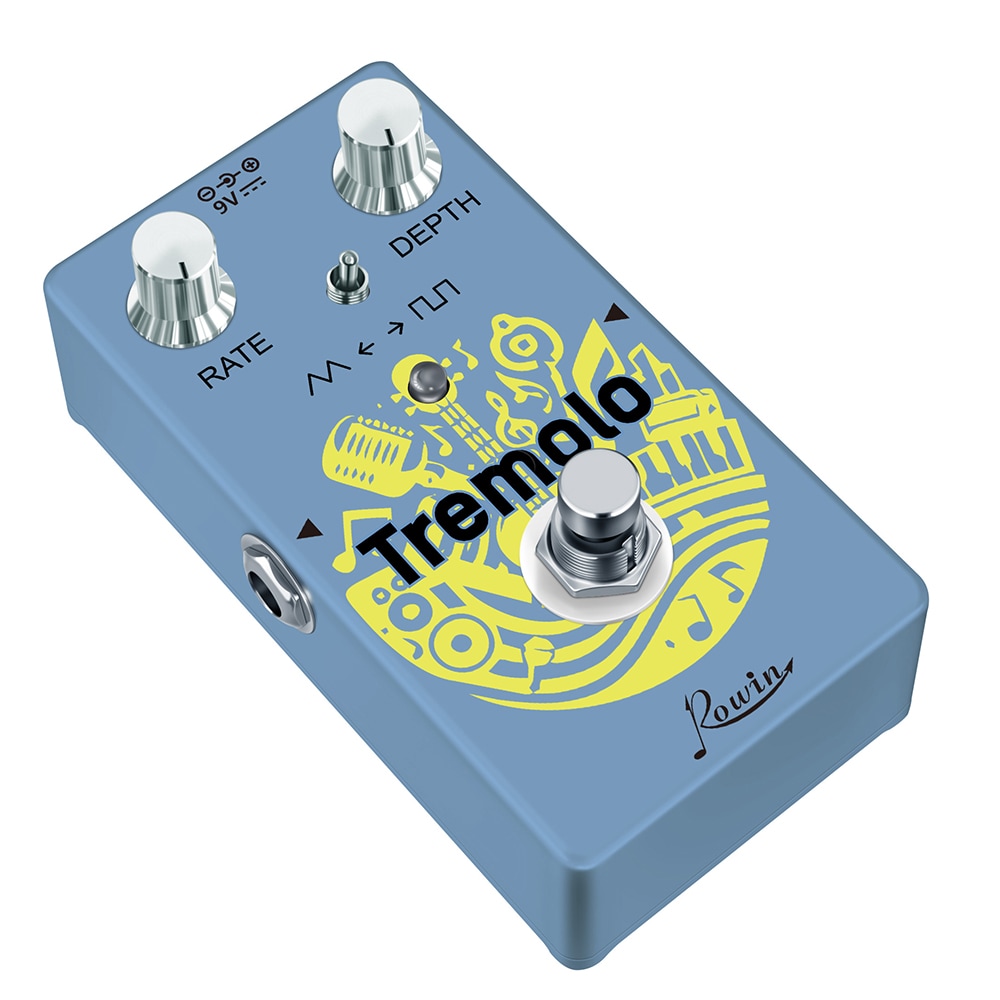

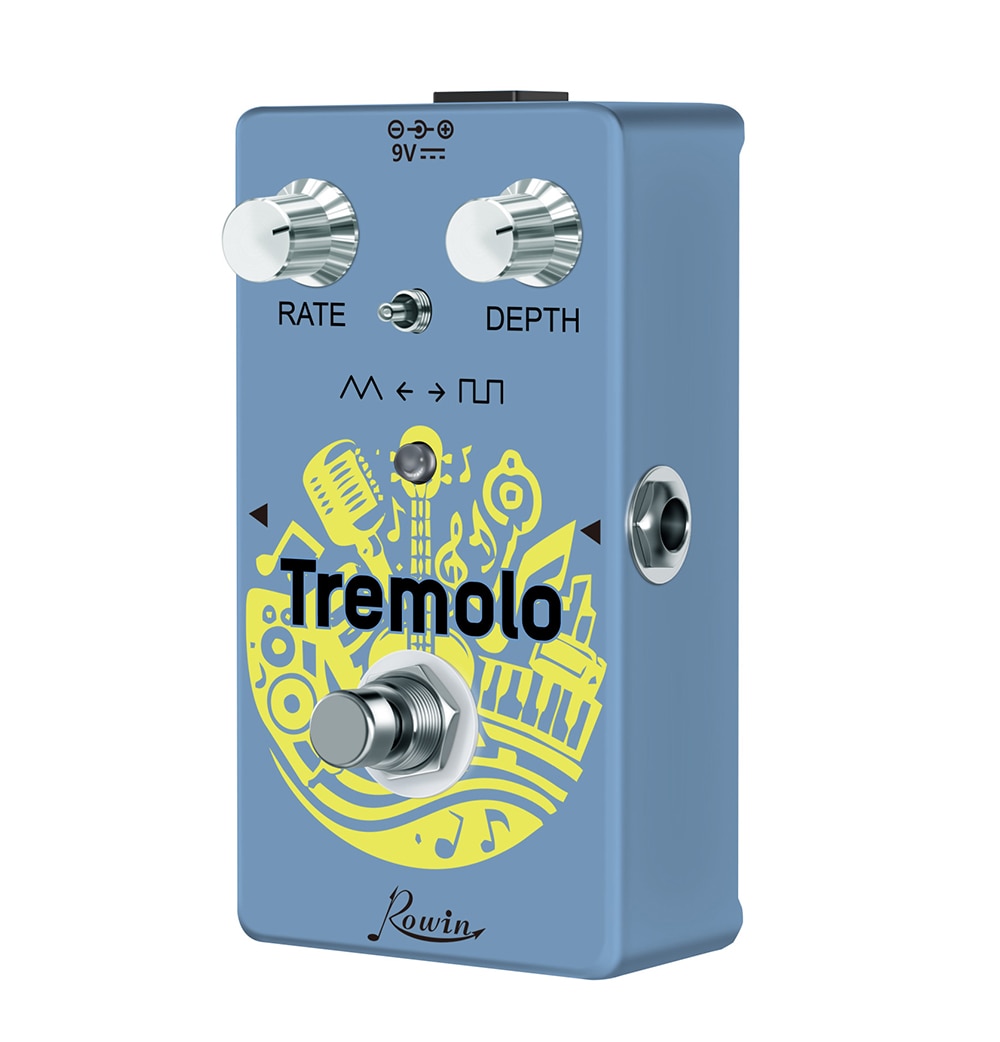

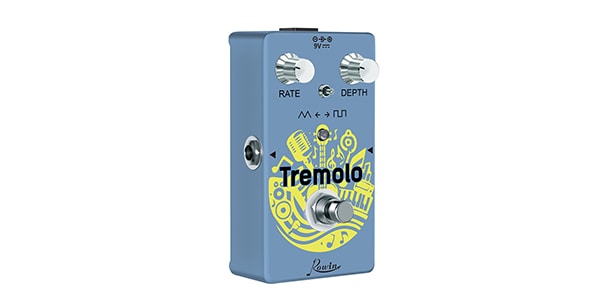

ROWIN / RE-07 TREMOLO

The ROWIN/RE-07 is a tremolo pedal that lets you switch between a square wave for sharp volume changes and a triangle wave for smoother volume changes. It's capable of creating a wide range of sounds, from gentle pulsations to unique, distinctive vibrato effects.

■Features
This tremolo pedal is equipped with a triangle wave/square wave mode switch, allowing you to quickly select the sharpness or smoothness of your effect.

The RATE and DEPTH knobs are used to toggle between these two modes in real time. Through these adjustment modes, you can achieve in-phase/out-of-phase and asymmetrical modulation, allowing you to create truly unique vibrato settings.

■Functions
・FOOTSWITCH: Controls loop recording, playback, stacking, erasure, and other operating states.
・RATE KNOB: Controls the frequency of the LFO waveform (the rate of volume change, usually in Hertz or BPM). A slow speed sounds like a wavy wave, while a fast speed sounds like a rapid flashing sound.
・DEPTH KNOB: Controls the degree to which the LFO waveform affects the signal's amplitude. A shallow depth results in subtle, gentle volume changes. At higher depths, the volume changes abruptly and may even cut off the sound completely at certain points (especially when using a square wave).

- TOGGLE SWITCH: Switches between triangle and square wave modes.

■ Specifications
- Input: 1/4-inch mono audio interface (impedance: 470kΩ)
- Output: 1/4-inch mono audio interface (impedance: 100Ω)
- Power: DC 9V power adapter (center negative)
- Operating current: 15mA
- Size: 110mm (L) x 58mm (W) x 55mm (H)
- Weight: 350g
