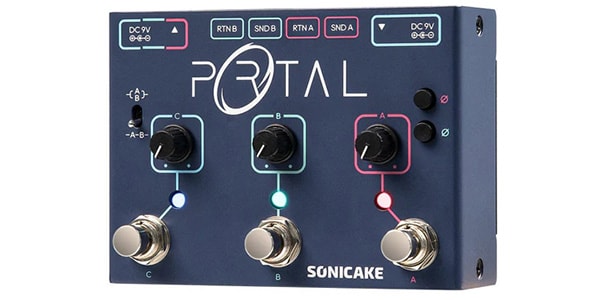

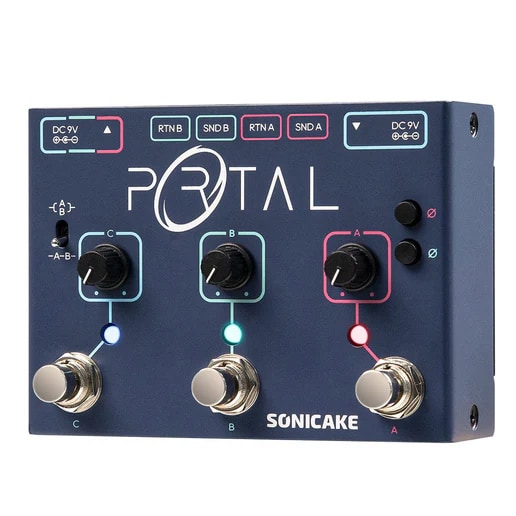

SONICAKE / Portal

SONICAKE/Portal is an active signal mixer with two modes: parallel mode and series mode.

Portal is an active signal mixer with two operating modes: parallel mode and series mode.

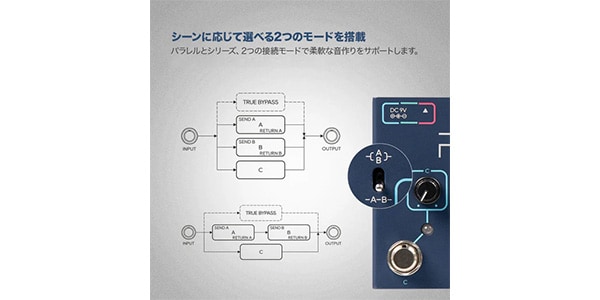

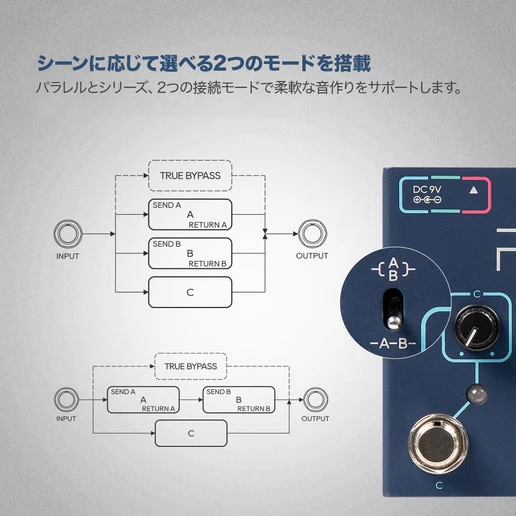

In parallel mode, it features two send/return loops and one main output, allowing three independent input signals to be mixed into one. It can also be used as an active A/B/B switcher if desired.

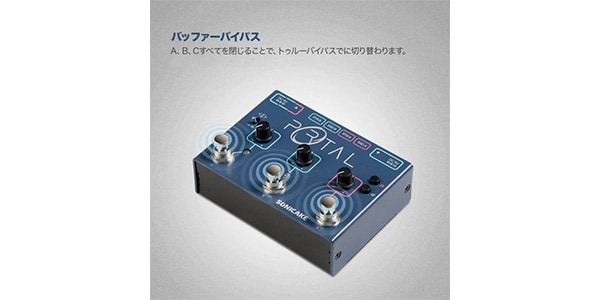

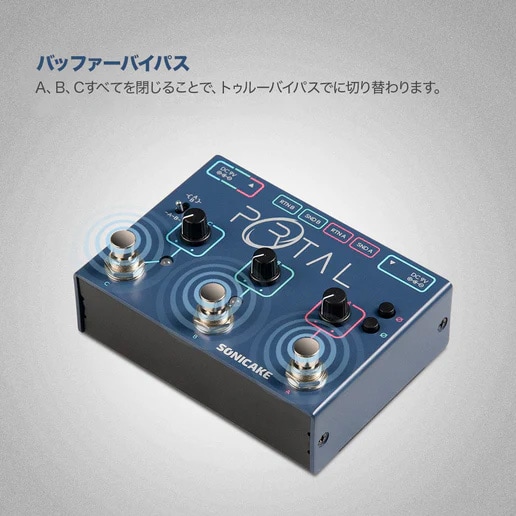

In series mode, channels A and B are connected in series. Turning the A/B switch off bypasses channel A or B. Turning all three switches off enters true bypass mode.

■Features
・Analog active signal mixer/line selector
・Two operating modes: parallel mode and series mode

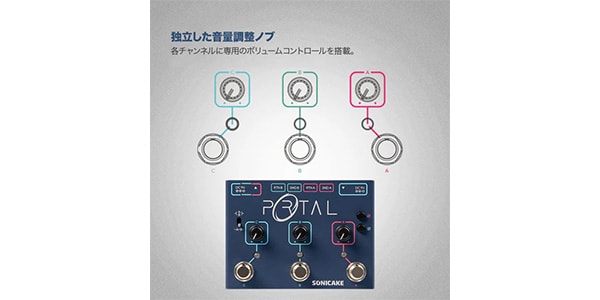

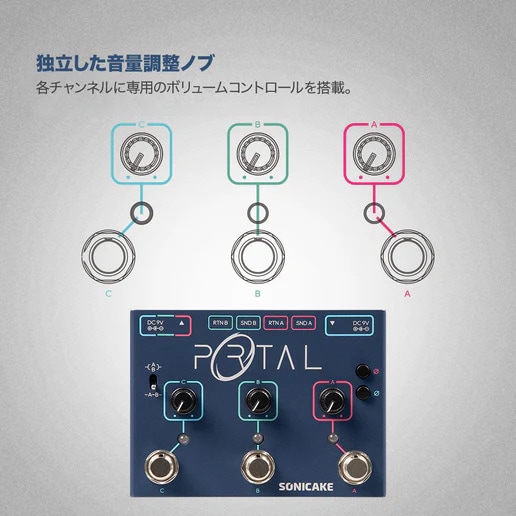

・Freely selectable between three channels
・True bypass circuitry keeps the signal path clean.

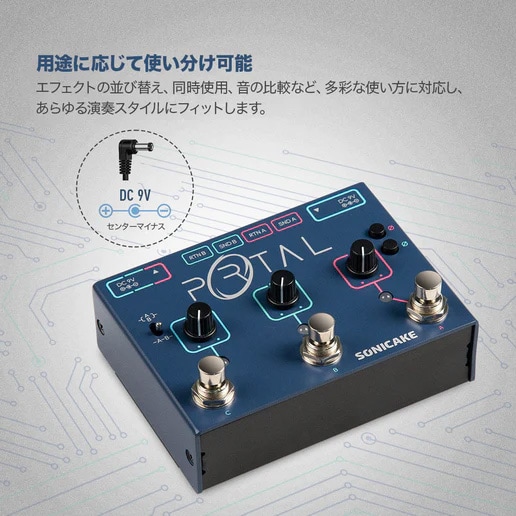

・Operates with a standard 9V center-negative power supply (power adapter not included)

■Specifications
・Input Impedance: 1MΩ
・Output Impedance: 1kΩ
・Send A Impedance: 1kΩ
・Send B Impedance: 1kΩ
・Return A Impedance: 100kΩ

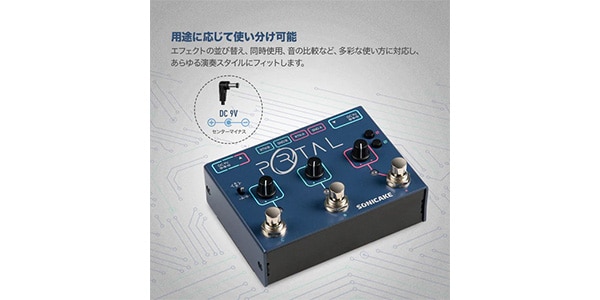

・Power Supply: DC 9V 5.5 x 2.1mm center-negative 97mA
・Dimensions: 124mm (W) x 90mm (D) x 54.8mm (H)
・Weight: 389g
