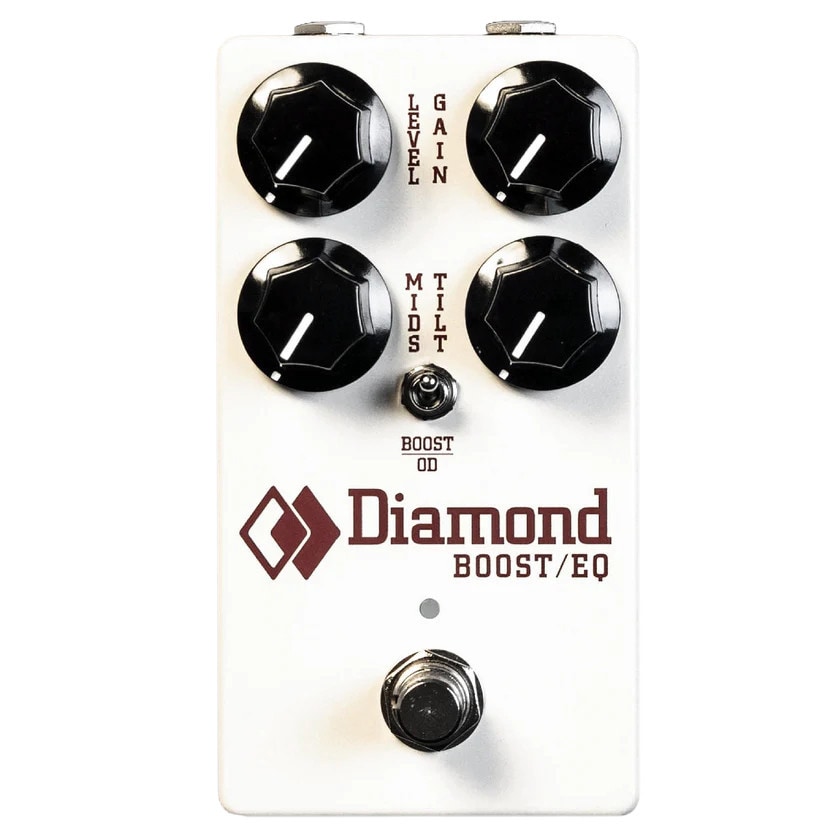

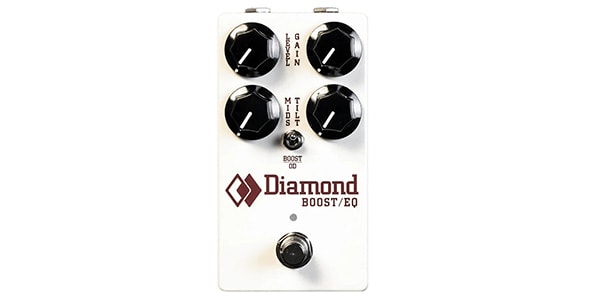

SolidGoldFX / Diamond Boost/EQ

＜＜Aug 2025 New Product！＞＞ The BOOST/EQ concept was born in the early 2000s from demand for a pedal that combined a """"non-compression"""" version of Diamond's Compressor, a clean boost circuit with the TILT EQ derived from the Compressor. Nearly 20 years later, this idea has been rebuilt as the next generation BOOST/EQ pedal, built on the same platform as the COMP/EQ.

It's extremely low noise and smoothly follows your guitar's volume control. You can also freely adjust the tone with TILT and MIDS, adding sparkle, boosting the mids for solos, or adjusting from British to American style, providing a clear, punchy, and powerful sound perfect for any occasion.

The BOOST/EQ now features a new ""OD mode"" that restructures the gain circuit to add fuzz-like soft clipping. This is perfect for when you want to slightly accentuate your picking or increase the gain to create a clear, compressed drive.

■FEATURES
- Switchable between two gain modes (BOOST/OD)
- GAIN: ""BOOST mode"" provides a clean boost of up to +20 dB, while ""OD mode"" controls the amount of distortion
- MIDS: Mid-range boost/cut control (±10 dB)
- TILT: Seesaw-style EQ control for high and low frequencies, with the midrange as the fulcrum
- Relay-type true bypass
- Powered by 9V to 18V DC

■SPECS
- Input Impedance: > 1 MΩ
- Output Impedance: < 10 KΩ
- Bypass Method: Relay-type true bypass
- Current Draw: 22 mA (when used at 9V)
- MIDS EQ Center Frequency: 800 Hz
- TILT EQ Pivot Frequency: 800 Hz
- Operating Voltage: 9V to 18V DC (Batteries not supported)
- Power Terminal: Outer Diameter 5.5 mm / Center pin 2.1 mm (center minus)
Dimensions / Weight: 67 mm (W) x 122 mm (D) x 60 mm (H) / 280 g
