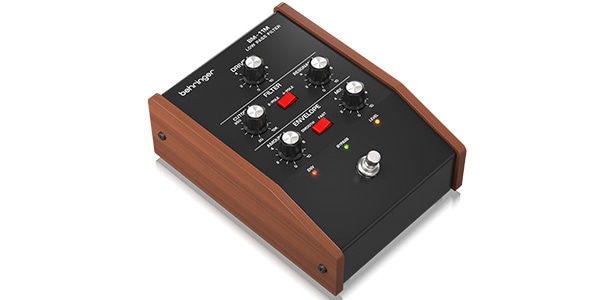

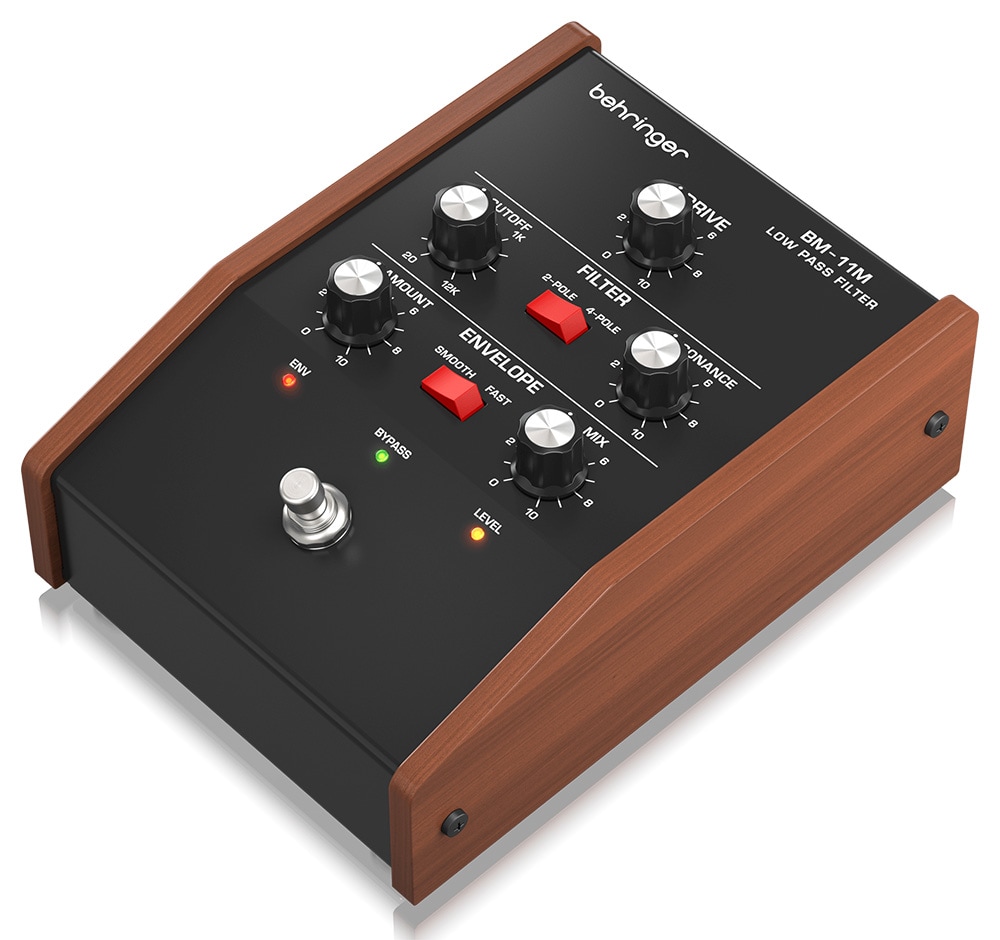

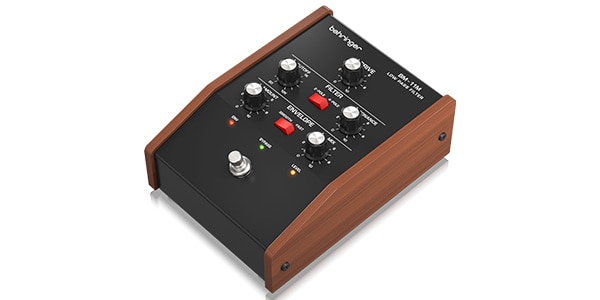

BEHRINGER / BM-11M LOW PASS FILTER

The BM-11M is a vintage analog low-pass filter pedal with envelope control and USB/MIDI control.

■Features
- Smooth and creamy 2-pole and 4-pole low-pass filters (with resonance control)
- Faithful reproduction of the 90s Moog* MF-101
- Envelope control for dynamic and expressive filter effects
- USB/MIDI control for ultimate control and flexibility
- Drive control for input gain adjustment
- Versatile filter design for subtle tonal adjustments to extreme filtering
- Expression pedal input for real-time control
- Compact and rugged design ideal for portability and stage use
- Combine with other pedals for even greater creative possibilities

■SPECS

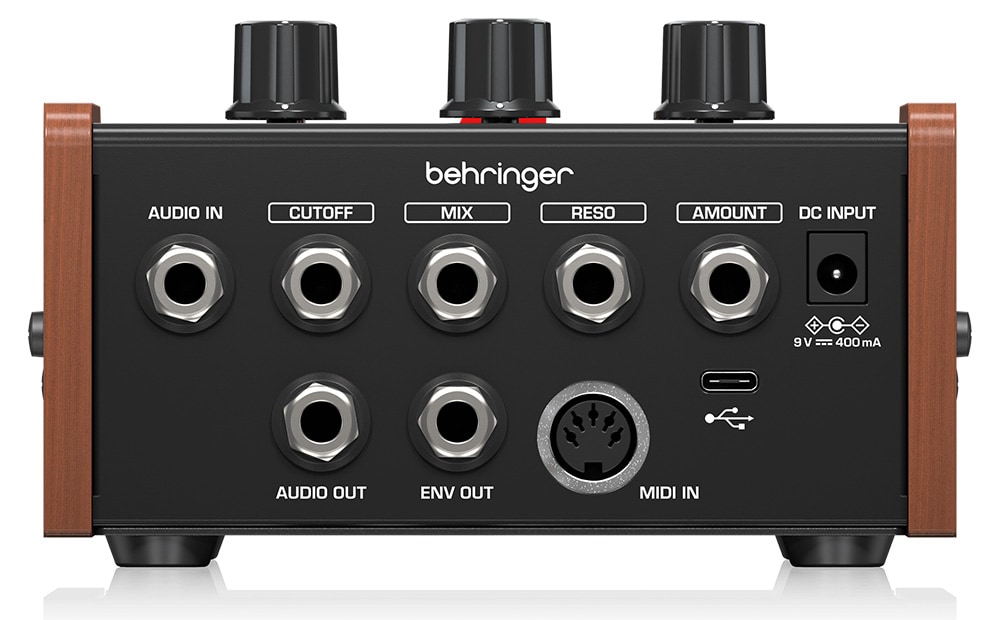

- Audio Connections
Audio Input/Output (Audio)
Input: 1/4"" TS, unbalanced (Impedance: 1 MΩ)
Output: 1/4"" TS, unbalanced (Output Impedance: 680 Ω)
Control Terminals (CV)
Cutoff: 1/4"" TRS, unbalanced (Impedance: 100 kΩ, Input Voltage Range: 0V to +10V)
Mix: 1/4"" TRS, unbalanced (impedance: 33 kΩ, input voltage range: 0V to +5V)
Reso: 1/4"" TRS, unbalanced (impedance: 100 kΩ, input voltage range: 0V to +5V)
Amount: 1/4"" TRS, unbalanced (impedance: 30 kΩ, input voltage range: 0V to +5V)
Env out: 1/4"" TRS, unbalanced (output impedance: 680 Ω, input voltage range: ±2.8V)
MIDI: 5-pin DIN, 16 channels

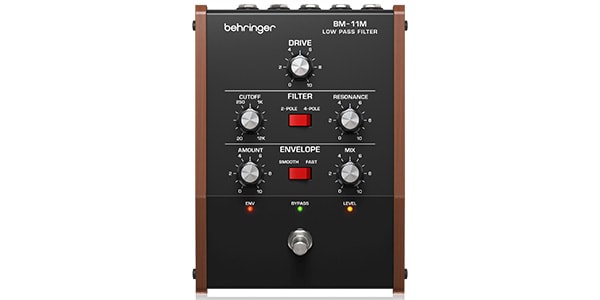

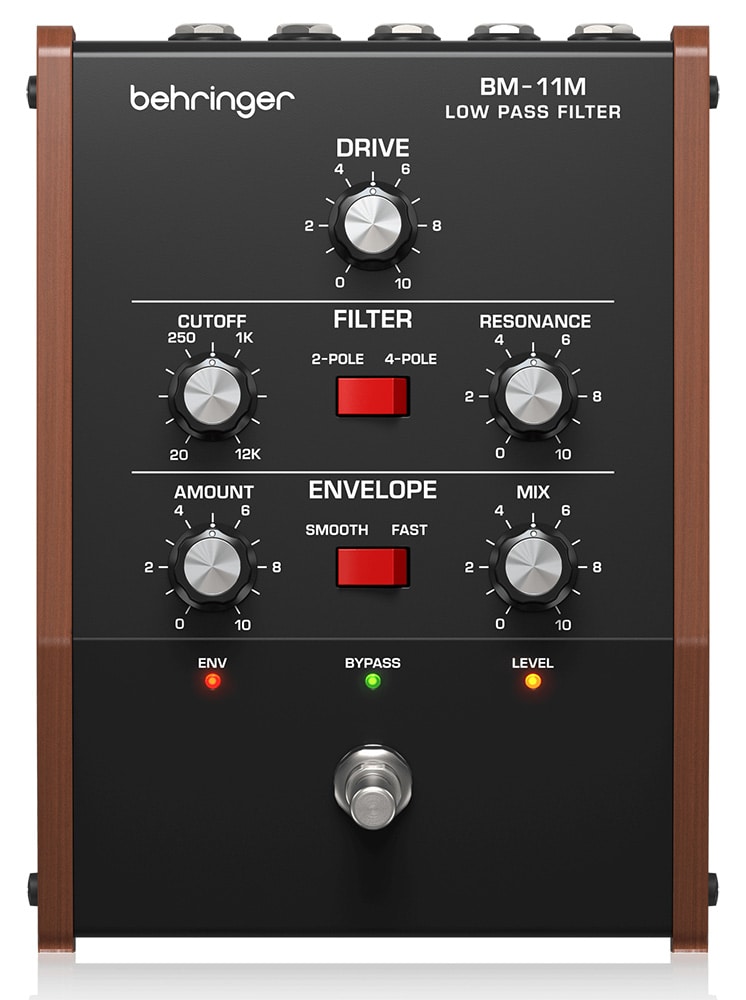

Controls
Knobs: Drive, Cutoff (20Hz-12kHz), Resonance, Amount, Mix
Switches: 2-pole/4-pole rocker switch, Smooth/Fast rocker switch
Footswitch: Bypass

System Specifications Frequency Response: 20 Hz to 20 kHz (-4 / -2.8 dB)
Dynamic Range: 73 dB or greater (20 Hz to 20 kHz)
S/N Ratio: 67 dB or greater
Gain: +25 dBu

Power Supply
Power Input: DC 9V (center negative, 400 mA or greater) *AC adapter sold separately
Power Consumption: 3.6 W

Size and Weight
Dimensions (H x W x D): 85.9 x 147.6 x 196.9 mm
Weight: 1.02 kg
