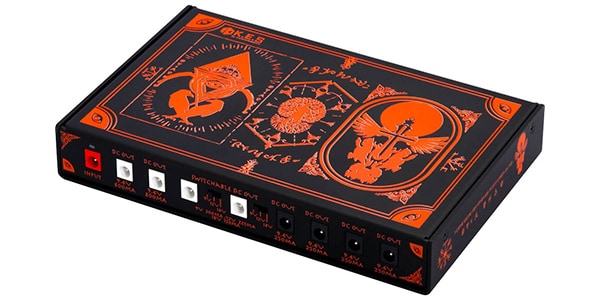

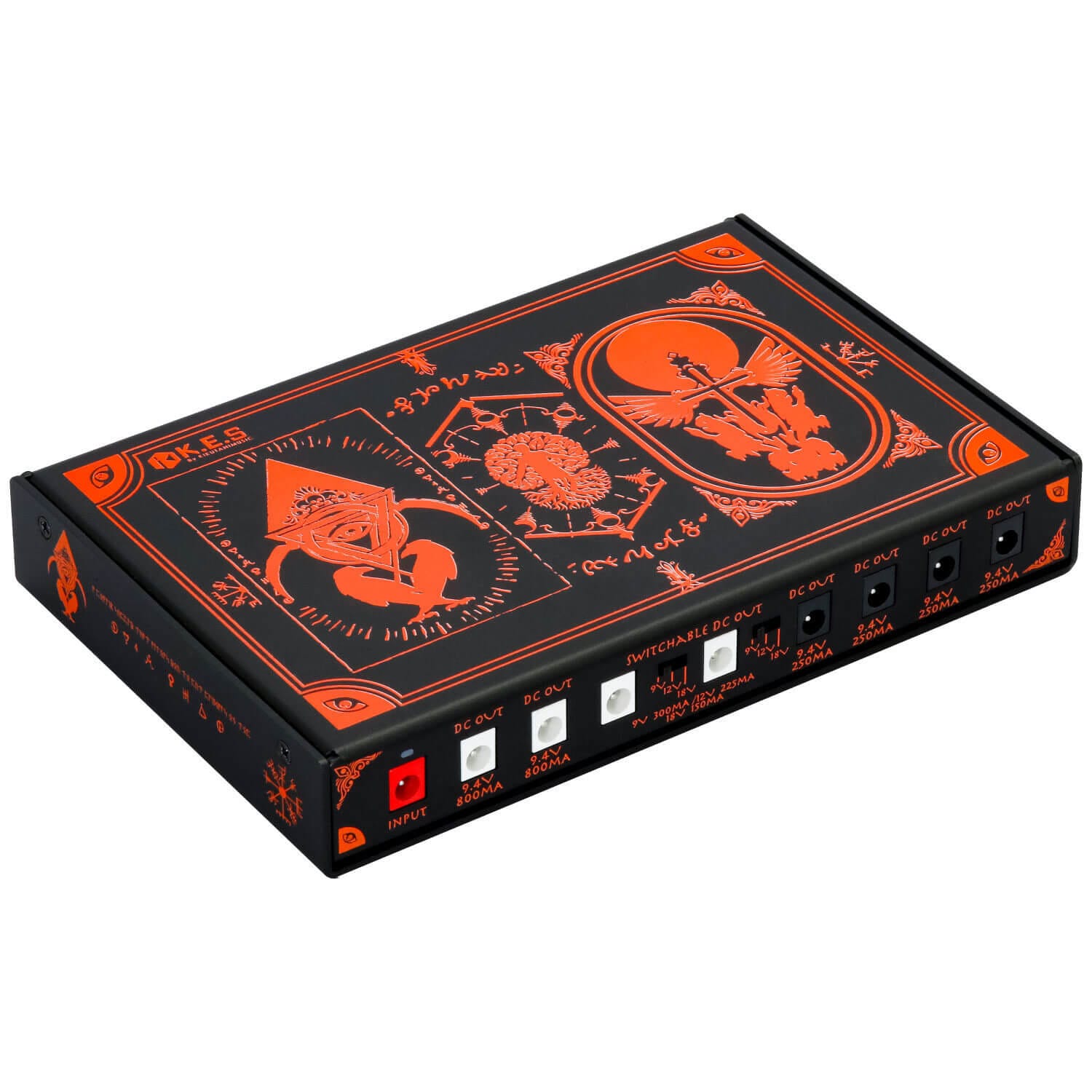

K.E.S / KIP-RISER VIII

This power supply can be used as a pedal riser. Artist Hiroshi Takamatsu (THE NOVEMBERS) had an idea for a pedal riser-type power supply, and we developed it into a unique power supply.

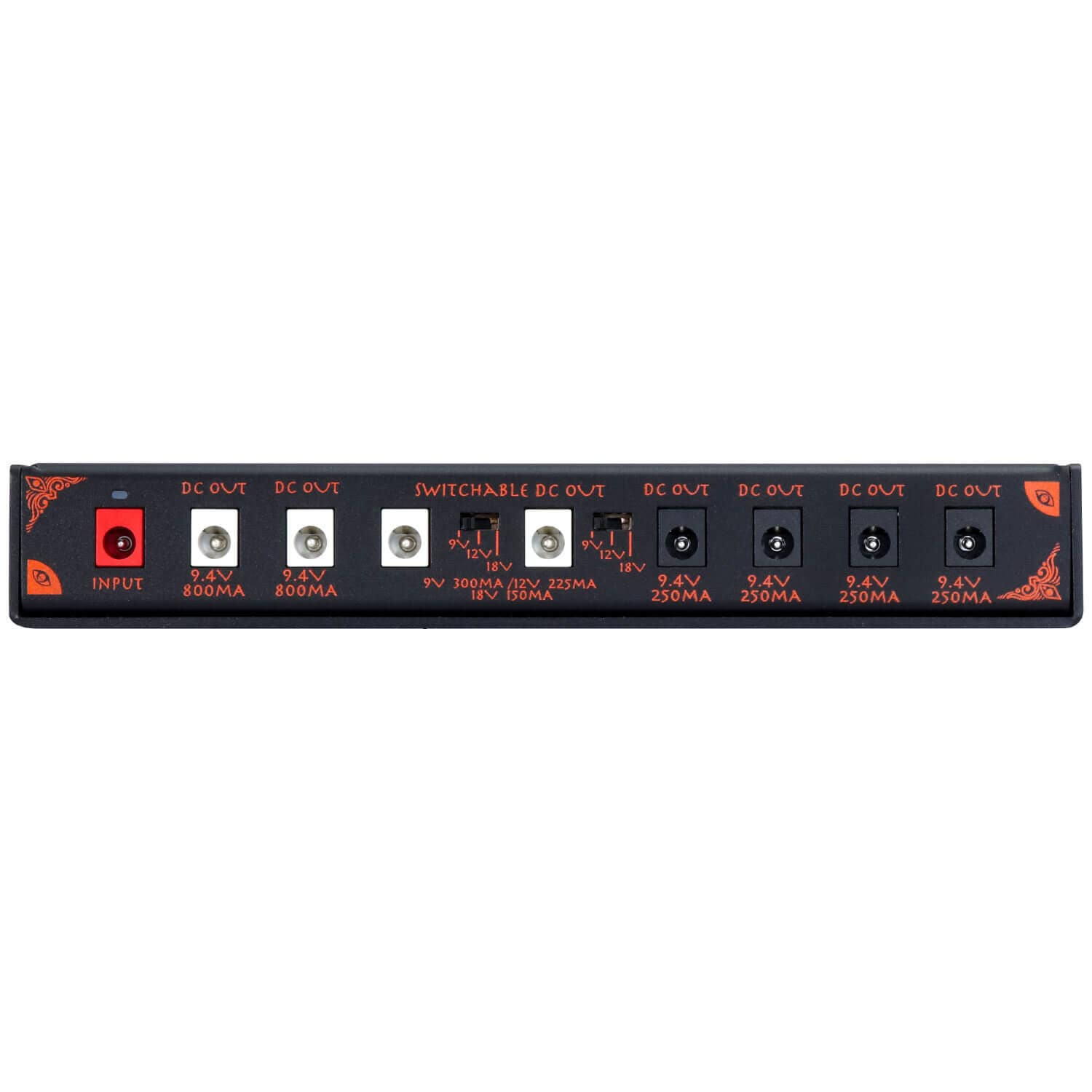

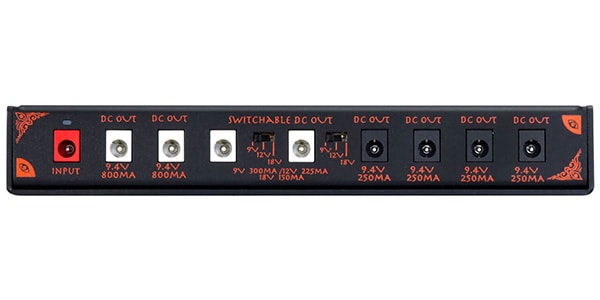

All ports are fully isolated, even down to the ground. Four 9.4V 250mA output ports, two 9.4V 800mA output ports, and two switchable 9V 500mA/12V 375mA/18V 250mA ports provide a wide range of voltage requirements. The 9.4V output terminal is designed to supply approximately 9.8V (under optimal conditions) at no load, maintaining 9.4V even under heavy load. This is particularly effective when used with distortion and overdrive pedals, adding volume and richness to the sound, while also boosting brightness.

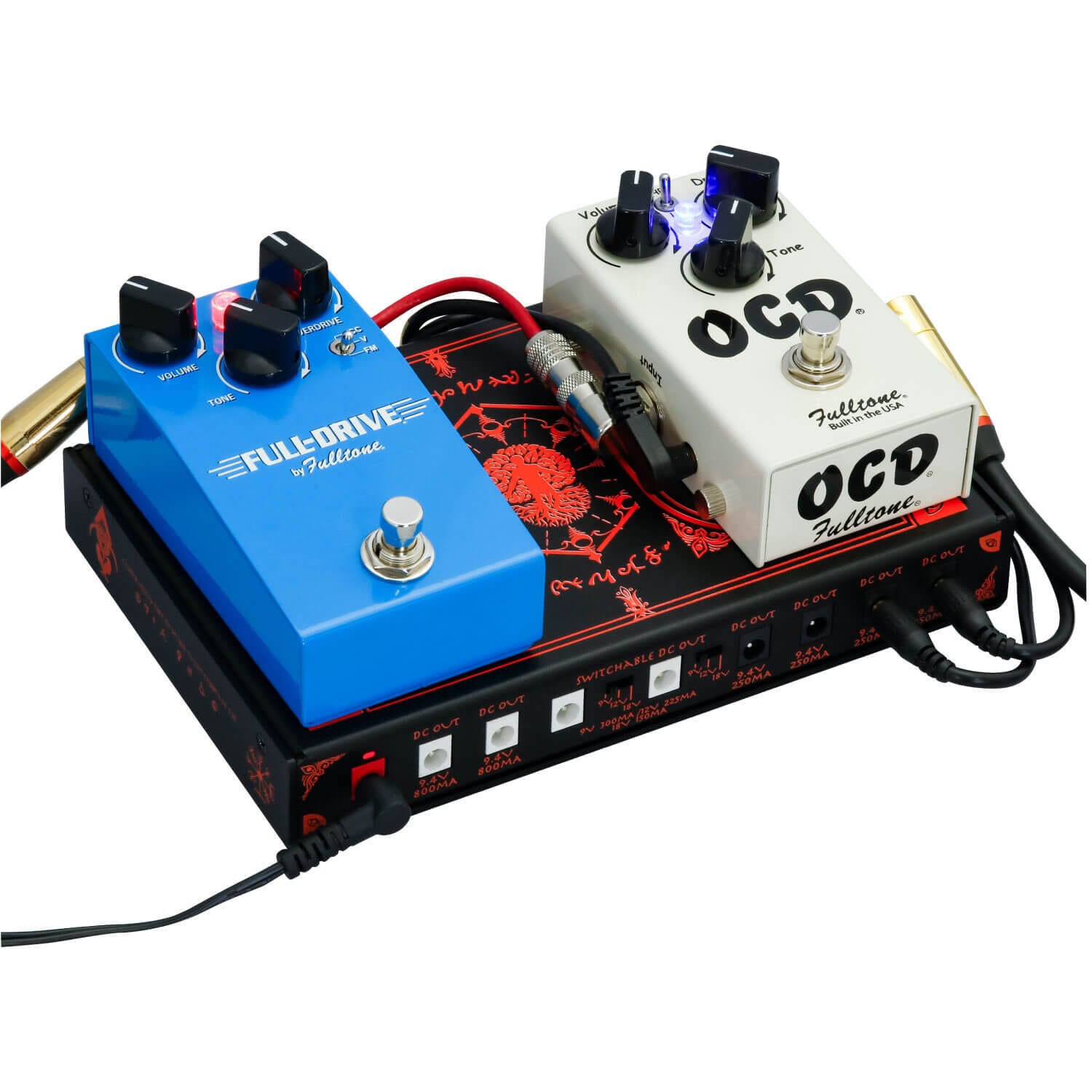

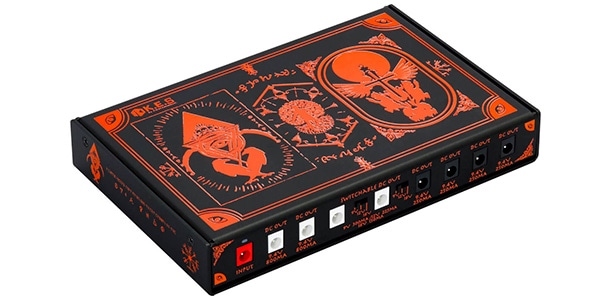

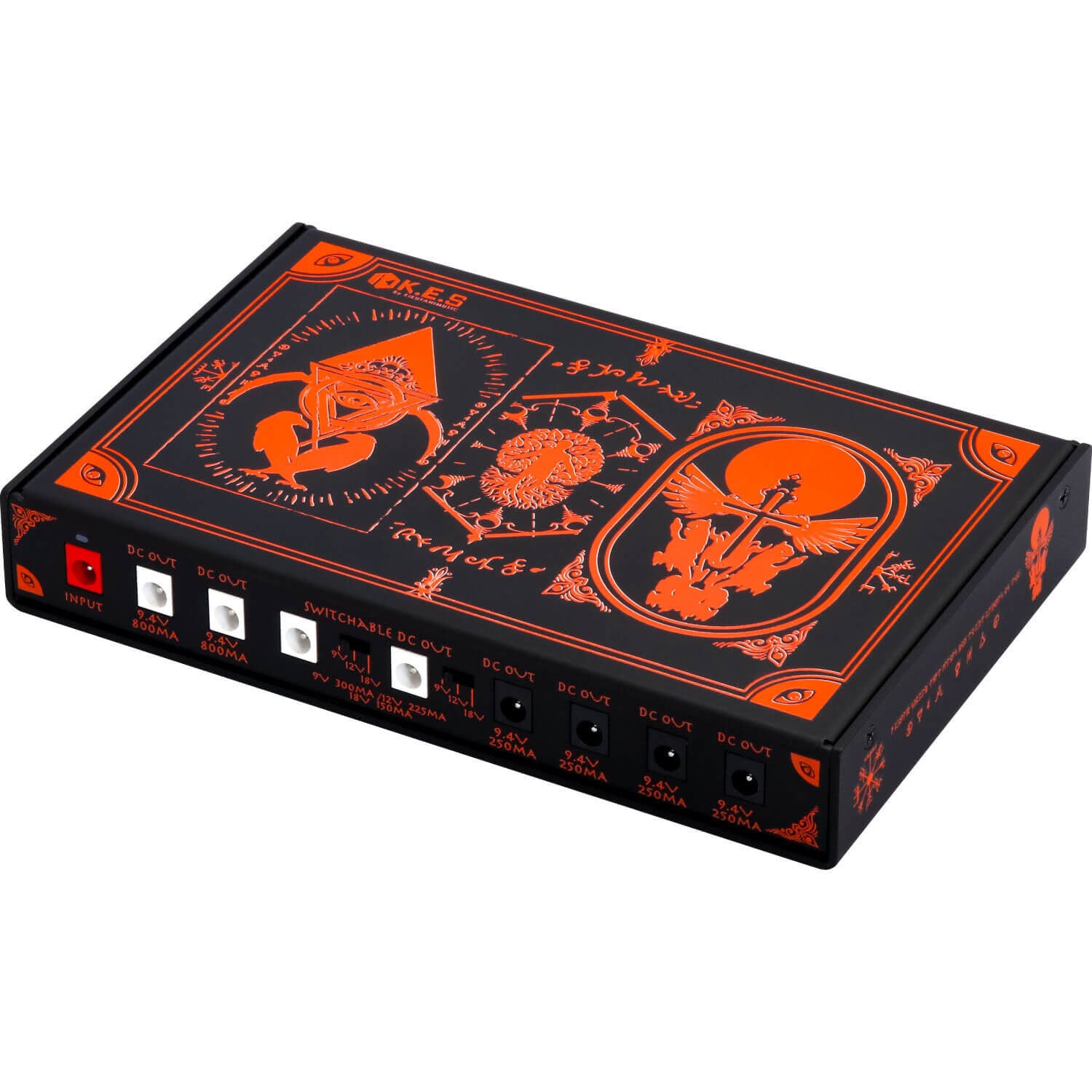

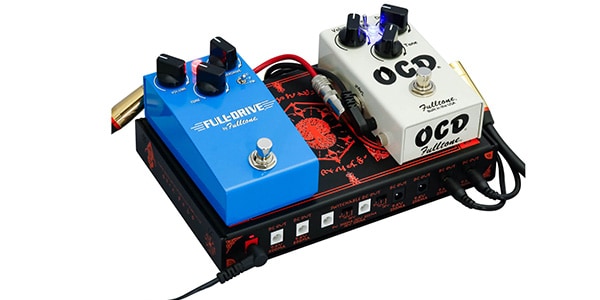

The robust housing features noise reduction, and the ability to mount pedals on top as a pedal riser significantly contributes to space-saving within the board. The housing itself functions as a heat sink, ensuring a maximum DC output power consumption of 27W (V x A is used as an approximate calculation for watts). Recommended for medium-sized board configurations with many compact pedals.

[Caution]
*Due to the nature of this product, which can be used as a pedal riser, it is susceptible to external noise depending on the installation and usage environment. In particular, with distortion pedals with high gain levels or spatial pedals, external noise may be significantly transmitted through the signal. In such cases, we recommend changing the pedal you are using with this product.

Due to the nature of this product, it cannot be used with certain products that are not compatible with high voltage (products that are not battery-powered or cannot be used with high voltage, including products that have an internal boost circuit and are rated for 9.0V), as this may cause malfunction or damage.
Please be sure to check the specifications of the connected device before use.

■SPECS
INPUT: DC 12V 3A, center negative
OUTPUT 1-2: DC 9.4V 800mA
OUTPUT 3-4: DC 9/12/18V @ 300/225/150 mA
OUTPUT 5-8: DC 9.4V 250mA
MAX OUTPUT: 27W
Product Weight: Approx. 550g
Total Length of Adapter Cable: Approx. 140cm
Product Dimensions: W202 × D130 × H32mm
Package Dimensions: W14.4 × D21.6 × H8.5cm

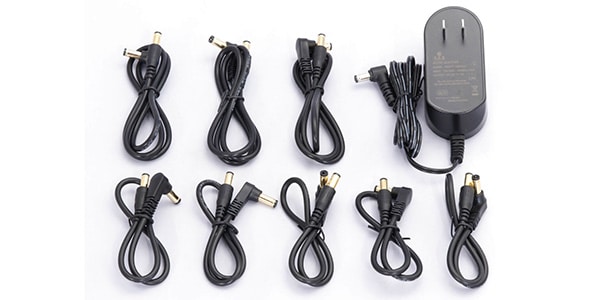

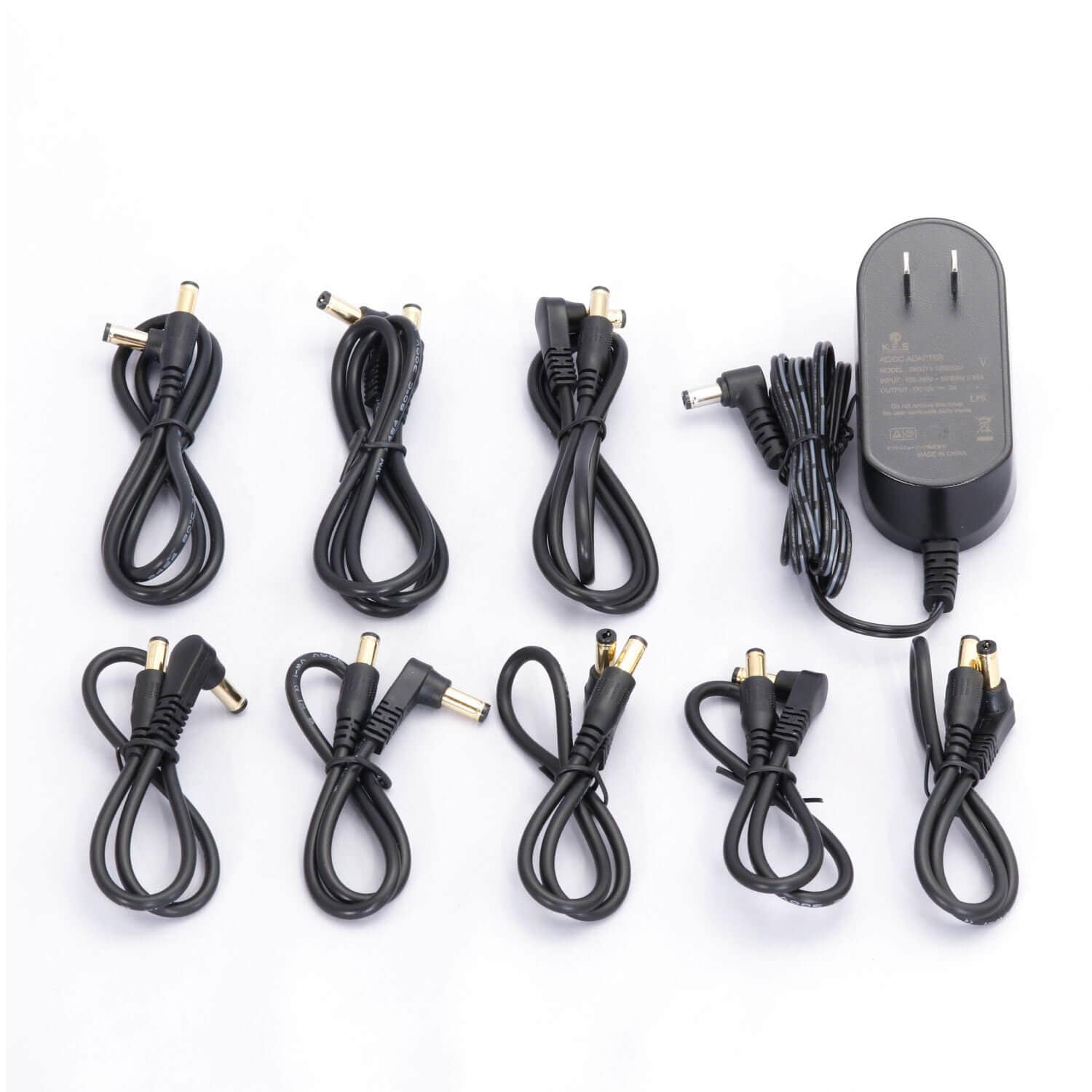

Accessories: Dedicated adapter, GOLD-plated DC cable (30cm x 5, 60cm x 3)
Country of Origin: China
