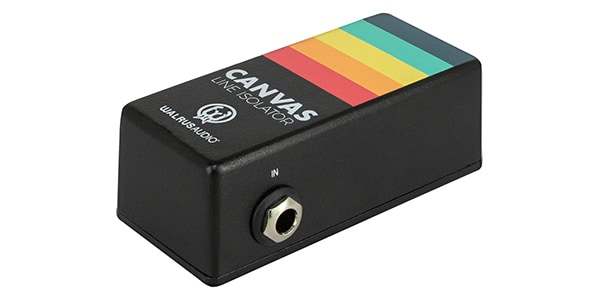

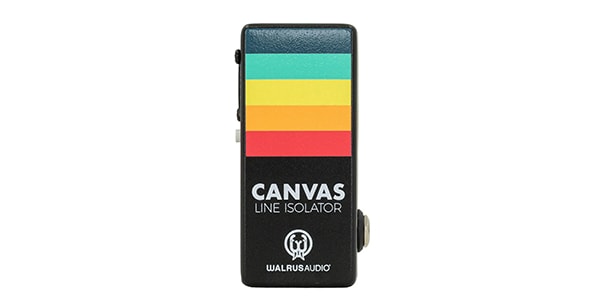

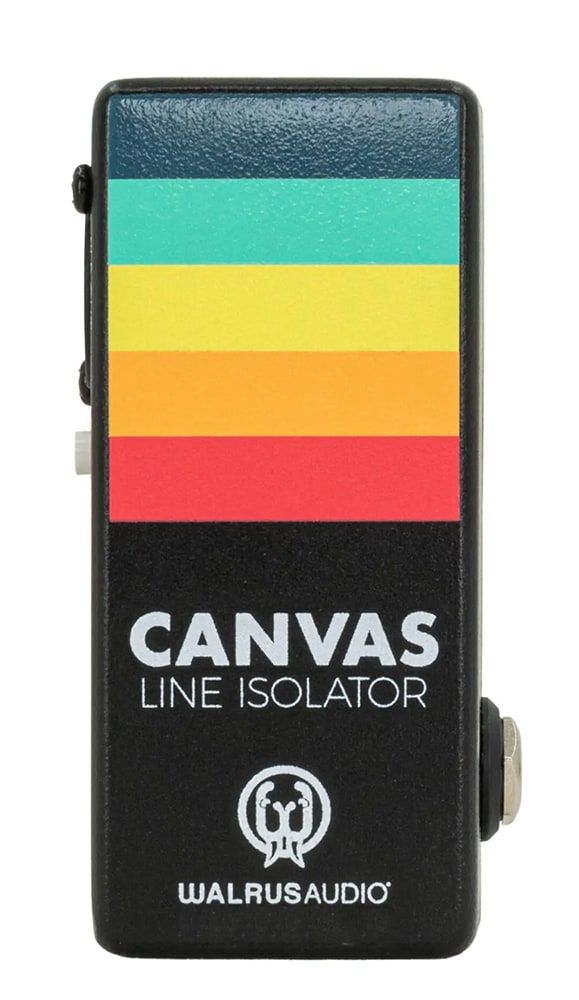

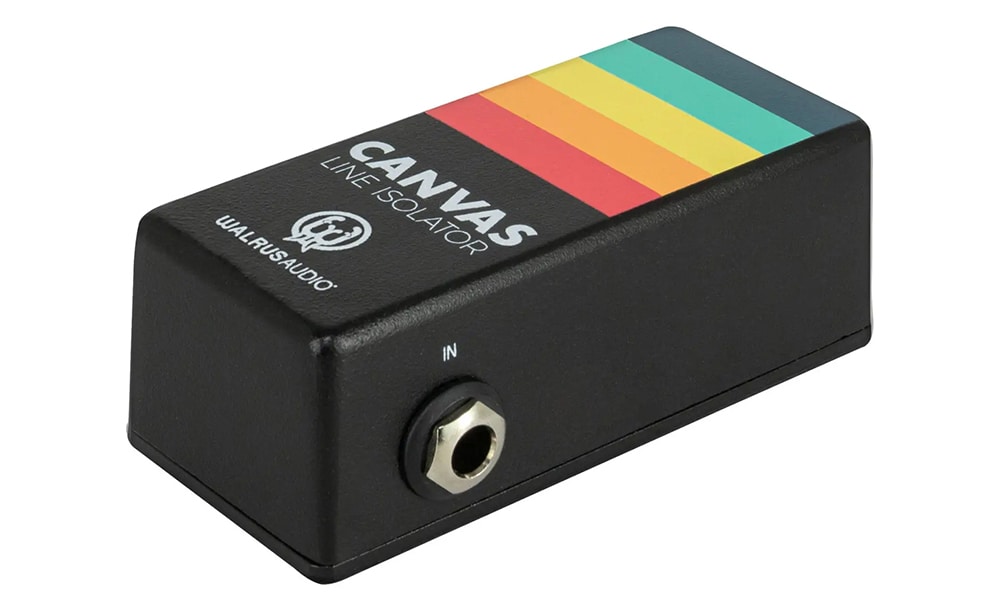

Walrus Audio / Canvas Nano Line Isolator

＜＜Jul 2025 New Product！＞＞ A compact line isolator that transmits clean sound intact.

The Canvas Nano Line Isolator offers reliable line isolator (LI) performance in a space-saving design.

From wedding venues to live bar stages, the Canvas Nano LI is a reliable tool for keeping sound clear in any venue.

This passive device converts unbalanced signals to balanced signals, optimizing connection to an audio interface or front-of-house (FOH) mixer.

The Canvas Nano LI also serves as the ideal bridge when connecting an ""amp-in-box"" like the MAKO Series ACS1 or an active acoustic guitar or bass directly.

The signal is maintained at full volume and converted to a balanced signal via a transformer connected to the XLR output. This eliminates the need for significantly increased preamp gain at the mixer.


■FEATURE
・Space-Saving Design: The compact design is perfect for tight pedalboards and small fly rigs.
・Full-range, clear sound quality: A flat frequency response from 20Hz to 20kHz delivers faithful sound.

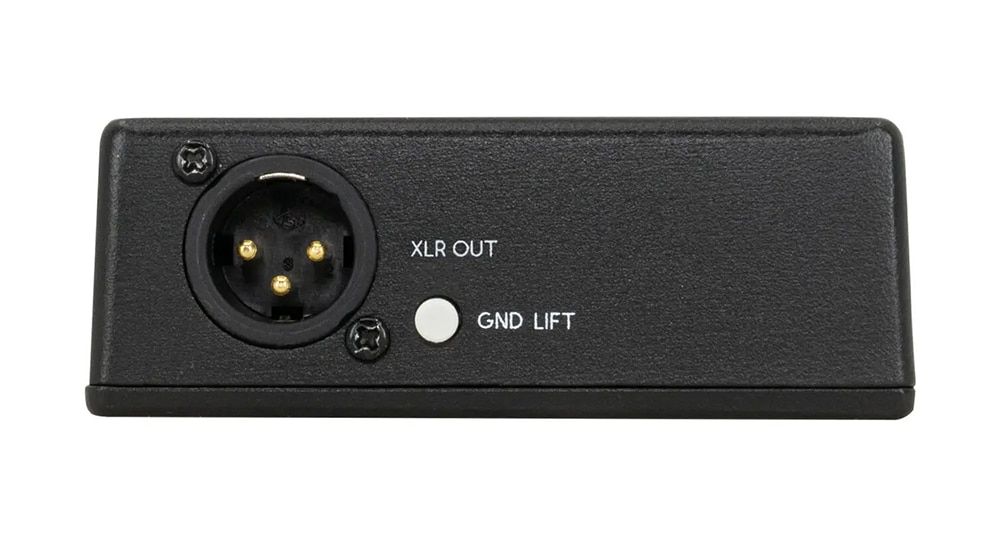

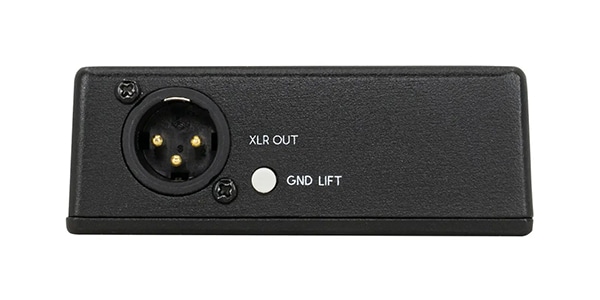

・Unbalanced signal conversion: Converts 1/4-inch unbalanced input to an XLR balanced output for compatibility with professional sound systems.

・Transformer-isolated output: A custom-wound transformer delivers low total harmonic distortion (THD) and a wide frequency response, maintaining a clean signal.

・Ground lift switch: Isolates the ground (GND) pin of the XLR output, reducing hum. Leave this switch off under normal use.

・No power required: The fully passive design requires no batteries or external power.

・Dimensions: 4.3cm (W) x 3.4cm (H) x 9.5cm (D)
