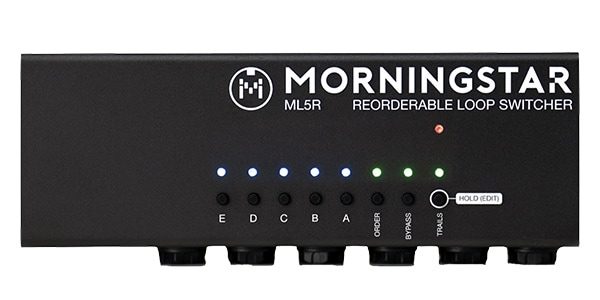

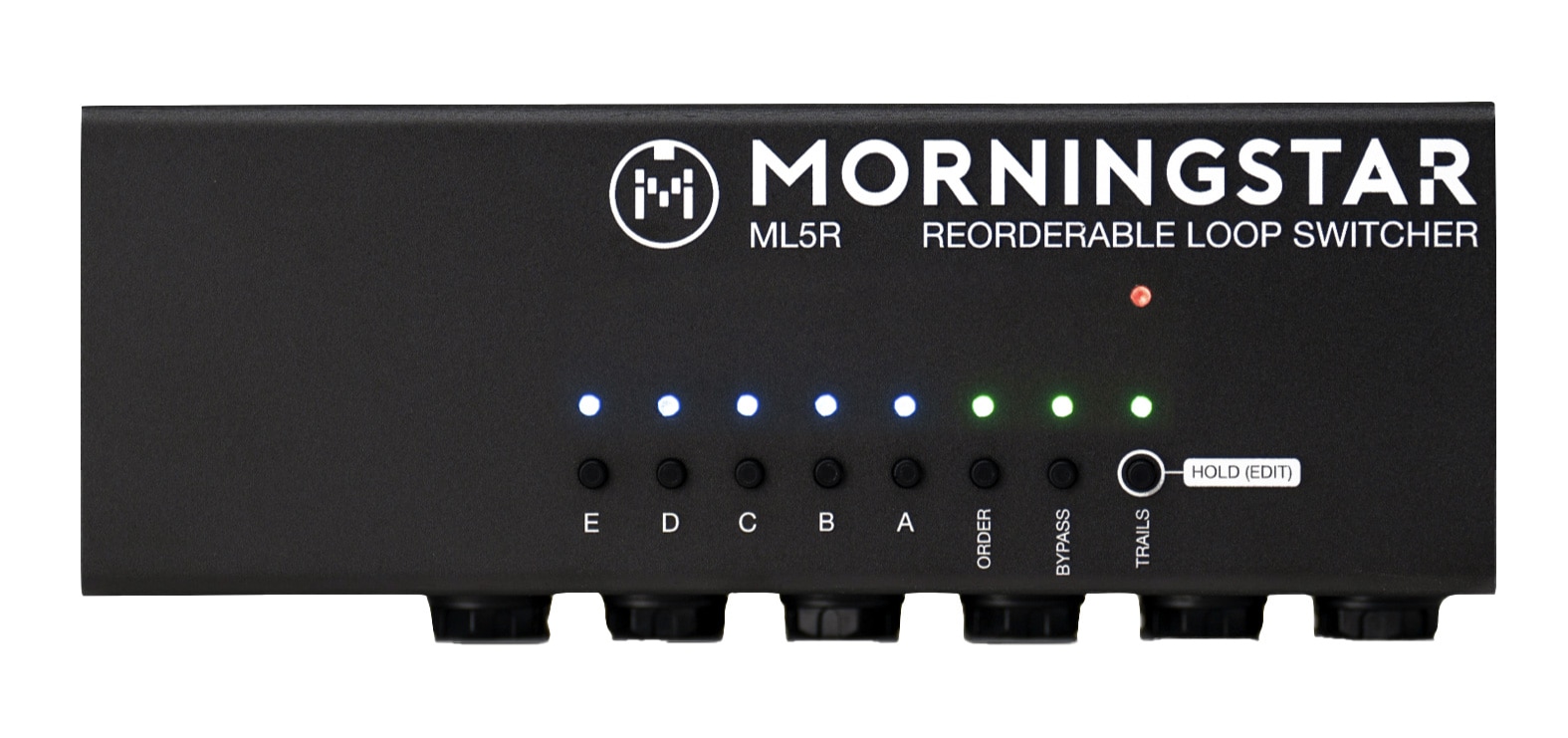

Morningstar FX / ML5R

＜＜Jul 2025 New Product！＞＞ A 5-loop switcher for MIDI control that lets you freely change the order of loops.

The ML5R is a 5-loop switcher controlled by MIDI messages. Its innovative ""reorder function"" allows you to freely change the order of serial loops. The order of each loop, its bypass state, and trail (spillover) can all be saved as presets, allowing for convenient control via MIDI.

Reorder your favorite effects freely and embark on new sonic adventures. You can also use it to incorporate non-MIDI-compatible pedals or devices into your MIDI setup, or to add new loops to a MIDI-compatible switcher. When combined with Morningstar controllers, you can create a powerful, purpose-built, and coordinated system.

SPECS
Dimensions: 169 x 58 x 58 mm
Weight: 400g
Memory: 128 presets
Power: 9-18V DC, center negative (minimum 160mA)

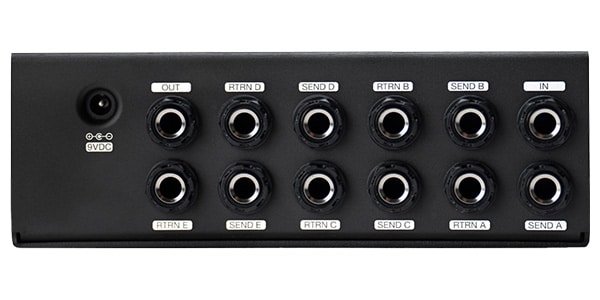

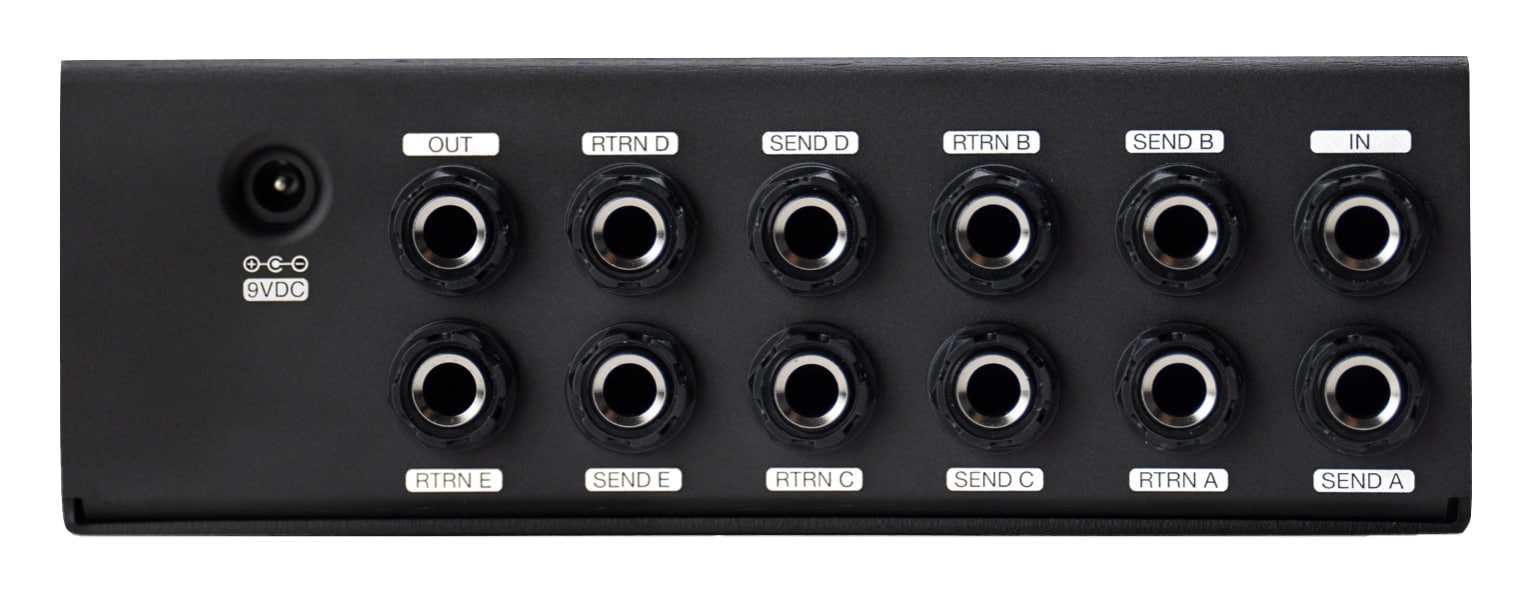

I/O (fully buffered)

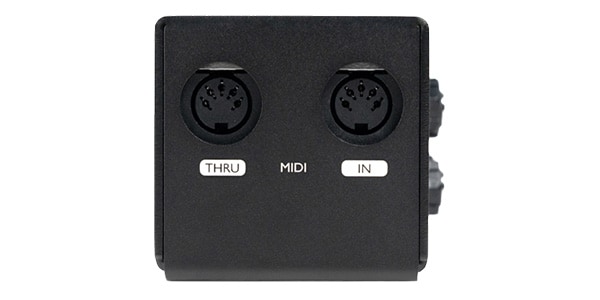

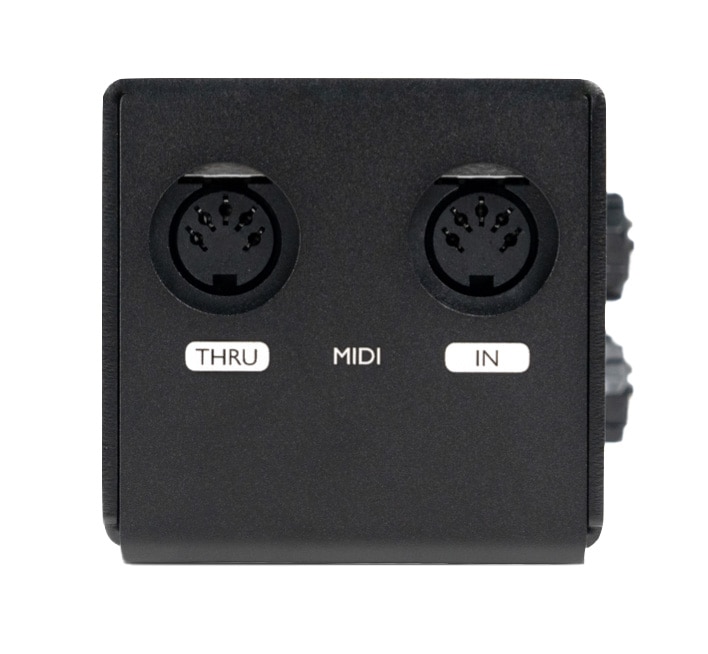

1 x 5-pin MIDI output
1 x 5-pin MIDI thru
1 x Audio input
5 x Send (mono)
5 x Return (mono)
1 x Audio output
Other
Maximum I/O level: 5V peak to peak (9V power supply), 13V peak to peak (18V power supply)
Input impedance: 1 Ω
Output impedance: ~100 Ω
