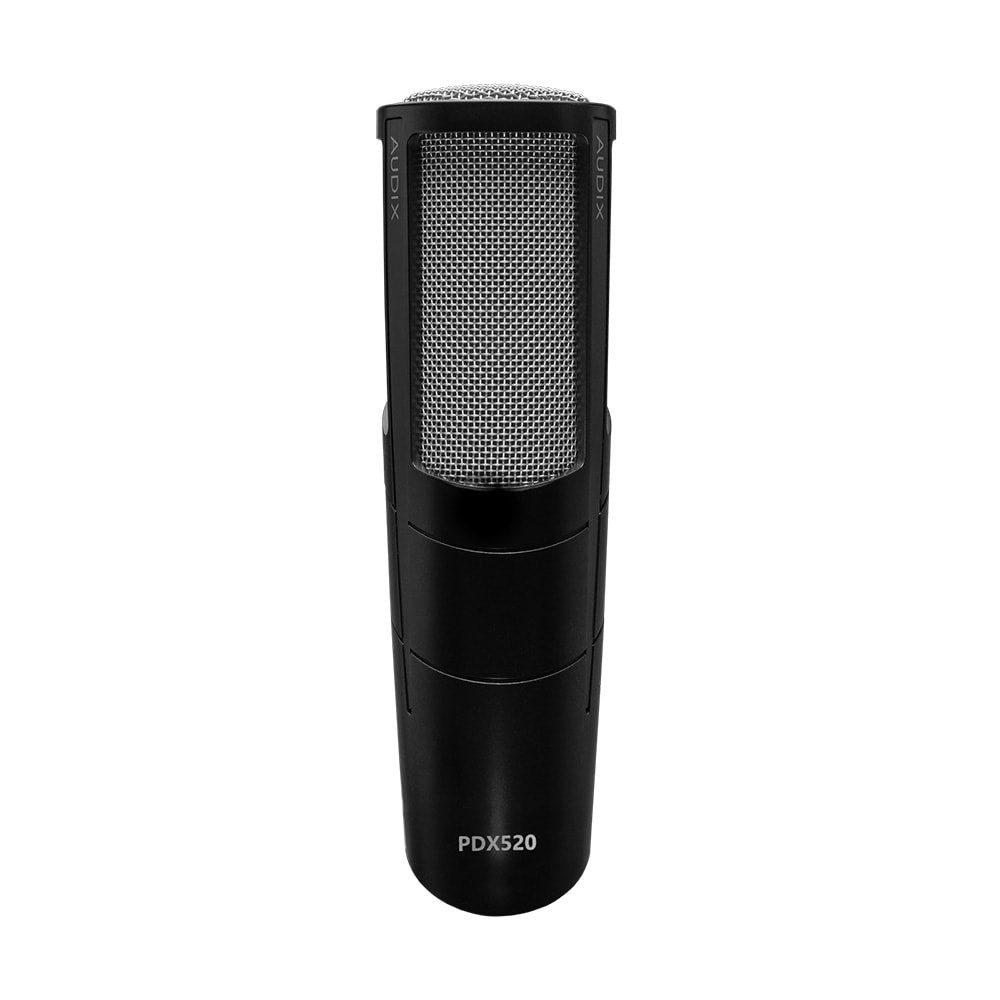

AUDIX / PDX520

The PDX520 is designed to deliver complete and accurate audio recording, portraying a natural, pleasantly warm sound, making it ideal for long-form content where clarity and hearing comfort are paramount.

This unit delivers extremely high gain levels, eliminating the need for external preamps or crowd lifters. The PDX520 features two unique selector switches for quick, on-the-fly adjustment of low cut and presence boost. This allows for adjustments on the microphone side to match the recording subject's vocal quality, enabling optimal recording even when paired with a desktop audio interface. The unique design, inspired by the PDX720, features an internal vibration damping system for the capsule and is housed in a sturdy metal body with integrated attachment arms for both the microphone stand and XLR connector. ■Main Applications
・Broadcasting, streaming, studio recording
・Vocals
・Drum and various instrument recording

■Main Specifications
Type: Dynamic microphone
Directivity: Unidirectional
Frequency Range: 40Hz–16kHz
Output Impedance: 280 Ω
Sensitivity: 1.6mV/Pa (1kHz/0.5m)
Maximum SPL: >144dB
Low Cut: Off/80Hz (6dB-octave slope)
Presence Boost: Off/On (1–5kHz)
Connection: XLR connector
Power Supply: Not required
Exterior Material: Aluminum with black finish, nickel finish
Weight: 872.5g
Length: 214mm
