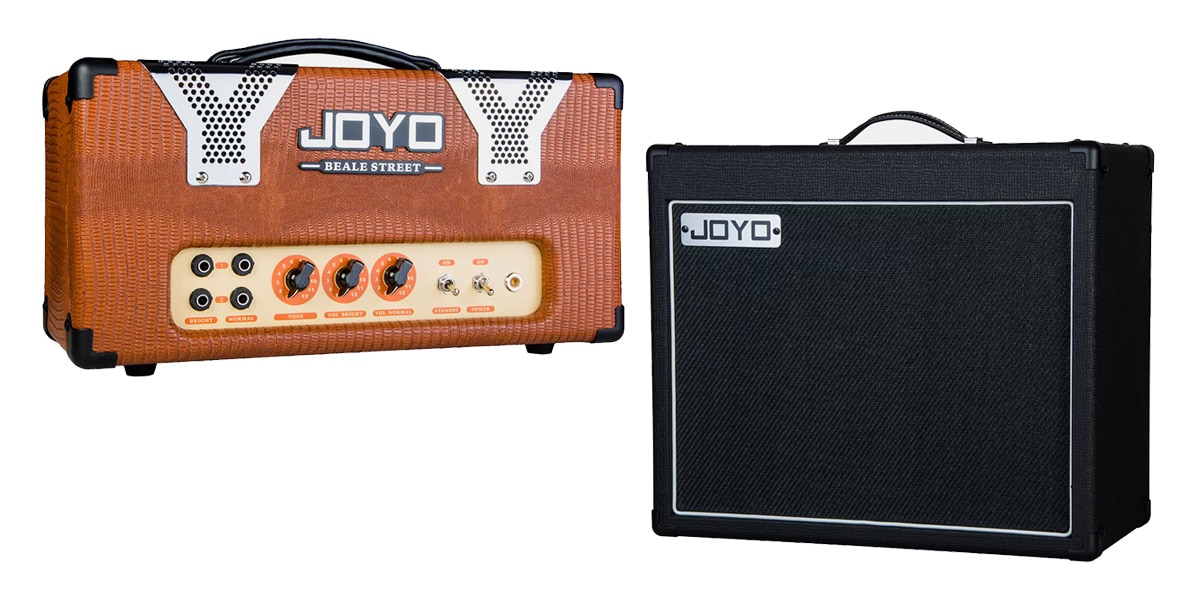

JOYO / JCA-12 Cabinet Set

Variations

This great value set includes a classic 12W vintage amp and cabinet. It recreates the clean American sound of the 1950s and is recommended for blues and jazz players.

◆Guitar Amplifier Head: JCA-12

- Classic 1950s 12W vintage amplifier circuit.
- Regular and Bright channels with separate volume controls.
- 6V6 output tubes.
- 5Y3 rectifier tube.
- Two high-gain 12AX7 preamp tubes. If desired, one of them can be replaced with a 12AY7 tube to achieve the original 1950s low-gain sound.

Specifications:

Output Power: 12W (1kHz, 8 ohms, 10% THD)

Rated Input Level: -20dBu (1kHz)

S/N Ratio: 62dB (1Wrms @ 1kHz)

Dynamic Range: 60dB (Rated Output @ 1kHz)

Signal Gain: 43dB

Fuse Type: Time-Lag Fuse

Fuse Rating:

AC 100-120V ~ 60Hz T2AL

AC 220-240V ~ 50Hz T1AL

Weight: 8.5kg

Dimensions: L (448mm) x W (196mm) x H (226mm)

Guitar Cabinet: 112V

One 12-inch Speaker

Celestion Vintage
Load Capacity: 60W
Composite wood construction for superior sound
Dimensions: 525 x 265 x 475mm
Weight: 15kg
