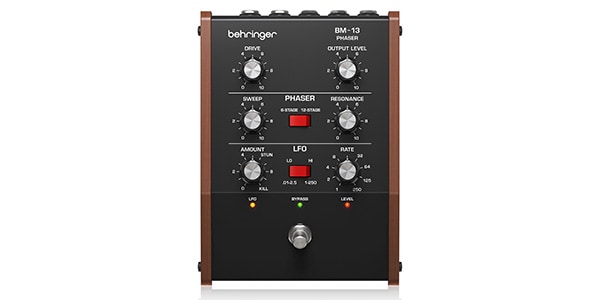

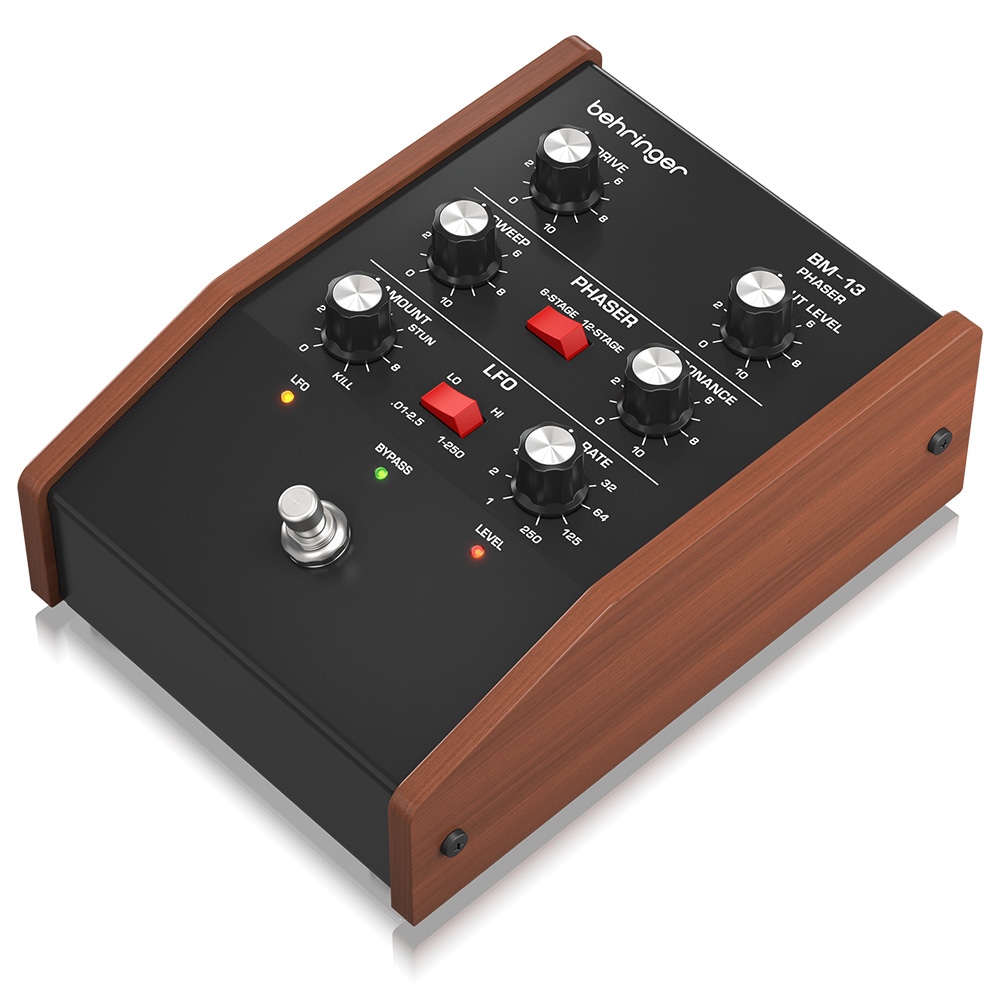

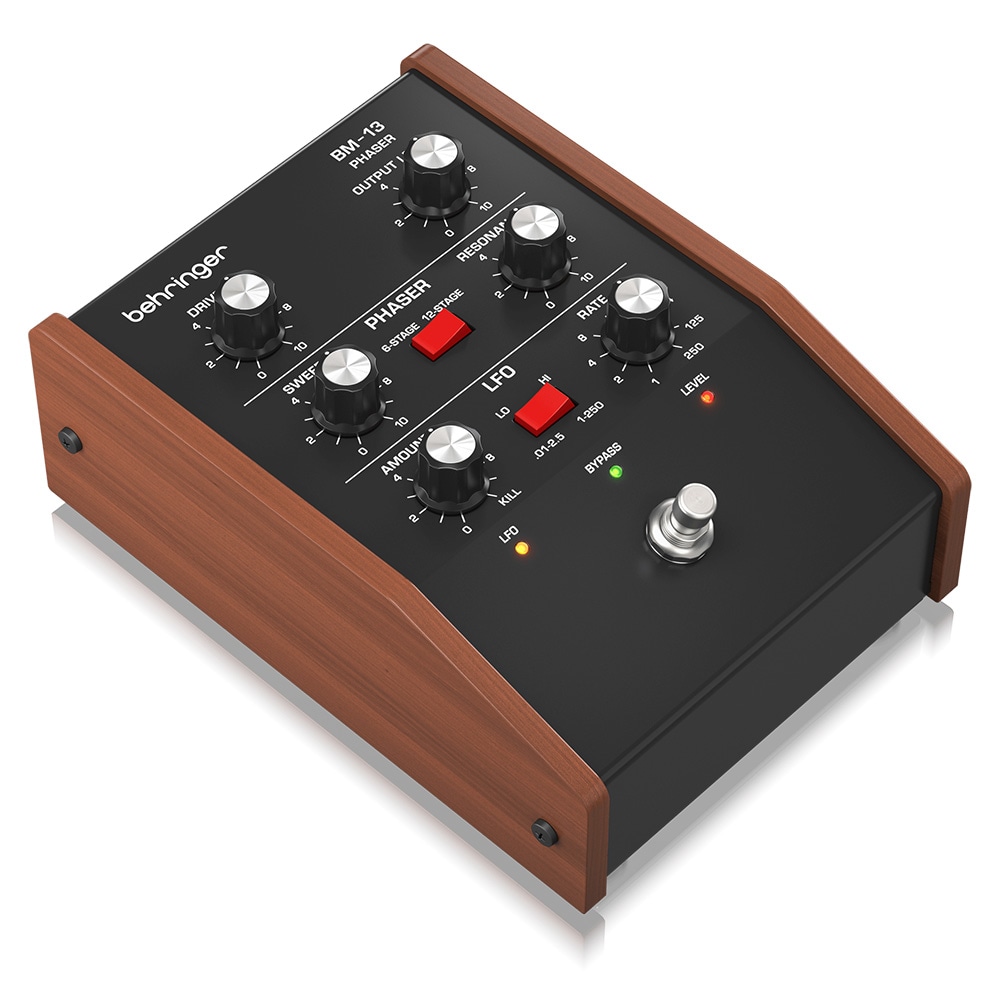

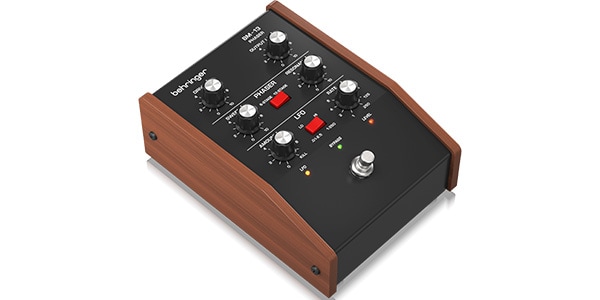

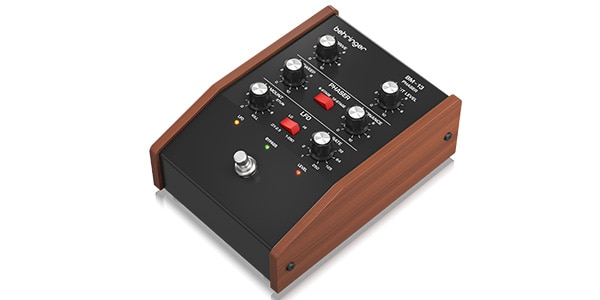

BEHRINGER / BM-13 PHASER

The BEHRINGER BM-13 PHASER is a phaser module that delivers the swirling, analog-inspired sweep sound. From subtle, vintage-inspired modulations to deep, resonant sweeps, it delivers timeless phaser tones.

■Features
- Detailed Control: Extensive controls for sweep, resonance, LFO rate, and amount allow for musical yet flexible sound shaping. Drive the LFO down to 0.01 Hz for a hypnotic pulse, or raise it to 250 Hz for warped textures.
- Versatile Phasing: Choose between 6 or 12 stages of phasing, each offering its own unique flavor and dimension.
- Drive Control: The Drive knob adds a touch of grit to your sound, expanding your expressive range.
- Versatility: Ideal for guitar, bass, keyboards, and synthesizers, as well as studio recording and mixing.
- Stereo Output: Supports stereo output for a wide range of sonic possibilities.

■SPEC

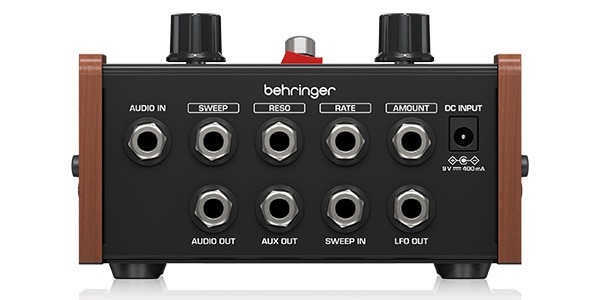

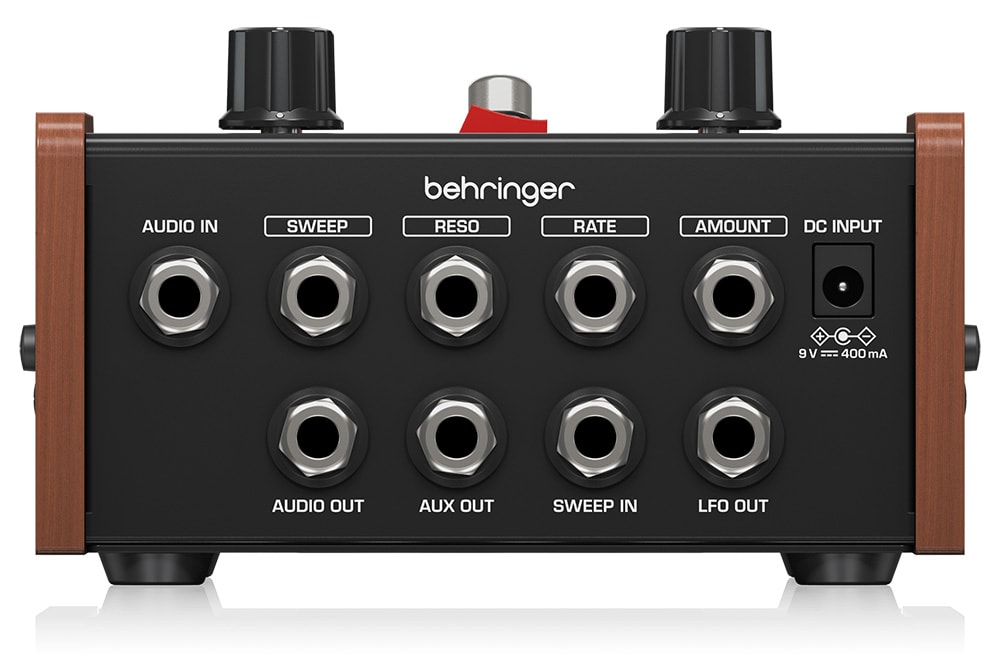

Audio Connections
Audio Input:
Connector: 1 x 1/4"" TS, unbalanced
Impedance: 1 MΩ
Audio Output:
Connector: 1 x 1/4"" TS, unbalanced
Output Impedance: 6.8 kΩ
Aux Output:
Connector: 1 x 1/4"" TS, unbalanced
Output Impedance: 6.8 kΩ

Control Connections
Sweep:
Connector: 1 x 1/4"" TRS
Impedance: 40 kΩ, unbalanced
CV Input Range: 0 V to +10 V
Reso:
Connector: 1 x 1/4"" TRS
Impedance: 50 kΩ, unbalanced
CV Input Range: 0 V to +5 V
Rate:
Connector: 1 x 1/4"" TRS
Impedance: 34 kΩ, unbalanced
CV Input Range: 0 V to +5 V
Amount:
Connector: 1 x 1/4"" TRS
Impedance: 40 kΩ, unbalanced
CV Input Range: 0 V to +5 V
Sweep In:
Connector: 1 x 1/4"" TRS
Impedance: 47 kΩ, unbalanced
CV Input Range: ±2.5 V
LFO Out:
Connector: 1 x 1/4"" TRS
Output Impedance: 2.2 kΩ, unbalanced
CV Input Range: ±2.8 V

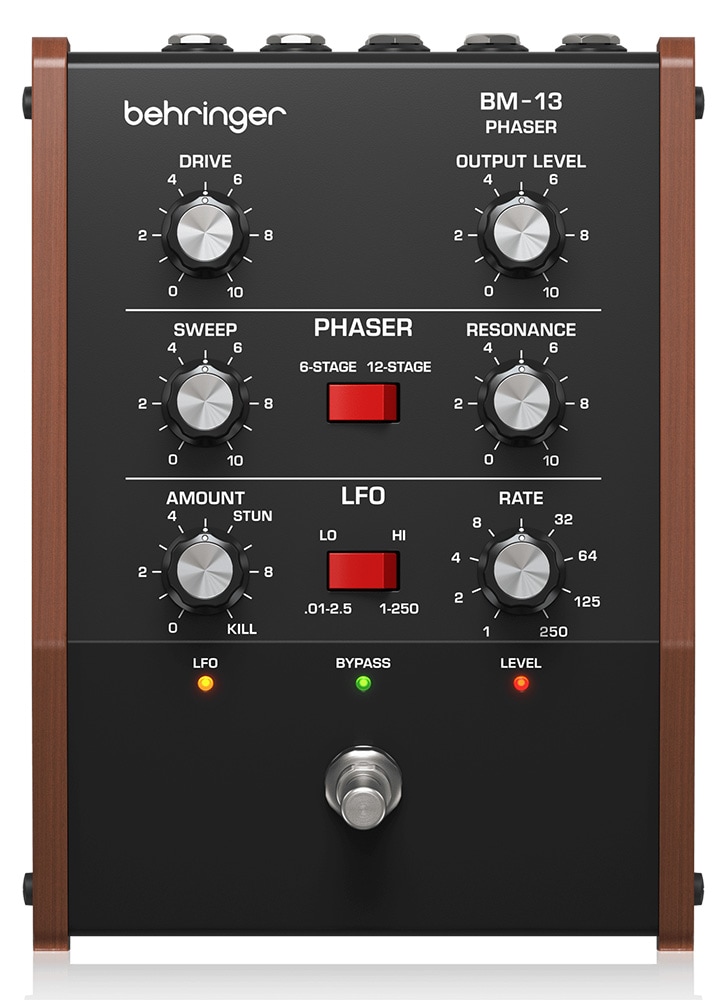

Controls
Drive: 1 x Rotary Knob
Output Level: 1 x Rotary Knob
Sweep: 1 x Rotary Knob
6-Stage / 12-Stage: 1 x Rocker Switch
Resonance: 1 x Rotary Knob
Amount: 1 x Rotary Knob
Hi / Lo: 1 x Rocker switch
Rate: 1 x rotary knob
Bypass: 1 x footswitch

System Performance
Frequency Response: 20 Hz - 20 kHz (+0 / -0.3 dB)
Dynamic Range: > 73 dB, 20 Hz - 20 kHz
S/N Ratio: > 63 dB
Total Gain: 22 dBu

Power
Power Input: Standard 9 V DC, center negative, > 400 mA (power adapter sold separately)
Power Consumption: 0.75 W

Dimensions/Weight
Dimensions (H x W x D): 85.9 x 147.6 x 196.9 mm (3.38 x 5.81 x 7.75 in)
Weight: 1,047 g (36.9 oz)
