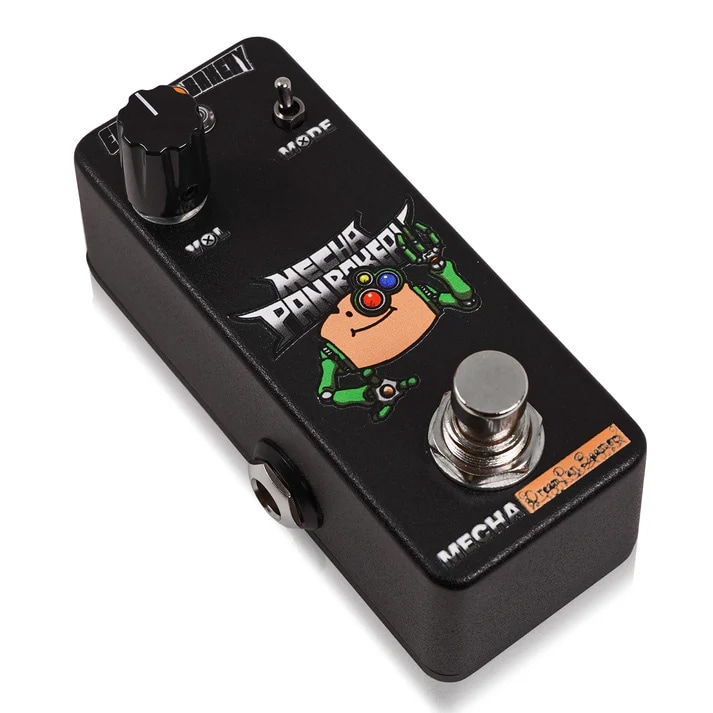

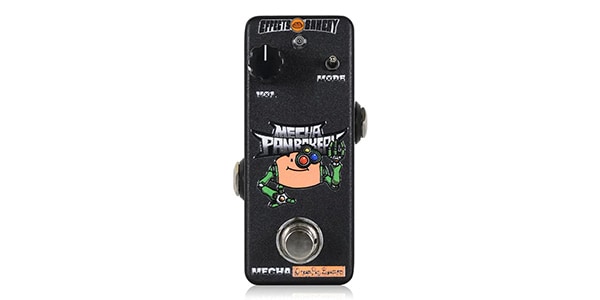

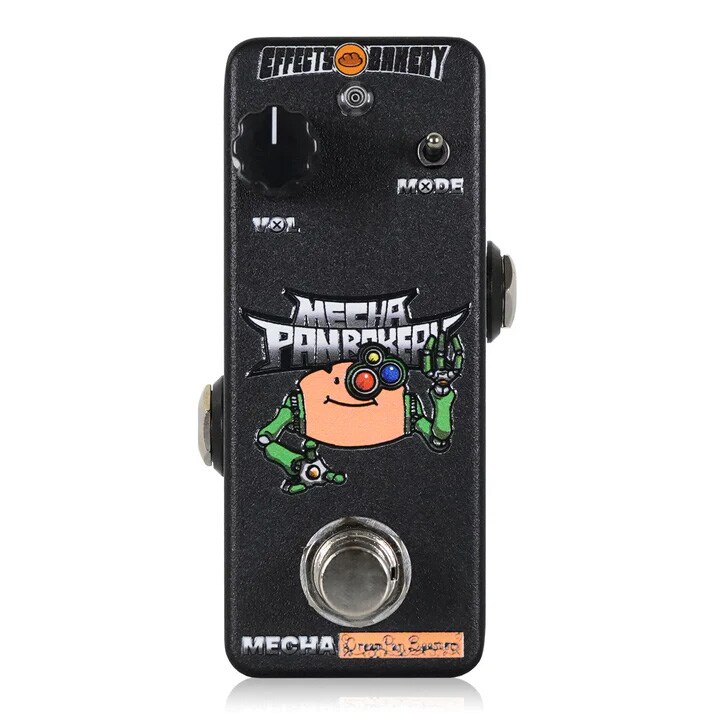

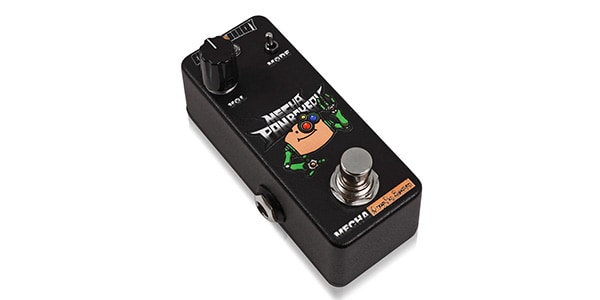

Effects Bakery / MECHA-CREAM PAN BOOSTER

The Effects Bakery MECHA-PAN BAKERY Series is a series of self-modified versions of the popular Effects Bakery pedals, expanding their functionality and tones to make them even more enjoyable for effects-loving players. The Effects Bakery Cream Pan Booster is a booster pedal that can be used in a variety of situations. It can add a little fat to your guitar tone while increasing the volume.

The MECHA-CREAM PAN BOOSTER evolves the Cream Pan Booster into an even cleaner, more transparent booster.
The MODE switch also allows you to adjust the brightness, especially when combined with a tube amp or distortion effect. While the difference in tone between the MODE switch and the booster is subtle, you'll notice a difference in tonal balance when you actually play.

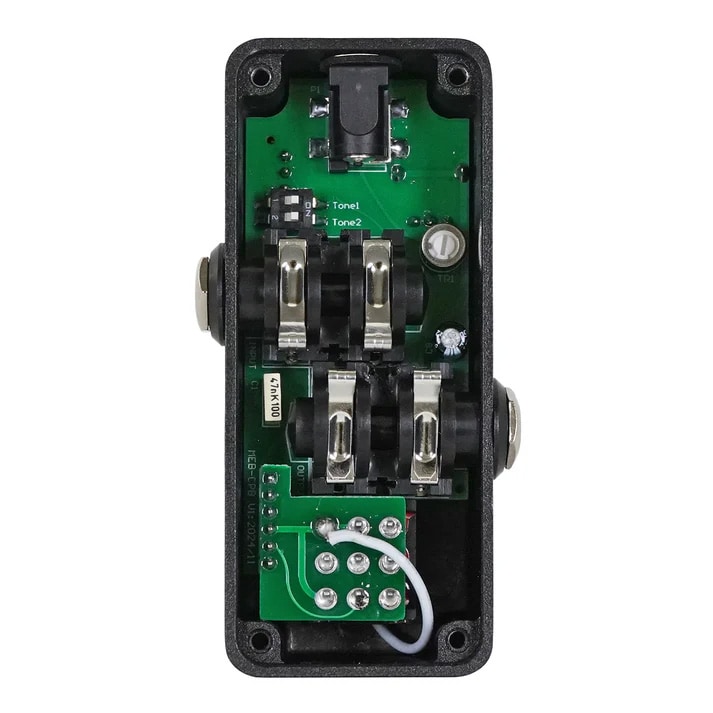

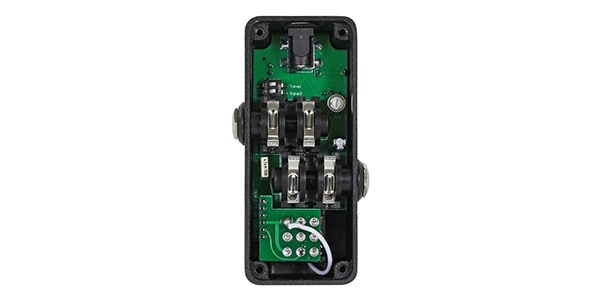

It also features two internal switches. These allow you to adjust the clarity or brilliance of the tone.
The TONE 1 switch brightens the boost sound. The TONE 2 switch enhances tone clarity, especially when the VOL knob is near the center.

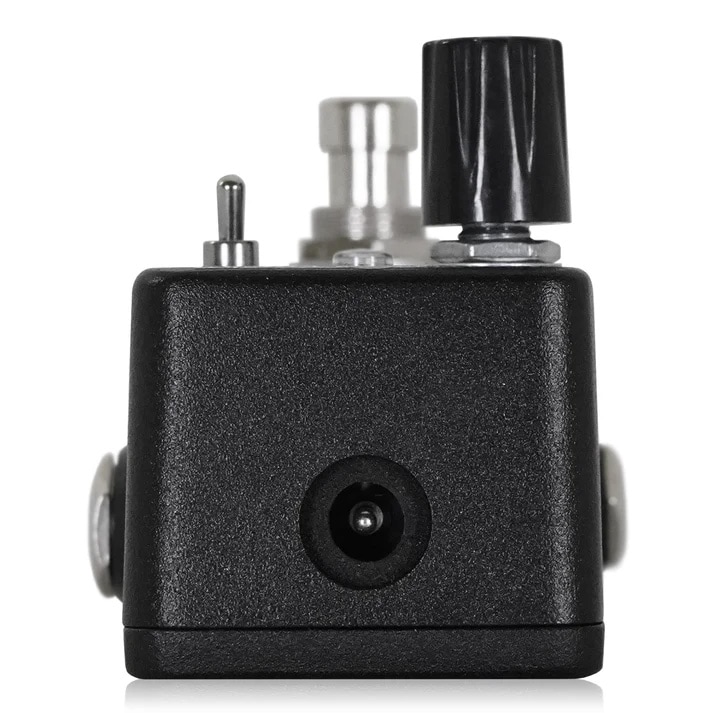

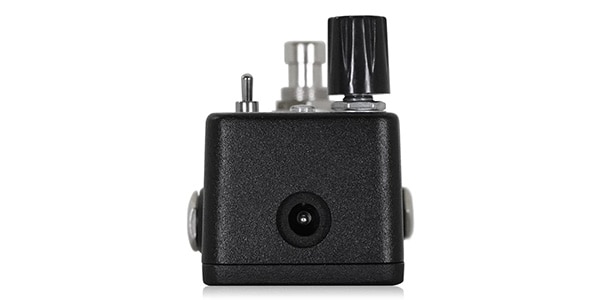

The MECHA-CREAM PAN BOOSTER is powered by a standard center-negative DC 9V adapter. Batteries cannot be used.

The internal trim pot is for production adjustments only.

■KEY FEATURES
- Self-modified version of Effects Bakery's classic booster
- Evolved into a clean, transparent booster
- Tone color can be changed using the internal switch

■SPECS
- Current Draw: 4mA
- Input Impedance: 1M ohm
- Output Impedance: 1k ohm

■Type: Booster
■Adapter: 9V center negative
■Battery Operation: None
■Controls: VOL, MODE, TONE 1, TONE 2
