JR SOUND / AB-202

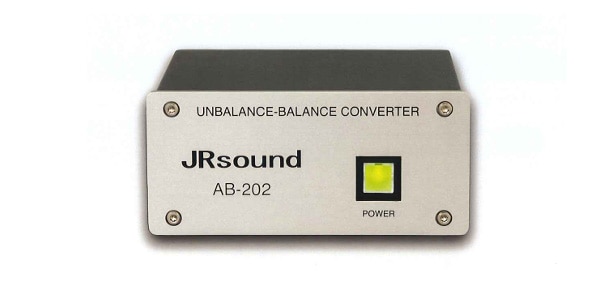

JR SOUND/AB-202 is an unbalanced-to-balanced converter.

■Unbalanced and Balanced Converters
Professional audio equipment does not use unbalanced input and output signal transmission. Unbalanced transmission transmits positive and negative signals through a single cable, with the shield wire used as ground. Balanced cables use three wires, with the positive and negative signals sent through separate wires and the shield used as ground. [LF][LF]

The benefits of this are simple:
[LF]1. The sound quality does not deteriorate even when the signal cable is extended to 10-20m. [LF]
2. Because the shield wire is separate from the signal cable, it is less susceptible to external noise. [LF]
3. Because the positive and negative signals are sent through separate cables, the sound is clear and does not mix. [LF][LF]

For this reason, balanced cables are used in professional applications. Using this cable with general audio equipment produces excellent sound. We encourage you to try balanced transmission.

■AB-202 Specifications

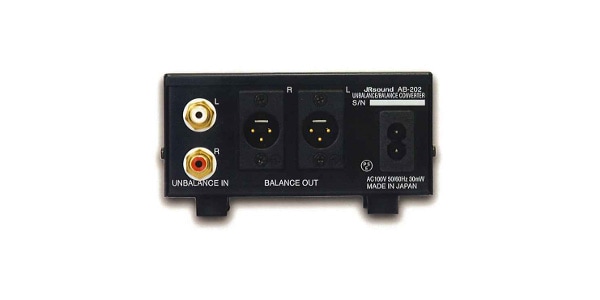

[LF][LF] Input Unbalanced: RCA Pin Jack (10K)
[LF][LF] Gain: +6dB [LF][LF]
Maximum Input Level: +20dB
[LF][LF] Output Balance: XLR3-31 47Ω
[LF][LF] Frequency Response: 20Hz-20KHz -0.2dB
[LF][LF] Maximum Output Level: +24dB [LF][LF] Noise Level (A): -105dB [LF][LF] Distortion: -0.003%
[LF][LF] Power Supply: AC100V 50/60Hz 0.3W
[LF][LF] Dimensions: W125mm x H65mm x D115mm (including protrusions) [LF]
[LF] Weight: 1.02kg
