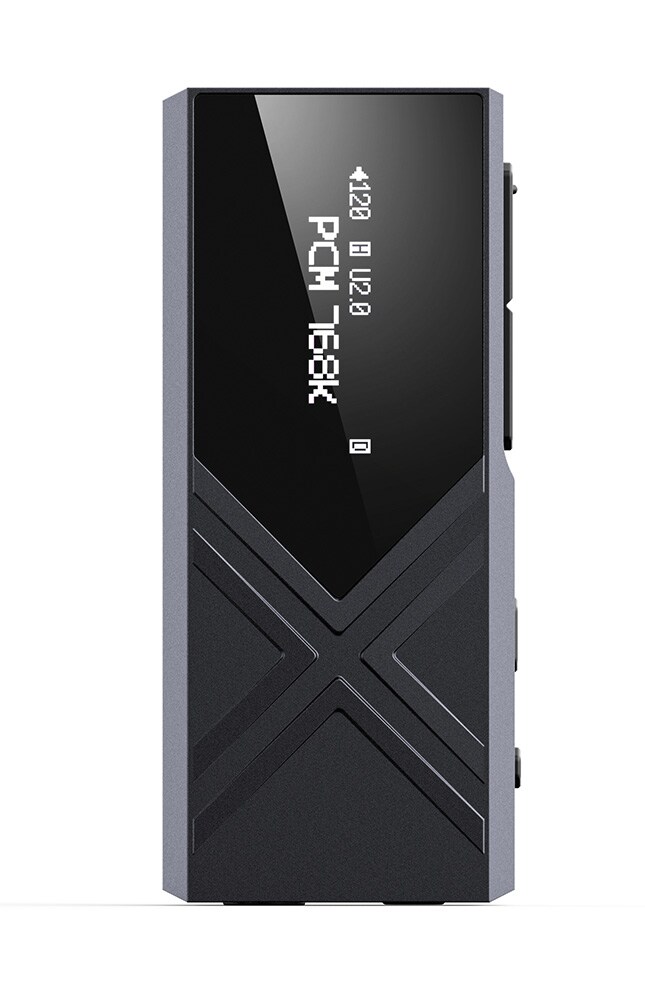

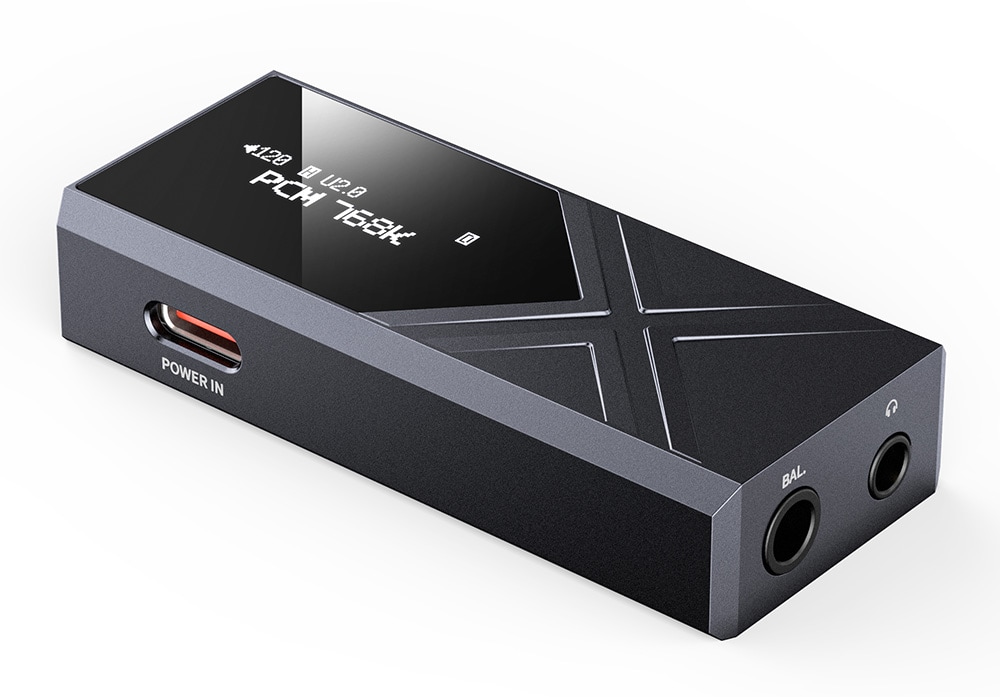

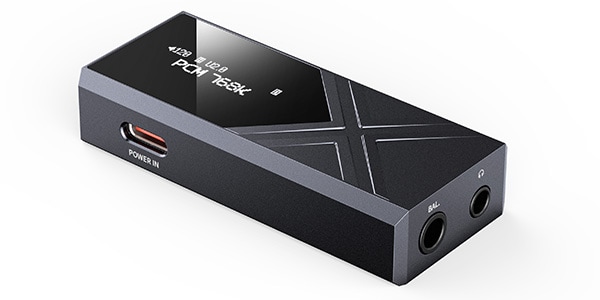

FiiO / KA17 Black

The FIIO KA17 is a high-performance flagship model in the KA series of USB DAC amplifiers, which is compact and lightweight yet delivers a high output of 650mW, comparable to a desktop amplifier.

[直輸入品][Direct Import]

■Powerful driving performance of the highest peak in its class

The newly installed "Desktop mode" achieves the highest output of 650mW in its class with balanced output. Adopts four op-amps installed in THX's headphone amplifier AAA-78+ to powerfully drive high impedance headphones. It expresses the sound source dynamically and delicately.

■Designed to pursue the ultimate sound quality

-Equipped with two low-power, high-performance ESS DAC chips "ES9069Q", as well as the same "THX AAA-78+" circuit as THX's headphone amplifier AAA-78+ and an independent USB Type-C port for power supply. This reduces noise to the utmost and achieves stable high output. We pursued overwhelming high sound quality through a precise power supply circuit design and a board configuration that completely separates the analog and digital circuits.

■Evolved sound quality adjustment and wide range of sound source support
-FIIO's unique PEQ algorithm provides a 10-band high-precision PEQ function. You can finely adjust the gain and bandwidth from the dedicated app "FIIO Control" and tune to your preferred sound quality. The 16-core high-speed processing USB interface chip "XMOS XU316" supports various high-resolution sound sources such as PCM768kHz/32bit, DSD512/1bit, and MQA full decoding.

■ Excellent operability and safe design
- Equipped with a 0.91-inch dot matrix display with excellent visibility, it displays many statuses clearly. In combination with hardware buttons, it allows intuitive operation. The multi-protection system provides a safe listening environment with temperature protection, DC output protection, and volume limit setting.

■ Various connectivity and high portability
- In addition to 3.5mm/4.4mm dual headphone output, it also supports S/PDIF digital output from 3.5mm and can be used as a DD converter. UAC1.0 support allows it to be used with a wide range of devices such as game consoles. Comes with a highly designed dedicated leather case, making it ideal for outdoor use. The metal case combines excellent design with ease of use.



- Power supply: USB bus powered

- DAC chip: 2 x ES9069Q

- Op amp: 2 x OPA1662

- Headphone amp: THX AAA 78+

- USB interface: XMOS XU316

- Digital input terminal: USB Type C

- Analog output terminal:
3.5mm single-ended headphone output (exclusive with S/PDIF digital output)
4.4mm balanced headphone output

- Digital output terminal: 3.5mm 4-pole S/PDIF output (exclusive with single-ended headphone output)

- Maximum output:
Balanced: 650mW (32Ω, THD+N <1%)
Unbalanced: 320mW (16Ω, THD+N <1%)

- S/N ratio:
Balanced: -126dB (Desktop mode A-weighted)
Unbalanced: -123dB (Desktop mode A-weighted)

- Noise floor:
<2.2uV (balanced output, A-weighted)
<2uV (unbalanced output, A-weighted)
・THD+N: <0.0004% (1kHz, 32kΩ)
・Supported formats: PCM768kHz/32bit, DSD512/1bit, MQA full decoding
・Dimensions: Approx. 64.0mm x 27.7mm x 12.7mm
・Weight: Approx. 33.5g (excluding cable)
・Accessories: Leather case / USB Type A to C adapter / USB Type C to C cable / USB Type C cap x 2 / Quick start guide / Warranty card
