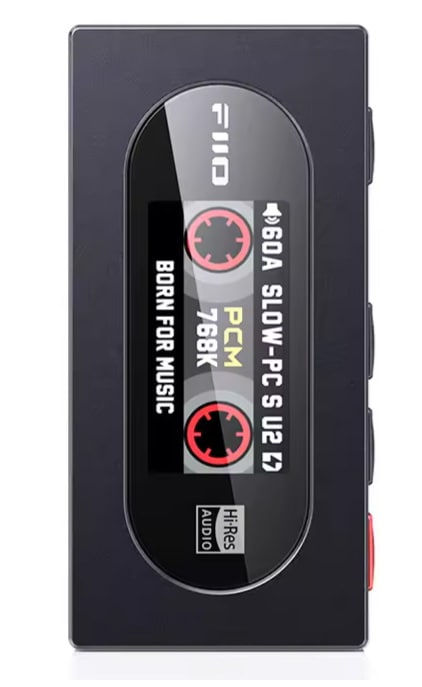

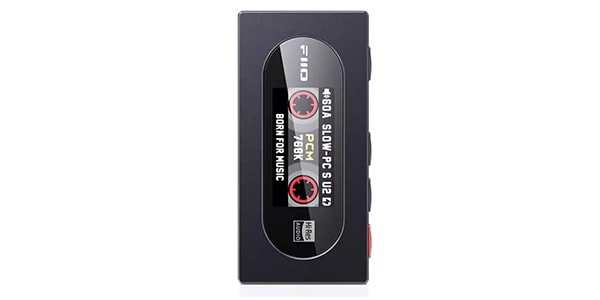

FiiO / KA15 Black

The FIIO KA15 is an ultra-compact and lightweight portable headphone amplifier with built-in USB DAC that transforms your smartphone or PC into a high-quality audio playback environment. It has double the output from the previous model KA5 and is equipped with a new 10-band high-precision lossless PEQ (parametric EQ).

[直輸入品][Direct Import]

■Powerful driving performance of desktop class

- By enabling the newly installed "desktop mode", the balanced output achieves the highest output in its class of 560mW (doubled from KA5). From low impedance to high impedance, it powerfully drives all headphones, allowing you to experience authentic sound that combines power and delicacy.

■Advanced sound quality adjustment function "Lossless PEQ"

- The newly installed **10-band high-precision lossless PEQ (parametric EQ)** allows you to finely adjust the sound quality to your liking. You can simulate and correct the frequency characteristics of your headphones using a dedicated app or on the web, allowing you to enjoy high-quality sound making without worrying about sound quality degradation.

■Top quality parts and high resolution support
- Equipped with a dual high-performance DAC chip "Cirrus Logic CS43198" and an op amp "SGMICRO SGM8262". This luxurious combination achieves outstanding sound quality performance despite the small body. It supports playback of high-resolution sound sources up to 768kHz/32bit PCM and DSD256, and has also obtained Hi-Res Audio certification.

■Smart power saving and various functions
- Equipped with an innovative real-time current and voltage monitoring function, it achieves high-quality sound playback while reducing the power consumption of your smartphone. It is also extremely easy to use with two intuitive volume adjustment modes (60 levels / 120 levels) and customizable A/B button operation. The 0.96-inch IPS color LCD screen displays a playful animation of an analog cassette tape spinning during operation, making it visually enjoyable.

■Excellent compatibility and expandability
- USB Type-C connection supports a wide range of OS including Android, iOS, iPadOS, Windows, and macOS. If you select UAC1.0 mode, you can also connect to many devices such as the latest game consoles. In addition, the 3.5mm jack also functions as a coaxial digital output and can be linked with an external DAC. It also supports CTIA standard microphone input and has a strap hole, making it highly expandable and convenient.


- Power supply: USB bus powered
- DAC chip: CS43198 x 2
- Op-amp: SGM8262 x 2
- USB chip: SPV5048Pro
- Input terminal: USB Type-C (USB 2.0)
- Output terminal:
3.5mm single-ended headphone / coaxial digital output terminal (combined)
4.4mm balanced headphone output terminal
- Recommended impedance:
16-150Ω (single-ended output)
16-300Ω (balanced output)
- Maximum output:
560mW (balanced output, 32Ω, THD+N < 1%)
290mW (unbalanced output, 16Ω, THD+N < 1%)
- THD+N: < 0.00045% (0dB, 32Ω)
- Frequency response: 20Hz-50kHz (crosstalk - 0.1dB)
- S/N ratio:
- 122dB (single-ended output, 32Ω, A-weighted)
?123dB (balanced output, 32Ω, A-weighted)
・Noise floor:
1.7uV (single-ended output, A-weighted)
3.2uV (balanced output, A-weighted)
・Maximum sampling rate:
PCM 768kHz/32bit, DSD256 (digital input)
PCM 384kHz/32bit (coaxial digital output)
・Dimensions: Approx. 52×25×11mm
・Weight: Approx. 21g (excluding cable)
・Accessories: USB Type-C to C cable, dedicated case, quick start guide
