CARL MARTIN / Tone Tweaker

＜＜Jun 2025 New Product！＞＞ The Tone Tweaker is a 12dB boost pedal designed for guitarists seeking the perfect tone. Conceived, designed, and manufactured by a team of engineers with decades of experience developing Carl Martin pedals, this compact pedal lets you maximize the potential of your favorite gear.

The internal high-voltage clean boost circuit delivers high headroom and a significant increase in volume.
The built-in 3-band EQ adds warmth to the midrange, sharpness to the highs, and depth to the lows, providing subtle yet powerful effects that can help guitar solos blend into the mix or add punch to rhythm playing. ■ Main Features
- 12dB Booster
Easily boost your signal cleanly and transparently while preserving your original tone.
- Internal High-Voltage Circuitry
High-voltage internal circuitry ensures ample headroom and power.
- 3-Band Equalizer
Easily customize your tone with a wide EQ range.
- Buffered Bypass
Maintains signal strength even when the effect is off.

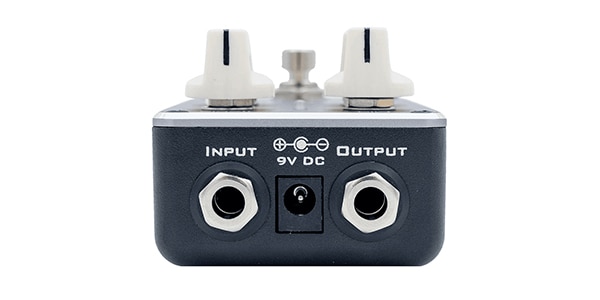

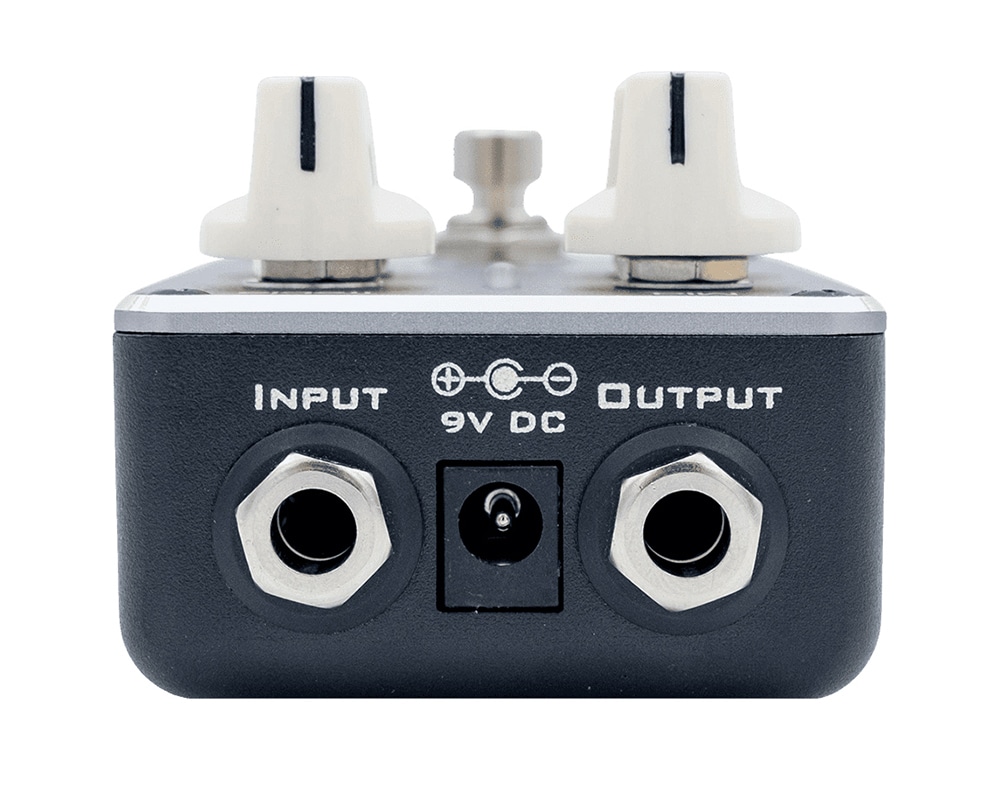

- Rear-mounted input/output jacks and compact design
Easy setup, even when mounted on a pedal board.
- Rugged Housing
Extremely robust chassis design that can withstand harsh environments.

■ SPEC
Treble Knob: Sets the volume of the high frequencies (10kHz) by +/-12dB.
Mid Knob: Sets the volume of the mid frequencies (1kHz) by +/-12dB.
Bass Knob: Sets the volume of the low frequencies (40kHz) by +/-12dB.
Level Knob: Sets the boost amount.
BYPASS Switch: Turns the effect on/off.
LED: Effect Lights blue when ON
INPUT jack: Standard phone (TS) input
OUTPUT jack: Standard phone (TS) output
9V DC jack: Connect the AC adapter (sold separately)
Input impedance: 1MΩ
Output impedance: 100Ω
S/N ratio: 70dB
Frequency response: 40Hz - 16kHz
Bypass type: Buffered
Current draw: Maximum 45mA
Power supply: 9V AC adapter (sold separately) (center negative, 60mA or more, 2.1mm diameter)
*Batteries cannot be used. Vital Audio power supplies are recommended.
Dimensions: 60 x 50 x 112mm (W x H x D)
Weight: 234g
