CARL MARTIN / HeadRoom Mini

＜＜Jun 2025 New Product！＞＞ This is a digital emulation of the HeadRoom spring reverb pedal, delivering the same warm and rich tone as the original in a more practical, compact size.

It covers a wide range of reverb effects, from small rooms to bathrooms and even the splendor of huge cathedrals.
Two footswitchable channels feature independent tone and level controls, allowing you to customize the reverb depth and tone individually.

For example, you can set Channel A to a bright, airy room reverb and Channel B to a deep, dark, cathedral-like reverb, creating your own unique combination.

■Features
- 2-Channel Reverb Settings
Two independent reverb channels, each with detailed settings.
- Flexible Mono/Stereo Support
Stereo operation using two amplifiers is possible using a stereo cable.
- Buffered Bypass
Maintains signal strength even when the effect is off.
- Remote Jack
Equipped with a channel switching jack for convenient external installation in a rack or pedal board.
- Rugged Housing
Extremely robust chassis design that can withstand harsh environments.
- Perfect Reverb Sound
Creates natural reverberation, from faint to cathedral-like, with simple controls.

■SPECS

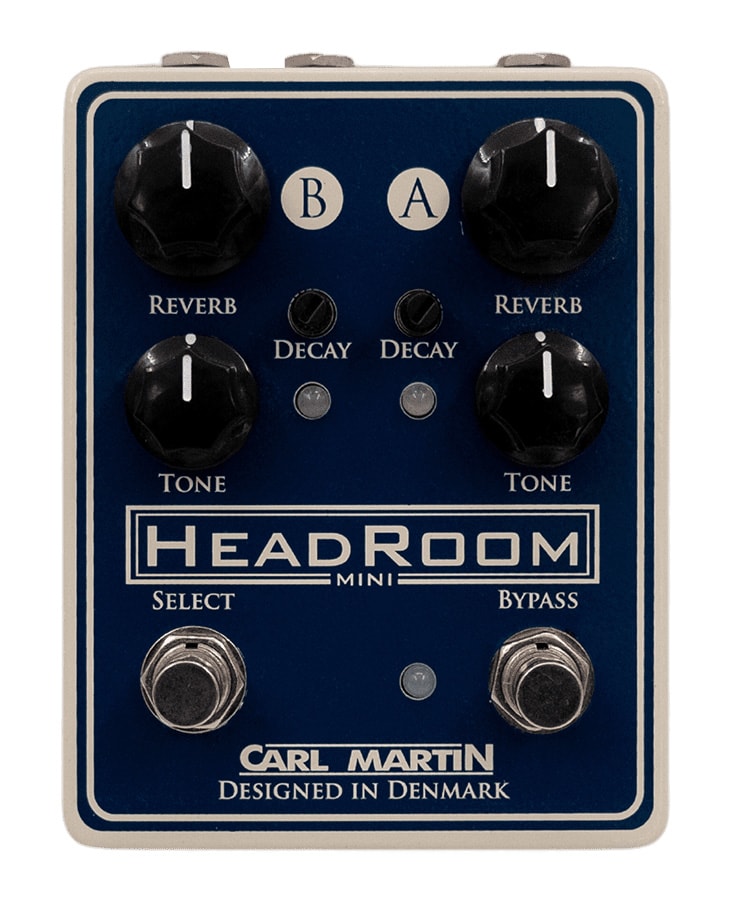

REVERB Knob: Sets reverb depth (Equipped on Channels A and B)
TONE Knob: Sets reverb brightness (Equipped on Channels A and B)
DECAY Knob: Sets reverb length (Equipped on Channels A and B)
SELECT Switch: Selects Channel A or B
BYPASS Switch: Turns effect on/off.
LED: Effect Lights blue when ON

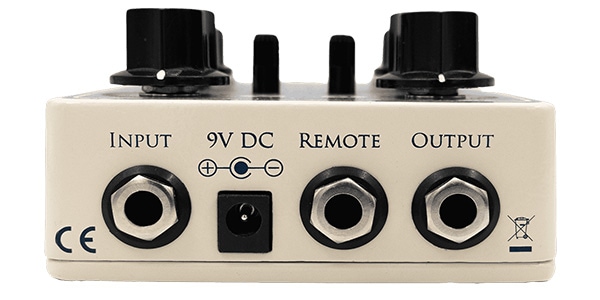

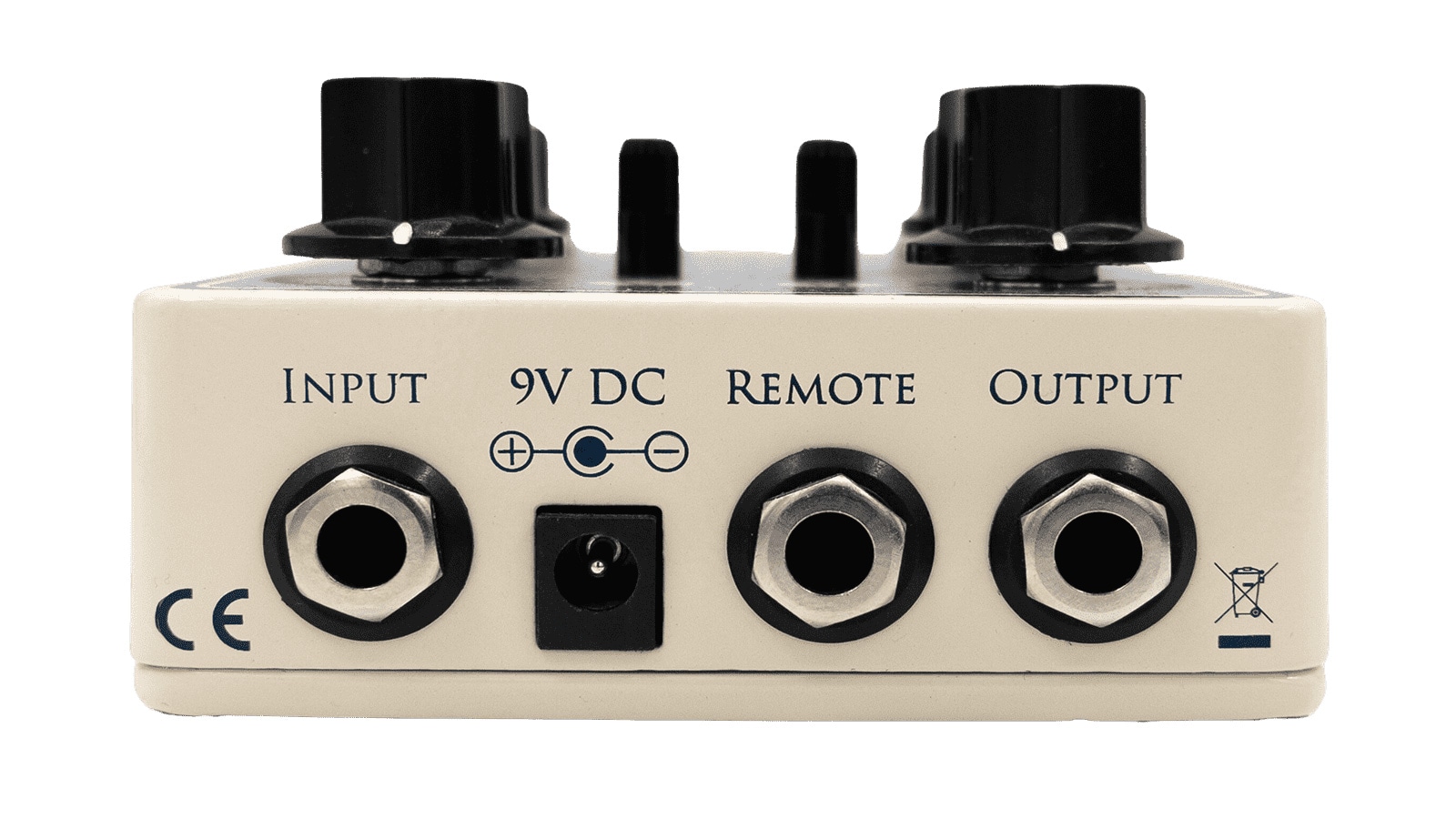

INPUT jack: Standard TRS phone input
OUTPUT jack: Standard TRS phone output
REMOTE jack: Standard TS phone output
9V DC jack: Connects to an AC adapter (sold separately)
Input impedance: 1MΩ
Output impedance: 100Ω
S/N ratio: 70dB
Input/Output: Mono-Stereo
Remote option: Preset A/B
Bypass type: Buffered
Current draw: Maximum 120mA
Power supply: 9V AC adapter (sold separately, center negative, 250mA or more, 2.1mm diameter)
*Batteries cannot be used. Vital Audio power supplies are recommended.
Dimensions: 94 x 55 x 124mm (W x H x D)
Weight: 351g
