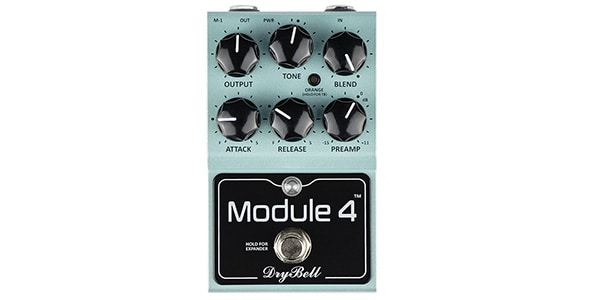

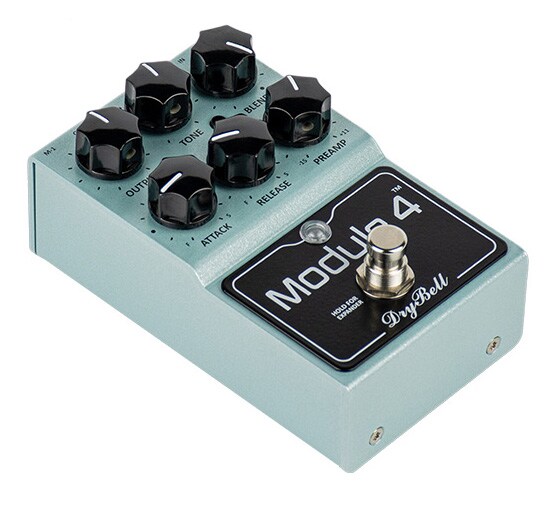

DRY BELL / Module 4

The Module 4 is a dual-voice compressor pedal designed to meet and exceed your expectations, satisfying a wide range of compression needs. It delivers analog studio-grade compression power directly to your pedalboard. Its perfect tone tuning and ingenious design make it easy to quickly dial in the compression, tone, and feel you desire.

The Module 4 is a marvel of compressor design. Experience incredible compression with any instrument. This compressor is equipped to handle all your compression needs, delivering professional results with just a few twists of the knobs. Whether you're a seasoned pro or just beginning your musical journey, this dual-voice compressor will inspire you to create music that truly reflects your artistic vision.

■ Power Supply
A regulated 9VDC (center negative) / minimum 100mA power supply is recommended (sold separately).
Voltage higher than 9V (maximum 18.1V) will not affect the Module 4's tone, dynamics, or internal headroom. When used with an electric guitar, current draw is approximately 35mA maximum.
When connecting other equipment with a much greater output than an electric guitar, we recommend using a power supply with a 150mA output. The Module 4 has internal protection against reverse power polarity and electrostatic discharge.
Batteries are not supported.

Technical Specifications
Input Impedance (Full Freq. mode): 900 kΩ/1 kHz
Input Impedance (Orange mode): 80 kΩ-200 kΩ/1 kHz
Output Impedance: 440 kΩ/1 kHz
Maximum Input Level (without compressor clipping): 13.0 Vpp/15.5 dBu
Maximum Output Level: 13.0 Vpp/15.5 dBu
Maximum Buffered Bypass Level (without clipping): 13.5 Vpp/15.8 dBL
Preamp Gain: -15 dB (CCW), +11 dB (CW)
Output Gain: -17 dB (CCW), +17 dB (CW)
