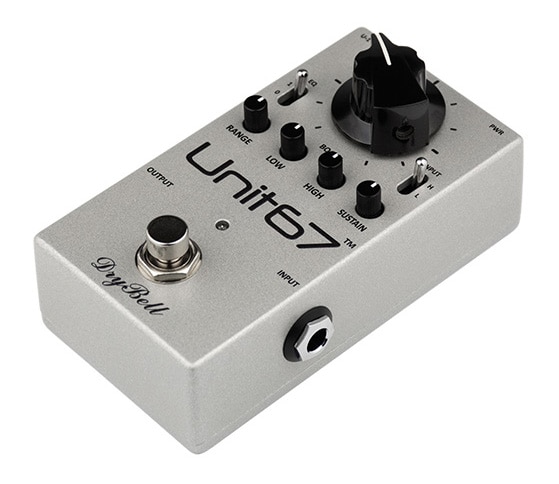

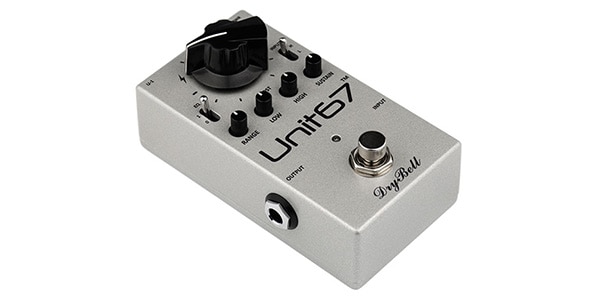

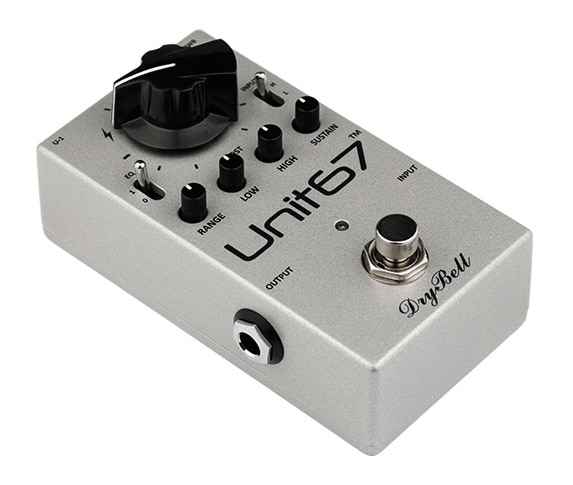

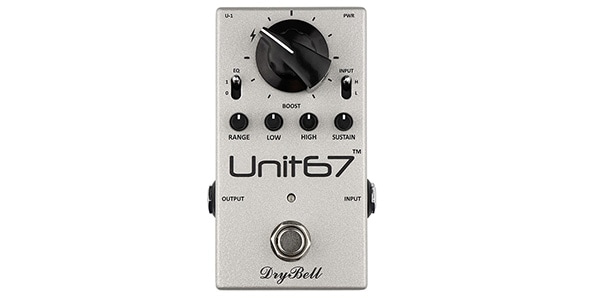

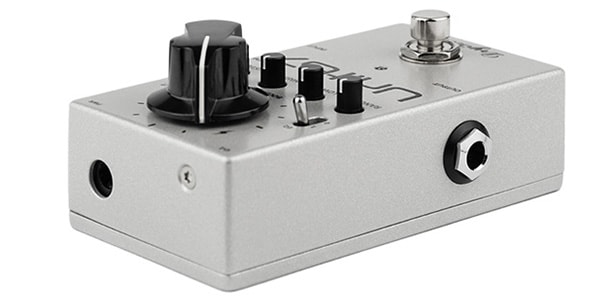

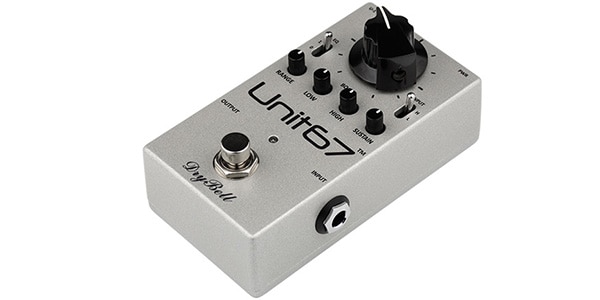

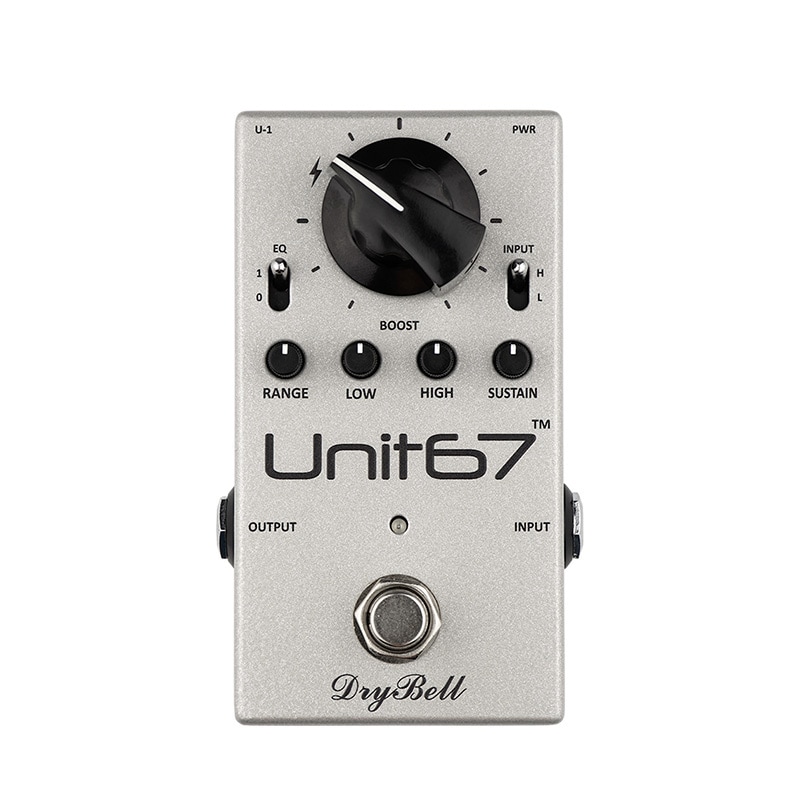

DRY BELL / Unit67

You know that feeling when you play with a loud or overdriven amp and it feels like all the notes just come out easily and you can play effortlessly? That's the Unit67. But you don't have to play loud or overdriven to get there. The Unit67 is a great combination of different effects that work in perfect synergy.

The Unit67 lets you refine your sound, enhance your playing feel, and effortlessly master your tone. This versatile analog pedal provides all the professional-level tone-sculpting tools musicians need. Whether your sound is clean or overdriven, the Unit67 enhances sustain, clarity, and punch. This allows you to stand out in a mix, overdrive your amp, or refine your amp's overdrive tone into a classic treble-boosted texture reminiscent of legends like Brian May and Ritchie Blackmore.

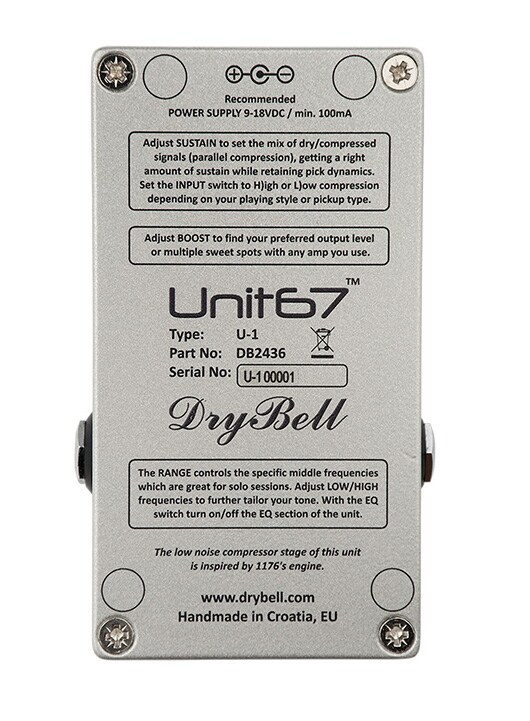

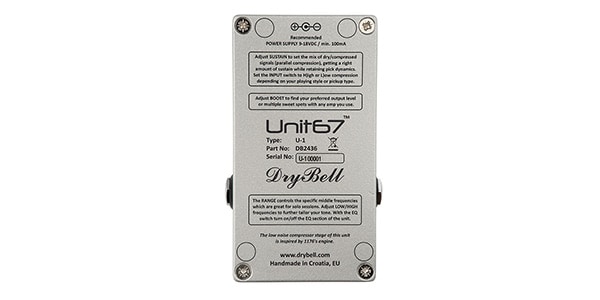

■ Power Supply
We recommend a minimum of 100mA DC 9-18VDC (center negative) (sold separately).
Using more than 9V will cause the Unit67 to generate more heat, but this is within specifications.
Different power supply voltages will not affect the pedal's tone or internal headroom.
Current consumption varies depending on the input signal level.
For example, at guitar level, the current consumption is approximately 87mA.
If connecting other equipment with a higher output than an electric guitar, we recommend using a power supply with a 150mA output.
The Unit67 features internal protection against reverse power polarity and electrostatic discharge.

Technical Specifications
Input Impedance: 900 kΩ/1 kHz
Output Impedance: 250 Ω/1 kHz
Maximum Output Level: 4.5 Vpp / 6.2 dB
Maximum Bypass Level (no clipping): 20.0 Vpp / 19.2 dBu
Maximum Gain (EQ off, Sustain = 0): 14.0 Vpp / 16.1 dBu
Maximum Gain (EQ off, Sustain = 0): 22.4 dB
Maximum Gain (EQ/Boost max on): 41.0 dB (mid-range freq.)
