UNIVERSAL AUDIO / Apollo e2m

UNIVERSAL AUDIO/Apollo e2m is a stereo headphone amplifier that can be connected to a Dante network.

■Apollo e2m (Stereo Headphone Amplifier and Line Interface) Product Overview

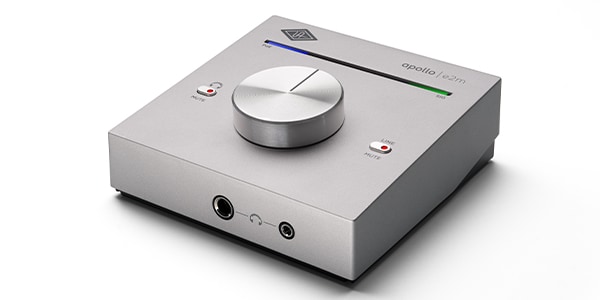

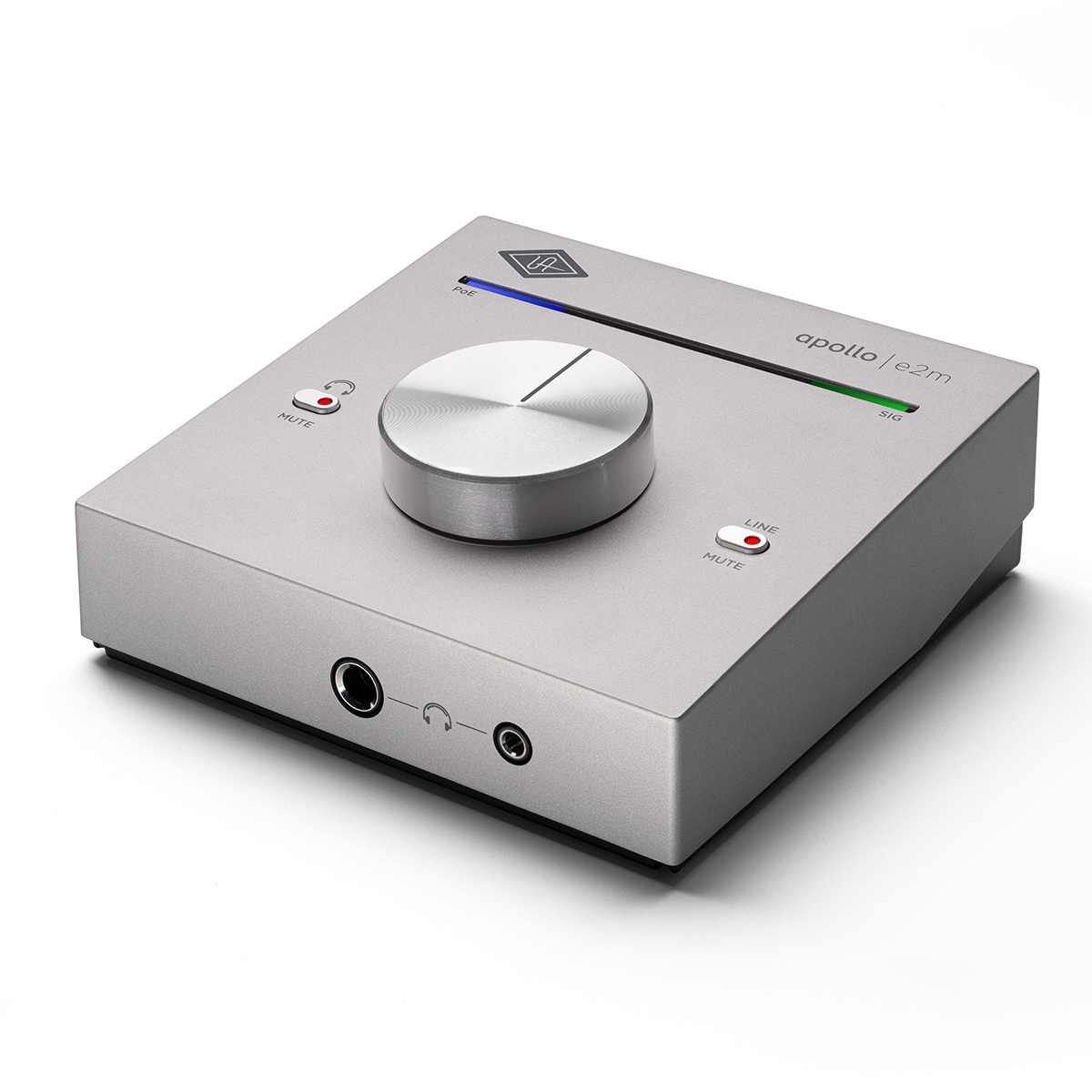

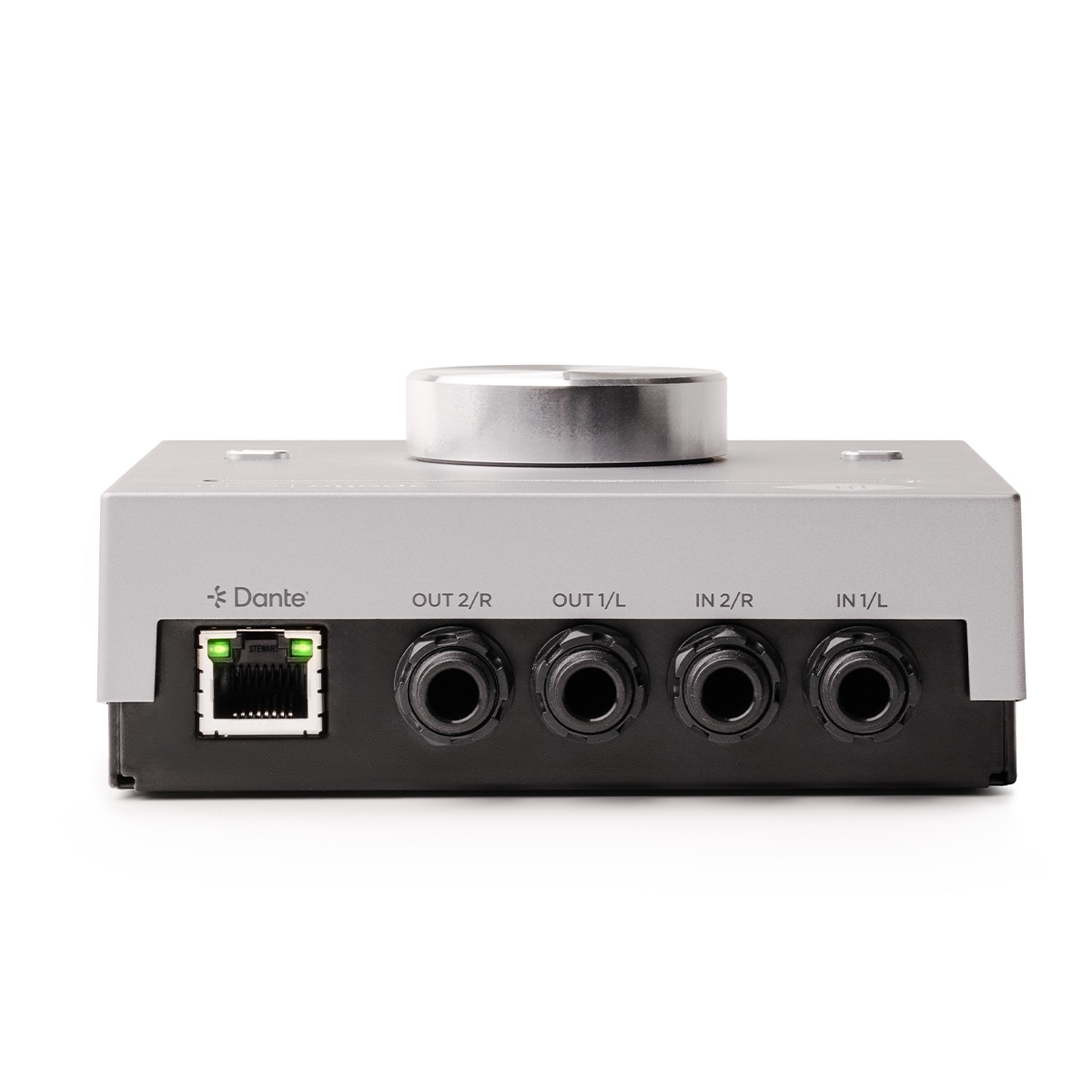

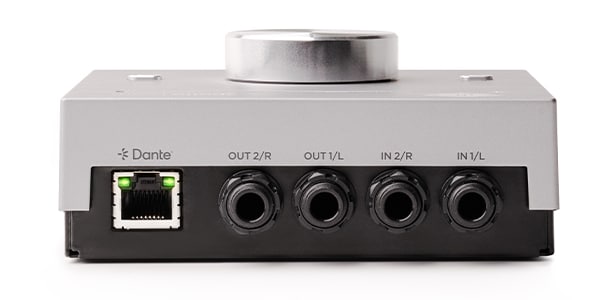

This device combines a stereo headphone amplifier and a line-input Dante network audio interface, making it ideal for building a personal monitoring environment. It features stereo line input and output via two mono 1/4-inch jacks. Headphone outputs include 1/4-inch and 1/8-inch stereo jacks (output in parallel). It is powered via PoE, and the 5/8-inch thread on the bottom makes it easy to mount on a microphone stand.

○Apollo e2m Key Features and Specifications
The Apollo e2m allows you to connect in-ear monitors (IEMs), over-ear headphones, or powered monitors, enabling easy local foldback on the Dante network. Equipped with 1/4-inch and 1/8-inch stereo headphones with the same signal output in parallel, its convenient PoE (Power over Ethernet) design simplifies cable connections on stage and in networked studios.

In addition to monitor outputs, the Apollo e2m also features stereo line inputs, allowing you to quickly add audio sources such as amp emulators, synths, and playback devices like iPhones and samplers to your Dante network, maximizing your creativity on stage and at the front of house.

The combination of the Apollo e2m and Apollo e1x provides a complete I/O solution for Dante networks. The Apollo x16D interface provides low-latency personal cue monitoring, while the remote-controllable Unison preamps deliver the sound of classic microphone preamps.

[Key Features]
- Integrated 2-in/2-out stereo headphone amplifier and line I/O interface connected via Dante
- Professional A/D converters enable stereo line input for analog gear, keyboards, synths, amp emulators, and more

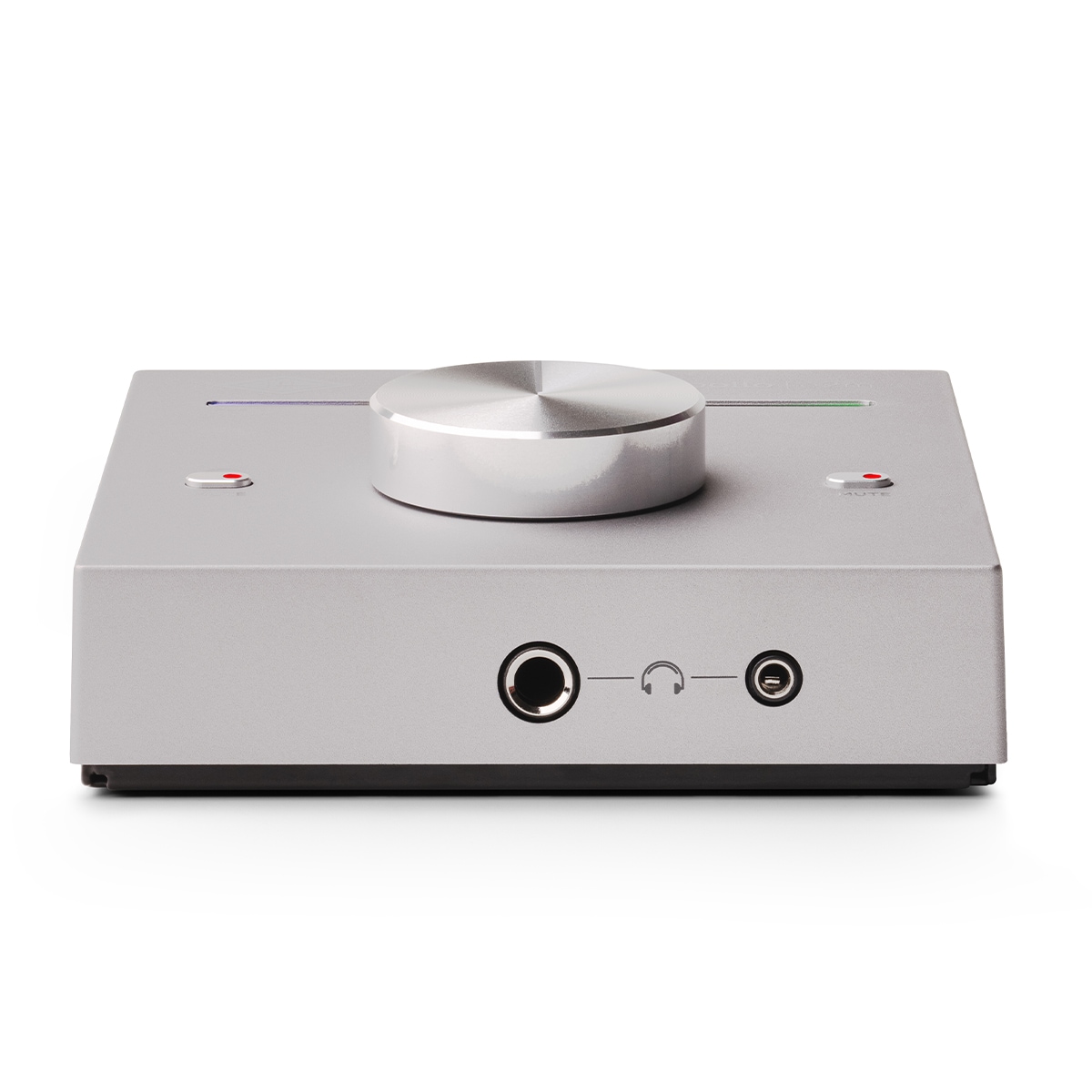

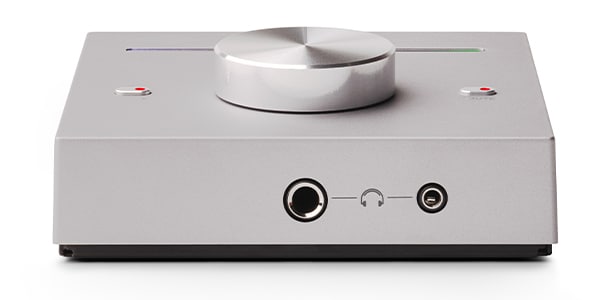

- Stereo 1/4-inch line output and 1/4-inch and 1/8-inch headphone outputs (parallel output) controlled with a shared analog volume control

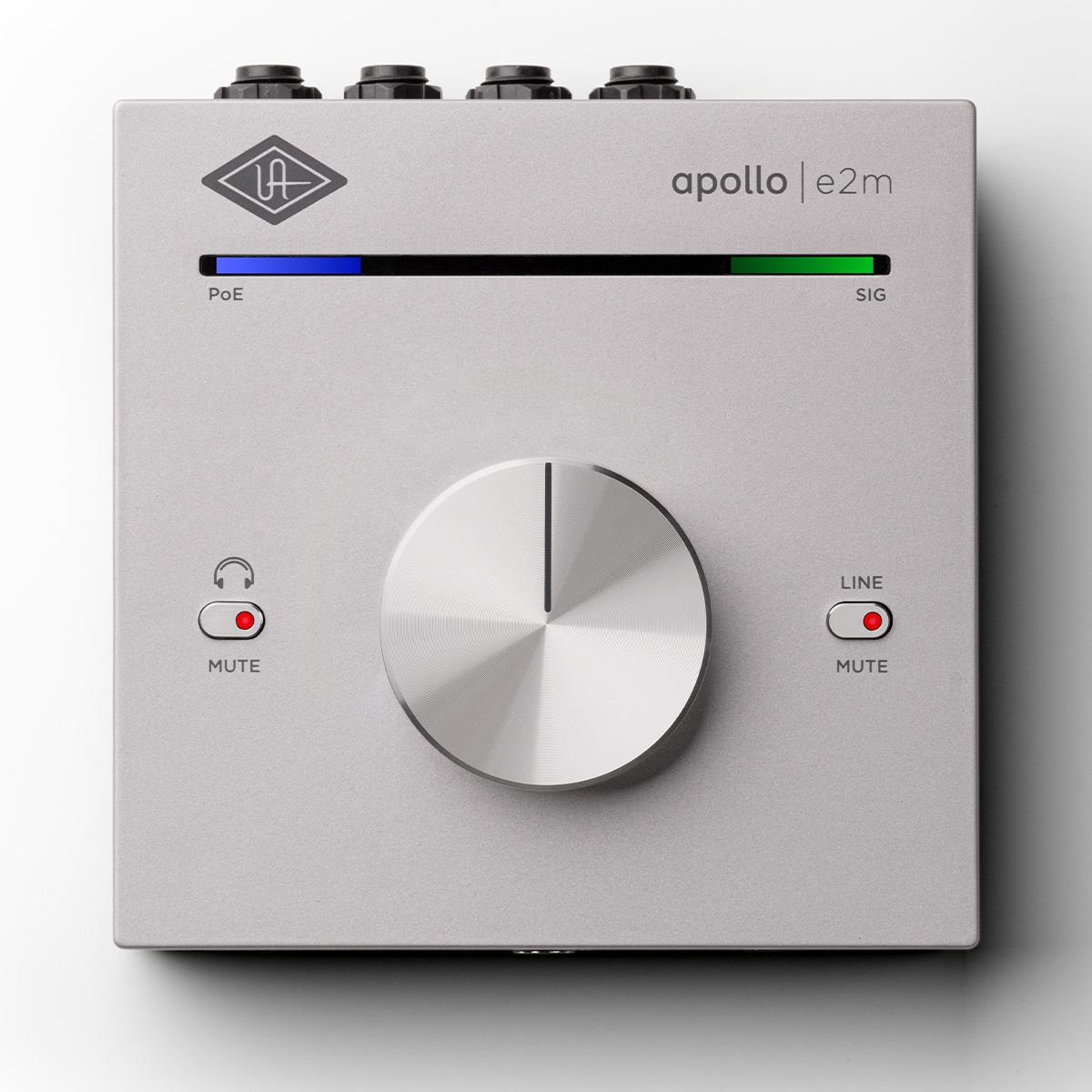

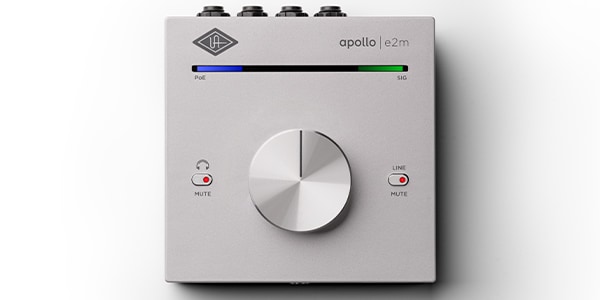

- Line output and headphone output muting can be set independently
- Power over Ethernet (PoE) power supply specifications

[Key Specifications]
- Mic/Line Input
- Dynamic Range: 120 dB
- THD+N: -115 dB
- Line/Headphone Output
- Dynamic Range: 120 dB
- THD+N: -112 dB (Headphone)
- THD+N: -109 dB (Line)
- Latency (Analog to Dante/Dante to Analog)
- 1 ms, 2 ms, or 5 ms ms (configured via Dante Controller)
Supported Sample Rates: 44.1 to 96 kHz
AES67 Support (48 kHz) and Dante Device Locking: Configurable via Dante Controller
Power Specifications - PoE: 7 W (5 W standard)

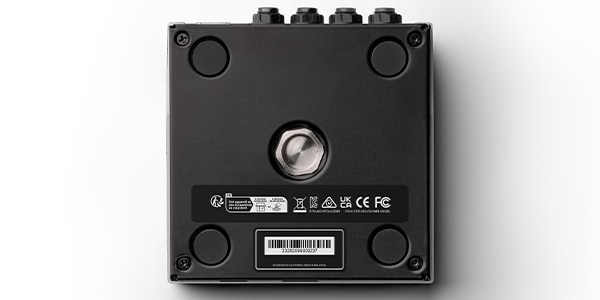

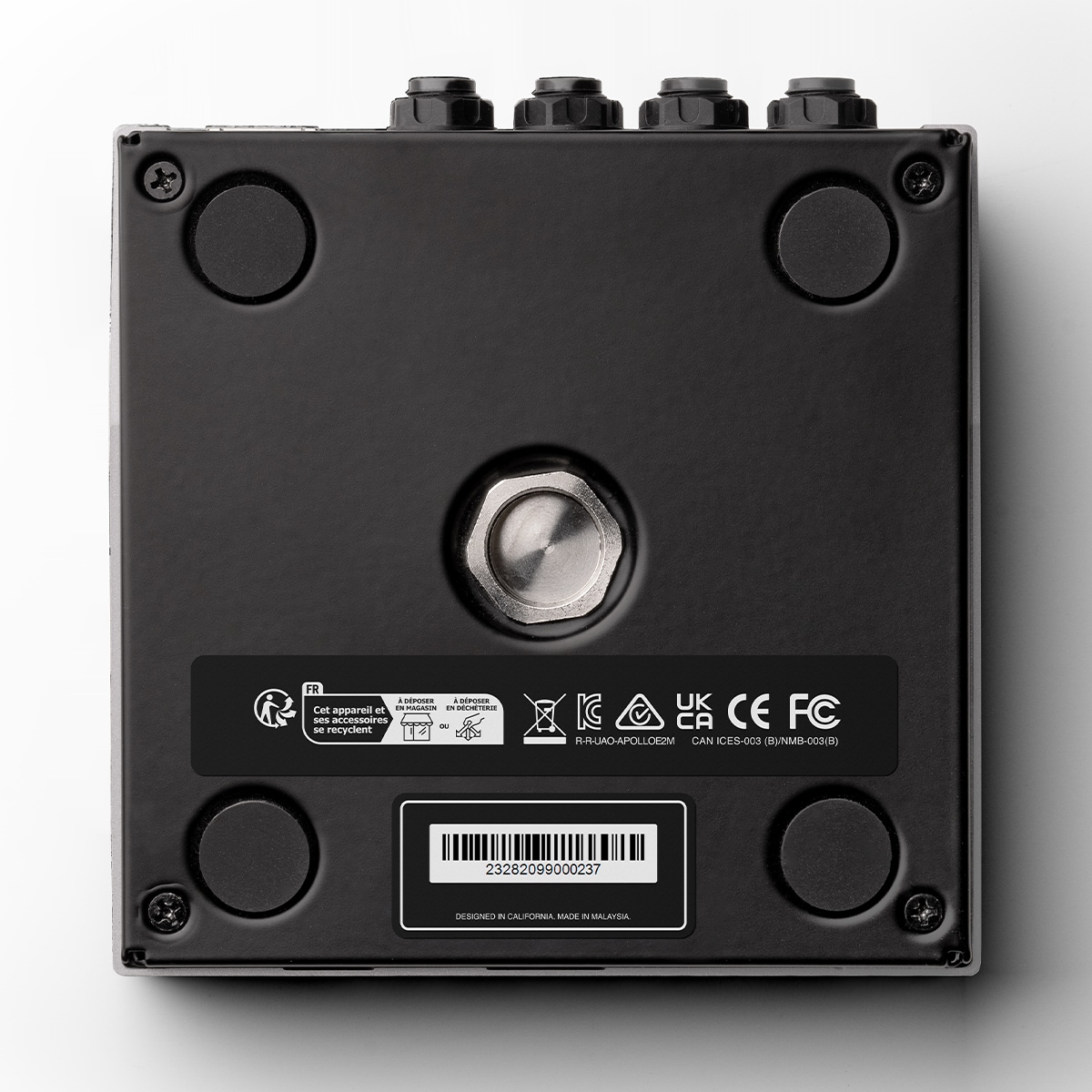

Flexible Mounting: 5/8-inch threaded mic stand mounting thread on the bottom
Dimensions: 48 x 120 x 124 mm (H x W x L)
