Ex-pro/DP-1 DC Power Distributor

Ex-pro / DP-1 DC Power Distributor

It's ultra-compact, measuring just 2cm high, 2cm deep, and 14cm wide! It features a regulator and isolation for every two outlets, and a common-mode choke coil filter for each output, ensuring stable power supply.

~From the manufacturer's website~

After using the prototype in sessions and live performances for a year, we combined the know-how of Ex-pro's numerous power splitters to create one of the industry's smallest splitters.

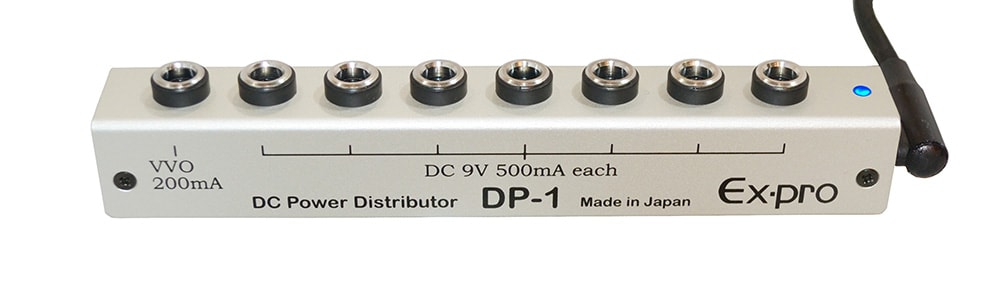

The 9V output is designed to deliver 500mA per seven outlets, and a new 200mA variable voltage output (VVO) is included, allowing you to select 9V, 12V, 15V, or 18V.
Due to the maximum output current, every two outlets are equipped with a regulator and isolation, and each output is equipped with a filter using a common mode choke coil, providing even more stable power supply than before.

*The DC OUT jack connects the DC plug more tightly than a standard DC jack to ensure maximum current. It may feel stiff and difficult to insert when connecting the DC cable, but this is not a defect.
When unplugging, please rotate it slowly to avoid damaging the jack. * Digital effects pedals that may cause digital noise should be powered using a dedicated adapter.

If the adapter is damaged or lost, a PD45W adapter and a USB-Type-C cable (PD60W compatible), which is also used to charge smartphones such as iPhones, can be used as a substitute. The connector can also be changed using commercially available cables, allowing you to change the connector to an L-shaped or straight type depending on the installation space.

VVO ""Voltage Variable Output"" is an output terminal that can be adjusted to 9V, 12V, 15V, or 18V. The maximum current per VVO outlet is 200mA.

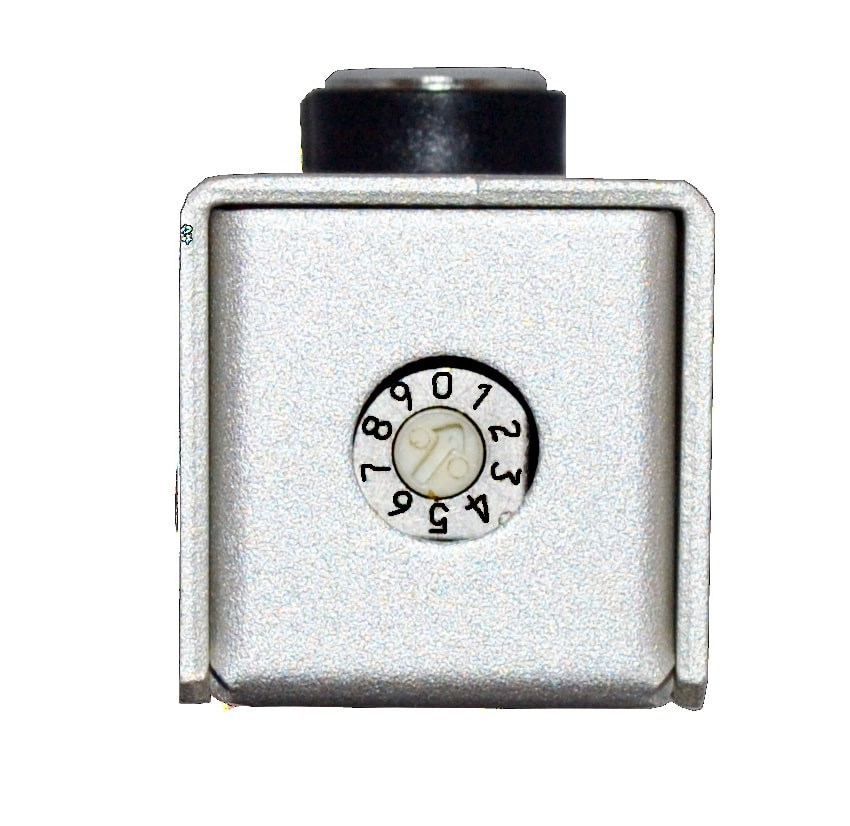

Since the goal was to keep the enclosure as small as possible, the voltage adjustment channel trim must be adjusted using the included screwdriver.
*Be sure to set it to the click position. Setting it somewhere in between will prevent you from obtaining the required voltage.

■Power distributor for guitar effects pedals
■DC output voltage: Fixed 9V DC x 7

Variable voltage (VVO) 9, 12, 15, 18V x 1
■DC output current: Max output 500mA each

VVO max 200mA (when using 45W PD)

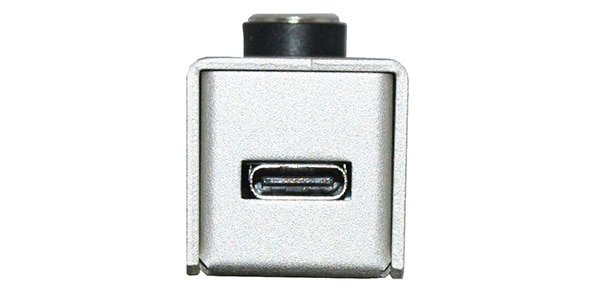

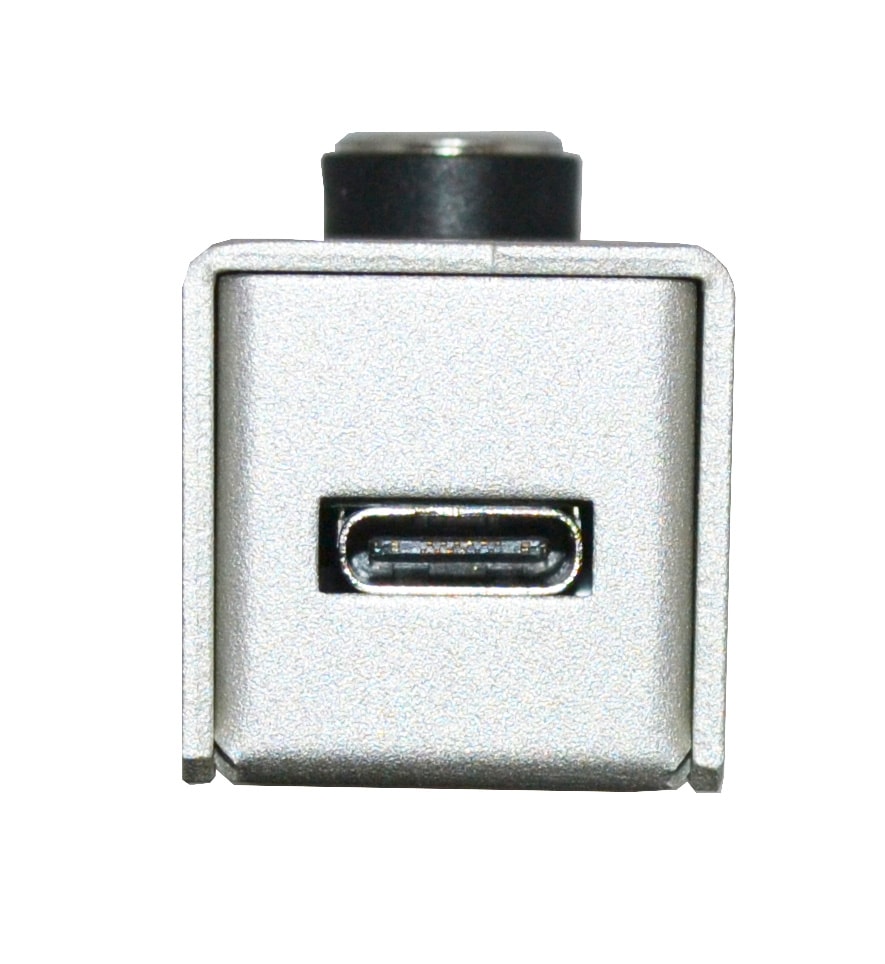

■Input: 45W PD power supply, USB-Type-C
■Dimensions: 140W x 20D x 20H mm
(excluding DC jack) Weight: 68g (main unit)
■Accessories: USB adapter, USB-Type-C cable, 30cm LS DC cable x 4, 45cm LS DC cable x 4

商品レビューProduct Review

総合評価Avg. Rating：(1)
レビュー数Reviews：1

5		0件
4		0件
3		0件
2		0件
1		1件

2025/10/22

USBケーブルのガタつきにより電源が落ちる、、、

投稿者名Reviewed by：mayusu 【神奈川県】

題の通りです。
ケーブルを繋ぐと電源ジャックにガタつきがあり、少しケーブルが動くと電源が落ちます。
現場では使い物にならない。
初期不良かな？と思いながら一台返品し他サイトにてもう一台購入してみましたが症状は変わりませんでした、、、
ケーブルが粗悪品なのか！？と疑い違うメーカーのケーブルを2種類使ってみたものの全く変わらず。
電源側のジャックの作りの問題と思われます。
マルチスイッチャーなども繋いでいるのですが電源が切れるとペダルボード纏めて電源が全落ちするのは流石にシャレにならなすぎる。
購入はお勧めしません。心から。

レビューIDReview ID：68f8c18162c8e90083000028
