Shanling / SM1.3 Black Network streaming devices

SM1.3 features a new Android 12-based UI for intuitive and smooth operation. Streaming and NAS can also be used comfortably.

■Stress-free with a high-performance processor
The Rockchip 64-bit processor provides fast response time for apps and UI operations. Mirroring is also handled smoothly.

Sophisticated, rigid body and high-resolution display
The aluminium alloy body is equipped with a 5.8-inch 1080P Sharp touchscreen. It combines high quality display and operability.

Major streaming services & Roon Ready support
The device supports Apple Music, Spotify, Qobuz and other services, and is Roon Ready certified. You can comfortably enjoy a wide variety of sound sources.

Dual toroidal transformers and separate power supply design
Two 31W toroidal transformers and separate digital and analogue power supply design ensure a stable supply and high-quality sound reproduction.

AKM flagship DACs
The AK4191 + AK4499EX configuration provides precise digital/analogue processing and powerful, beautiful sound.

Various outputs and high driving power amplifier configuration
The MUSES8920 for line output and TPA6120 for headphone output provide low noise and wide bandwidth drive performance.

USB DAC function & high-precision clock
XMOS XU316 & dual high-precision clocks support up to PCM 768kHz/DSD512, and AGLO technology.

■MQA full decoding & Bluetooth 5.2
MQA full decoding and Bluetooth 5.2 support, with support for a wide range of codecs including LDAC and aptX HD.

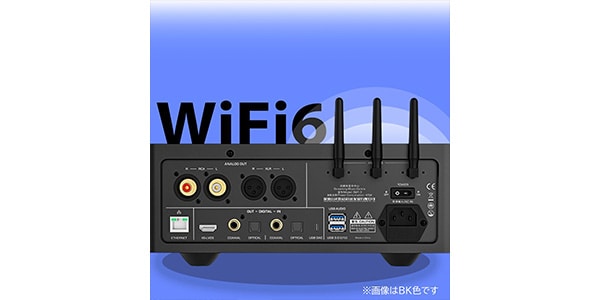

Wi-Fi 6 & Gigabit LAN for high-speed communication
Wi-Fi 6 (2T2R) and 1Gbps wired LAN support ensures stable, high-speed network playback.

■Application linkage & SSD slot
The M.2 NVMe SSD slot provides excellent expandability.

＜Specifications.
Basic information.
Size / Weight: 280 x 280 x 110 mm / 6.4 kg
Display: 5.8-inch 1080P touch screen
AM / ROM: 4GB / 64GB
AC chip: AK4191EQ + AK4499EX
Power supply: 100V-120V.

Playback functions and supported formats.
Supported audio formats: DSD, FLAC, WAV, MP3, AAC, ALAC and many others (CUE supported).
Maximum sampling rate: 768kHz / 32bit, DSD512
External storage: up to 2TB.
Bluetooth reception: LDAC, aptX HD and others (ver 5.2)
Wi-Fi: Wi-Fi 6 (2.4GHz / 5.8GHz)

Audio output performance.
RCA output
Output level: 2.36V
THD+N: 0.0003%.
Dynamic range: 118dB
XLR output
Output level: 4.72V
THD+N: 0.0003%.
Dynamic range: 121dB
Headphone output (at High gain)
Output: 1015mW @ 32Ω, 132mW @ 300Ω
THD+N: 0.0013%.
Dynamic range: 117dB

Input/output terminals (digital).
USB input/output: PCM 768kHz / 32bit, DSD512
Coaxial / optical input/output: PCM 192kHz / 24bit
I2S-LVDS output: PCM 768kHz, DSD512
