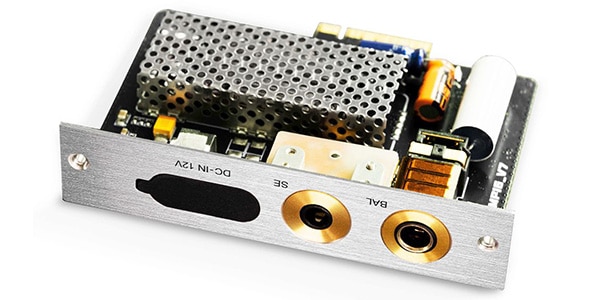

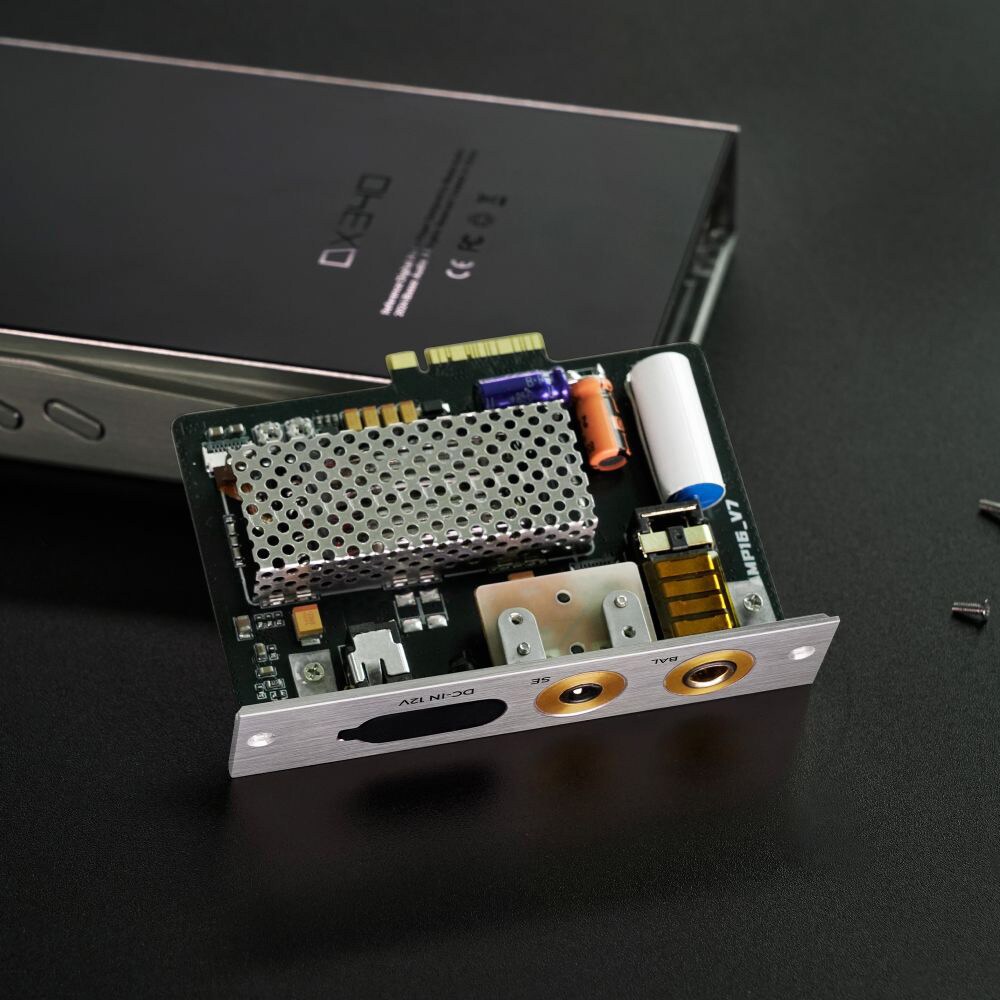

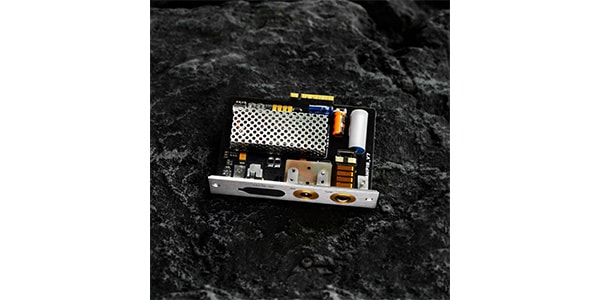

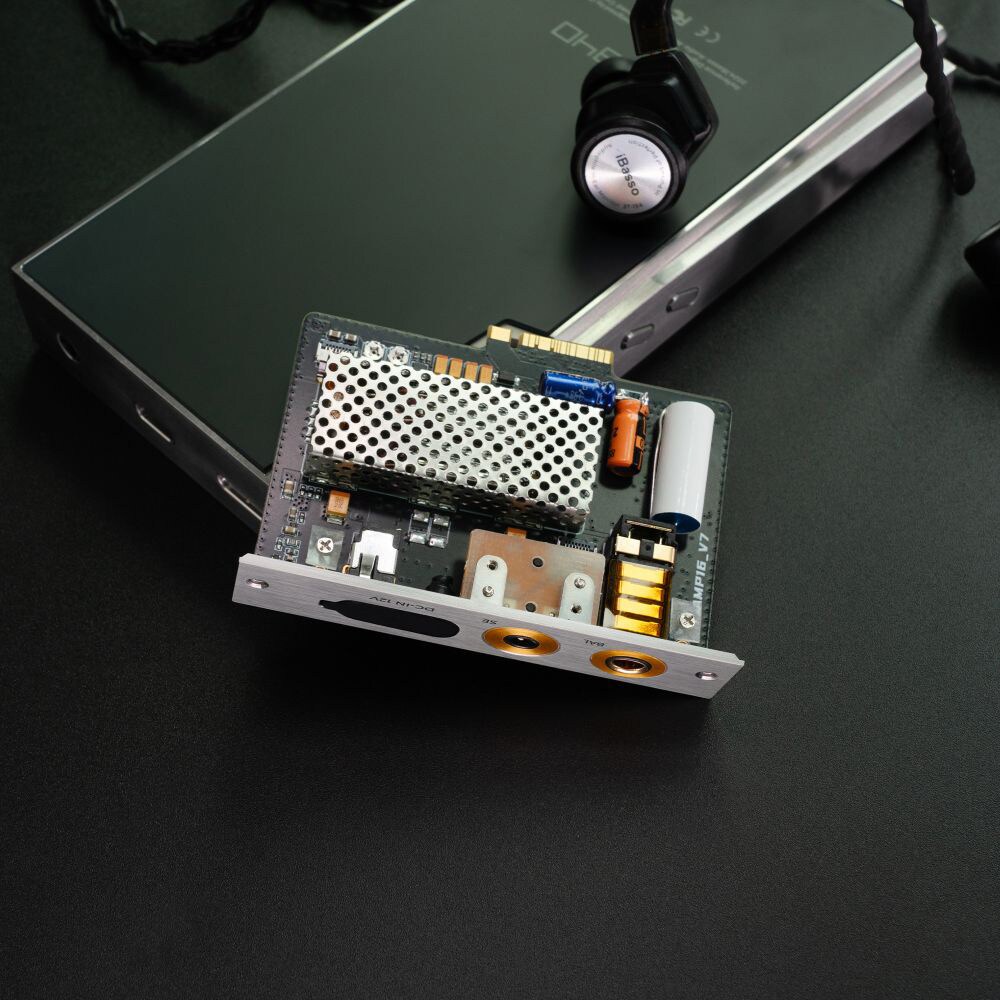

iBasso Audio / AMP16 DX340 dedicated vacuum tube AMP card

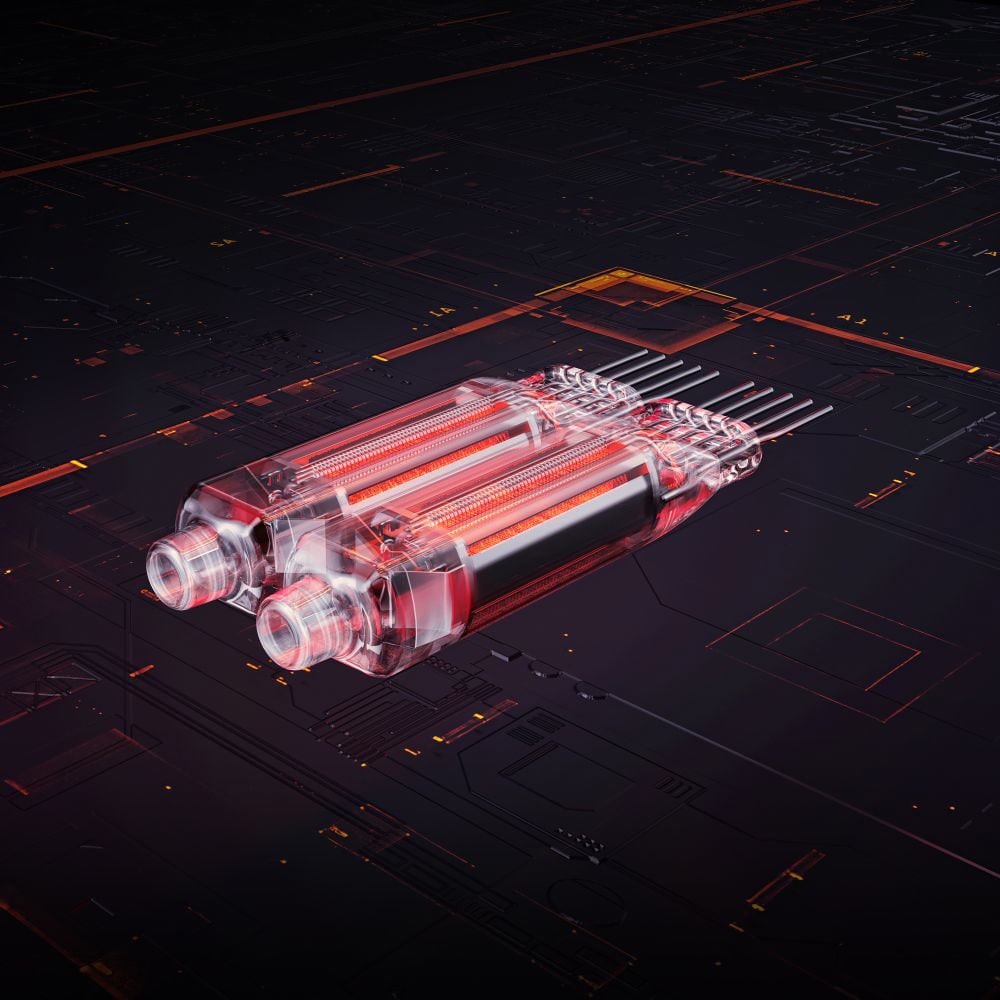

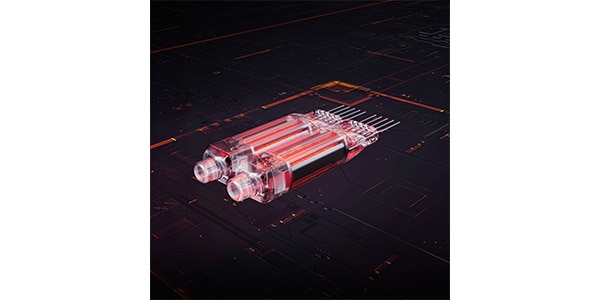

The AMP16 uses dual Raytheon ‘JAN6418’ vacuum tubes, with a 22.5V high-voltage anode power supply to extend headroom and maximise the potential of the tubes. It delivers a warm, extended, analogue-like sound.

■High-quality sound with manual tube matching.
In order to limit manufacturing errors, iBasso performs rigorous matching tests, limited to 50 pairs per day, with SINAD measurements carried out using an APX555 audio analyser. This guarantees high-precision sound quality.

■Vibration-damping design with PORON suspension

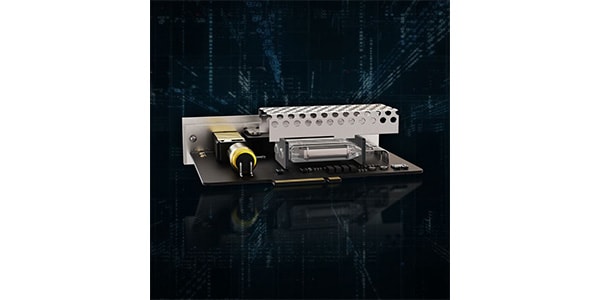

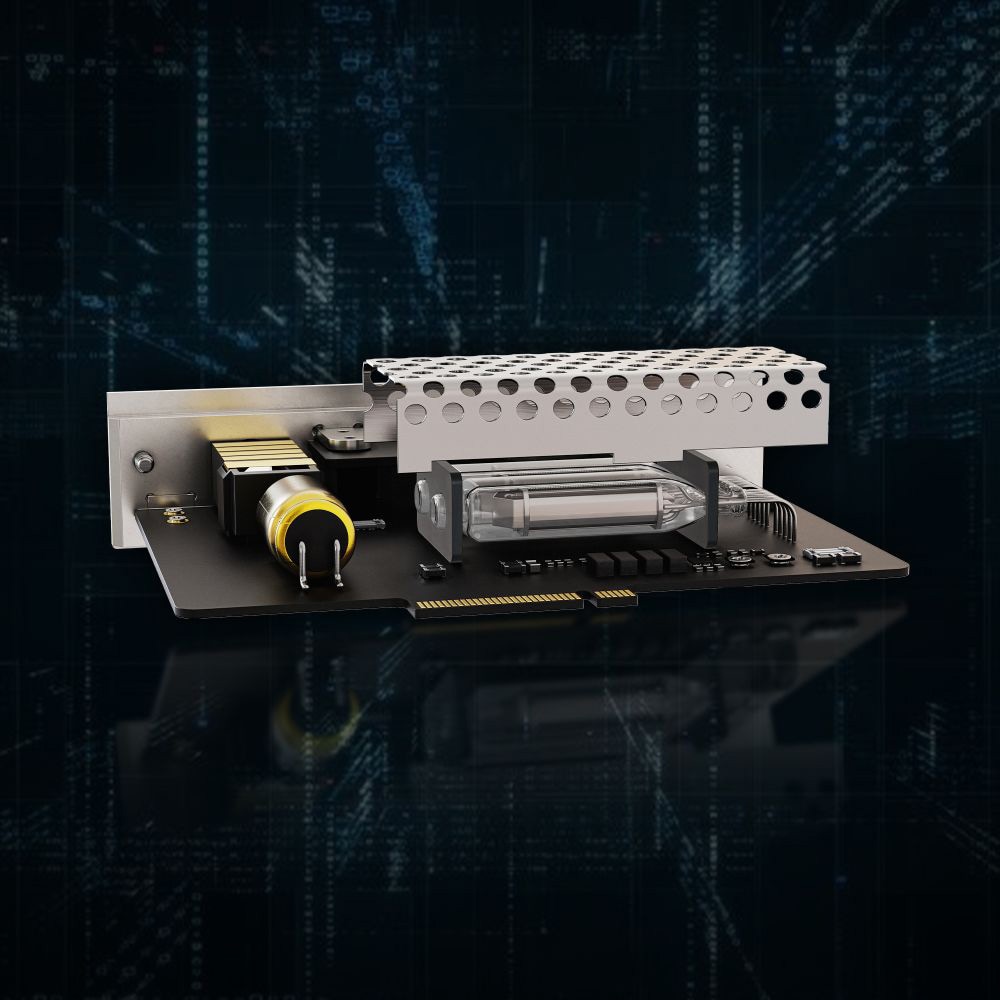

To protect the vacuum tubes from noise, a suspension structure made of PORON material is used. Microphonic noise and external shocks are suppressed to ensure stable listening.

■Various sound quality expressions with two modes
The TUBE mode provides the warm sound of vacuum tubes, while the Class AB mode offers high-resolution and wide-range reproduction. The sound flavour can be switched freely according to the user's preference.

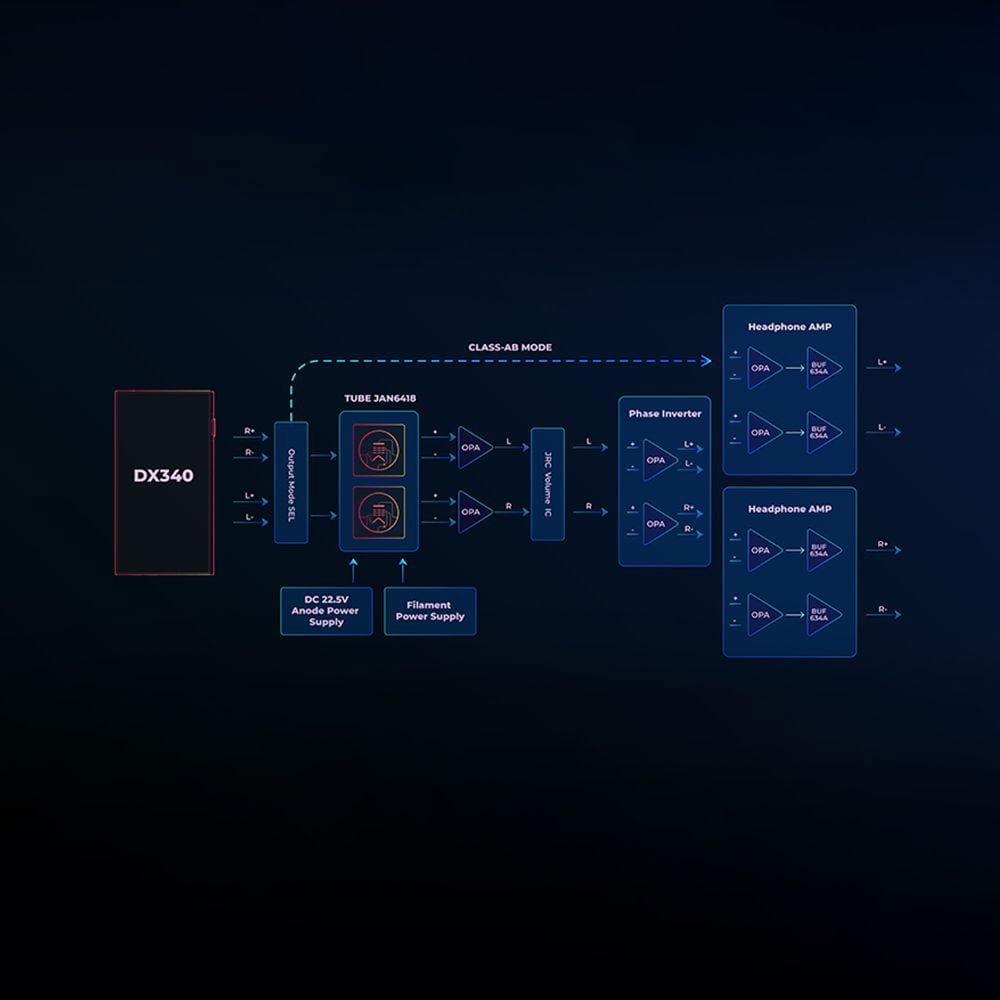

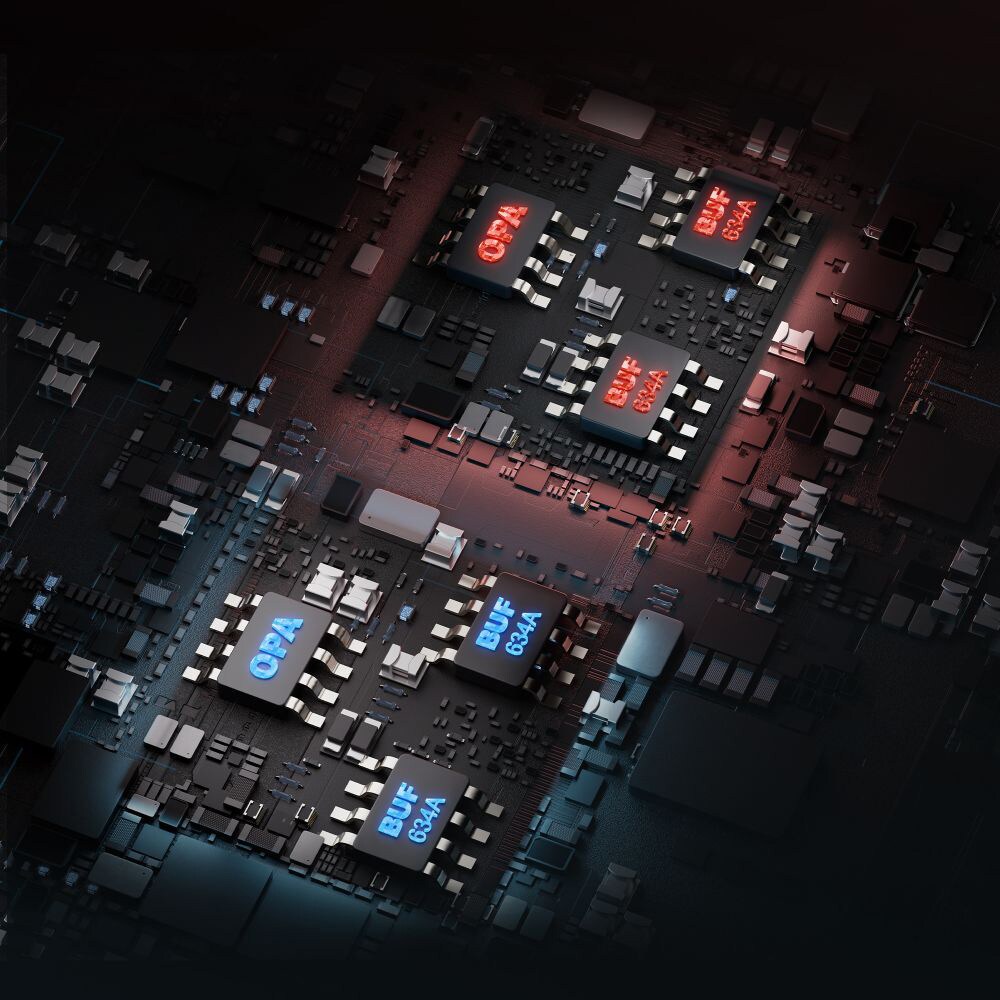

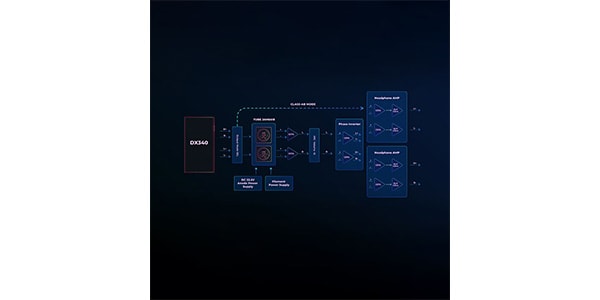

High-precision circuitry consisting of vacuum tube + OPAMP + BUF

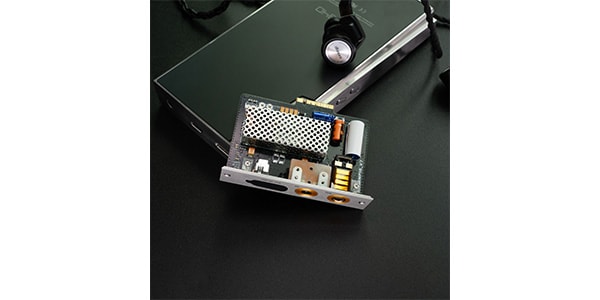

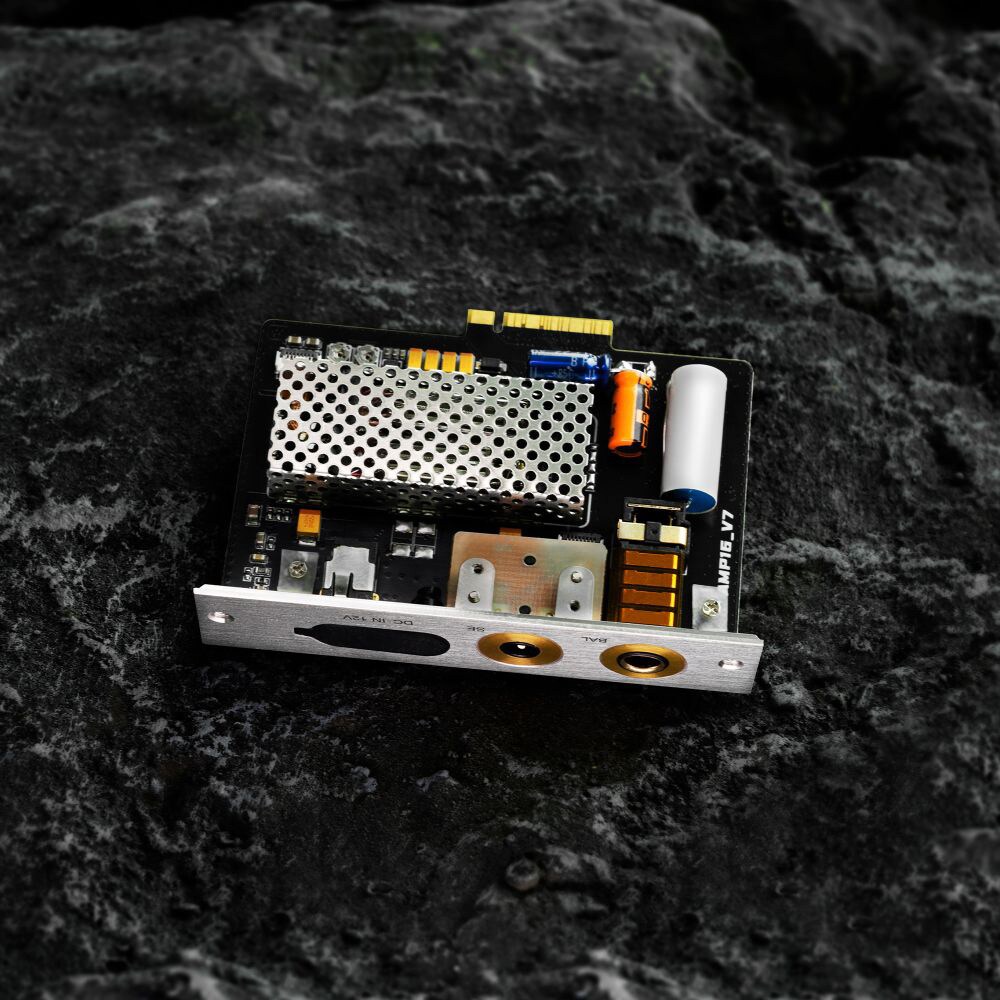

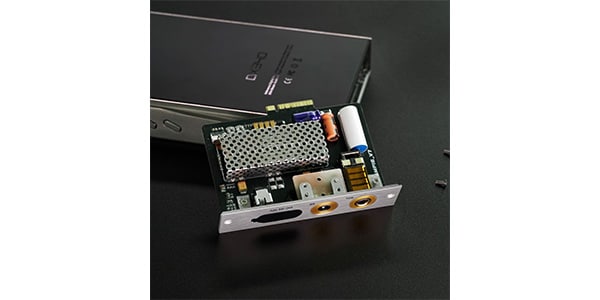

The AMP16 is equipped with two JAN6418 vacuum tubes, four Ti dual OPAMPs and four BUF634As for a compact yet precise configuration. High-quality capacitors ensure high affinity with the DX340 and excellent expandability.

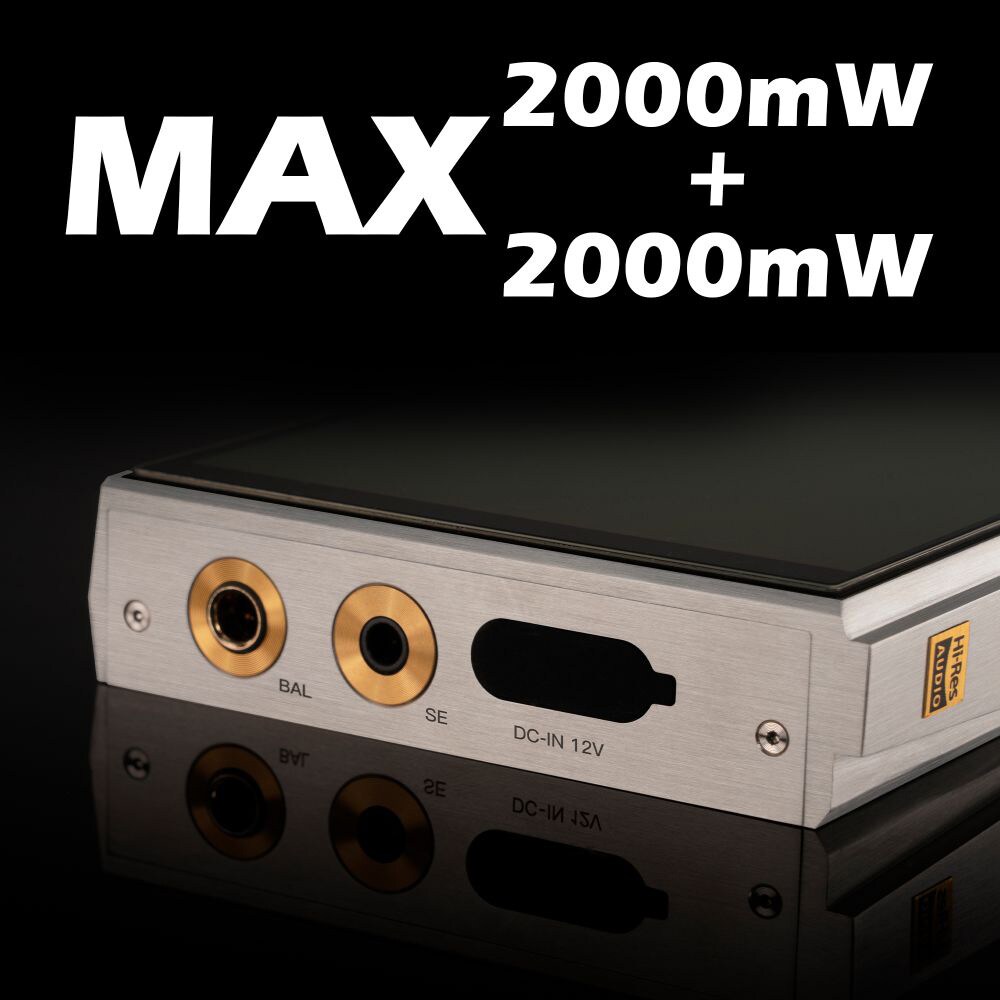

Powerful drive with external power supply support

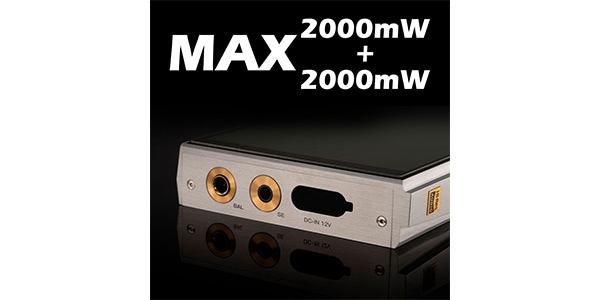

Super Gain Mode is activated by DC12V power input, realising a high-power output of 2000mW+2000mW at 32Ω, enabling even difficult-to-drive headphones to be played back with plenty of power.

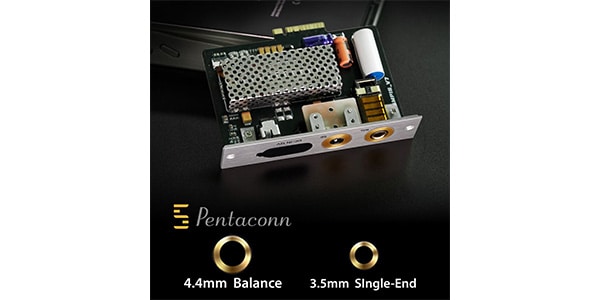

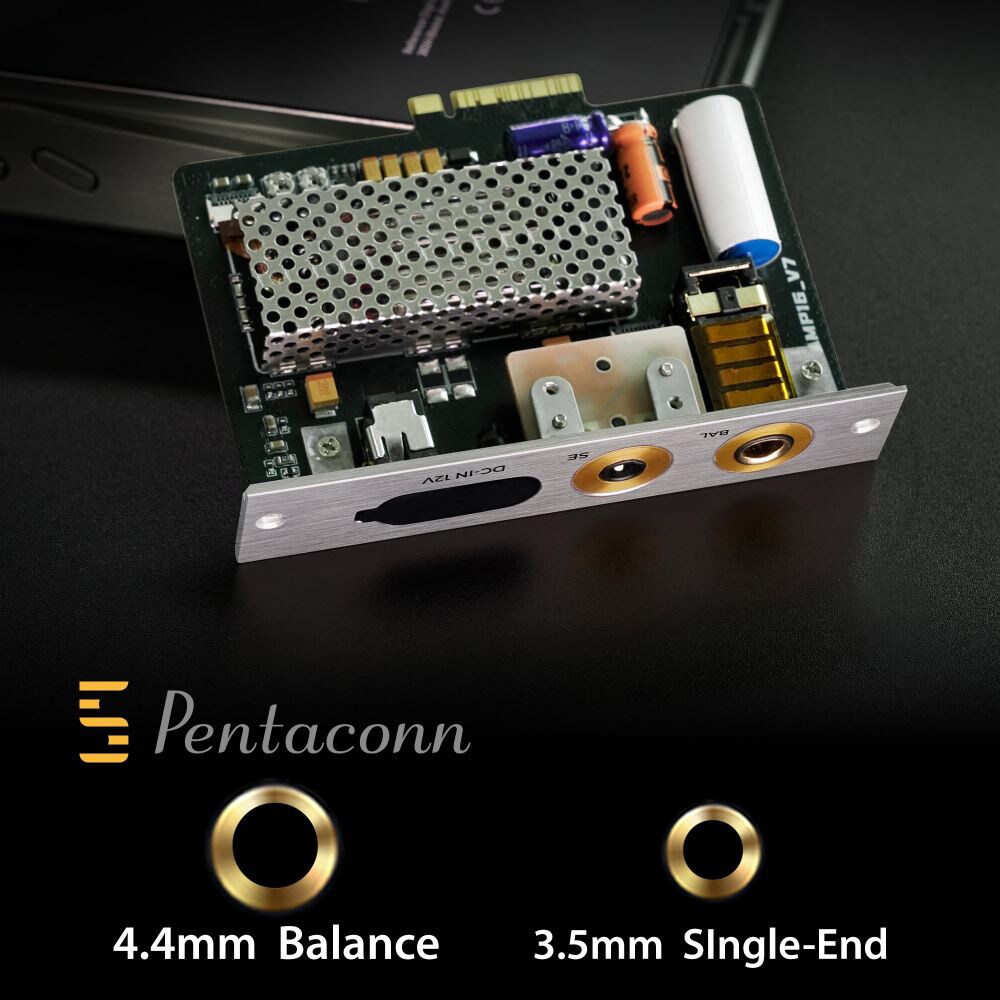

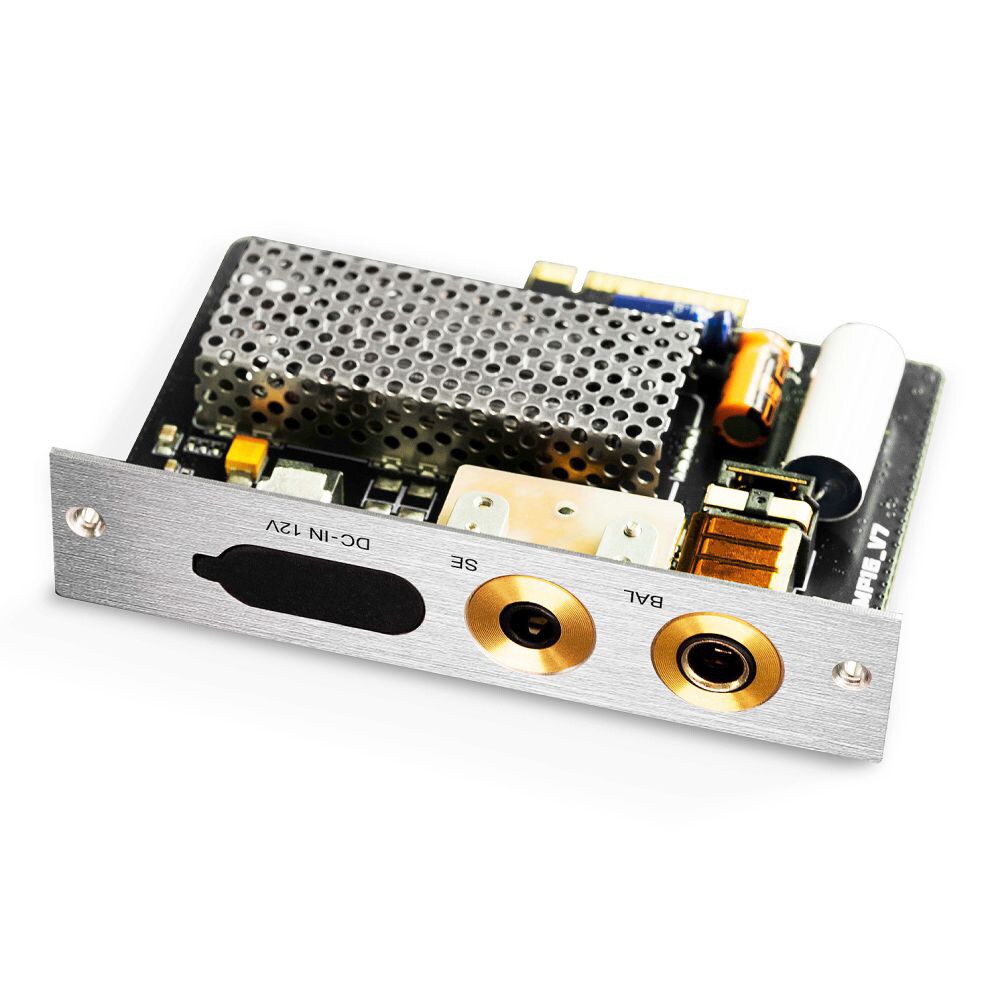

■Both 4.4mm & 3.5mm connectivity.
The AMP16 supports standard 4.4mm balanced and 3.5mm unbalanced outputs, ensuring compatibility with a wide range of earphones and headphones. Flexible usage.

■JRC hardware volume for noise suppression.
The 100-step JRC volume allows for fine volume adjustment and at the same time reduces noise specific to vacuum tubes, providing clear sound.

List of accessories.
Dedicated screwdriver
Two fixing screws
Warranty card

＜Specifications
Class AB mode
4.4mm balanced output
Output level:
Super Gain (12V DC-IN): 8.3Vrms
High Gain: 6.0Vrms
Output power:
2000mW+2000mW@32Ω (12V DC-IN)
1000mW+1000mW@32Ω (battery)
THD+N: -117dB (A characteristic, 300Ω load)
S/N ratio: 122dB
Dynamic range: 122dB 122dB
Frequency response: 10Hz -40kHz ±0.5dB
Crosstalk: -120dB

3.5mm single-ended outputs]
-Output level:
Super Gain (12V DC-IN): 4.1Vrms
High Gain: 3.0Vrms
-Output power:
500mW+500mW@32Ω (12V DC-IN)
260mW+260mW@32Ω (battery)
THD+N: -108dB (A characteristic, 300Ω load)
S/N ratio: 120dB
Dynamic range: 120dB
Frequency response: 10Hz -40kHz ±0.5dB
Crosstalk: -117dB

TUBE mode.
4.4mm balanced output.
Output level:
Super Gain (12V DC-IN): 7.5Vrms
High Gain: 4.6Vrms
Output power:
1500mW+1500mW@32Ω (12V DC-IN)
660mW+660mW@32Ω (battery)
Frequency response: 20Hz -40kHz ±1dB

3.5mm single-ended output]
-Output level:
Super Gain (12V DC-IN): 3.75Vrms
High Gain: 2.3Vrms
Output power:
400mW+400mW@32Ω (12V)
