CLASSIC PRO / CWE802MH

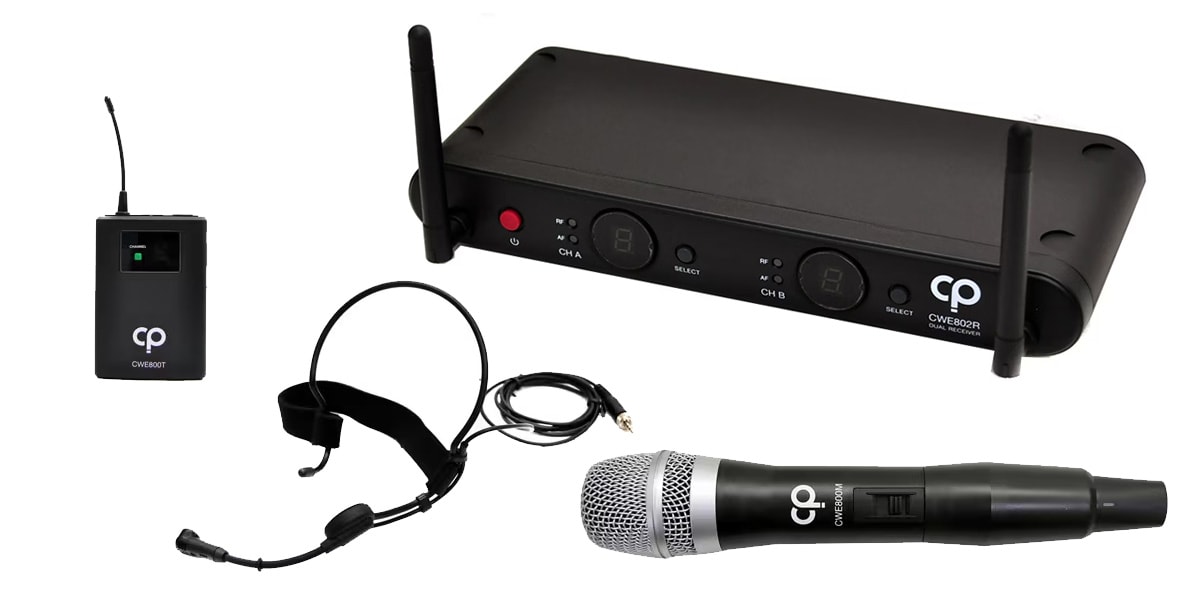

CWE800 Series: A dual set featuring a dual-channel receiver, a handheld transmitter, and a beltpack with a headset microphone. This set is ideal for speeches, seminars, and presentations. Setup is simple, requiring only that you match the channels on the receiver and transmitters. You can use up to two sets in the same area.

■Specifications
・Bandwidth: 800MHz
・Number of receiving channels: 2ch
・Number of channels that can be used simultaneously: 4
・Antenna method: Diversity
・Antenna: Fixed
・Audio output connector: Phone, XLR
・Reaching distance: Approximately 90m (Note: The reach of radio waves varies depending on radio wave conditions, the presence or absence of reflection or interference, and the transmission output)
・Power supply: Receiver: DC12V (supplied by the included adapter), Hand microphone: DC3V (2 x 1.5V AA batteries)
・Dimensions (WHD): Receiver: 262 x 42 x 102mm, Beltpack transmitter: 65 x 97 x 25mm
・Accessories: Power adapter (cable length approximately 180cm), 2 x cables (phone-phone)

■Features
・Select 2 channels to use from the 8 channels in the B band. Up to 2 sets (4 waves) can be used in the same area.
・Maximum reach: Approximately 90m (Note: The reach of radio waves varies depending on radio wave conditions, the presence or absence of reflection or interference, and transmission output)

・Easy setup by simply matching the receiver and transmitter channels with a button.

・Transmitter is equipped with a MUTE switch and GAIN switch.

◆Receiver CWE802R

Receiving frequency: Any 8ch from UHF806.125-809.750MHz

Transmission method: PLL frequency synthesizer

S/N ratio: >100dB

Spurious response: 70dB (minimum)

Receiving sensitivity: 52dB

AF response: 50Hz-18kHz

T.H.D: <1% (at 1kHz)

Dynamic range: >100dB

Tone signal: 32.768kHz

Audio output: Balanced XLR, unbalanced phone

Power supply: DC12V, current consumption: 520±10mA

◆Handheld transmitter

Transmitting frequency: UHF806.125-809.750MHz

Channel setting: Manual
Directivity: Unidirectional
RF output: 10mW (max)
Capsule type: Dynamic
Frequency stability: ±0.005%
Spurious radiation: >60dB
Battery: DC3V (2 x 1.5V AA batteries), current consumption: 120±10mA

◆Beltpack transmitter (CWE800T x 1)
Transmission frequency: B band
Oscillation method: PLL synthesizer method
RF output: 10mW (max)
Frequency stability: ±0.005%
Gain switching: 0dB, -10dB, -20dB (3 levels)
Tone frequency: 32.768kHz
Spurious radiation: >60dB
Battery: DC3V (2 x 1.5V AA batteries), current consumption: 120±10mA

◆CWE7H
Headset microphone for CWE800 series
Type: Unidirectional condenser microphone
Sensitivity: -67 ± 3dB
Frequency response: 100 - 16,000Hz
Signal to noise ratio: 60dB
Connector: 3.5mm screw plug
Accessories: Windscreen, adjustment band
Cable length: 135cm (from the frame surface near the ear to the base of the connector)
