CLASSIC PRO / CWE802ML

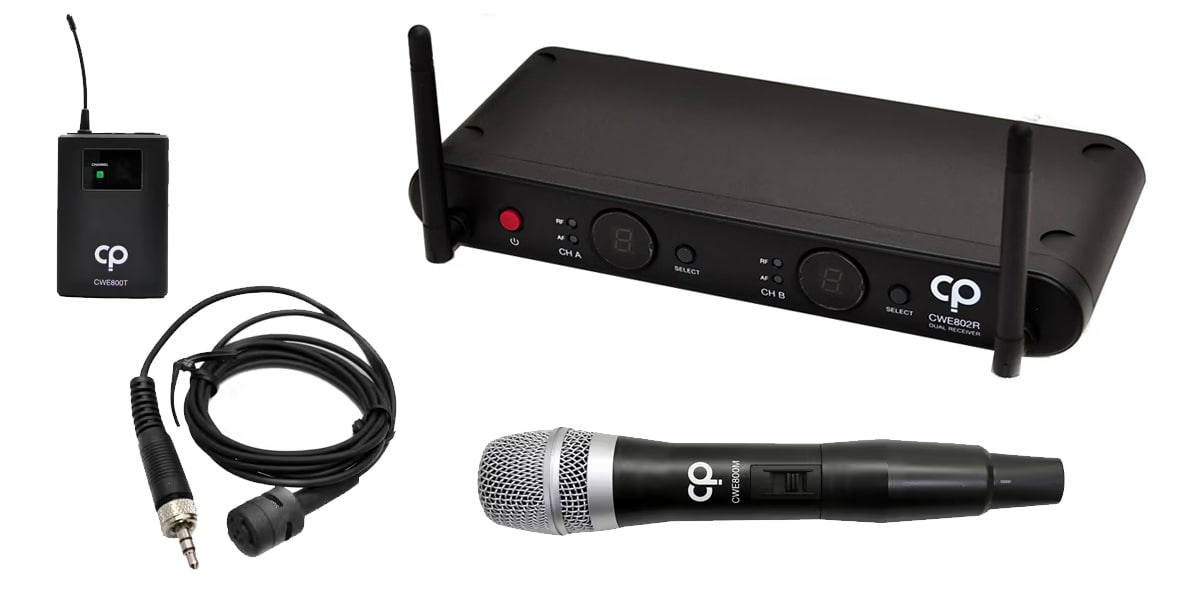

CWE800 Series: A dual set featuring a dual-channel receiver, a handheld transmitter, and a beltpack with a lavalier microphone. This set is ideal for speeches, seminars, and presentations. Setup is simple, requiring only that you match the channels on the receiver and transmitters. You can use up to two sets in the same area.

■Specifications
・Bandwidth: 800MHz
・Number of receiving channels: 2ch
・Number of channels that can be used simultaneously: 4
・Antenna method: Diversity
・Antenna: Fixed
・Audio output connector: Phone, XLR
・Range: Approximately 90m (Note: The range of radio waves varies depending on radio wave conditions, the presence or absence of reflection or interference, and the transmission output)
・Power supply: Receiver: DC12V (supplied by the included adapter), Hand microphone: DC3V (2 x 1.5V AA batteries)
・Dimensions (WHD): Receiver: 262 x 42 x 102mm, Beltpack transmitter: 65 x 97 x 25mm
・Weight: Receiver: 410g, Beltpack transmitter: 77g, lavalier microphone: 24g (including tie pin clip and windscreen), cable length: 157cm

Accessories: power adapter (cable length approx. 180cm), cable included (phone-phone) x 2

■Features

-Select 2 channels to use from 8 channels in the B band. Up to 2 sets (4 waves) can be used in the same area.

-Maximum reach: approx. 90m (Note: The reach of the radio wave varies depending on the radio wave conditions, the presence or absence of reflection or interference, and the transmission output)

-Easy setup by simply matching the receiver and transmitter channels with a button.

-Lavalier microphone comes with tie pin clip and windscreen

-Transmitter is equipped with MUTE switch and GAIN switch.

◆Receiver CWE802R

Receiving frequency: Any 8ch from UHF806.125-809.750MHz

Transmission method: PLL frequency synthesizer

S/N ratio: >100dB

Spurious response: 70dB (minimum)

Receiving sensitivity: 52dB

AF response: 50Hz-18kHz

T.H.D: <1% (at 1kHz)

Dynamic range: >100dB

Tone signal: 32.768kHz

Audio output: Balanced XLR, unbalanced phone

Power supply: DC12V, current consumption: 520±10mA

◆Handheld transmitter

Transmitting frequency: UHF806.125-809.750MHz

Channel setting: Manual
Directivity: Unidirectional
RF output: 10mW (max)
Capsule type: Dynamic
Frequency stability: ±0.005%
Spurious radiation: >60dB
Battery: DC3V (2 x 1.5V AA batteries), current consumption: 120±10mA

◆Beltpack transmitter (CWE800T x 1)
Transmission frequency: B band
Oscillation method: PLL synthesizer method
RF output: 10mW (max)
Frequency stability: ±0.005%
Gain switching: 0dB, -10dB, -20dB (3 steps)
Tone frequency: 32.768kHz
Spurious radiation: >60dB
Battery: DC3V (2 x 1.5V AA batteries), current consumption: 120±10mA

◆CWE4L
Type: Unidirectional condenser microphone
Sensitivity: -47 ± 3dB
Frequency response: 100 - 20,000Hz
Signal-to-noise ratio: 60dB
Connector: 3.5mm screw plug
Dimensions: 12φx37mm, cable length 1,570mm, clip attachment diameter approx. 5.9mm
Accessories: Windscreen, tie pin clip
