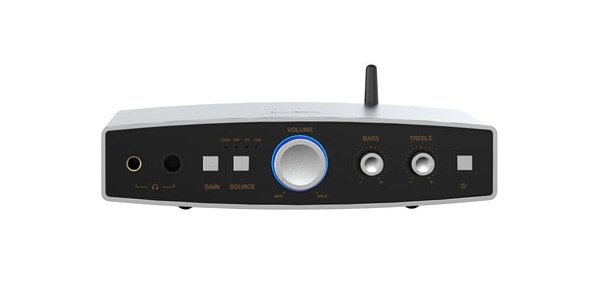

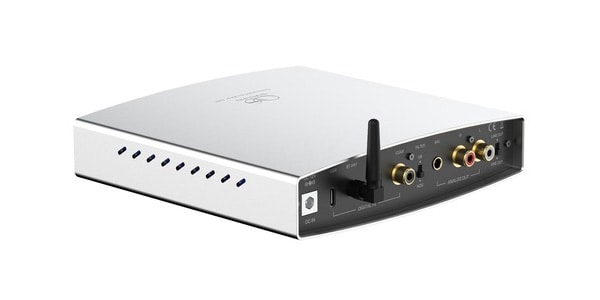

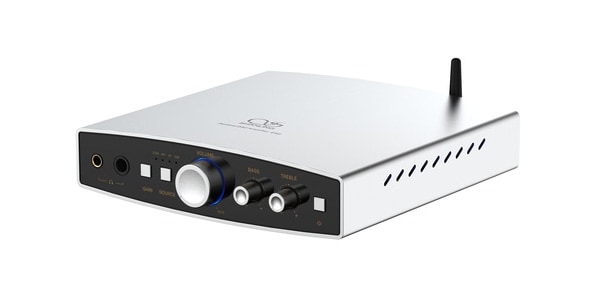

Shanling / EH2 Silver Desktop Hi-Fi DAC/AMP

SHANLING EH2 is a desktop DAC/AMP equipped with the in-house developed R2R DAC architecture, boasting overwhelming sound quality and high output performance. Compact aluminum alloy housing with 6.35mm and 4.4mm balanced outputs, compatible with a wide range of connections. Achieve your desired sound quality with oversampling and NOS mode switching.

■Aluminum alloy housing Compact and flat design
・EH2 adopts a flat, sophisticated and simple design adopted from EH1.
Available in two colors, silver and black, it has a compact and thin design, yet has a wide variety of output systems and intuitive operability using buttons and dials. A space-saving, high-power DAC/AMP that fits any desk setup.
■Equipped with a new “core” 24bit R2R DAC architecture
EH2 is a newly designed desktop DAC/AMP device developed by SHANLING and equipped with the first R2R ladder type D/A circuit.
This R2R DAC circuit achieves an extremely pure analog type conversion compared to the general ΔΣ type DAC, and while the sound is dynamic and powerful, it can also produce a natural, lingering, and mellow sound.
■Supports oversampling Select OS mode and NOS mode according to your preference
The EH2's R2R DAC supports OS/NOS mode switching, operating at a sampling rate of 44.1kHz in NOS mode, and oversampling to 352.8kHz, which is 8 times more, in OS (oversampling) mode.
In OS mode, the sound image becomes clearer, has better dynamics, and transient characteristics become clearer, resulting in improved sound quality and an upright sound.
■ Headphone amplifier and preamp individually tuned to provide the best sound for various scenes
The EH2 has designed the headphone amplifier circuit and preamp/line out with different configurations.
・Headphone amplifier circuit
OPA1612+BD139+BD140
By adopting OPA1612 + transistor amplifier BD139 + BD140, it has a high output value and driving force, and achieves a deep and voluminous sound with low distortion.
・Pre/line out circuit
Low-pass filtering technology that uses two R2R DAC circuit direct out + ""OPA1612"",
The circuit uses four Panasonic capacitors to faithfully reflect the original flavor of R2RDAC, which was developed in-house.


Blue: 32/44.1/48kHz
Green: 64/88.2/96 kHz
Yellow: 128/176.4/192kHz
Purple: 352.8/384/705.6/768 kHz
White: DSD64 / DSD128 / DSD256 / DSD512
Red: 44.1/48 kHz (UAC 1.0)

Blue: SBC
Green: AAC
Yellow: LDAC
Purple: aptXHD, aptXAdaptive, aptXLL, aptX


・Size: 156 x 150 x 36.5mm
・Weight: 713g
・Supported sampling: 768kHz/32bit, DSD512
・Gain function: High / Low
・DAC: In-house developed R2R DAC
・Low/Treble tone control width: Low range ±6dB / High range ±10dB


・USB DAC input: Type-C (USB DAC)
・Digital input: Coaxial/optical/Bluetooth
・Headphone output: 4.4mm/6.35mm
・Analog output: RCA/4.4mm
・Power input: 12V
・Accessories: 12V power adapter, USB-C to A cable, 6.35mm conversion adapter, quick start guide, product warranty
