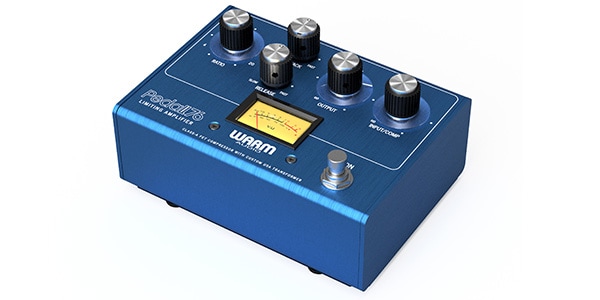

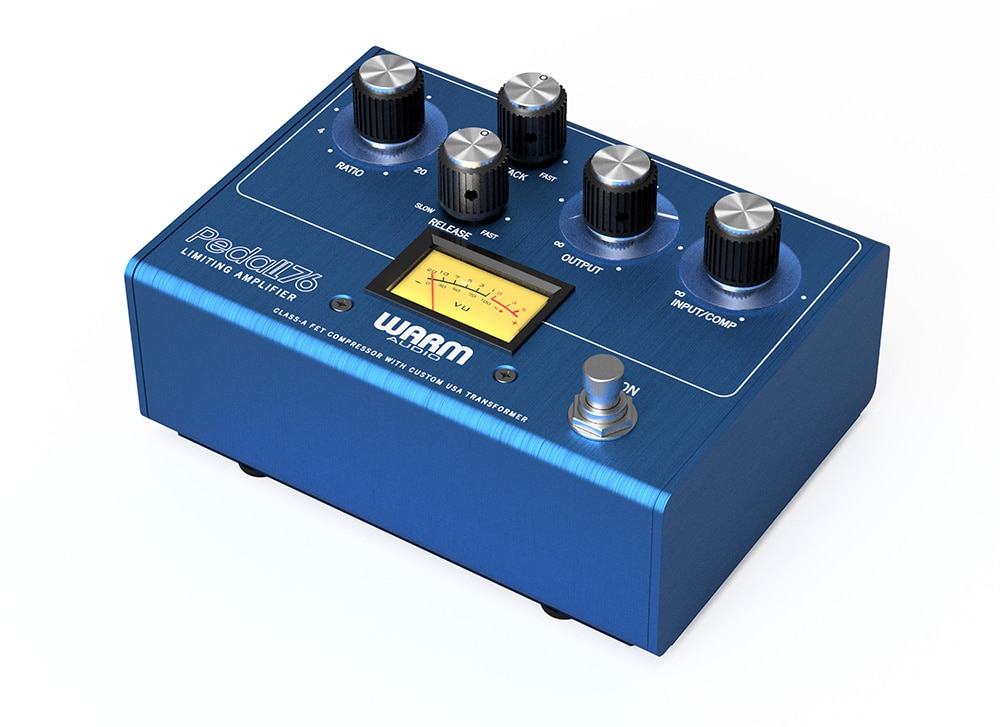

WARM AUDIO / Pedal76 Blue Color

Pedal76 accurately recreates one of the fastest, most powerful studio compressors ever made, known for its responsive dynamic control and rich analog tone. For guitar and bass performance, the FET circuitry delivers a rich, thumping sound and gig-ready controls, bringing the sound of the recording studio to the stage. This limited-edition model comes in a special color.

■Key Features
1. Bringing Original '76-Style Studio Compression to the Stage
The original '76-style FET studio compressor has been used on countless guitar, bass, and keyboard recordings. It controls dynamics without sacrificing character. It perfectly combines the harmonic depth of the FET circuitry with the rich tonal character of a custom transformer. It's the ultimate compressor for guitar and bass players seeking a faithful studio sound on stage.

2. Equipped with Studio Compressor Controls
Like a typical studio compressor, it features attack, release, ratio, input, and output controls to minimize unwanted volume changes on stage. Attack and release control adjust the timing of compression, while the ratio adjusts the strength of compression relative to the original signal. The input controls the amount of raw signal fed to the compressor circuit, while the output acts as makeup gain/master volume, allowing Pedal76 to integrate smoothly with other gear or add a boost when needed.

3. Crafted with premium components carefully selected by Warm Audio, a team with deep knowledge of 76-style compressors.
Custom-made premium components are used to achieve authentic 76-style FET compression. The custom Cinemag transformer is designed to reproduce the professional performance and tone of studio units in a pedalboard-friendly format. Furthermore, premium capacitors, resistors, and transistors are used to create a circuit that delivers an authentic studio experience on stage without compromise.

4. Additional Features Optimized for Live Performance
An external switch allows for true bypass and buffered bypass switching, facilitating smooth integration with other gear. Equipped with switches for input sensitivity, GND/lift, pad on/off, and high/low gain mode (for DI operation), this unit offers enhanced convenience for live and studio use. A separate balanced output (DI) provides an optimal signal for connecting to a mixer or recording device, while high gain mode adds both grit and a rich, saturated tone.

5. History of Building Premium 76-Style Compressors
Warm Audio has been manufacturing the premium 76-style compressor, the WA76, for over 10 years, shipping over 20,000 units worldwide. This experience gives us a deep understanding of the circuitry and tone required for the most sought-after vintage 76-style compressors. That's why we're able to source the same custom Cinemag transformers and premium components found in the Studio Rack 76.

6. Hand-Tested in Austin, Texas
Like all Warm Audio products, the Pedal76 is meticulously hand-tested and inspected in our factory in Austin, Texas, by trained technicians with a passion for music production.

■SPECIFICATIONS
- All-analog transformer, balanced FET compressor pedal
- Output transformer: Custom Cinemag USA
- Classic 76s-style compression controls: Ratio, Attack, Release, Input, Output
- Other controls: Input sensitivity, GND/Lift, DI output pad, DI High/Low gain (balanced output only)
- Bypass switch: External true or buffered bypass switch
- Meter: Vintage-style amber VU meter (for gain reduction)
- Low-noise, 100% discrete analog signal path
- Power supply: External power supply (9V battery compartment included). The external power supply boosts the internal voltage via a charge pump voltage regulator
- Dimensions: Width 150mm, Height 104mm, Depth 48mm
- Weight: 748g
