MOOER / GS1000

Mooer GS1000 is a multi-effect profiler that packs amazing features in a compact size. New Mooer MNRS 2.0 technology lets you sample and profile the characteristics of real preamps, entire amps, cabinets, and distortion/overdrive pedals.

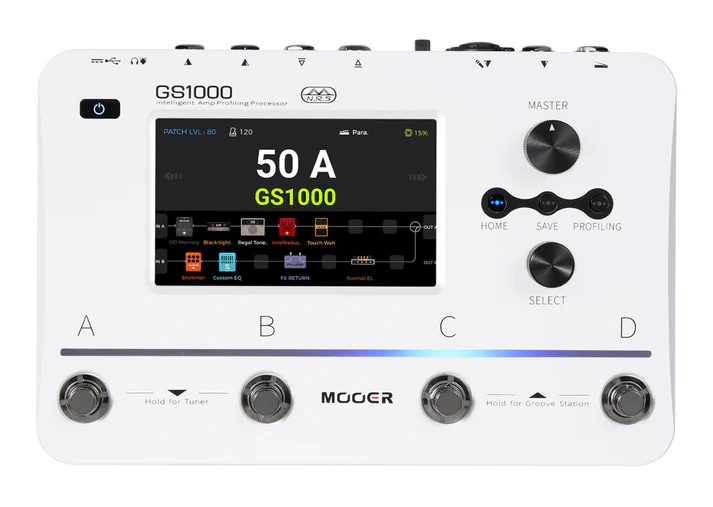

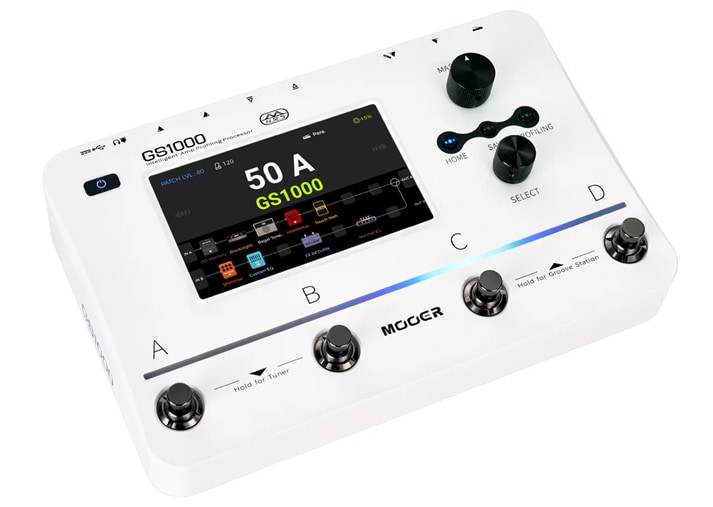

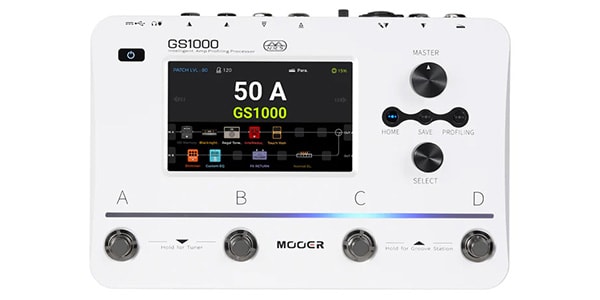

Equipped with a large 5-inch color touch screen and a Walking Star design that allows for intuitive operation.
Includes over 350 effects, including over 100 amp models, 10 power amp models, and 80 cabinet models. Bass amp and cabinet models are also included.
Additionally, you can profile and share your actual device and download profiled data.
Effect modules can also be duplicated. (Depends on DSP power.) You can freely change the connection order of effect modules.
Equipped with two types of input terminals, you can input not only guitar and bass but also acoustic guitar mic and line at the same time.

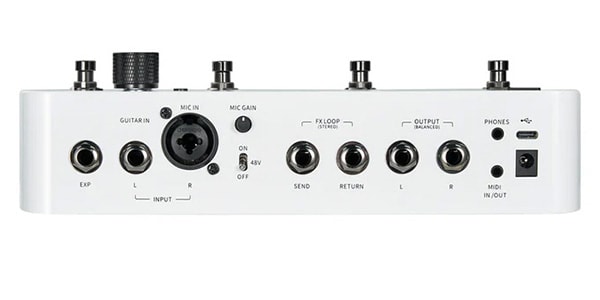

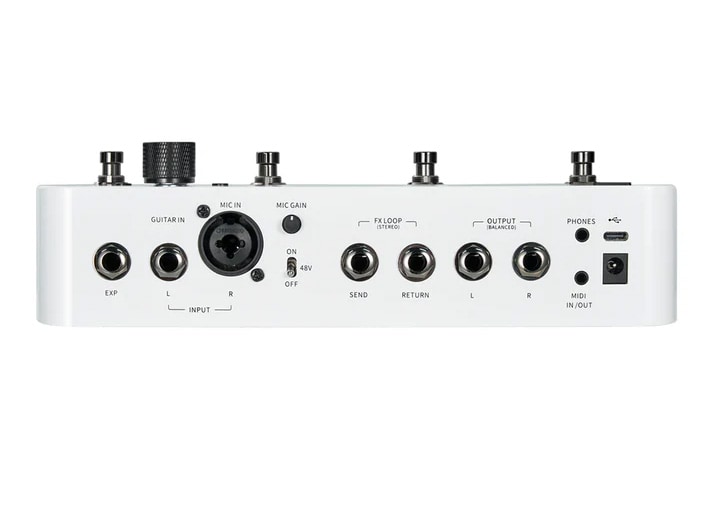

It provides a highly flexible signal path, with two inputs, two outputs, an effects loop, and internal parallel routing.

Various settings can be operated on the touch screen, allowing you to control effects intuitively.
Furthermore, the GS1000 has an innovative built-in AI equalizer that allows the AI ​​to learn the tone and play of the instrument according to the musical style, and automatically suggests settings that match the style.
Although it has a compact style, it can be connected to the Mooer GWF4 wireless footswitch for expanded control similar to that of a large multi-effects pedal. You can also connect an external expression pedal.
The footswitch not only allows you to select presets, but also to turn single or multiple effect modules on/off without changing presets, change parameters, and operate tap tempo.
In addition to a drum machine looper and tuner, it has a variety of functions such as Bluetooth audio playback, MIDI control, and a USB audio interface.

■Features
・GS series equipped with amp, distortion effects, and cabinet profiling functions
・Using MNRS sampling technology, it is possible to profile the characteristics of four types: distortion/overdrive pedal, preamp, full amp, and cabinet.
・Ambient light that combines hearing and vision
・Equipped with a 5-inch touch screen for easy operation with an intuitive UI
・Over 350 effects included
・Can save 120 types of MNRS amplifier simulation sample data (30 x OD, 30 x preamp, 30 x full amp, 30 x cabinet)
・Dual chain allows flexible support for many situations and connection methods
- 50 storage locations to load third-party IRs with a sample size of 2048 points
・Input/output terminals compatible with various systems
・Supports flexible connections for studio, stage, practice, etc.
・Series/parallel selectable effects loop that can be repositioned in the effects chain
・External expression pedal terminal for controlling parameters and volume
・Compatible with Mooer wireless footswitch, further expanding operability
・Subpatch preset groups allow you to change tones and parameters while preserving the effect tail
- Compatible with Bluetooth audio, perfect for practice and accompaniment performances
・Syncable drum machine and looper
・Built-in high precision tuner
・Tap tempo control for time-based effects and drum machines
・Global EQ allows adjustment to suit various venues
- Innovative AI equalizer provides tonal inspiration based on style and genre
・MIDI port with MIDI IN/MIDI OUT settings
・USB Type-C port with professional ASIO USB audio interface function
・Supports USB MIDI function
・Compatible with MOOER STUDIO software for PC/Mac
PC/Mac software and mobile app allow you to download and share presets and sample data, edit, back up, update firmware, and access tone libraries created by users around the world.

■Specs
effect
Module type: 11
Effect models: 350+
Preset slots: 200

impulse response
Format: WAV
Sampling rate: 44.1kHz
Sampling depth: 24bit
Sample points: up to 2048 sample points

EXP Jack
Type: 1 x 1/4” TRS Stereo
Input impedance: Compatible with expression pedals from 10 to 100kOhm

input
Guitar Input Jack
Type: 1 x 1/4” unbalanced mono
Input impedance: 1MOhm
Maximum input level: 10dBu

Mic Input Jack
Type: 1 x 1/4” XLR combo jack
Input impedance: 2.4kOhm
Maximum input level: 10dBu (1/4”)
Microphone gain: 60dB

RETURN jack
Type: 1 x 1/4” unbalanced stereo
Input impedance: 1MOhm
Maximum input level: 10dBu

audio AD converter
Sampling rate: 44.1kHz
Sampling rate depth: 24bit
Dynamic range: 114dB
Frequency response: 20Hz-20kHz,+0/-1dB

output
OUTPUT jack
Type: 2 x 1/4” unbalanced mono
Output impedance: 600Ohm
Maximum output level: 16dBu

SEND jack
Type: 1 x 1/4” unbalanced stereo
Output impedance: 510Ohm
Maximum output level: 12dBu

PHONES jack
Type: 1 x 1/8” unbalanced stereo
Output impedance: 6Ohm
Maximum output level: 16dBu

Audio DAC
Dynamic range: 115dB
Frequency response: 20Hz-20kHz,+0/-1dB
SN ratio: 115dB

others
MIDI interface
MIDI IN or MIDI OUT: 1 x 1/8” MIDI connector

USB port
Type: TYPE-C connector
USB audio: USB2.0, 2in2out, 44.1-192kHz, 24bit

General
Power supply: DC9V, 2A, center negative
Size: 240mm x 161mm x 67mm (LxWxH)
Weight: 1.23kg
Accessories: adapter, USB cable, quick guide

Detailed specifications may change without notice.
