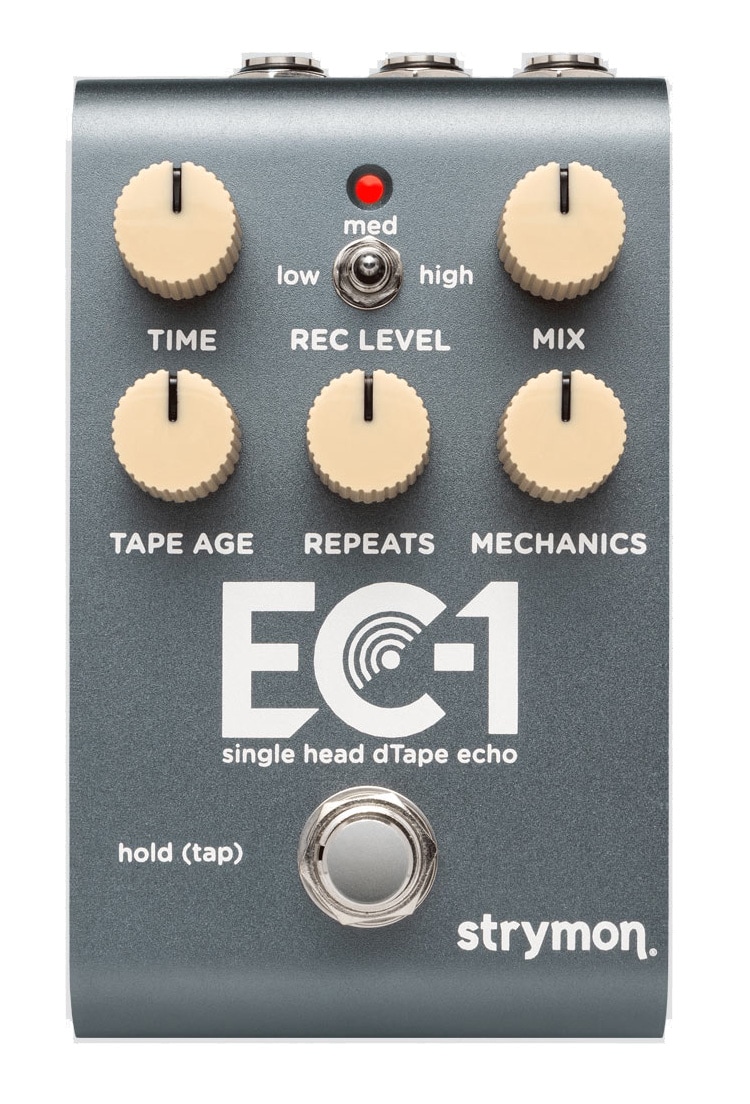

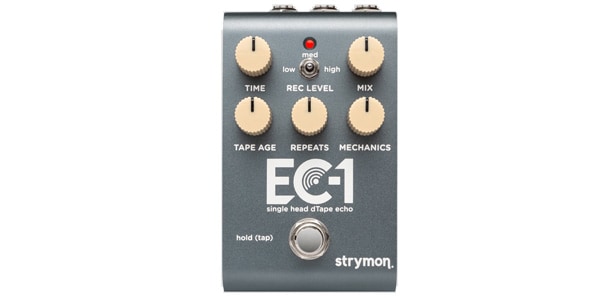

STRYMON / EC-1

A classic tape echo that transcends time and is reborn here.

Guitar effector, digital delay

A classic tape echo that transcends time and is reborn here.

Experience the classic 60's tape echo sound that will have you floating in your dreams, with the rich overtones of a tube preamp. Please enjoy the organic and fantastic modulation created by delicate mechanical imperfections. Easily create any echo sound, from warm slapback to a vast echo feedback bed with a stunningly gorgeous stereo image. With its perfectly tuned low-frequency response, rich tape saturation, and sublime echo decay, the EC-1 delivers everything you'd expect from a tube preamp tape echo.

■Premium hardware

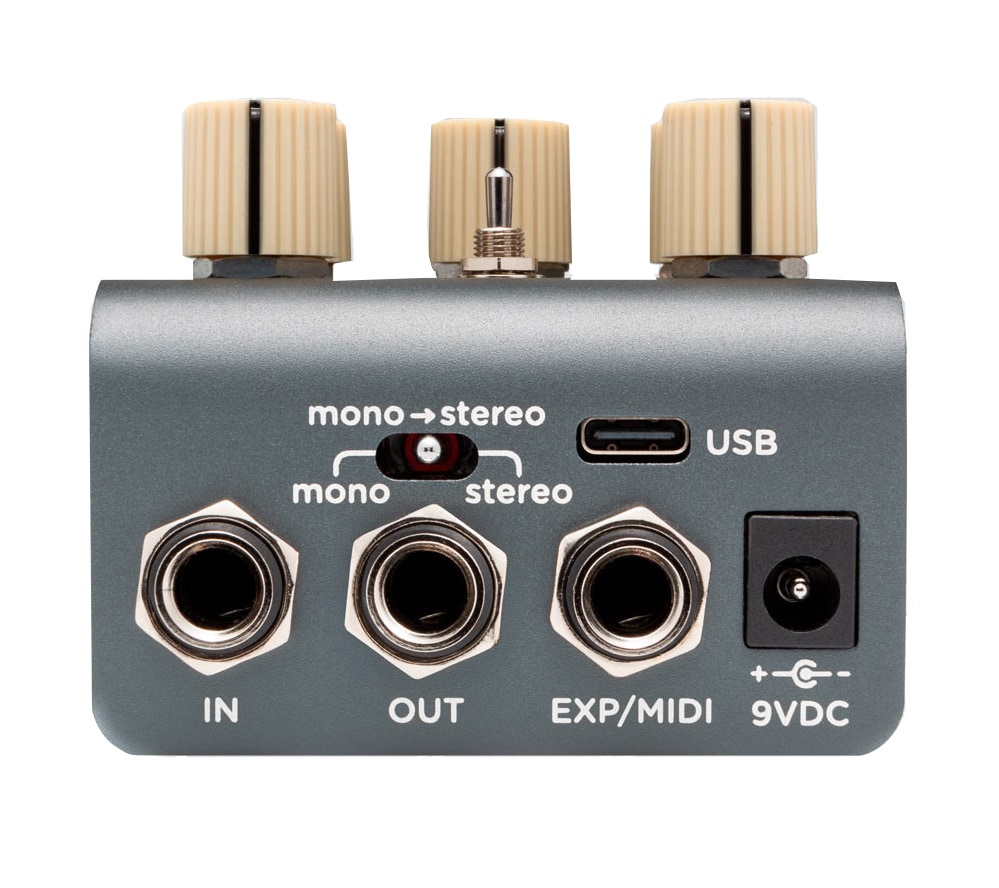

Ultra-low noise, discrete analog JFET input circuitry provides excellent performance response and can be switched from mono to mono, mono to stereo, or stereo to stereo I/O with a switch on the rear panel. Furthermore, the ARM DSP chip enables high processing power that accurately reproduces even the delicate nuances of sound while consuming less power.

■Features
・TRS MIDI/Exp jack that can be controlled by connecting to external equipment
- Fully MIDI compatible. 300 preset storage, real-time parameter control possible
・Full stereo input/output via TRS jack
・Seamless TAP tempo function
- Equipped with USB-C for DAW MIDI control and firmware updates
・Ultra-low noise, high performance 24-bit 96kHz AD/DA converter
・32bit floating point processing
・Standard S/N: 116dB
・9V DC power supply center negative, minimum current 250mA
・Designed and built in the USA

■Tape, tube, and...to the best finished product.
Development of the EC-1 began with a groundbreaking single-moving head algorithm originally developed for the El Capistan pedal, renowned for its realistic reproduction of vintage tape echoes.

From there...we were lucky enough to acquire a very special Cesar Diaz (guitarist and legendary amp and effects tech) modded Echoplex EP-2. It was also in surprisingly good condition, and we found that some clever changes had been made to the unit, including a tube preamp mod to give it a warmer sound that was closer to the frequency response of the EP-3. His mods seem to have aimed to incorporate the best aspects of various vintage Echoplex models, and his exciting results had a major influence on the development of the EC-1, imbuing it with an immediately nostalgic character.

■Compact stereo tape echo with full functionality
The EC-1 offers overwhelming power and flexibility in a compact and elegant frame. :Selectable tube preamp modeling voice. Tap tempo without artifacts. Discrete stereo processing with independent left and right stereo inputs. Simple and straightforward control and expression pedal functions. High-impedance, ultra-low noise discrete Class A JFET stereo input preamplifier delivers superior touch sensitivity, dynamics, and feel. MIDI controls such as tempo, patch save/recall, etc. Featuring premium components, rugged construction, and a USB jack for performing firmware updates and controlling the pedal from your computer.

■SPEC
input, output, switch
・Input impedance: 1 Meg Ohm
・Output impedance: 100 Ohm
・Maximum input level: +10 dBu

others
・Bypass: True bypass (relay switching)
・Input voltage: 9VDC center negative, 250mA
・Size: 69mm (width) x 117mm (length) x 64mm (height) *Including protrusions
・Uses a lightweight and robust anodized aluminum chassis

DSP, audio
・24bit/96kHz A/D & D/A
・S/N: 116 dB typical
・520MHz ARM super scalar processor adopted
・32bit floating calculation method
