STEINBERG / 【SHオリジナル】UR44C レッドモデル レコーディングセット

Audio interface with 6-in/4-out input/output, 32-bit/192 kHz high resolution, and USB 3.0 Type-C. Sound House original set model with condenser microphone and headphones.

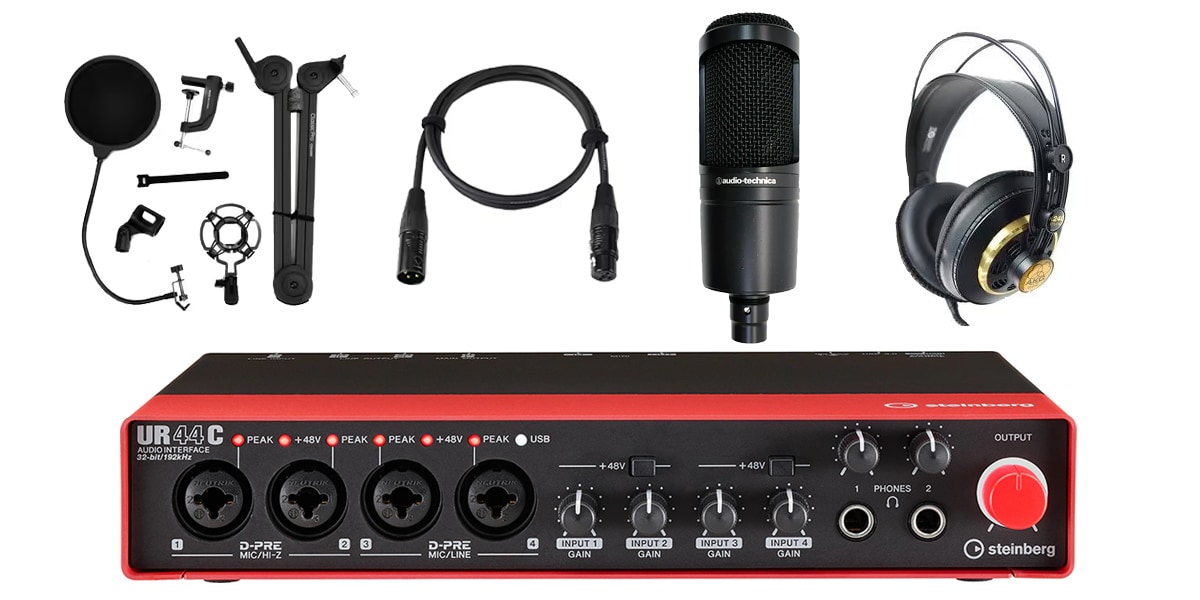

■Audio interface set
■Set contents
・STEINBERG / UR44C Red Model (Audio Interface)
・audio technica / AT2020 (condenser microphone)
・CLASSIC PRO / MIX030N (mic cable)
・CLASSIC PRO / CDA35BS (desk arm type microphone stand)
・AKG / K240 Studio (monitor headphones)

----------------------------
STEINBERG / UR44C Red Model
■Audio interface
■Red model
*The part surrounding the housing is painted red.
■USB3.0 (Type-C) compatible

■Specifications
Connection method: USB 3.0 (USB Type-C)
Maximum bitrate: 32-Bit
Maximum sampling rate: 192kHz
Total input/output: 6 in / 4 out
Analog input: 4 Combo
Microphone input: 4 (D-PRE)
HI-Z input: 2
Analog output: 4
Headphone terminal: 2 (100mW+100mW @ 40Ω)
Monitoring settings for stereo input: 〇: Set using the “MONO” button on the front panel
Digital input/output: ×
SSPLL：×
HA mode: ×
Loopback function:○
dspMixFx Technology: 〇 ・iOS/iPadOS Device: 〇: When used with iPad/iPhone, ""Apple iPad Camera Connection Kit"" or ""Lightning to USB Camera Adapter"" is required.
dspMixFx Remote Bridge：〇

*About bus power
When driving the UR44C with bus power, a commercially available USB 3.1 Type-C to Type-C cable (sold separately) is required.
Can be bus-powered with iPad Pro equipped with USB Type-C
■6in4out
■Cubase AI

----------------------------
audio technica / AT2020
■Condenser microphone, side address
■Directivity: Unidirectional
■Frequency characteristics: 20Hz-20kHz
■Output impedance: 100Ω
■Sensitivity: -37 dB
■Maximum SPL: 144dB
■S/N ratio: 74dB
■Power supply: Phantom power 48V
■Connector: XLR3 pin (male)
■Size/Weight: Diameter 52mm, length 162mm, 345g
■Accessories: Dedicated stand mount, microphone pouch, conversion screw (5/8 → 3/8)

----------------------------

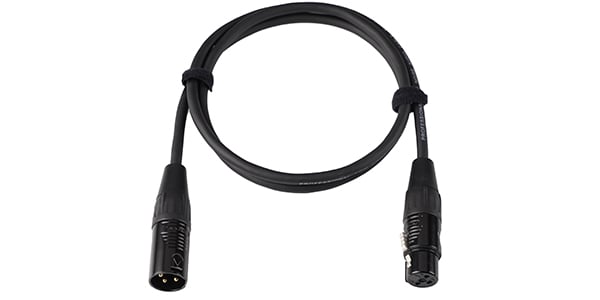

CLASSIC PRO / MIX030N
■Microphone/line cable
■Oxygen-free copper (OFC) 2 cores
■Cable diameter: 5.9mm
■XLR male-XLR female
■Gold plated plug

----------------------------
CLASSIC PRO / CDA35BS
■Load capacity: 2kg
■External dimensions: 35cm x 35cm
■Weight: 1.6kg
■Clamp width: maximum approximately 45mm
■Accessories
Pop guard x1, microphone holder x1, shock mount (mount part Φ40-45mm) x1, fixing clamp x1, cable band x5, 3/8-5/8 conversion screw x1

----------------------------
AKG / K240 Studio
■Type: Dynamic semi-open type
■Applications: Mixing, mastering, listening
■Impedance: 55Ω
■Maximum input: 200mW
■Reproduction frequency band: 15-25,000Hz
■Sensitivity: 91dB/mW
■Plug shape: 3.5mm stereo mini plug (gold plated)
■Cable length: Approximately 3.0m, straight cable (detachable)
■Mass: Approx. 240g
■Accessories: 6.3mm standard stereo conversion plug
■Country of production: China
