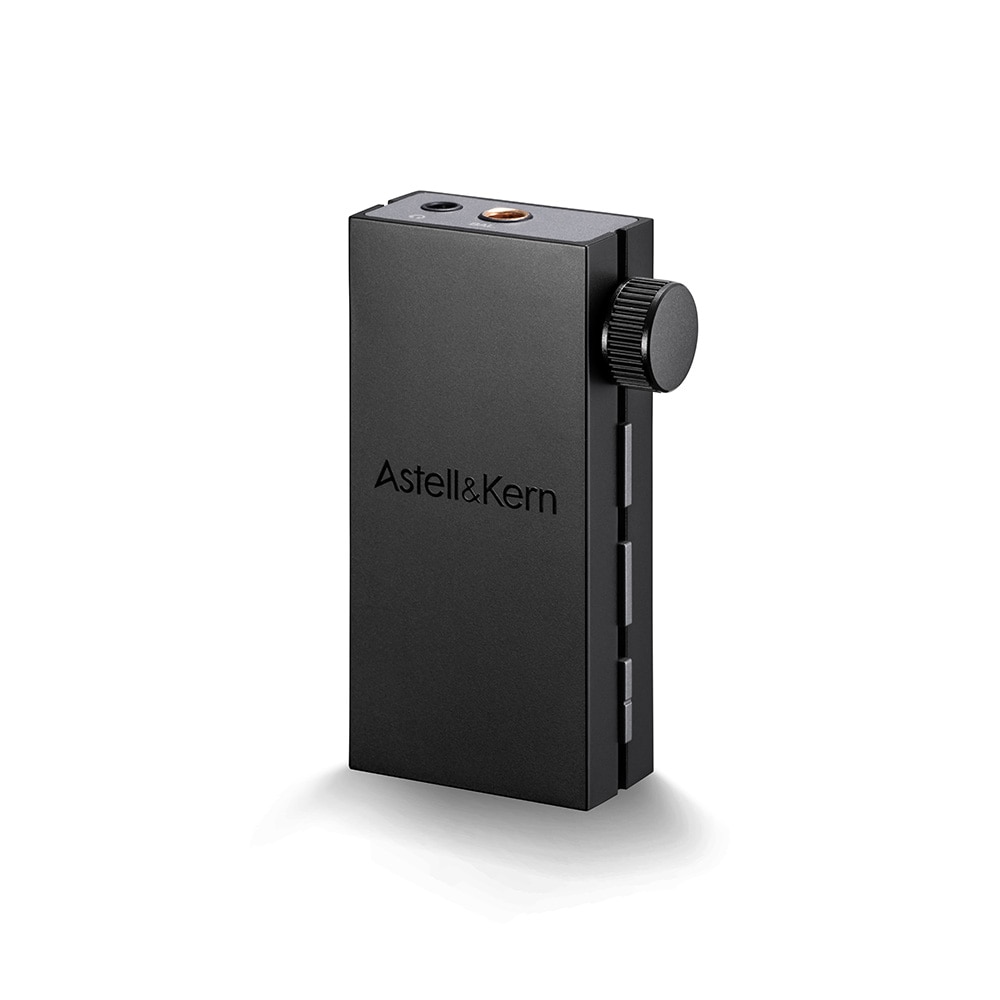

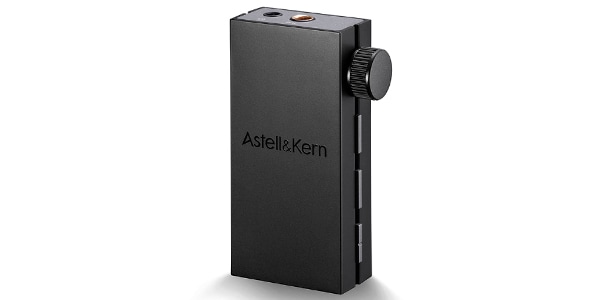

Astell&Kern / AK HB1

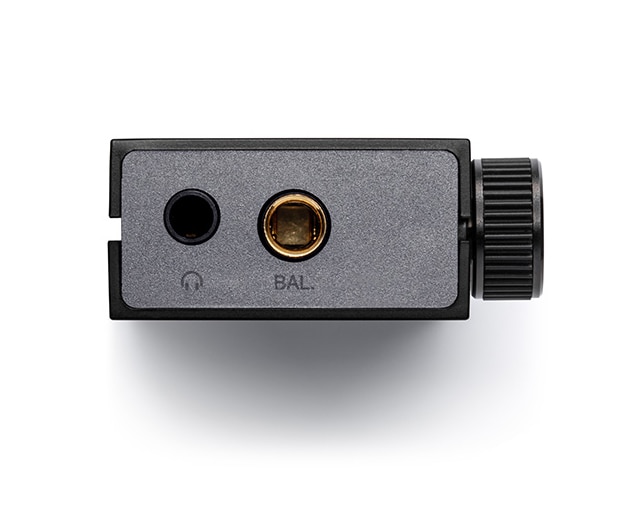

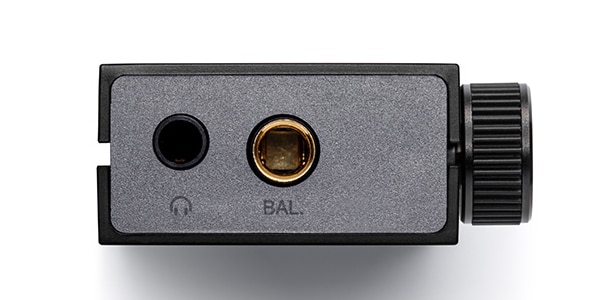

The AK HB1 is a portable amplifier with a built-in DAC that supports both wireless and wired connections, featuring an ES9281AC PRO DAC, dual 3.5mm/4.4mm output, and UAC2.0/UAC1.0 switching function that allows connection to home game consoles.

■【Better sound, with or without cables】A DAC compatible with both wireless and wired
・AK HB1 is a portable amplifier with a built-in DAC that supports both wireless and wired Bluetooth receiver functions. As a cable-less Bluetooth receiver DAC amplifier, or as a high-quality portable USB-DAC, you can choose between wireless and wired depending on your usage environment and connect seamlessly to various devices. You can enjoy all content, from Hi-Fi audio streaming services and video distribution to games, with Astell&Kern's faithful sound and excellent performance.

■Premium Bluetooth Hi-Fi Sound
AK HB1 is equipped with the Qualcomm CSR8675 Bluetooth chipset. It supports wireless transmission of high-resolution audio sources and has excellent connection stability. It supports a wide range of codecs, from the high-quality LDAC that supports 96kHz/24bit, to the aptX HD codec that stably supports 48kHz/24bit, and the most commonly used AAC and SBC.In addition, it is equipped with Bluetooth multipoint function, which allows you to connect to up to two devices at the same time. You can easily switch between connections with various mobile devices, and you can enjoy music on your tablet PC while receiving notifications and calls on your smartphone.

■High-resolution sound USB-DAC
・AK HB1 can be used not only as a Bluetooth receiver, but also as a USB-DAC by connecting it to a PC, smartphone, tablet PC, etc. with a cable, achieving outstanding native high-resolution sound. Supports native playback of PCM 384kHz/32bit and DSD256. It ensures compatibility with various high-resolution sound sources and provides premium sound that is faithful to the original sound unique to Astell&Kern. It also has an MQA 8X renderer function, so it can play MQA sound sources.
*To use the AK HB1 as a hardware MQA renderer, a software core decoder that supports MQA unfolding is required.
*To play high-bitrate high-resolution audio sources, separate music playback software may be required. In addition, if you are using it with a Windows PC, you will need to install the USB-DAC driver. Please refer to the support page.

＜Specifications＞
■Model name: AK HB1
■Body color: Shadow Black
■Body material: Polycarbonate (body) / Aluminum (volume wheel)
■Size (W×H×D): 39.8mm × 68.4mm × 16.5mm
■Weight: Approximately 40g
■Bluetooth version: 5.0
■Bluetooth codec: SBC, AAC, aptX? HD, LDAC
■Bluetooth profile: A2DP, AVRCP, HFP
■DAC: ESS ES9281AC PRO
■Supported sampling rate
・PCM: 384KHz/32bit
・DSD: DSD256(11.2MHz/1bit) Stereo
■Input: USB Type-C (UAC 2.0 / UAC 1.0 switchable)
■Supported OS
・Windows 10, 11 / MAC OS X 10.7 or higher
・Android OS / iOS (smart
