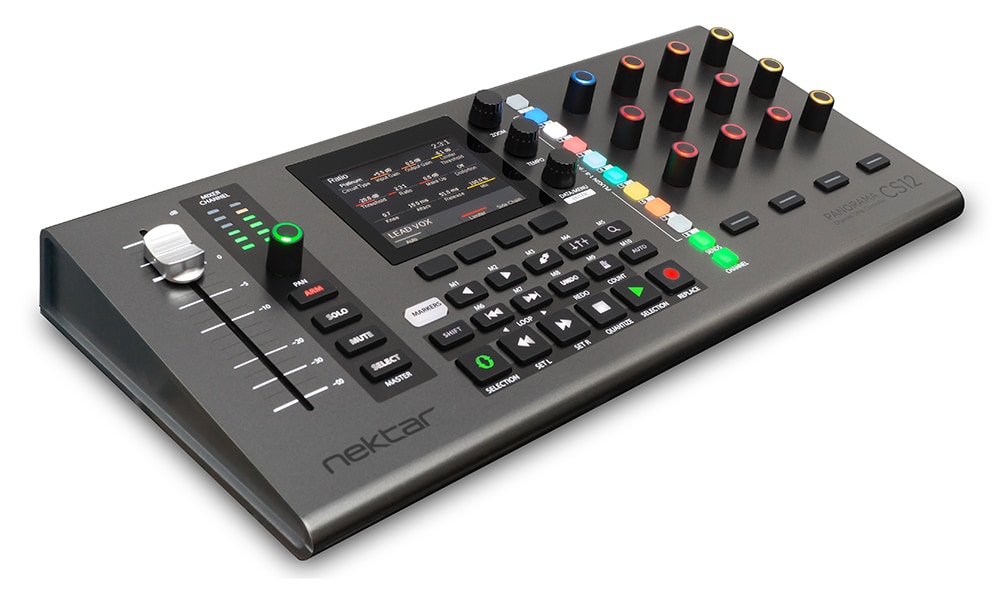

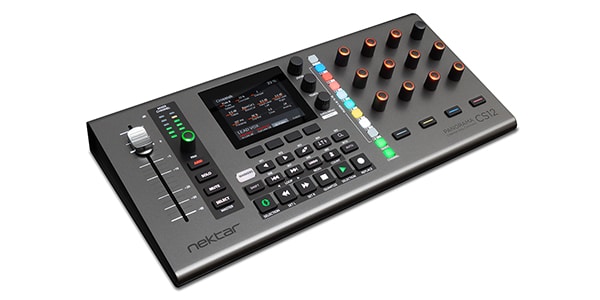

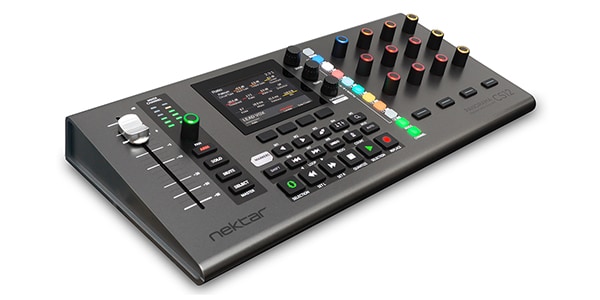

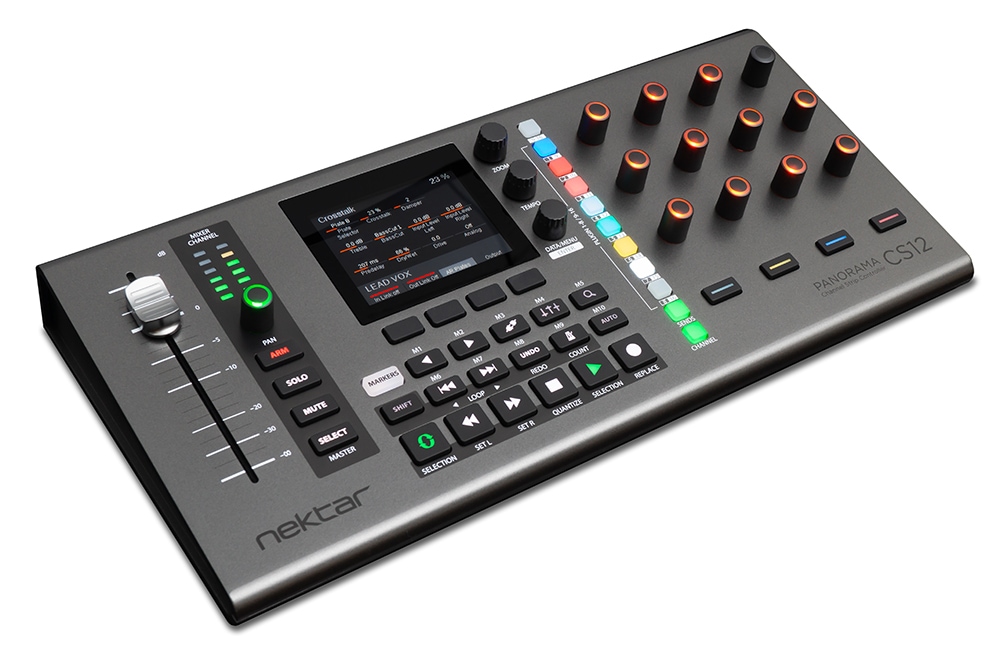

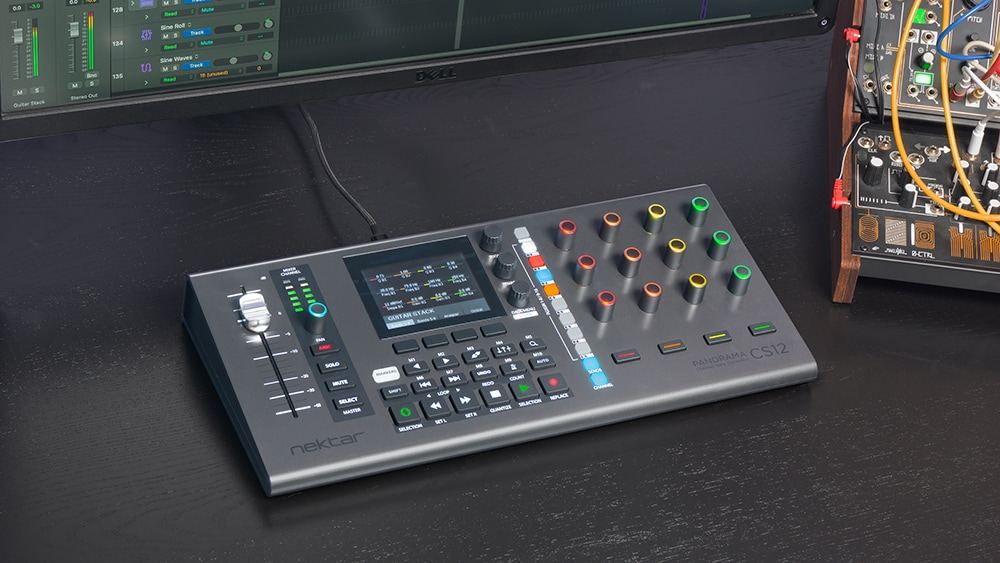

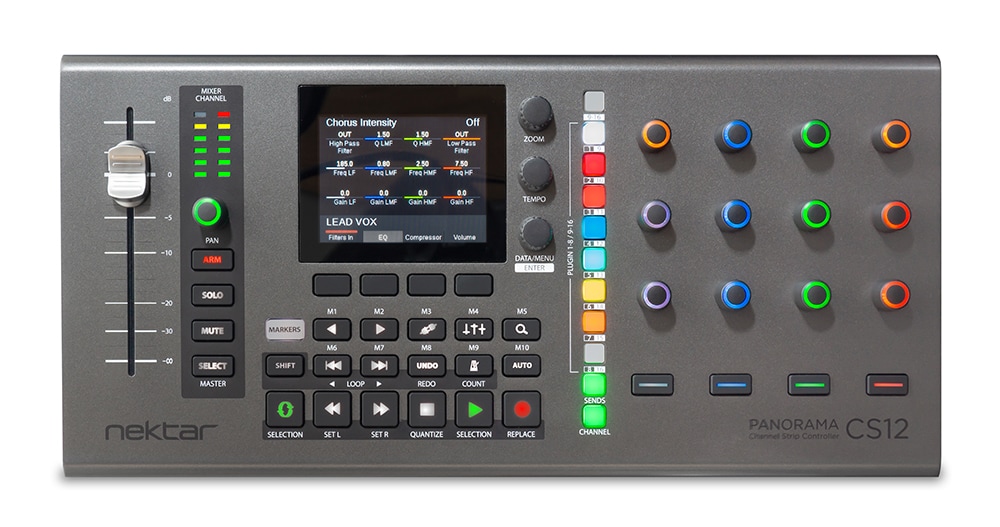

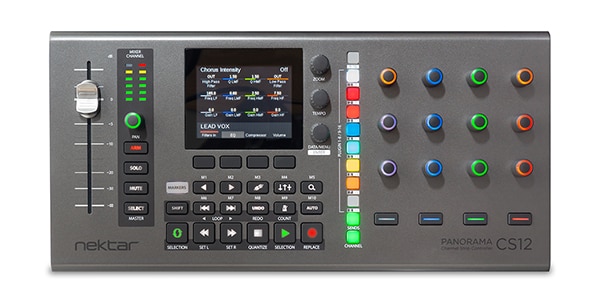

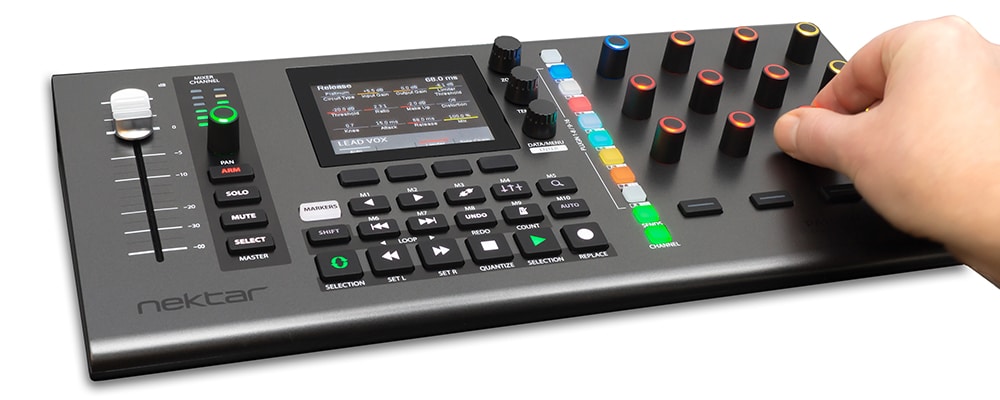

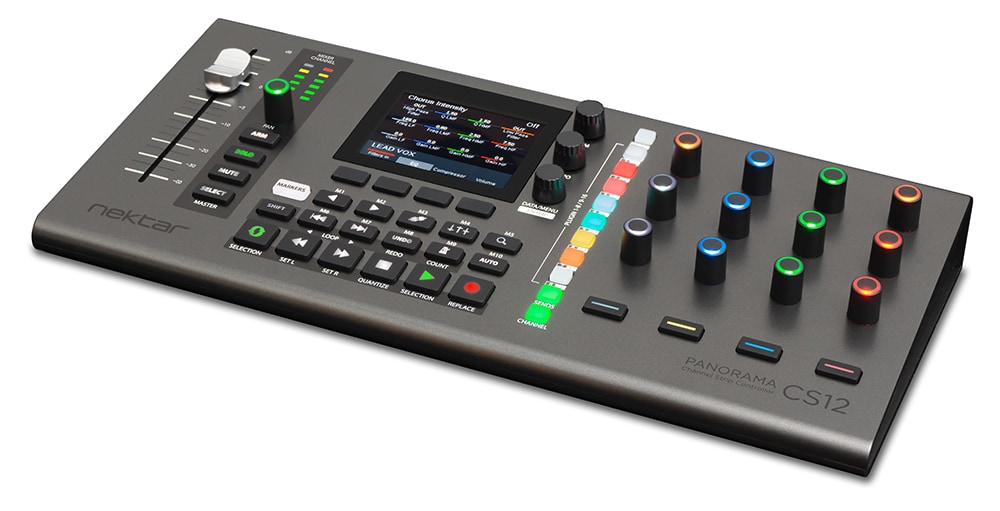

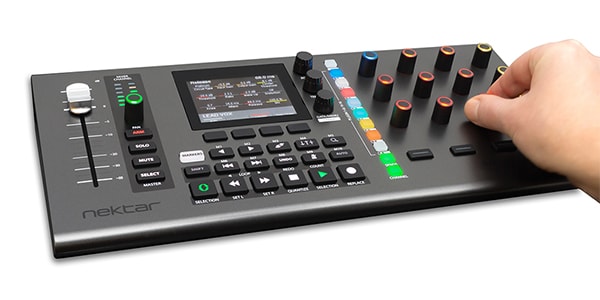

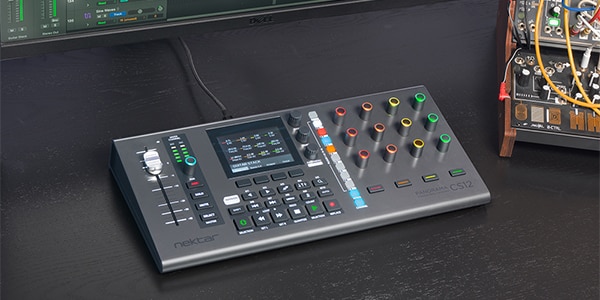

NEKTAR / Panorama CS12

Panorama CS12 provides full control over all Logic Pro / Cubase / Nuendo channel strip parameters, including plug-ins. Panorama CS12 doesn't have any run-of-the-mill features. The entire workflow has been designed from the ground up, delivering amazing functionality with a workflow never before seen on a control surface.

■DAW controller
■For Logic Pro / Cubase / Nuendo

■Highlights
-Long-throw 100 mm motorized fader with up to 14-bit control resolution
-Touch the fader to insert volume and automation points at the current playback position
Dedicated pan control with channel color lighting, arm, mute and solo
Option to click and adjust any parameter in the selected channel, including plug-ins, using the fader or pan controls
・Advanced direct insert plug-in control compatible with both AU and Logic Pro (including insert effects)
・Can control up to 12 transmissions per channel
Control your instrument via selected parameters, SmartControl, or the Logic Pro Learn User Page
- 11 colored illuminated buttons for selecting plug-in slots, sends and channel menus
・Fine adjustment is possible up to 10 times the normal resolution (14 bits)
・Zoom and tempo control
- Access 26 different functions (transport, navigation, Logic Pro functions)

■Main specifications
・100mm ALPS motor fader
・4 RGB LED control buttons
・6 segment LED meter
・3.5 inch TFT color display
・4 display buttons
・4 channel strip LED buttons
・18 function and navigation LED buttons
・Two encoders for zoom and tempo
・Encoder with push button for data/menu
・13 RGB LED illuminated multi-turn potentiometers
・11 RGB LED buttons for selecting channel strip sections

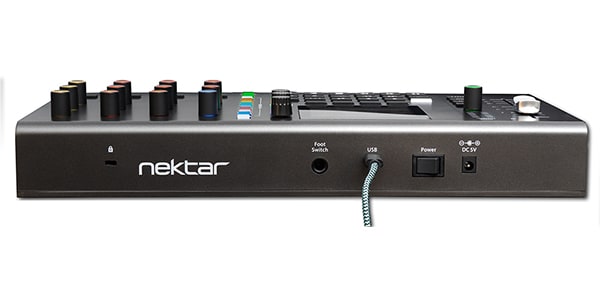

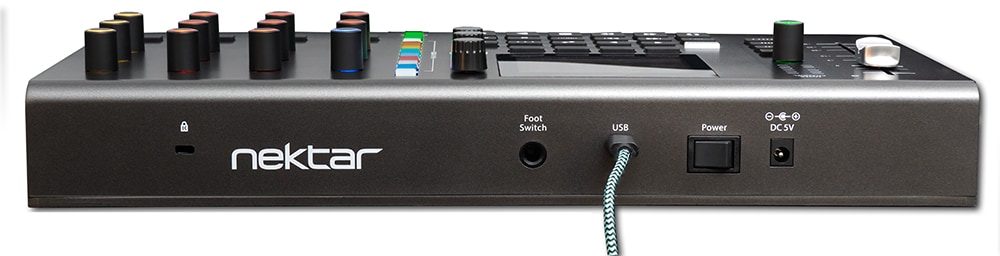

- 1/4"" TRS footswitch socket for basic hands-free DAW control
- Connect up to 2 foot switches using TRS to TS Y cable splitter
・39 cm (L) x 18.5 cm (W) x 6.5 cm (H), 0.49 kg
・Contents: PANORAMA CS12, quick start guide, USB A-C cable

■System requirements
For the latest system requirements, please refer to manufacturer site product page .

Specifications are subject to change without notice.
