DJI / DJI Osmo Pocket 3

This gimbal camera is equipped with a powerful 1-inch CMOS sensor and a 2-inch rotary touch screen that records every detail!

■1 inch CMOS pocket gimbal camera


[Specs]
■Number of microphones: 3
■Touch screen:
・Size: 2.0 inches
・Resolution: 314x556
・Brightness: 700 nits
■Supported SD card: microSD (maximum 512GB)

■Recommended microSD card:
Recommended model:
SanDisk Extreme Pro 32GB V30 A2 UHS-I Speed ​​Class 3
Kingston Canvas Go!Plus 64GB UHS-I Speed ​​Class 3
Kingston Canvas Go!Plus 128GB UHS-I Speed ​​Class 3
Kingston Canvas React Plus 64GB UHS-II Speed ​​Class 3
Kingston Canvas React Plus 128GB UHS-II Speed ​​Class 3
Kingston Canvas React Plus 256GB UHS-II Speed ​​Class 3
Lexar Pro 256GB SDXC UHS-I V30 R160/W120 (1066x)
Lexar Pro 512GB SDXC UHS-I V30 R160/W120 (1066x)
■Size: 139.7x42.2x33.5mm (length x width x height)
■Weight: 179 g

[Gimbal]
■Operable range:
Pan: -235° ? 58°
Tilt: -120° to 70°
Roll: -45° to +45°
■Mechanical range of motion:
Pan: -240° ? 63°
Tilt: -180° to 98°
Roll: -220° ~ 63°
■Maximum movement speed: 180.0°/s
■Angle blur range: ±0.005°

【camera】
■Sensor: 1 inch CMOS sensor
■Lens:
Focal length: 20 mm (35mm format equivalent)
Aperture: f/2.0
Focus range: 0.2 m ∞
■ISO sensitivity:
Photo: 50?6400
Video: 50?6400
Low light video: 50-16000
■Electronic shutter speed:
Photo: 1/8000 second to 1 second
Video: 1/8000 seconds to 1/X seconds (X: frame rate setting value)
■Maximum still image size:
16:9, 3840x2160
1:1, 3072x3072
■Zoom:
digital zoom
Photo: 3840x2160, 2x
Video: 1080p, 4x; 2.7K, 3x; 4K, 2x
UVC (USB Video Class) & Live streaming: 1080p, 4x
Slow motion/time lapse: Not available
■Still image mode:
Single shot: approx. 9.4 MP
Countdown: Off/3/5/7 seconds
Panorama: 180°, 3x3
■Normal video shooting:
4K (16:9): 3840x2160@24/25/30/48/50/60fps
2.7K (16:9): 2688x1512@24/25/30/48/50/60fps
1080p (16:9): 1920x1080@24/25/30/48/50/60fps
3K (1:1): 3072x3072@24/25/30/48/50/60fps
2160p (1:1): 2160x2160@24/25/30/48/50/60fps
1080p (1:1): 1080x1080@24/25/30/48/50/60fps
3K (9:16): 1728x3072@24/25/30/48/50/60fps
2.7K (9:16): 1512x2688@24/25/30/48/50/60fps
1080p (9:16): 1080x1920@24/25/30/48/50/60fps
■Slow motion:
4K (16:9): 3840x2160@120fps
2.7K: 2688x1512@120fps
1080p: 1920x1080@120/240fps
■Hyperlapse: 4K/2.7K/1080p@25/30fps: Auto/2x/5x/10x/15x/30x
■Time lapse:
4K/2.7K/1080p@25/30fps
Interval: 0.5/1/2/3/4/5/6/8/10/15/20/25/30/40/60 seconds
Shooting time: 5/10/20/30 minutes, 1/2/3/5 hours, ∞
■Motion lapse:
4K/2.7K/1080p@25/30fps
Interval: 0.5/1/2/3/4/5/6/8/10/15/20/25/30/40/60 seconds
Shooting time: 5/10/20/30 minutes, 1/2/3/5 hours
Supports 4 position settings
■Low light video:
4K (16:9): 3840x2160@24/25/30fps
1080p: 1920x1080@24/25/30fps
■Maximum video bitrate: 130 Mbps
■Supported file system: exFAT
■Photo format: JPEG/RAW
■Video format: MP4 (H.264/HEVC)
■Built-in storage capacity: This camera does not have built-in storage, and images are recorded using an inserted microSD card.
■Audio output: 48 kHz 16-bit, AAC

【battery】
■Type: LiPo
■Capacity: 1300mAh
■Electricity: 10.01 Wh
■Voltage: 7.70V
■Device temperature: 0℃~40℃
■Charging temperature range: 5℃~45℃
■Operating time: 166 minutes
Measured in a room temperature environment of 25℃, with 1080p/24fps (16:9) video recording, Wi-Fi off, and screen off. This data is for reference only.
■Charging time: 16 minutes (charging to 80%), 32 minutes (charging to 100%) Measured in a lab environment using a DJI 65W PD standard compatible charger (sold separately).

【connection】
■Wi-Fi operating frequency:
2.400~2.4835GHz
5.150~5.250GHz
5.725 to 5.850 GHz (only 2.4 GHz band can be used in Japan)
■Wi-Fi protocol: 802.11 a/b/g/n/ac
■Wi-Fi transmission power (EIRP):
2.4 GHz:
< 23 dBm (FCC)
< 20 dBm (CE/SRRC/MIC (Japan))
5.1 GHz:
< 23 dBm (FCC/SRRC)
<20 dBm (CE)
5.8GHz:
< 23 dBm (FCC/SRRC)
< 14 dBm (CE)
■Bluetooth operating frequency: 2.400 to 2.4835 GHz
■Bluetooth transmission power (EIRP): < 14 dBm
■Bluetooth protocol: BLE 5.2, BR/EDR

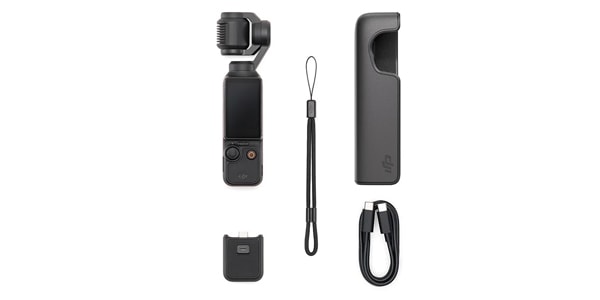

[Set contents]
Osmo Pocket 3x 1
PD standard compatible cable (Type-C-Type-C) x1
Osmo Pocket 3 Protective Cover x 1
DJI wrist strap x 1
Osmo Pocket 3 Handle (1/4 inch screw hole x1)

This product is warranted only against initial defects.
Separate manufacturer warranty plans are available, so please contact us.
