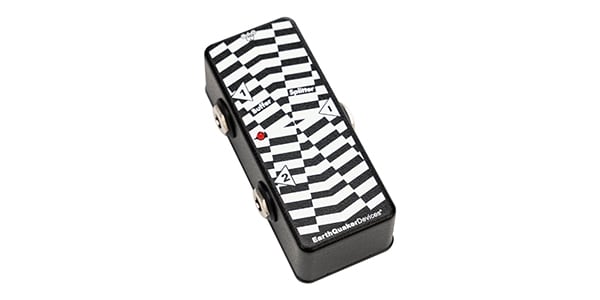

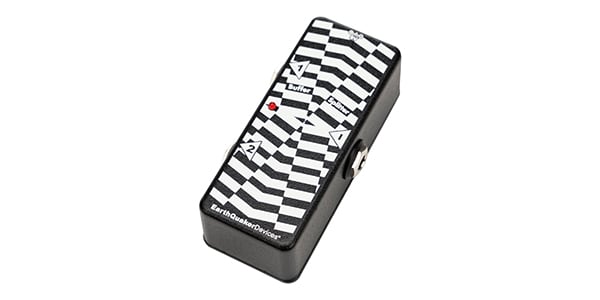

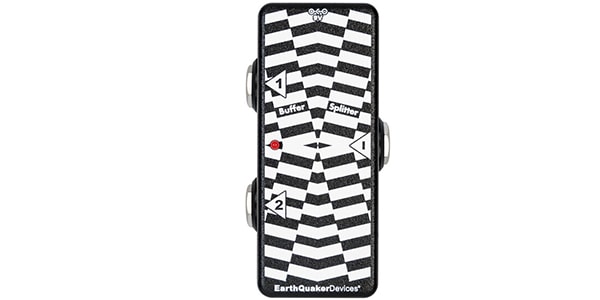

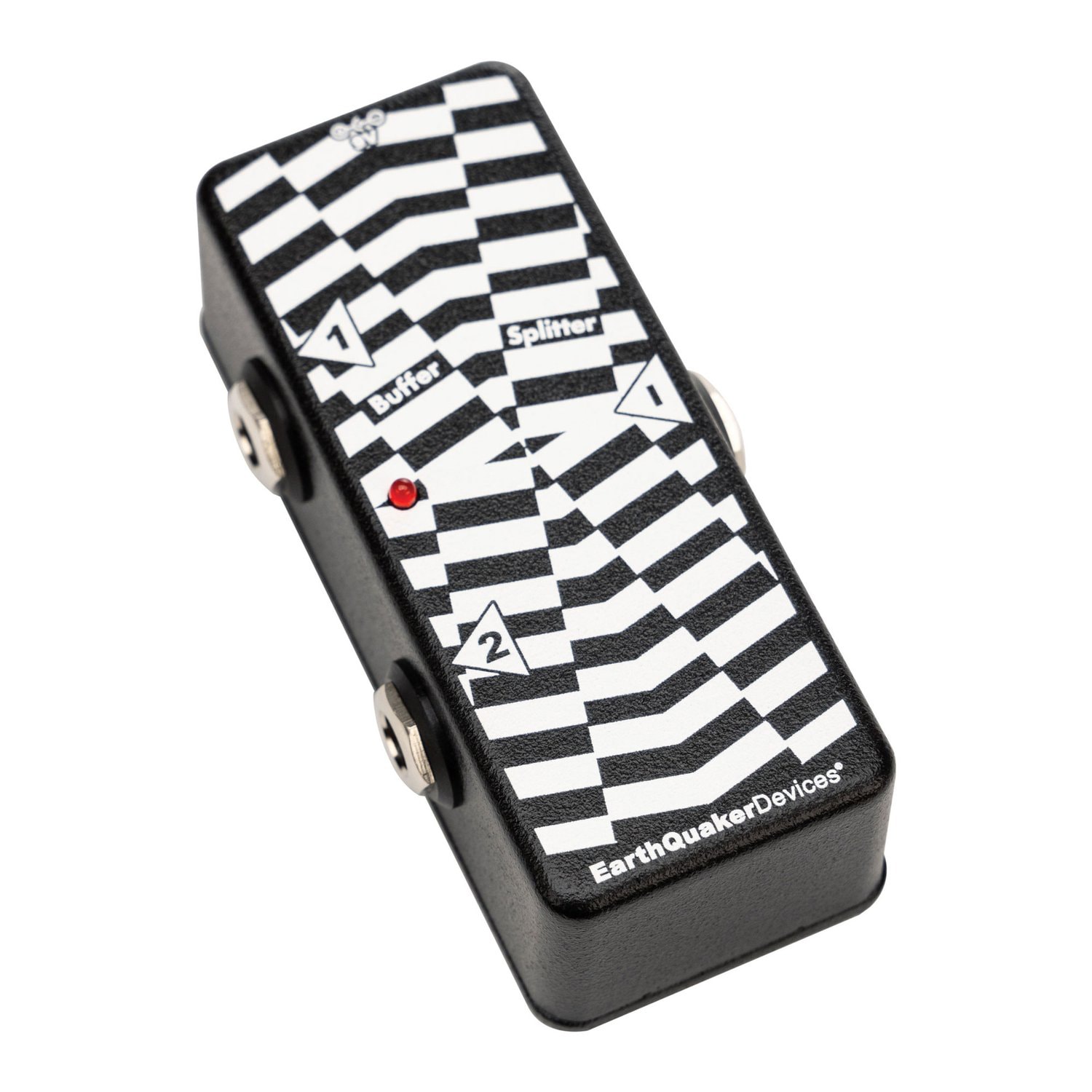

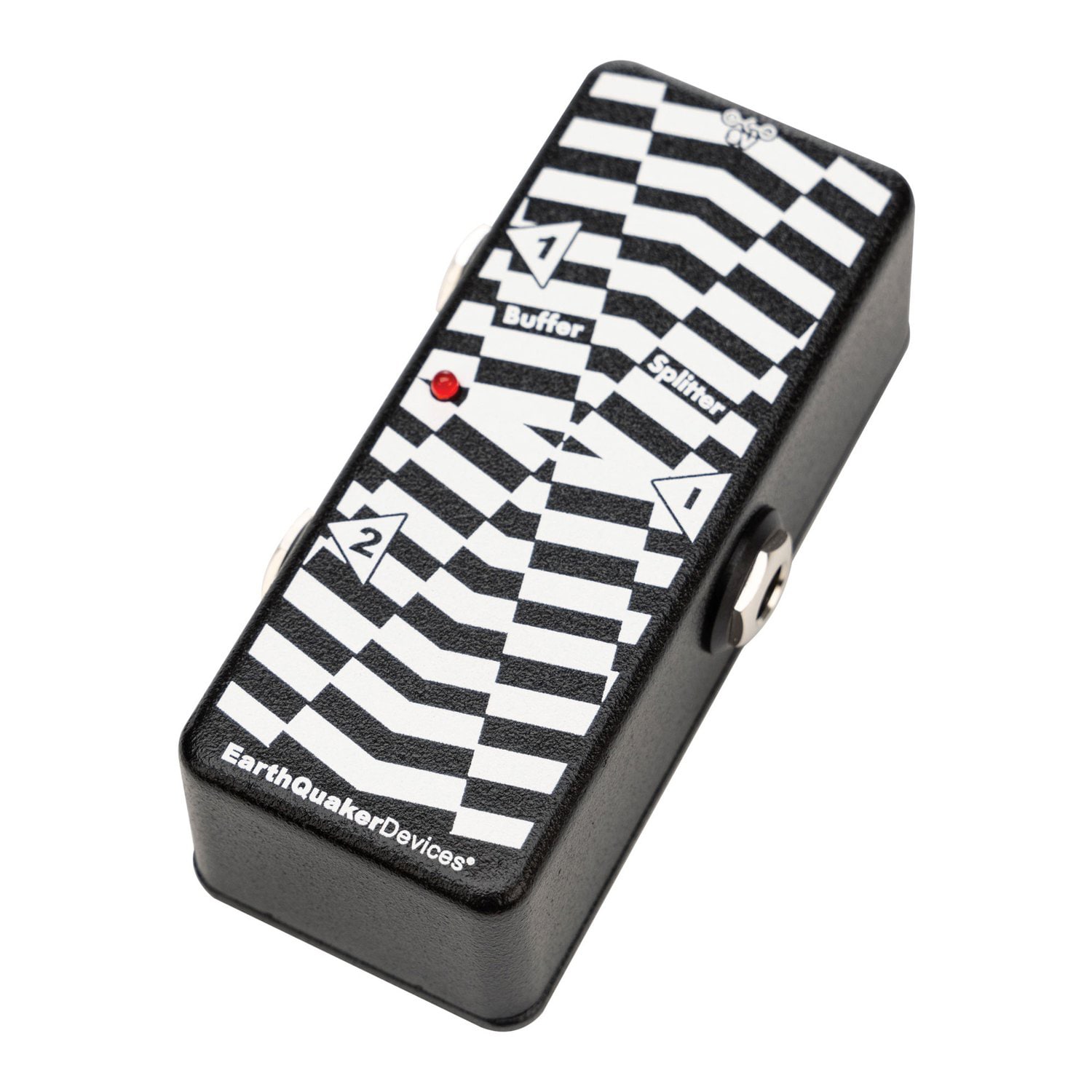

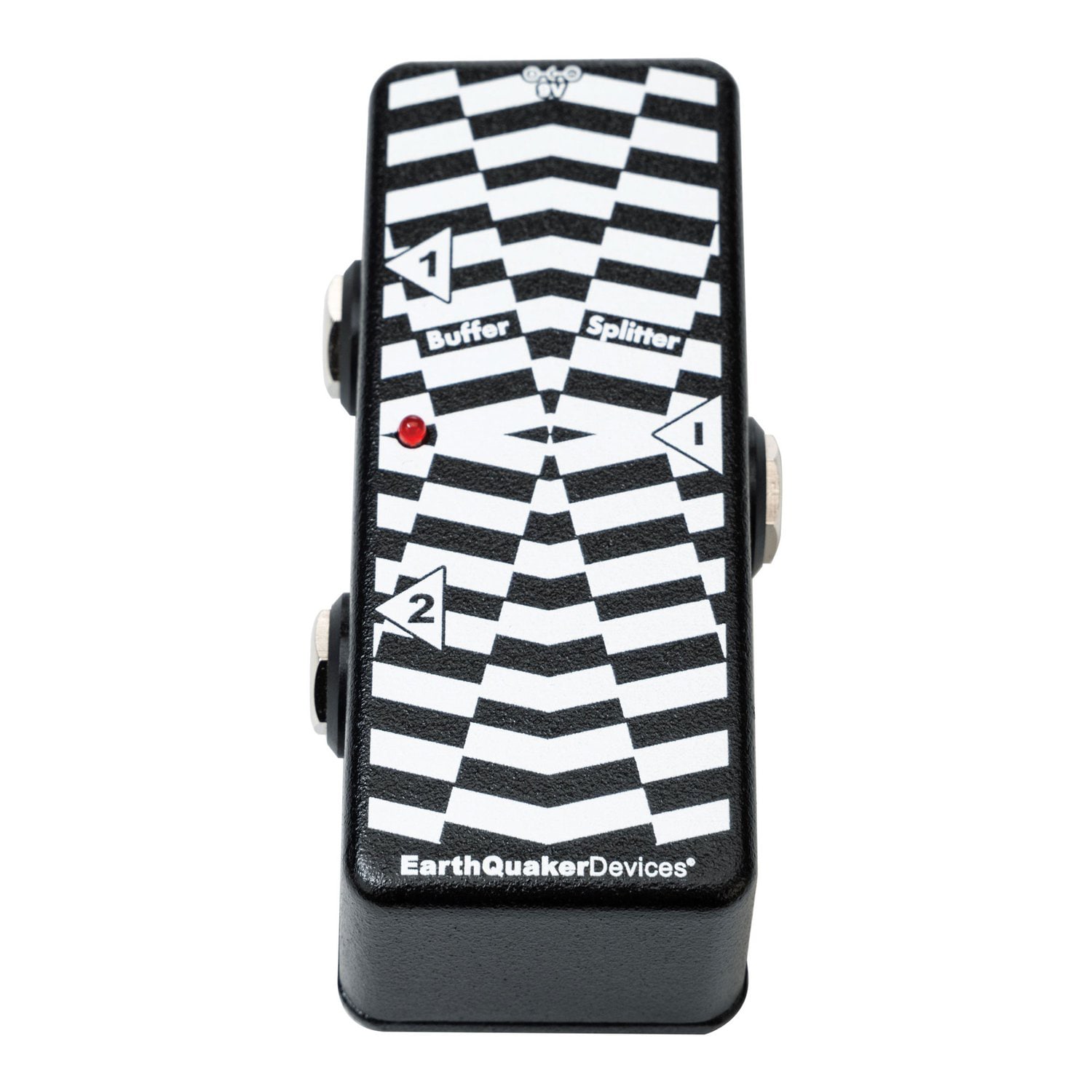

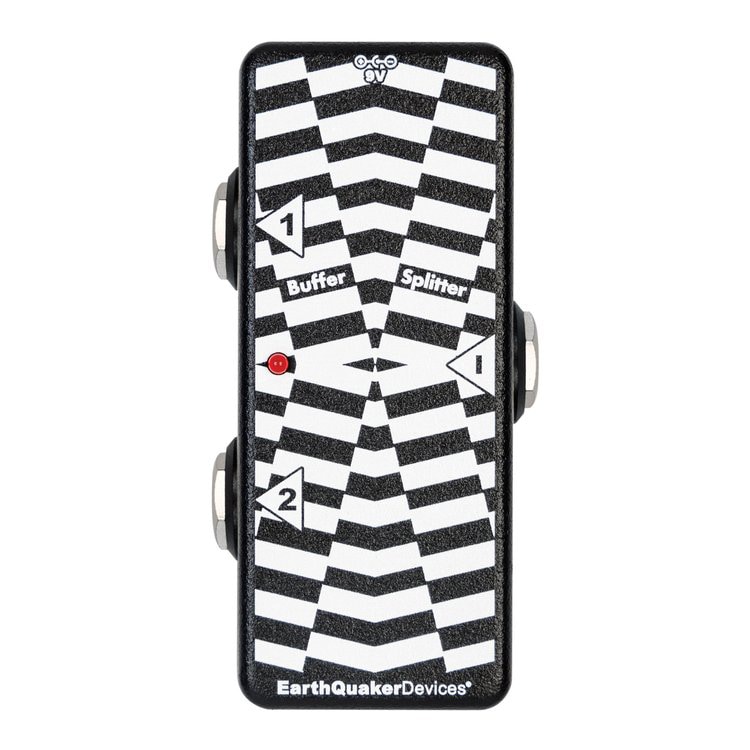

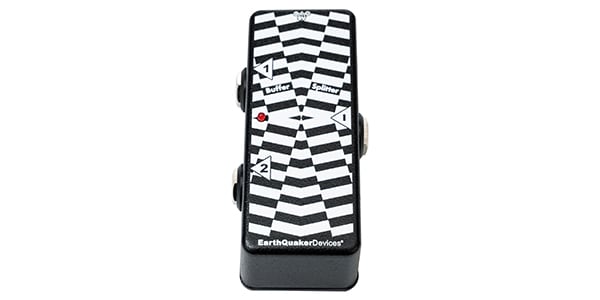

EARTHQUAKER DEVICES / Buffer Splitter

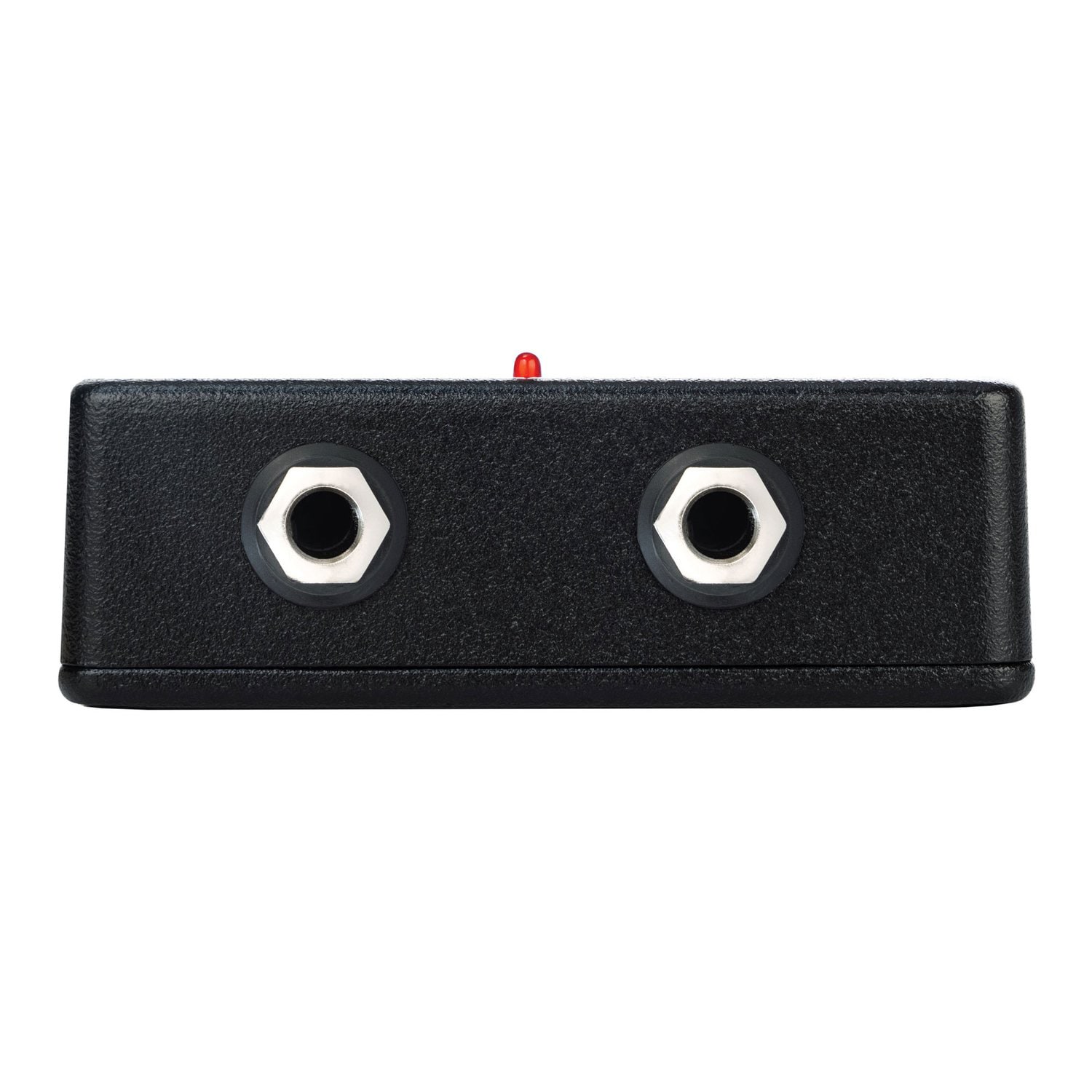

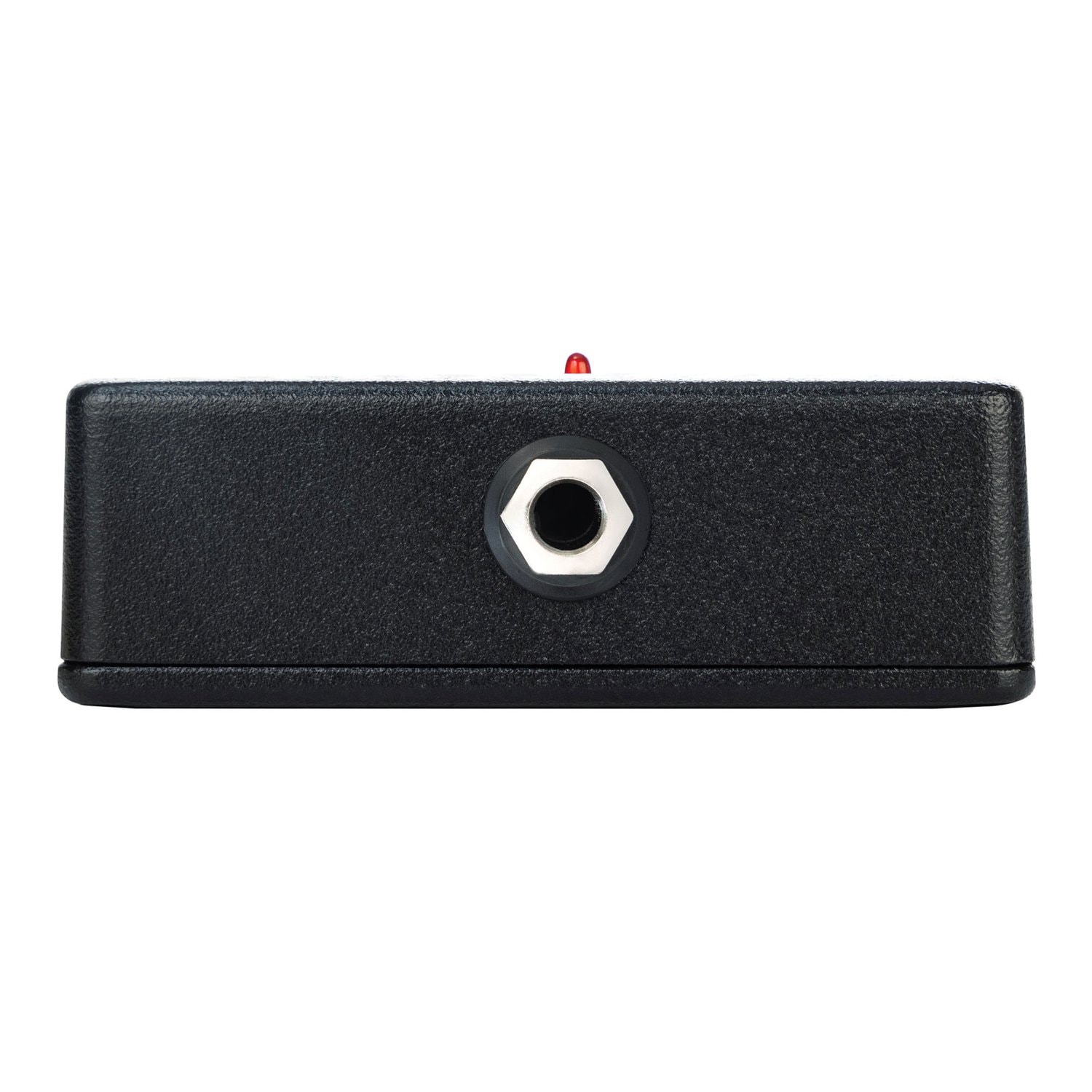

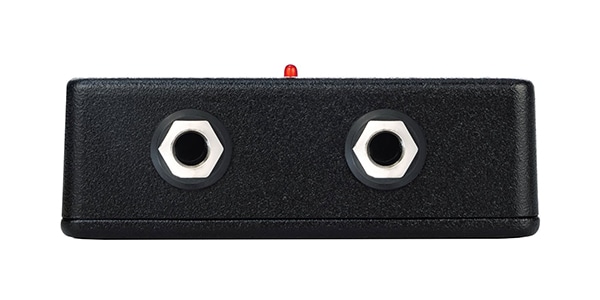

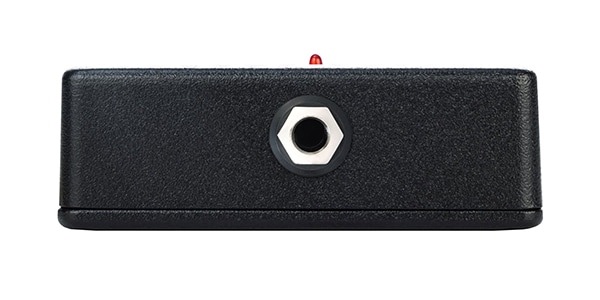

Like the buffer preamp, the input impedance is set to 1MΩ and the output impedance is set to 100Ω, which not only protects the high frequency range but also stabilizes the low frequency range, giving the signal a sense of dynamism. The signal that has passed through the buffer is split into two routes.

■SPECS
Dimensions: 94 x 46 x 46 mm
Current consumption: 15 mA
Input impedance: 1 MOhm
Output impedance: 100 Ohm
power supply:

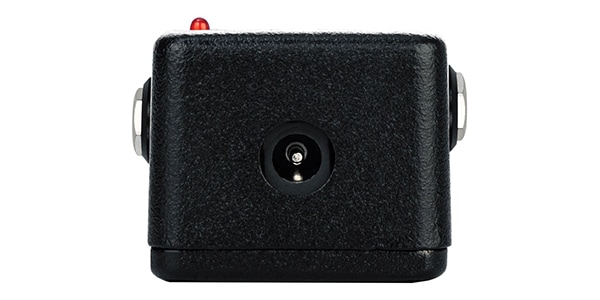

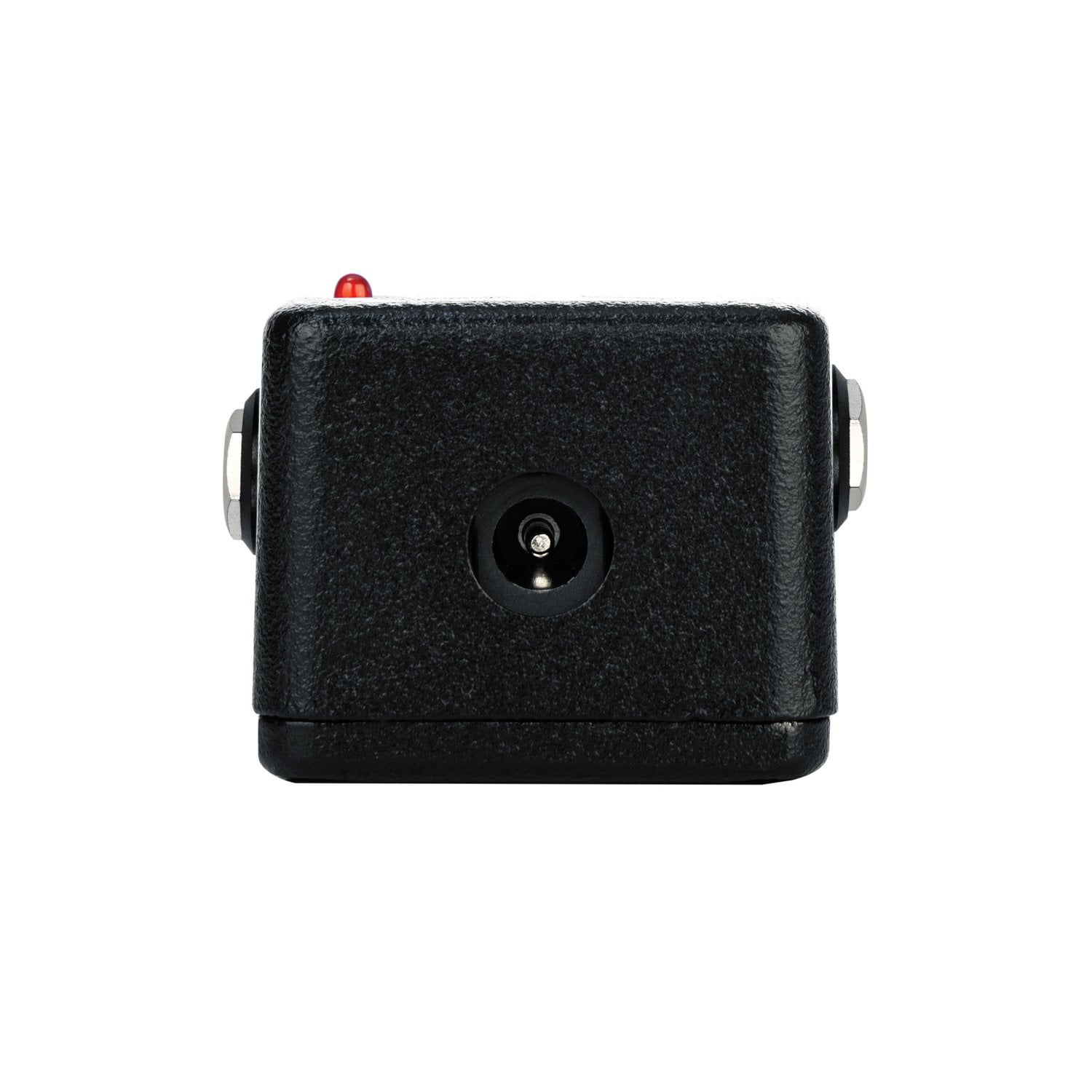

This product can be used with a 9V AC adapter and a 2.1mm center negative adapter. We do not recommend using daisy chains or non-transformer power adapters as they may generate noise. Also, please do not use a power supply exceeding 9V as this may cause a malfunction!
