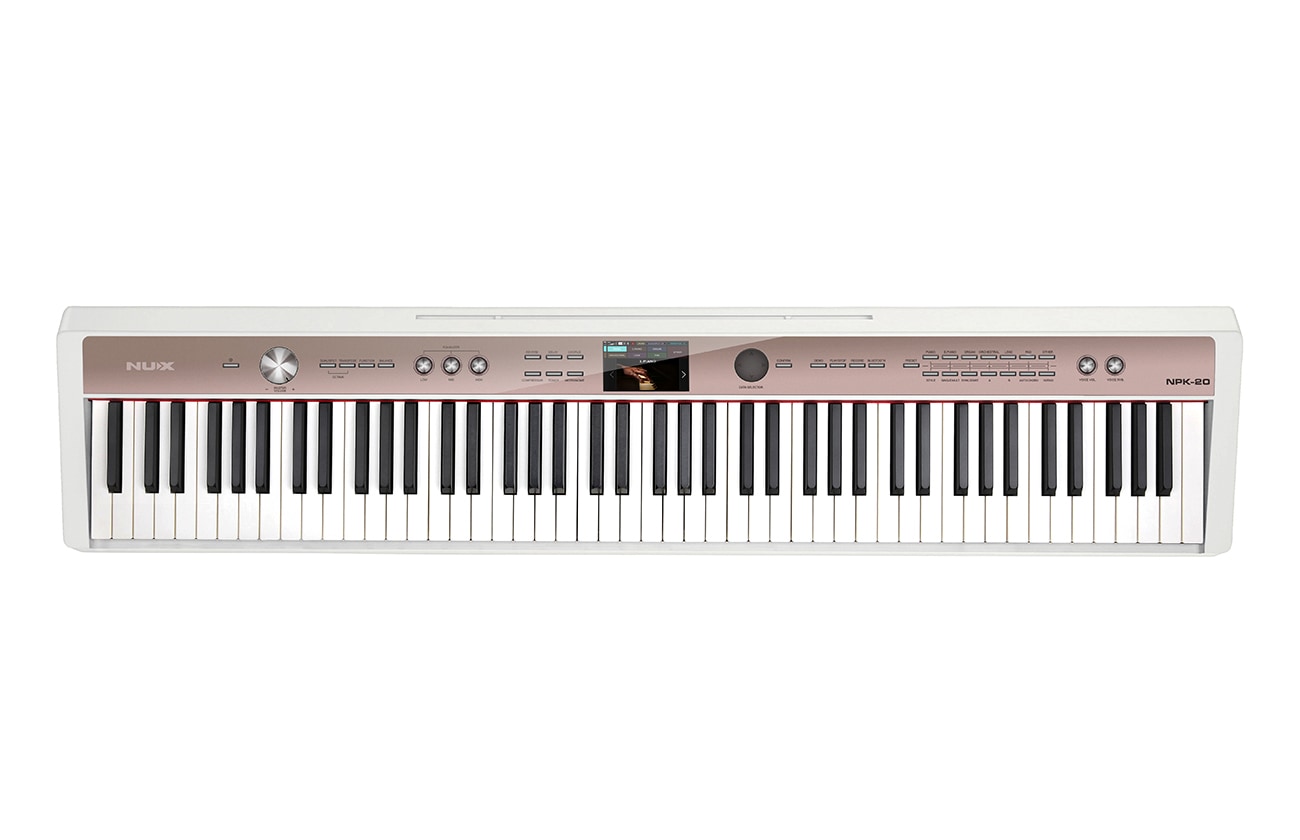

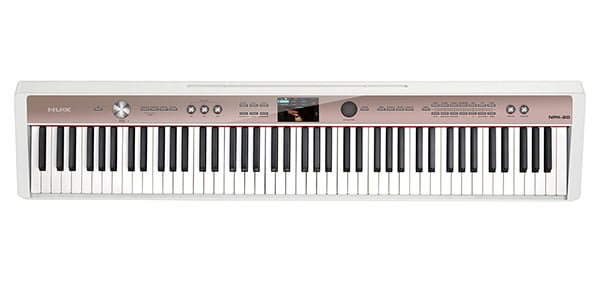

NUX / NPK-20 WHITE

Based on the sound and feel of the NPK-10, the NPK-20 further optimizes the NUX WKJ-03 keyboard for a more natural feel, with professional effects based on advanced audio processing technology, plus a dynamic microphone input for a perfect performance solution.

The feeling of a grand piano within reach
We adopt the WKJ-03 triple sensor graded hammer action weighted keyboard (with escapement, synthetic ivory and ebony key tops) and further optimize the key touch curve and sound design. As for the key touch, more professional processing has been given in terms of down force, rebound recognition, legato recognition, etc. The escapement feeling and the balance between black and white keys are also more uniform. In addition, the NPK-20 has added a key noise reduction design.

Dynamic and rich sound
We achieved this goal by sampling a German-made 9-foot grand piano, which is delicate and expressive. Not limited to just one sound, the NPK-20 contains a total of 271 high-quality sounds, which are divided into seven groups on the top panel. Every sound has been carefully processed and optimized, resulting in a powerful and rich timbre selection. You can intuitively select and layer sounds on the panel, such as layering piano sounds with orchestral ambient sounds.

Microphone Input and Reverb

You can play and sing by simply connecting a dynamic microphone to the MIC input with adjustable gain control, and the microphone's onboard reverb effect makes it ideal for live performances.

Professional Effects and EQ

Professional effects such as 4 types of reverb (Hall, Plate, Room, Studio), 4 types of compressor (Soft, R&B, Lyric Piano, Standard Piano), Chorus, Delay, etc. are installed. You can freely combine various effects, set your own parameters, and call them up at any time.

Reverb: Pre-delay, Size, Reverb Time, Diffusion, Output Level

Compressor: Ratio, Attack, Release, Threshold, Boost

Chorus: HPF, LPF, Depth, Level

Delay: Time Delivery, Feedback, H Dump, Level

Auto Accompaniment

The included auto accompaniment function allows you to control a band in different styles using single/multi-finger chords. You can achieve professional live performance by selecting A/B variations and adding intros and endings. Disabling auto chords changes the accompaniment style to drum machine, expanding your performance possibilities even further.

Bluetooth Audio and MIDI
To stream music, simply connect via Bluetooth audio. You can also connect the NPK-20 to educational apps via Bluetooth MIDI. The NPK-20 comes with a free app, Piano Mate, which offers a wide range of sheet music. It is also compatible with other third-party apps.

Specifications
Keyboard
- 88-key NUX WKJ-03 keyboard (upgraded)
- Triple sensor scale hammer action weighted keyboard with escapement and synthetic ebony/ivory key tops
- Touch sensitivity: 5 levels

Sounds and effects
- Sounds: 271 high-quality sounds (7 groups)
- Tone brightness: 5 levels
- Layered sounds: Yes (mix balance adjustable)
- Split keyboard: Yes (split point adjustable, individual octave shift and tone selection)
- Maximum polyphony: 108
- Compressor: 4 types (soft, R&B, lyric piano, standard piano), 5 parameters (ratio, attack, release, threshold, boost)
- Reverb: 4 types (hall, plate, room, studio), 5 parameters (pre-delay, size, reverb time, diffusion, output level)
- Chorus: 4 parameters (HPF, LPF, Depth, Level)
- Delay: 4 parameters (Time Delay, Feedback, H-Dump, Level)
- Equalizer: 9 bands

Accompaniment and Microphone
- Microphone: Dynamic microphone input (XLR & 6.35mm combo jack), Gain control, Volume, Reverb
- Auto Accompaniment: 100 styles (Auto Chord, Single/Multi Fingering, Sync Start, A/B Variation, Intro/Ending)

Features
- Transpose: -6 to +5 in semitones
- Octave Shift: -1 to +1 octave
- Demo Songs: 100
- Metronome: 9 beats, 3 sounds, 20 to 280 bpm
- Songs: 5 songs
- User Presets: 7 memory banks
- Auto Sleep: Yes
- Bluetooth: Bluetooth MIDI, Bluetooth Audio

Connectivity and Speakers

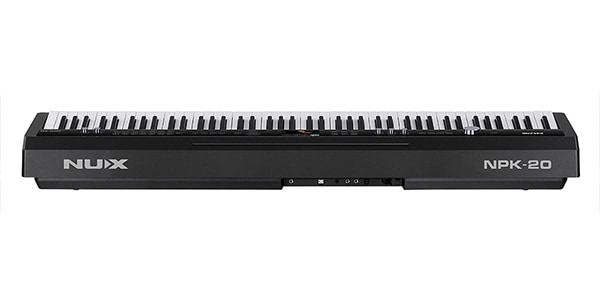

- USB MIDI, AUX IN, LINE OUT (L/MONO, R), 3.5mm stereo phone output x 2, damper pedal (included), pedal unit (optional), microphone input

- Amplifier and speaker: 10W x 2, 3"x6" oval speaker x 2

- Display: TFT LCD 800x480dpi

Power supply

- DC 12V/2A

Size and weight

- Dimensions: 1300mm x 270mm x 130mm

- Weight: 12.2kg (including music stand)

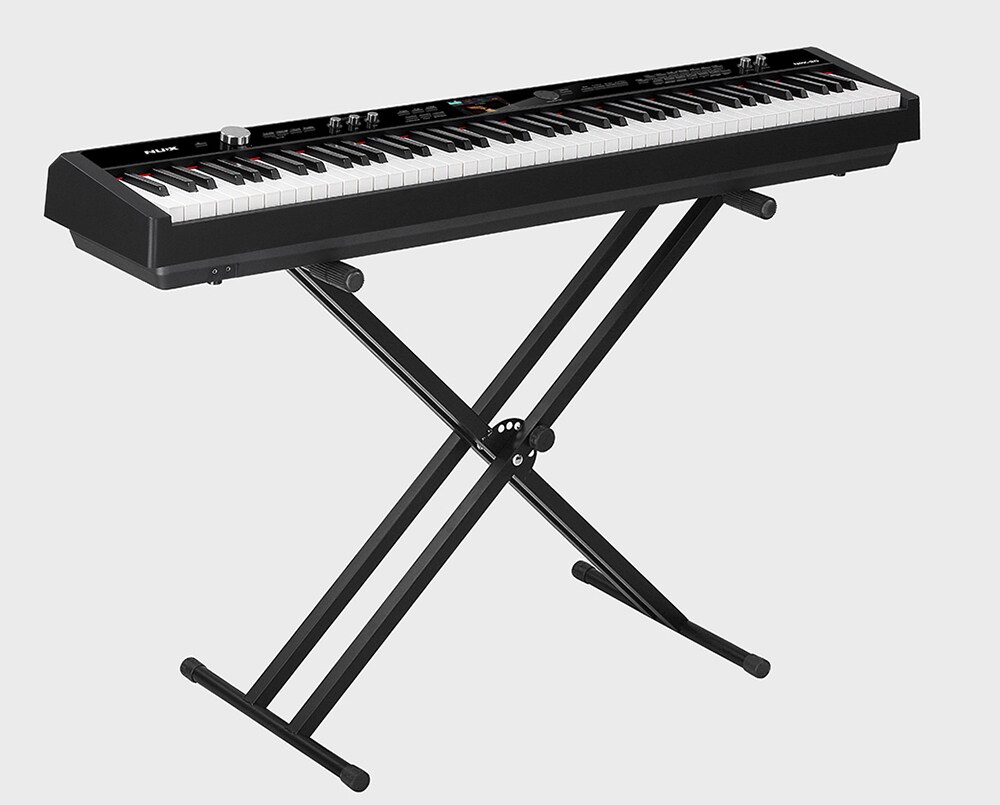

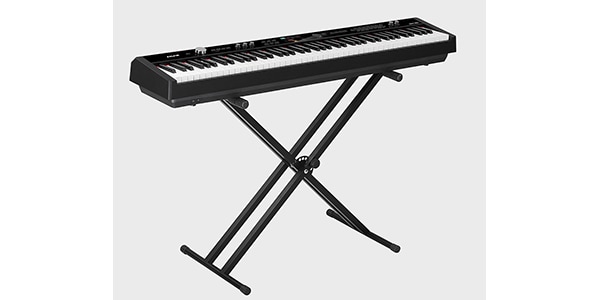

*Note: Piano stand is not included.
